Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

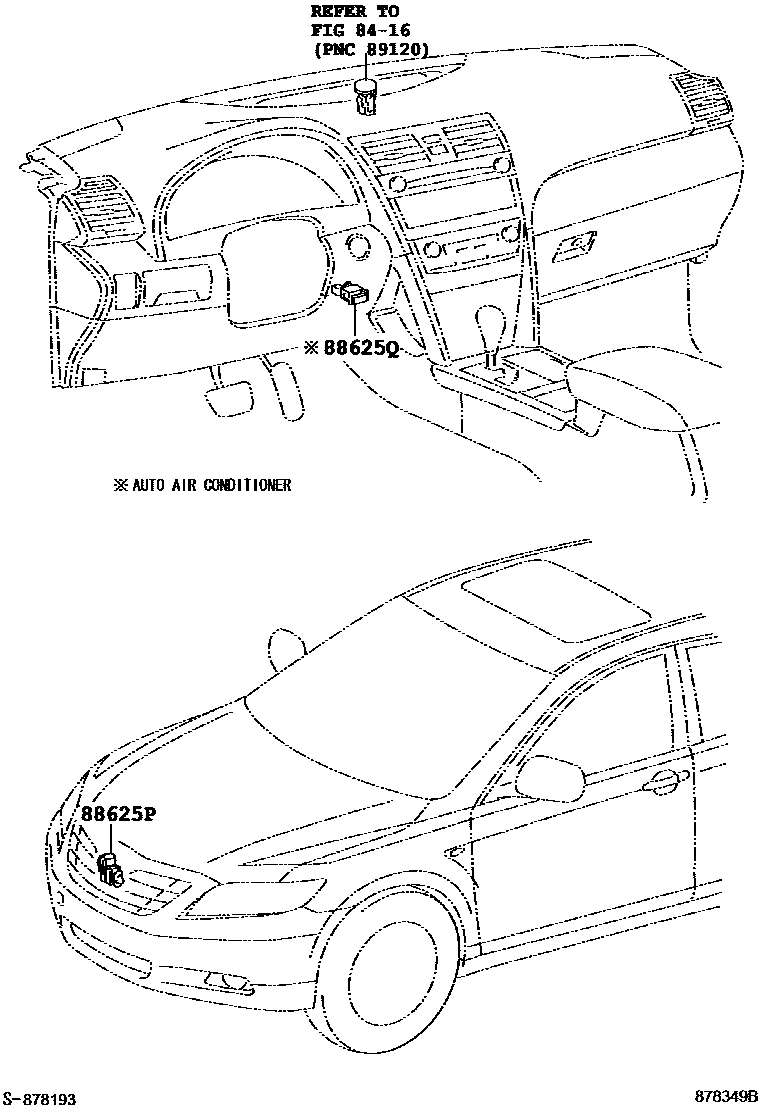

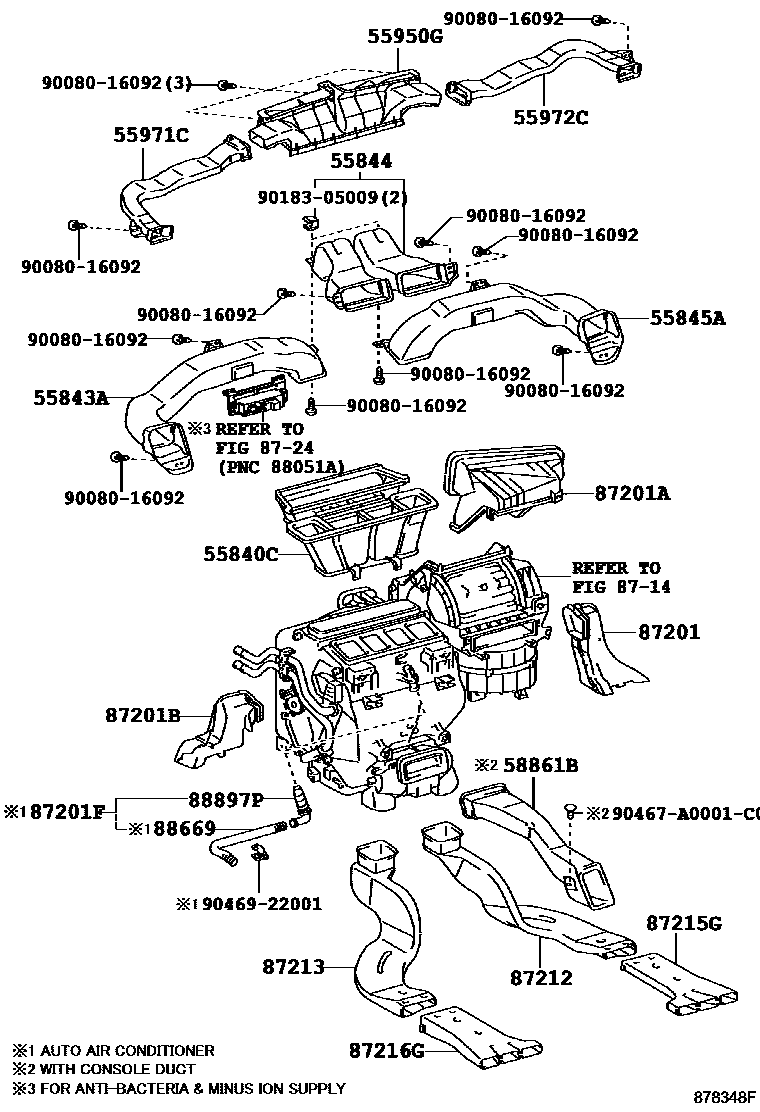

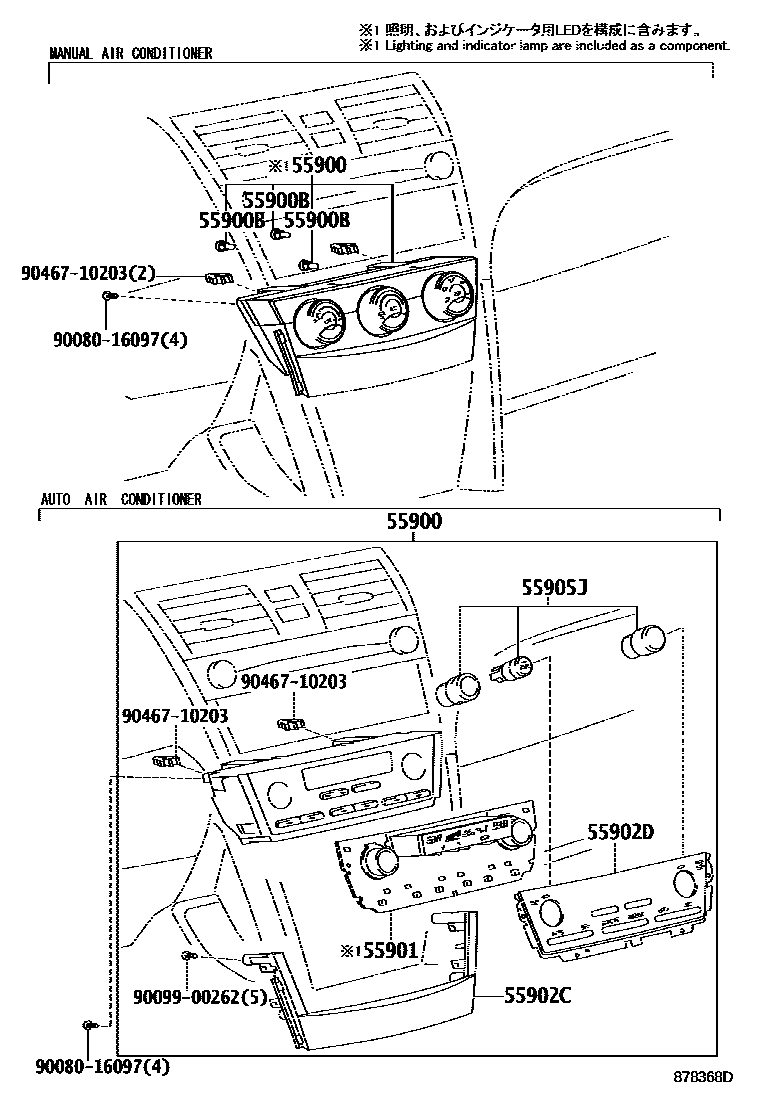

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06010 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06070 · 55843-06071 · 55843-06080 · 55843-06081 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06060 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06040 |
| 55900 | Air conditioning control assembly | 55900-06161 · 55900-06162 · 55900-06171 · 55900-06172 · 55900-06280 · 55900-06290 |
| 55900B | air conditioning control light bulb | 84999-06040 |
| 55901 | Heater controller base sub-assembly | 55901-06050 · 55901-06080 · 55901-06110 |
| 55902C | Air conditioning panel sub-assembly | 55902-06180 |
| 55902D | Air conditioning panel sub-assembly | 55902-06190 |
| 55905J | Control button sub-assembly | 55905-06190 · 55905-06210 |
| 55950G | Defroster nozzle assembly | 55950-06050 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06030 · 55971-06031 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06030 |
| 58861B | Air duct No. 1 for armrest box | 58861-06030 |
| 87201 | No. 1 air duct sub-assembly | 87201-07100 |
| 87201A | Air duct sub-assembly | 87201-06140 |
| 87201B | No. 2 air duct sub-assembly | 87201-07090 |
| 87201F | No. 3 air duct sub-assembly | 87201-07080 |
| 87212 | No. 1 rear air duct | 87212-07040 |
| 87213 | No. 2 rear air duct | 87213-07040 |
| 87215G | Right rear air duct deflector | 87215-07010 |
| 87216G | Left rear air duct deflector | 87216-07010 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88669 | Cooler air hose | 88669-07030 |
| 88897P | aspirator | 88897-07010 |
