Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

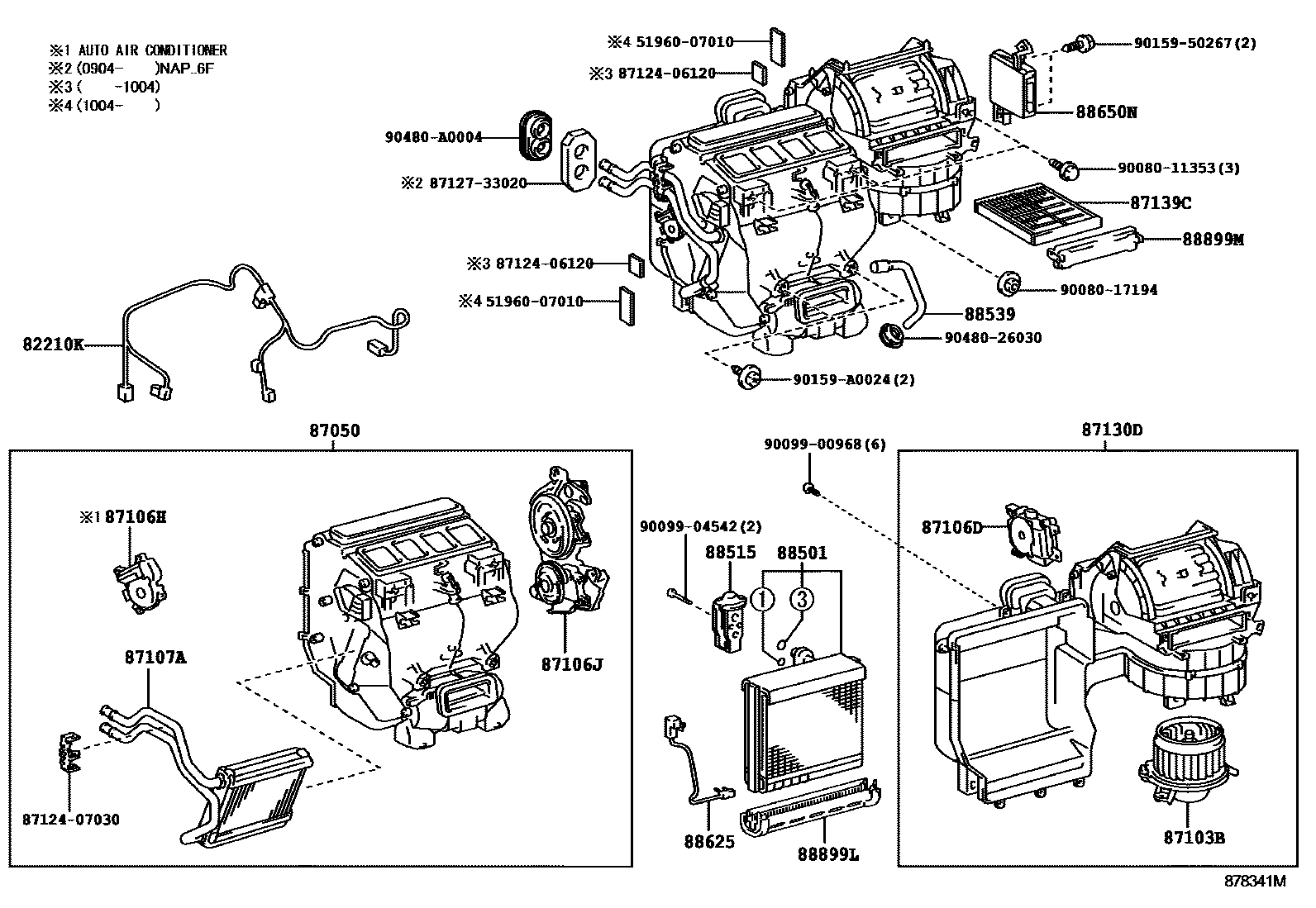

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06110 · 82212-06111 · 82212-06121 · 82212-07010 |
| 87050 | Air conditioning radiator assembly | 87050-06410 · 87050-06510 · 87050-06511 |
| 87103B | Blower motor sub-assembly with fan | 87103-07040 · 87103-0E040 |
| 87106D | No. 1 damper servo mechanism sub-assembly | 87106-07140 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-07120 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-06250 · 87106-07110 |
| 87107A | Heater radiator device sub-assembly | 87107-07030 |
| 87130D | Blower assembly | 87130-07070 · 87130-07071 |
| 87139C | air purification filter | 87139-07010 · 87139-50060 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06110 · 88501-06111 · 88501-06112 · 88501-06113 · 88501-28400 · 88501-48311 |
| 88515 | Cooler expansion valve | 88515-07030 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-06120 · 88539-06121 |
| 88625 | Cooler No. 1 Thermistor | 88620-06020 · 88625-41030 |
| 88650N | Air conditioning amplifier assembly | 88650-06110 · 88650-06111 · 88650-06120 · 88650-06121 · 88650-06130 · 88650-06131 · 88650-06140 · 88650-06141 · 88650-06310 · 88650-06320 · 88650-06321 · 88650-06330 · 88650-06340 · 88650-06341 |
| 88899L | Cooling unit parts | 88899-06100 |
| 88899M | cover (for air cleaner) | 88899-07010 |
