Toyota CAMRY antenna — Figure 8604

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

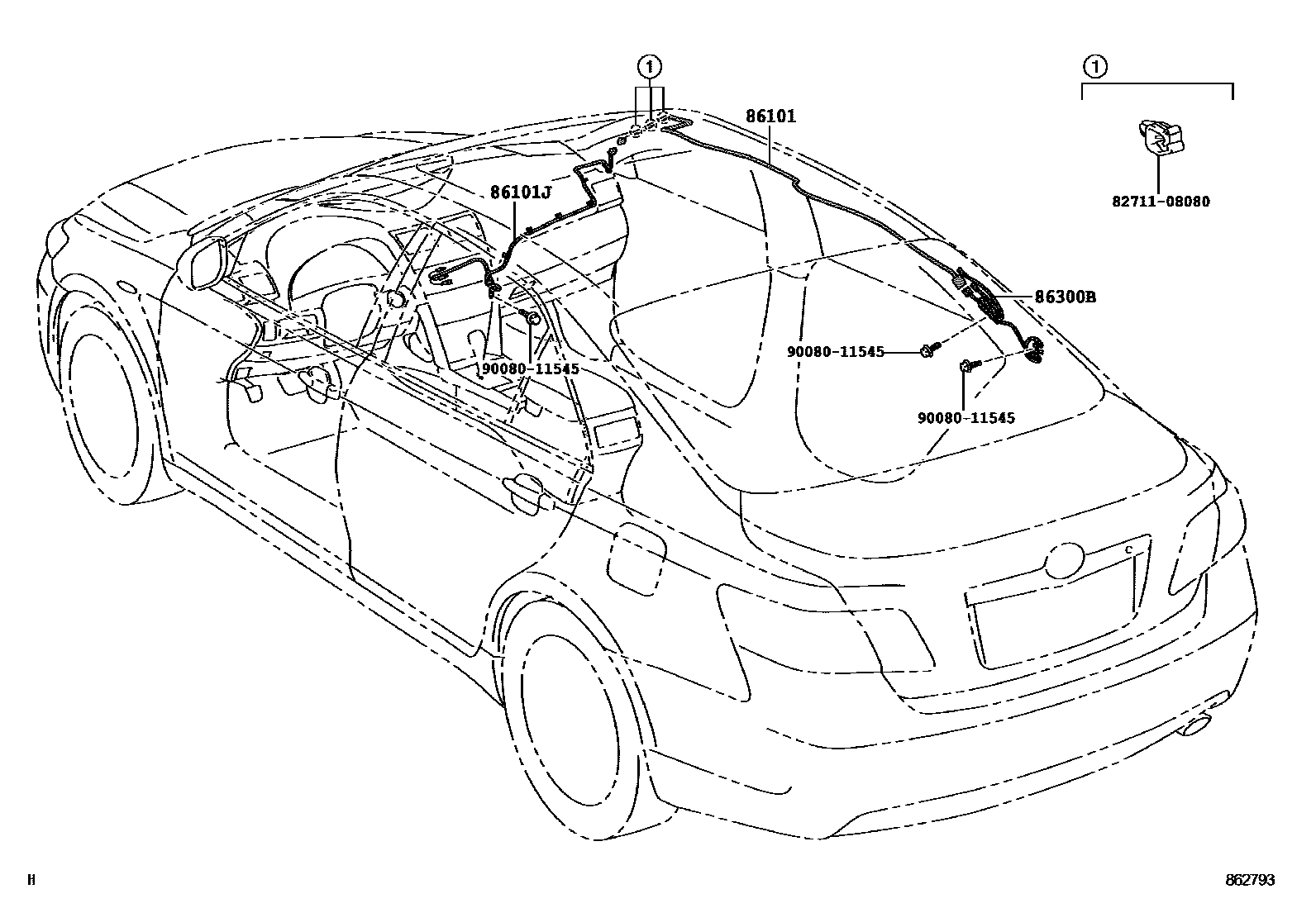

Toyota CAMRY antenna EPC diagram — 862793
antenna — 862793 (200602 – 200903)

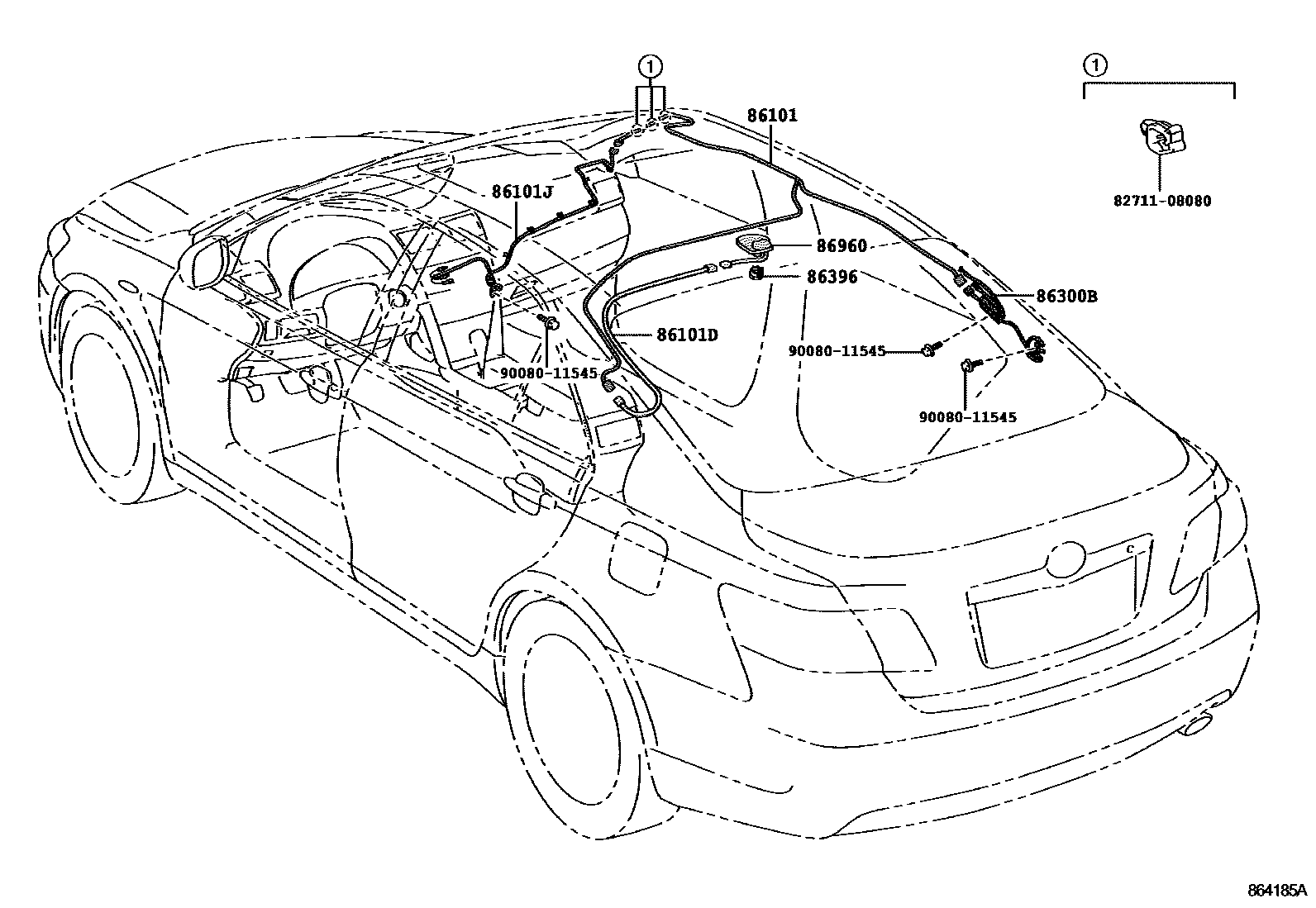

Toyota CAMRY antenna EPC diagram — 864185A
antenna — 864185A (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-06150 · 86101-06220 · 86101-06221 · 86101-06230 · 86101-06240 · 86101-06241 · 86101-06270 · 86101-06271 · 86101-06280 · 86101-06281
86101DNo. 3 antenna wire sub-assembly86101-06310
86101JNo. 2 antenna wire sub-assembly86101-06250 · 86101-06260 · 86101-06261 · 86101-06290 · 86101-06291 · 86101-06400 · 86101-06401
86300BAmplifier antenna assembly86300-06070 · 86300-06071 · 86300-06080
86396Antenna nut86396-30050 · 86396-47010
