Toyota CAMRY 扬声器 — Figure 8602

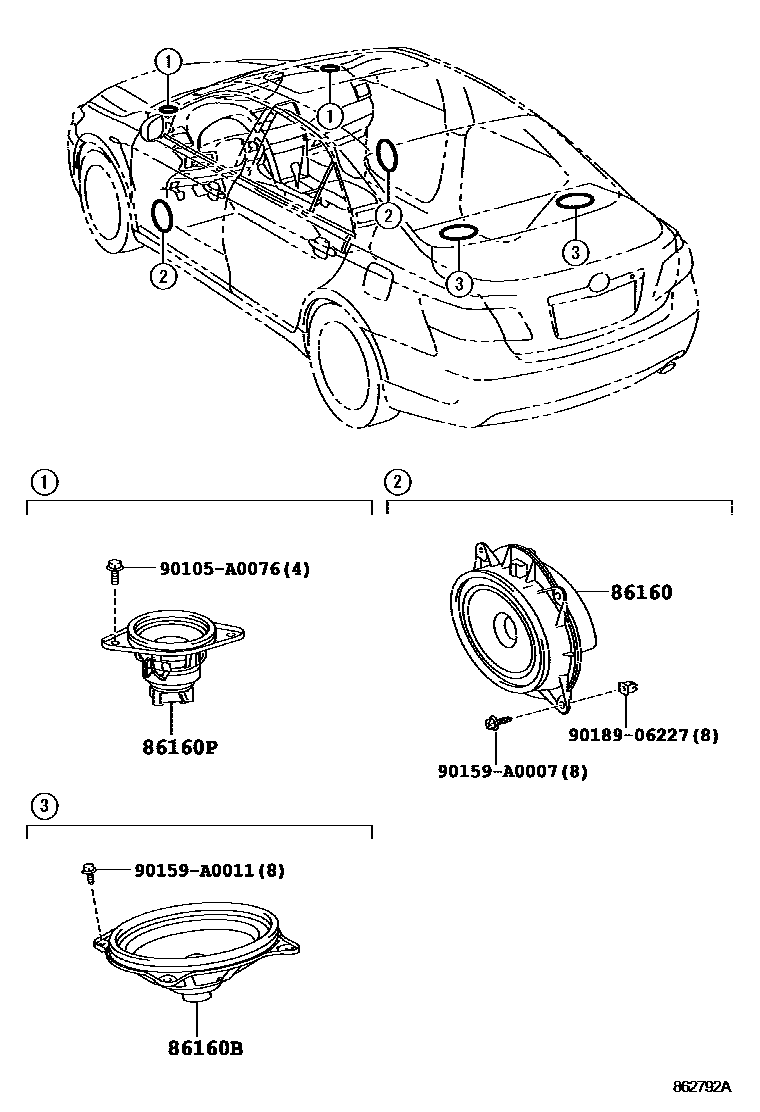

Toyota CAMRY EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-0WE90 · 86160-AA420 · 86160-AA440 |
| 86160B | Rear speaker assembly | 86160-06360 · 86160-06370 · 86160-0WF00 |
| 86160P | No. 2 front speaker assembly | 86160-0WE80 · 86160-0WF60 · 86160-0WF61 |
