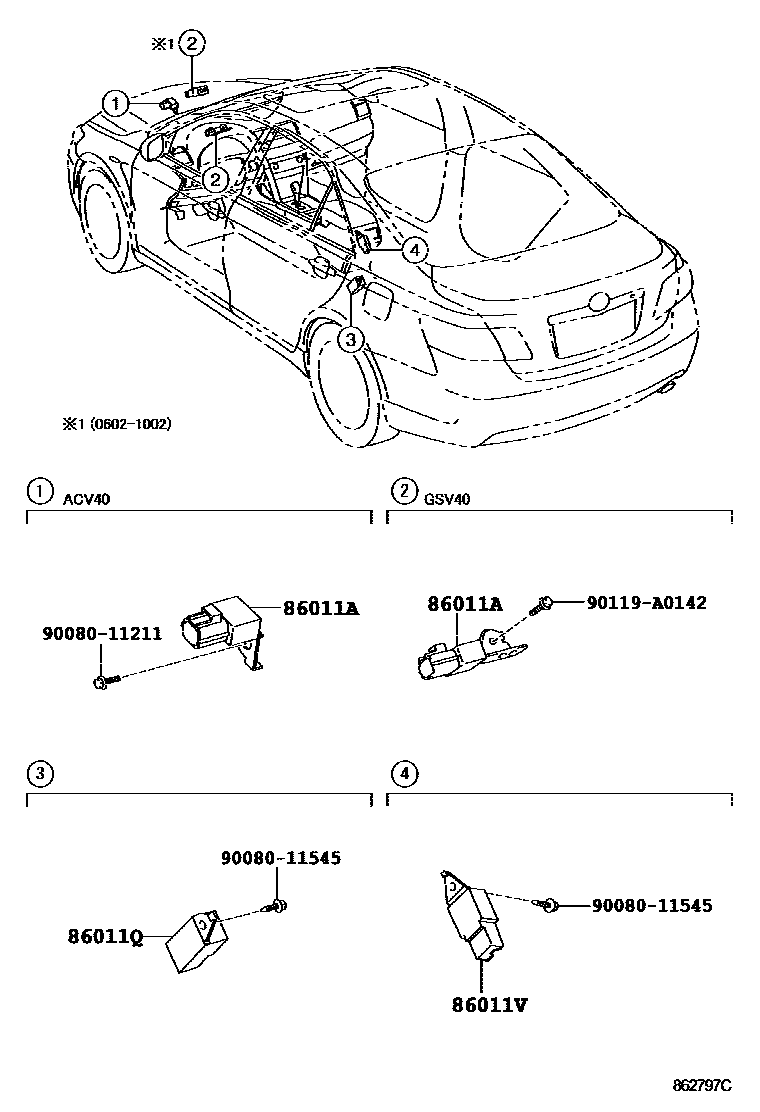

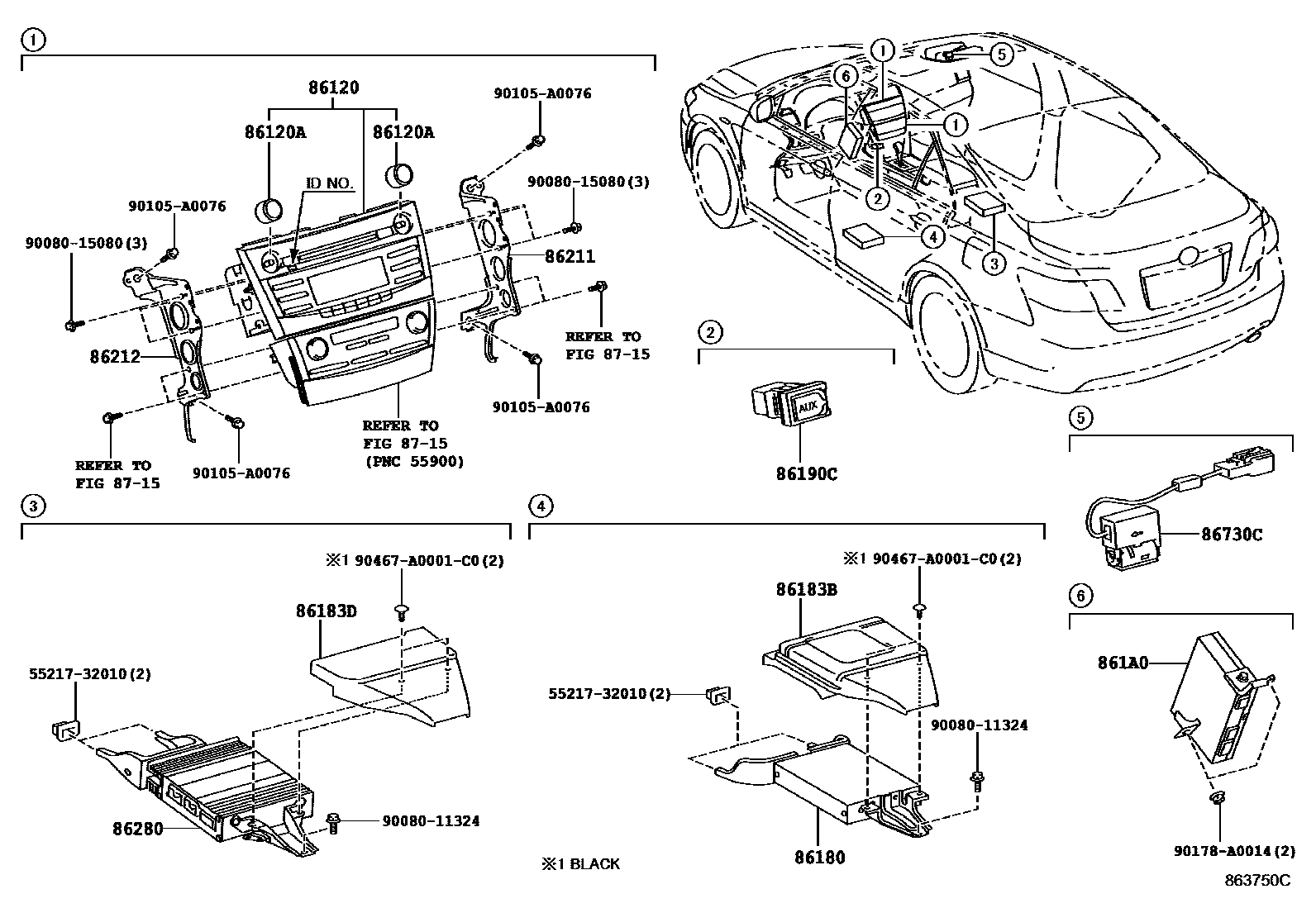

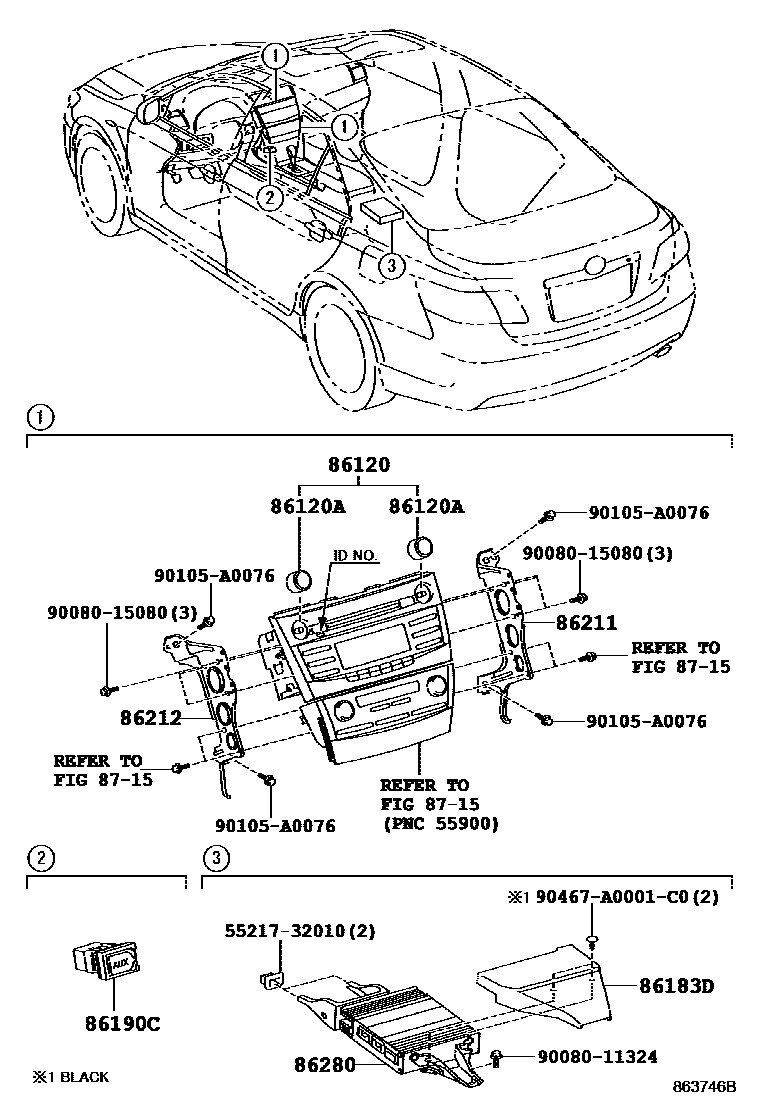

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04157 · 90980-04182 |
| 86011Q | radio settings phase modulator | 90980-04148 |
| 86011V | radio settings phase modulator | 90980-A4002 |
| 86120 | Radio assembly | 86120-06180 · 86120-06181 · 86120-06182 · 86120-06190 · 86120-06191 · 86120-06480 · 86120-06490 · 86120-06500 · 86120-06700 · 86120-06760 |
| 86120A | Radio switch knob | 90011-23017 |
| 86180 | Stereo parts tuner assembly | 86180-06010 · 86180-06020 |
| 86183B | Audio stand cover | 86183-33030 |
| 86183D | audio amplifier cover | 86183-06010 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-02020 · 86190-06010 · 86190-0E030 |
| 861A0 | Multimedia interface ECU assembly | 861A0-06010 |
| 86211 | No. 1 radio bracket | 86211-06050 |
| 86212 | No. 2 radio bracket | 86212-06050 |
| 86280 | Stereo parts amplifier assembly | 86280-0W390 · 86280-0W391 |
| 86730C | Telephone amplifier assembly | 86730-73010 |
