Toyota CAMRY 挡风玻璃清洗器 — Figure 8503

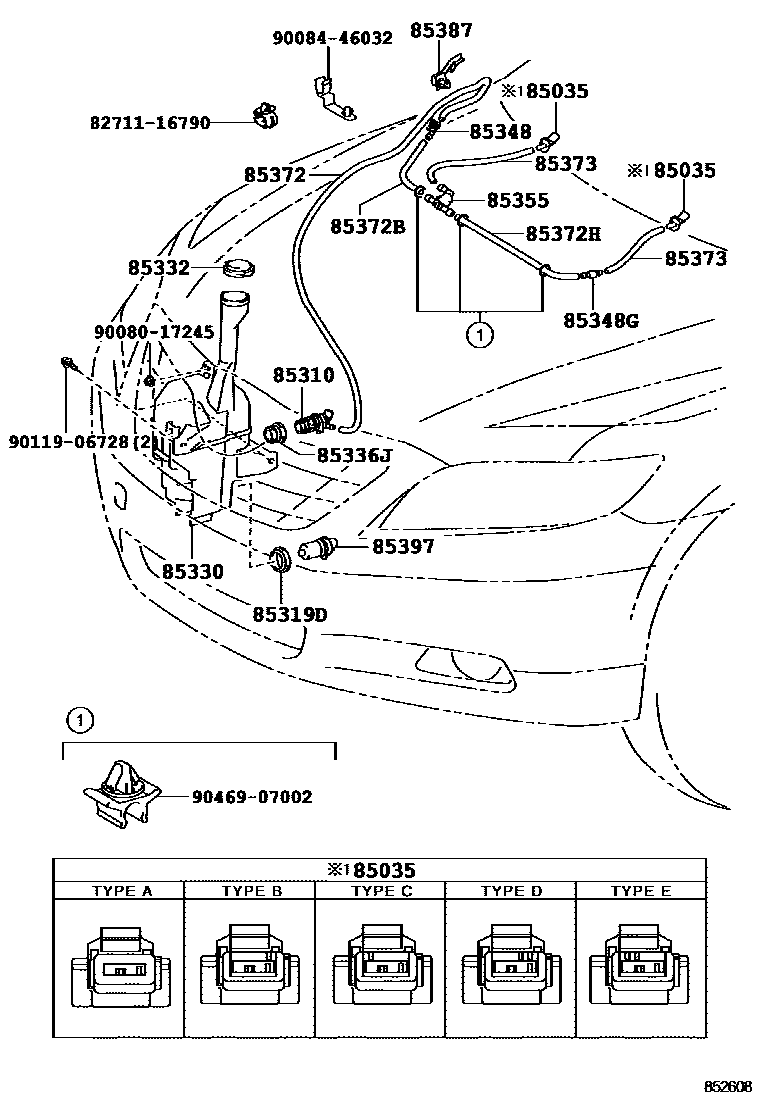

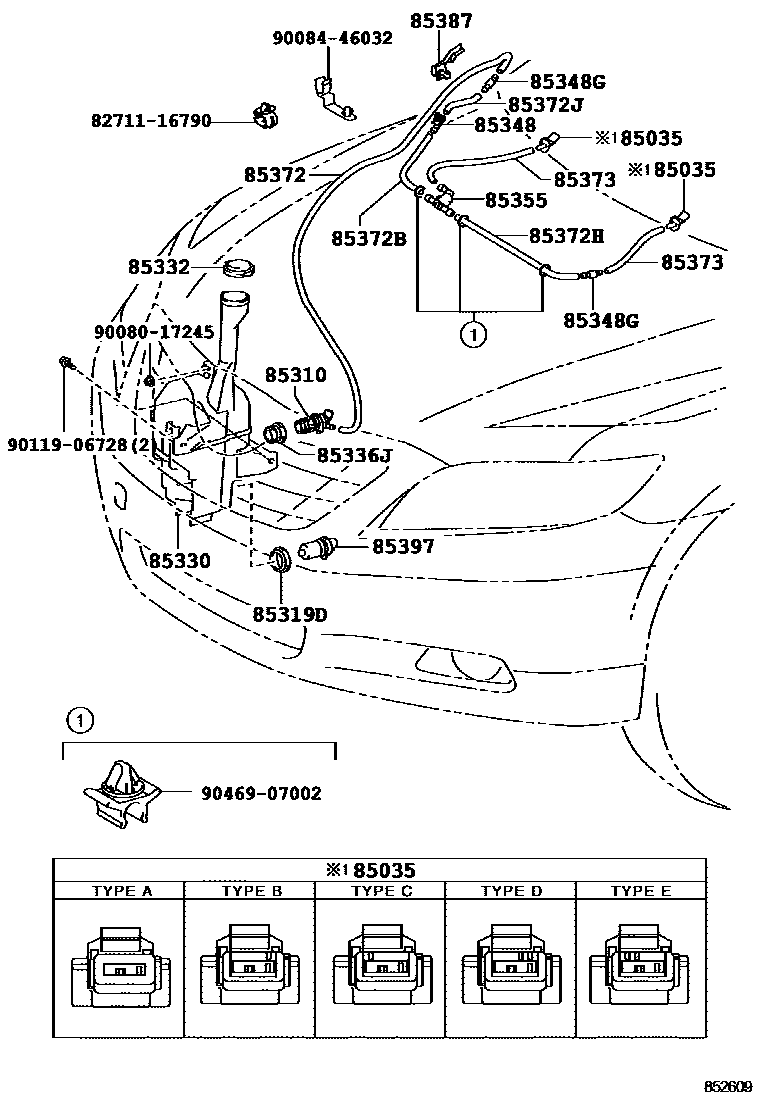

Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30170 · 85381-30180 · 85381-30190 · 85381-30200 · 85381-30210 |
| 85310 | Windshield washer motor and pump assembly | 85330-60190 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-06140 |
| 85332 | Windshield washer fluid tank cap | 85386-0C010 |
| 85336J | Cleaning fluid tank protection device | 85336-60300 |
| 85348 | Windshield washer hose connector No. 1 | 85375-AA020 · 85376-06120 |
| 85348G | Windshield washer hose connector No. 2 | 85317-02300 · 85375-06020 |
| 85355 | Windshield washer hose valve | 85321-28020 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 85374-06150 · 90068-59053 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 85374-06140 · 85375-06081 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 85374-06131 · 90068-33142 |
| 85372J | No. 4 windshield washer hose (from connector to connector) | 90068-45010 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33022 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-06020 · 85387-33080 |
| 85397 | Liquid level warning switch assembly | 85397-AA040 |
