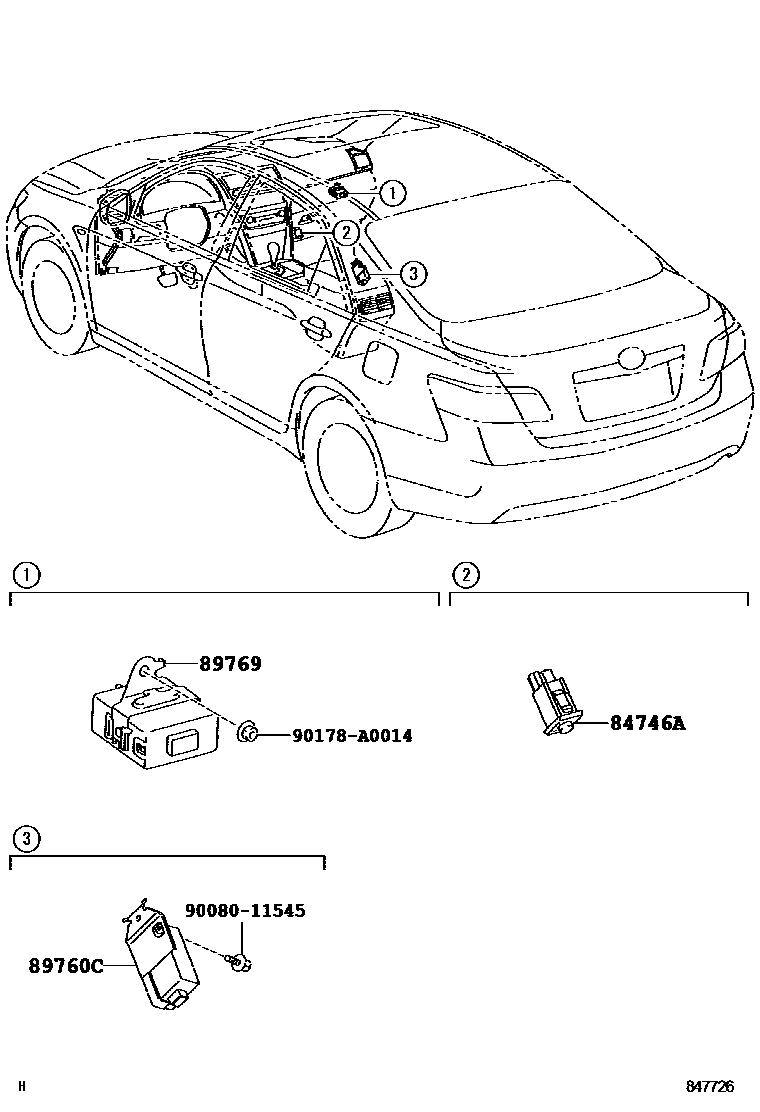

Toyota CAMRY 轮胎压力警告系统 — Figure 8435
Toyota CAMRY EPC diagram 8435, 轮胎压力警告系统, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84746A | Tire pressure warning switch No. 1 | 84746-AE010 |
| 89760C | Tire pressure monitoring receiver assembly | 89760-06010 · 89760-06011 · 89760-06012 |
| 89769 | Tire pressure monitoring ECU | 89769-06010 · 89769-06020 · 89769-06050 · 89769-06060 · 89769-06070 · 89769-06080 |
