Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 8 PNC and OE references.

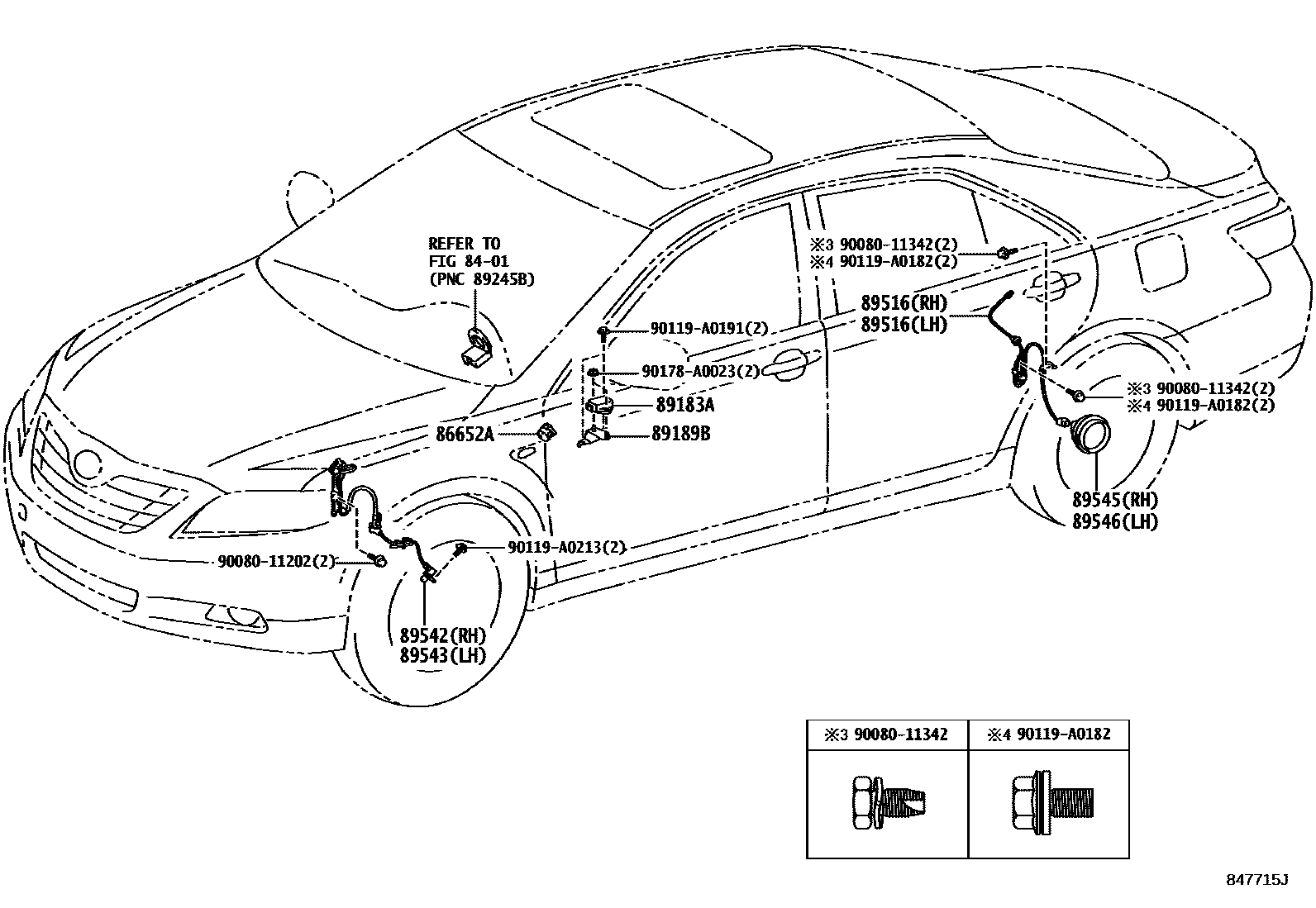

Toyota CAMRY ABS 和 VSC EPC diagram — 847715J
ABS 和 VSC — 847715J (200602 – 200903)

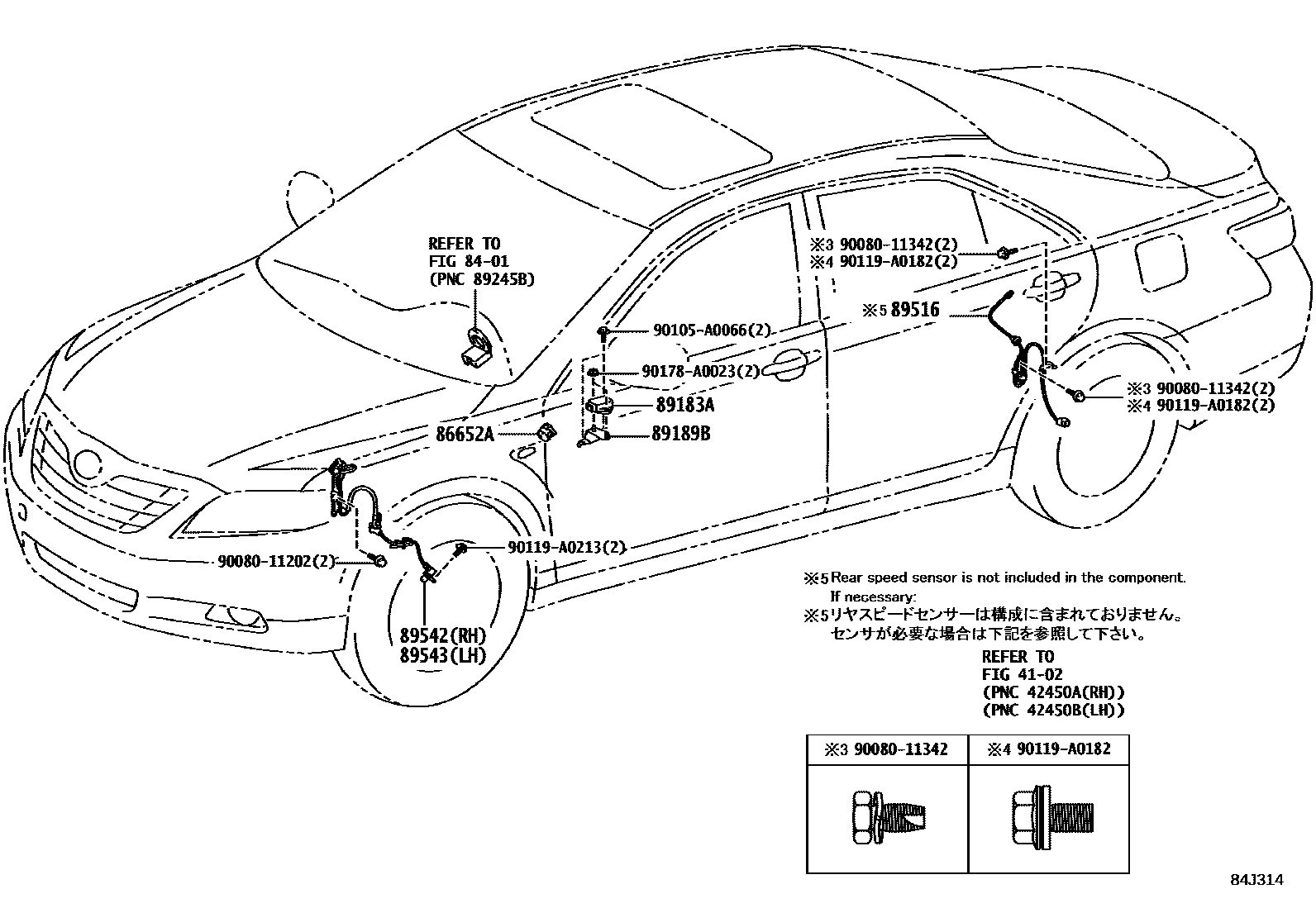

Toyota CAMRY ABS 和 VSC EPC diagram — 84J314
ABS 和 VSC — 84J314 (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
86652AAnti-skid control buzzer assembly86652-04010
89183AYaw rate sensor89183-06010
89189BYaw rate sensor bracket89189-06010
89516Anti-skid control sensor wiring harness89516-06030 · 89516-06040 · 89516-06090 · 89516-06100
89542Right front wheel speed sensor89542-07030
89543Left front wheel speed sensor89543-07030
89545Right rear wheel speed sensor89544-06010
89546Left rear wheel speed sensor89544-06010
