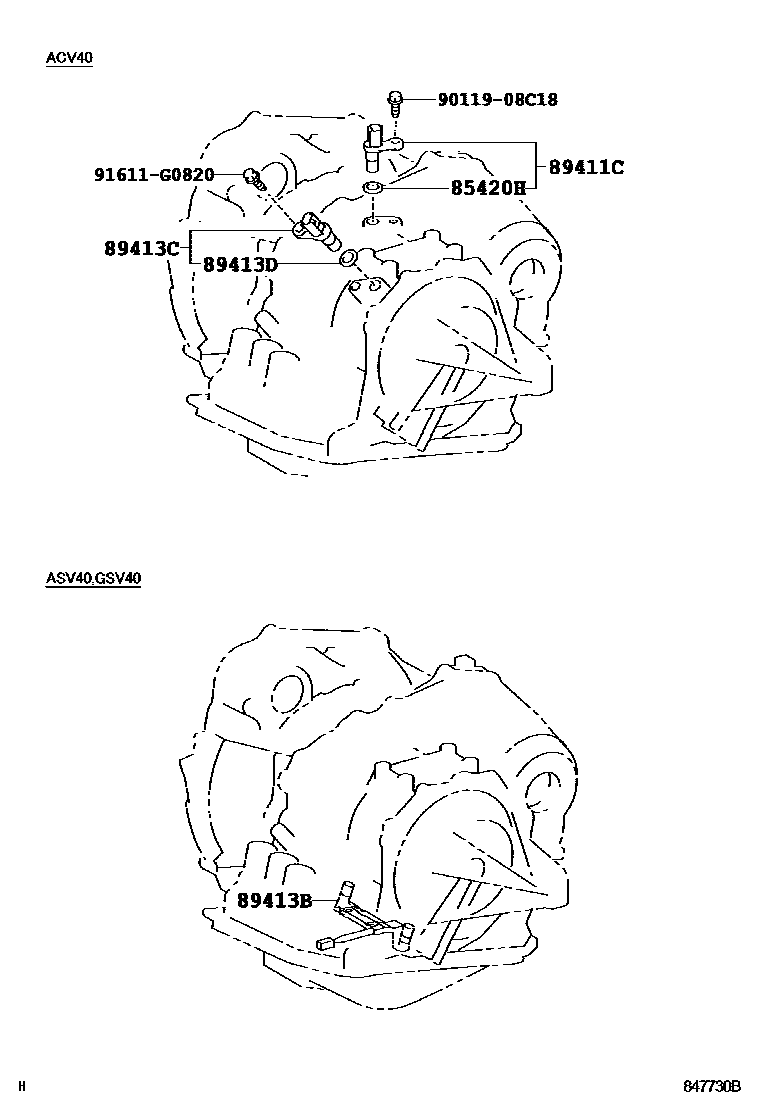

Toyota CAMRY 超速档和电子控制变速器 — Figure 8410
Toyota CAMRY EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85420H | O-ring (for speed sensor) | 90301-11008 |
| 89411C | Speed sensor | 89413-24010 |
| 89413B | Transmission speed sensor | 89413-08030 · 89413-0T010 · 89413-33030 · 89413-73010 |
| 89413C | Speed sensor | 89413-24010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
