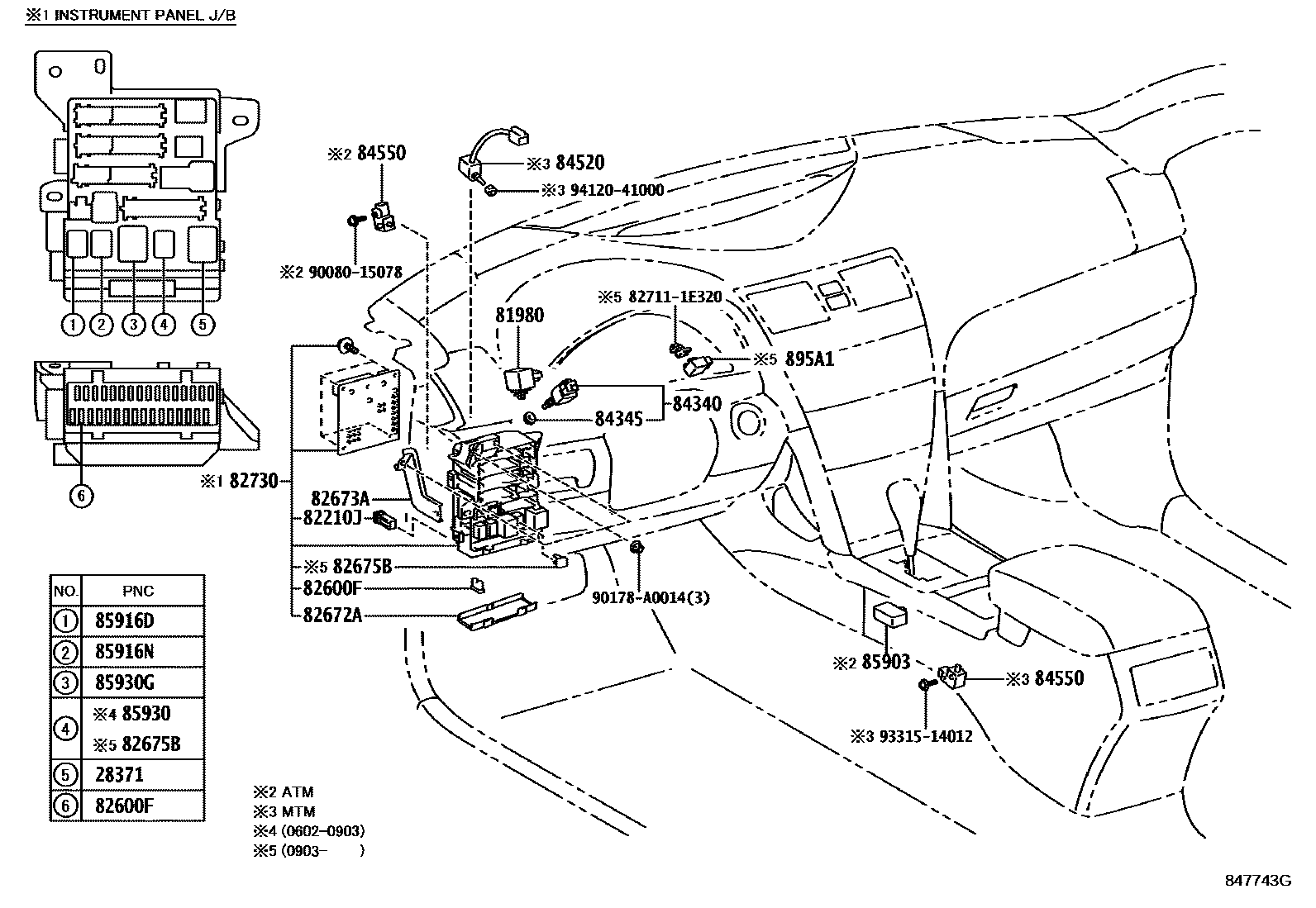

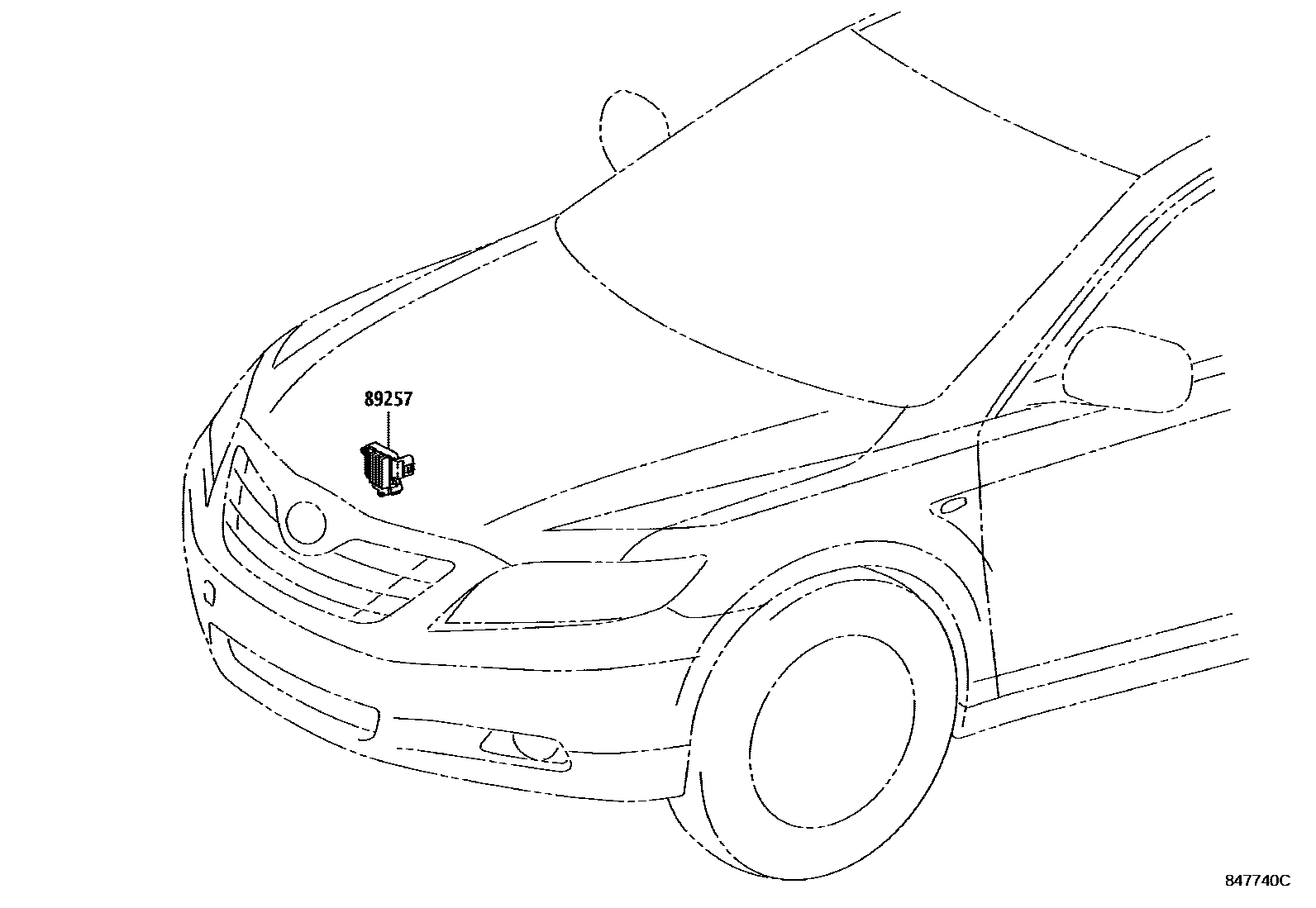

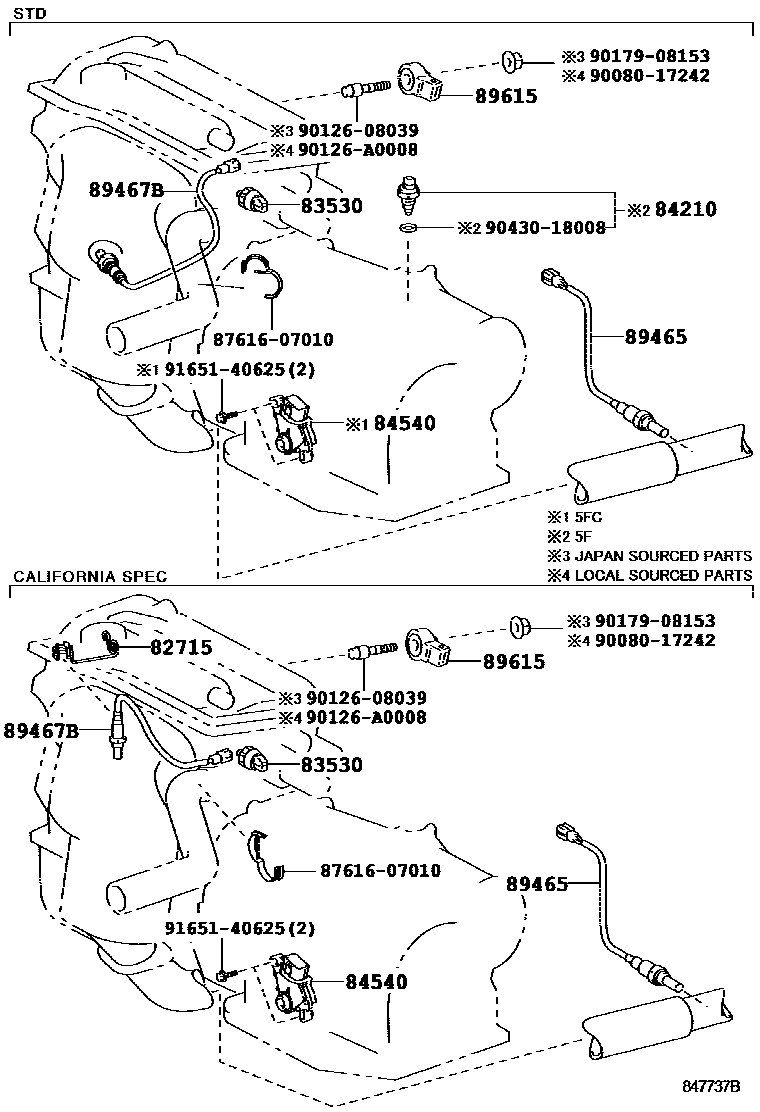

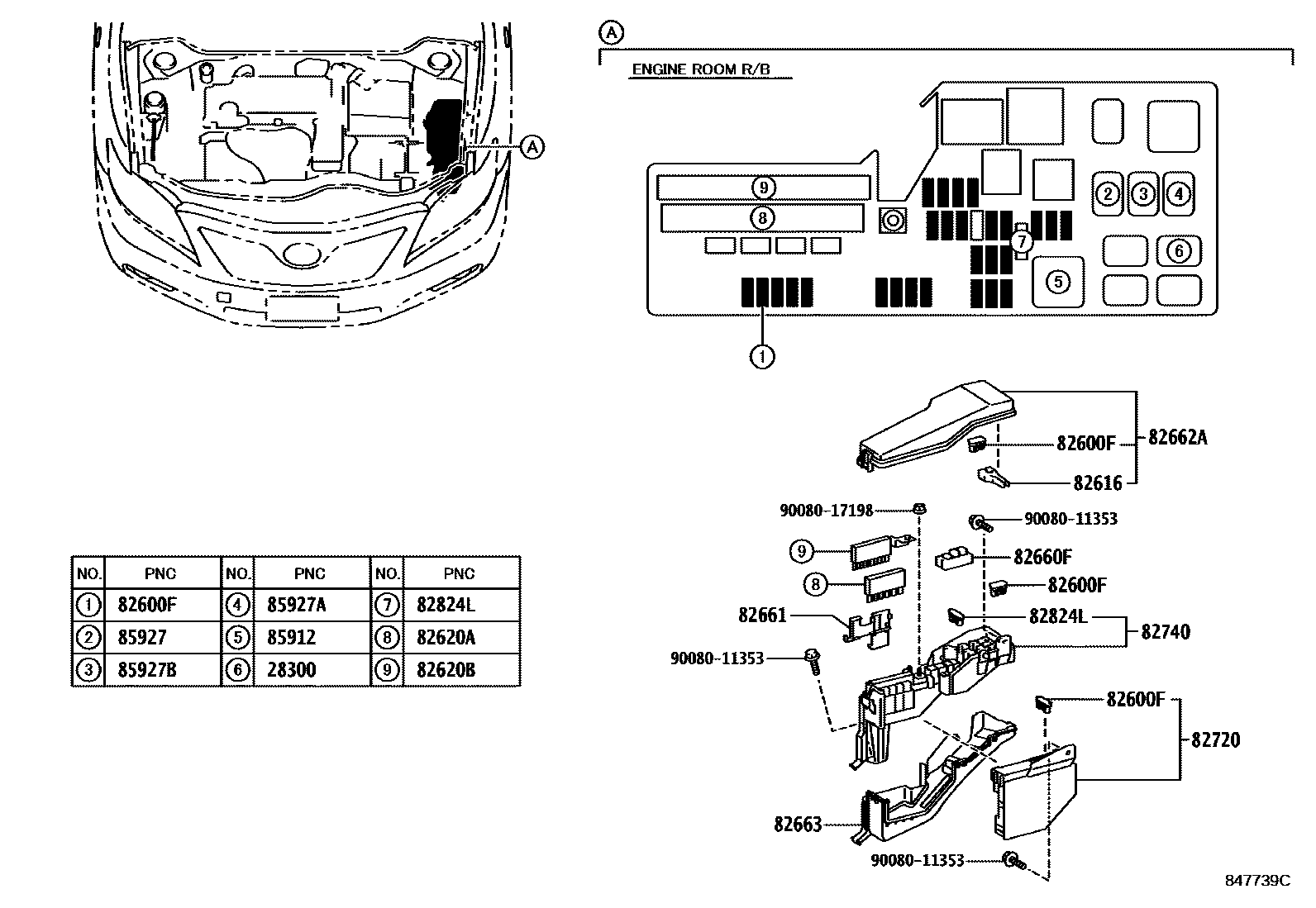

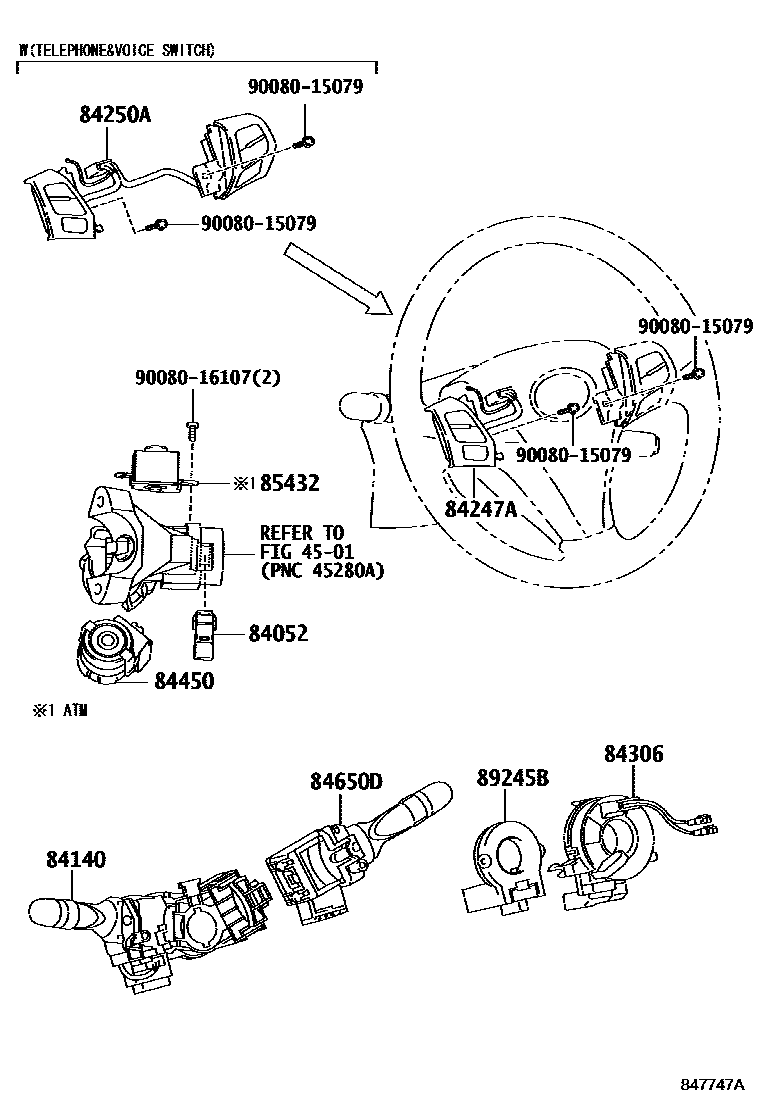

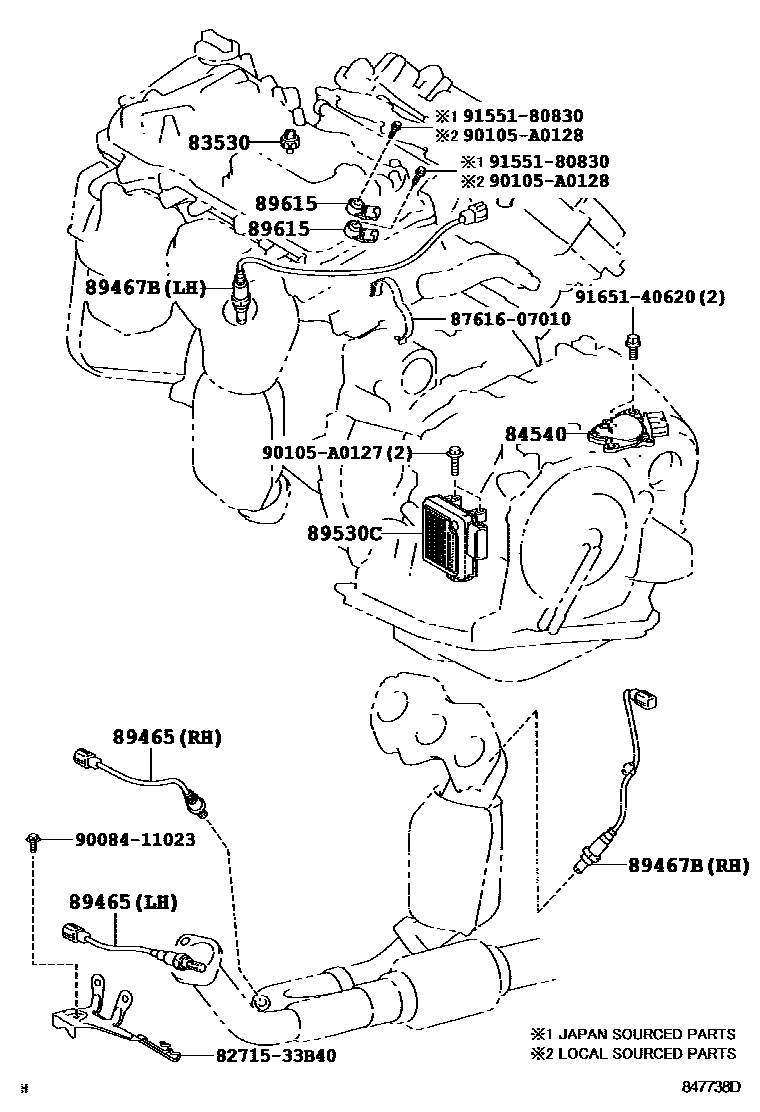

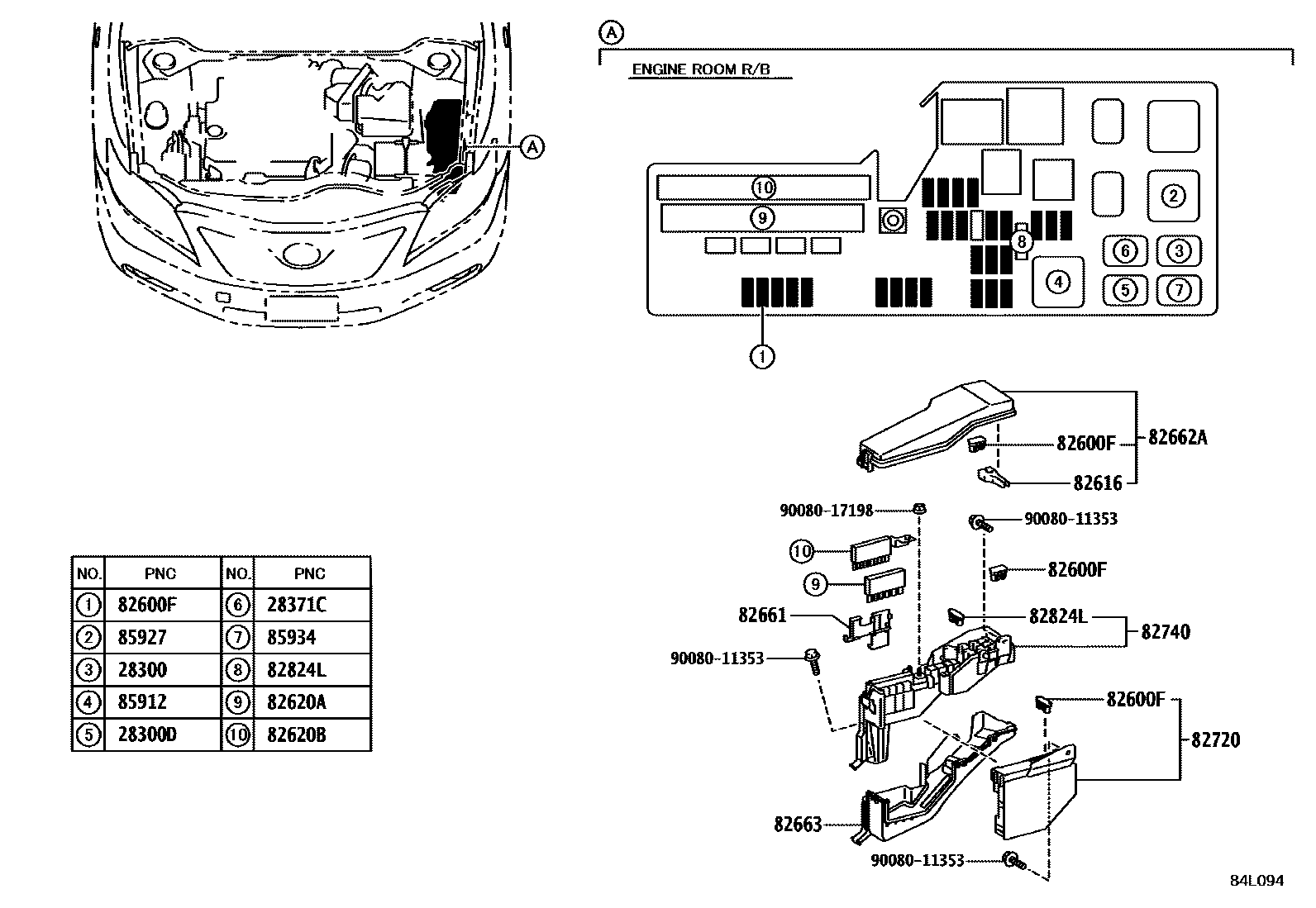

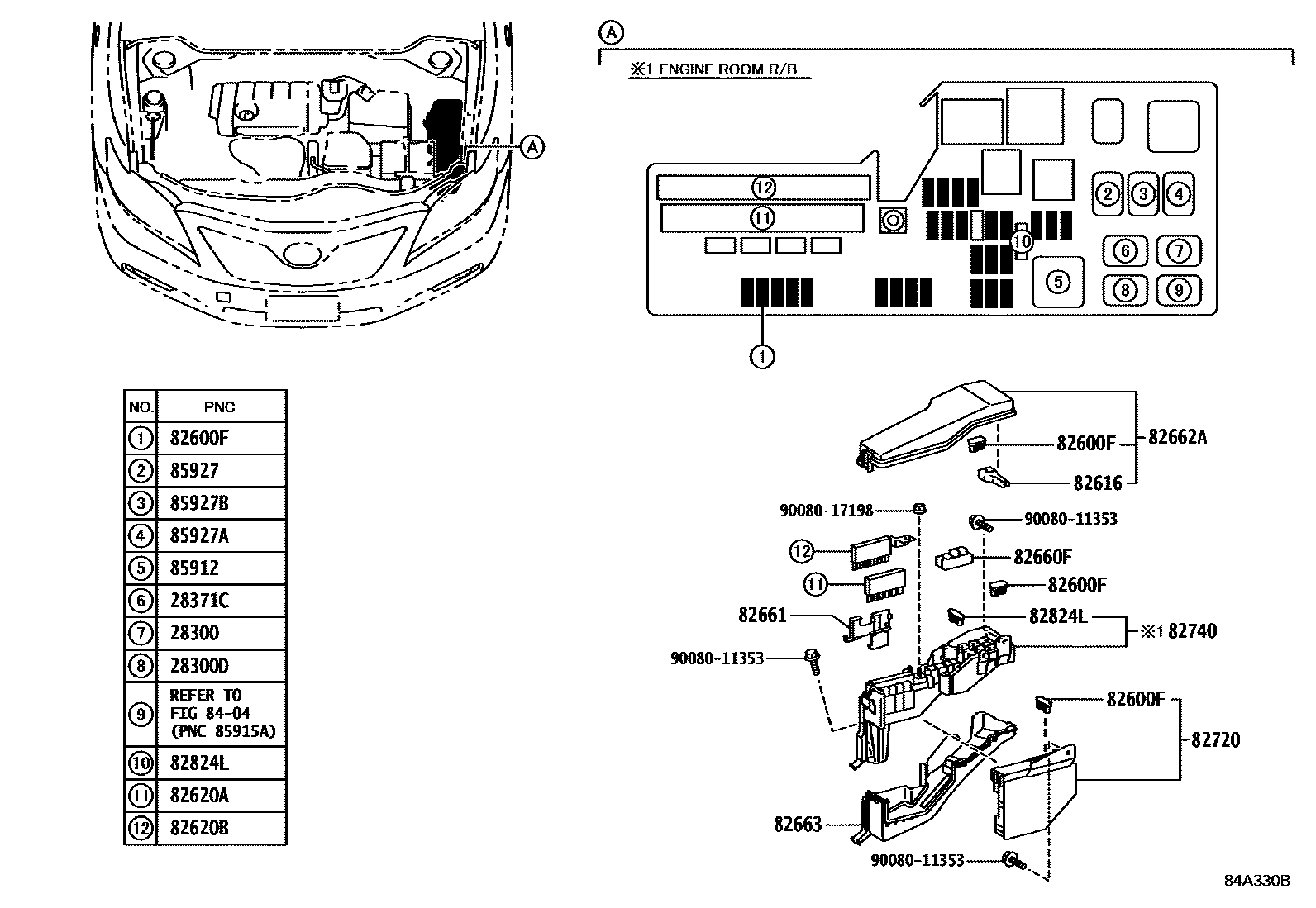

Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 13 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A010 |
| 28300D | starter cutoff relay | 90080-87026 |
| 28371 | No. 1 ignition relay | 90080-87024 · 90987-A2002 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 81980 | Turn signal flasher relay assembly | 81980-06020 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90080-82050 · 90080-82051 · 90080-82052 · 90080-82053 · 90080-82054 · 90080-82055 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33030 |
| 82620B | Fuse box assembly | 82620-07050 |
| 82660F | Relay assembly | 82660-33010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-06060 · 82662-06070 · 82662-06110 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82672A | Junction box cover | 82672-33320 |
| 82673A | Junction box bracket | 82673-06010 |
| 82675B | Terminal block | 82675-44010 |
| 82715 | Wire harness clamp bracket | 82715-33C20 |
| 82720 | Engine room junction box assembly | 82720-06090 · 82720-06091 · 82720-06100 · 82720-06101 · 82720-06110 · 82720-06111 |
| 82730 | Instrument panel junction box assembly | 82730-06230 · 82730-06240 · 82730-06250 · 82730-06260 · 82730-06270 · 82730-06280 · 82730-06500 · 82730-06501 · 82730-06510 · 82730-06511 · 82730-06520 · 82730-06521 · 82730-06530 · 82730-06531 · 82730-06540 · 82730-06541 · 82730-06550 · 82730-06551 · 82730-06560 · 82730-06561 · 82730-06570 · 82730-06571 · 82730-06580 · 82730-06581 · 82730-06590 · 82730-06591 · 82730-06600 · 82730-06601 · 82730-06630 · 82730-06640 · 82730-06650 · 82730-06660 · 82730-06670 |
| 82740 | Engine room relay box assembly | 82740-33010 · 82740-33020 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-06030 · 83320-07010 |

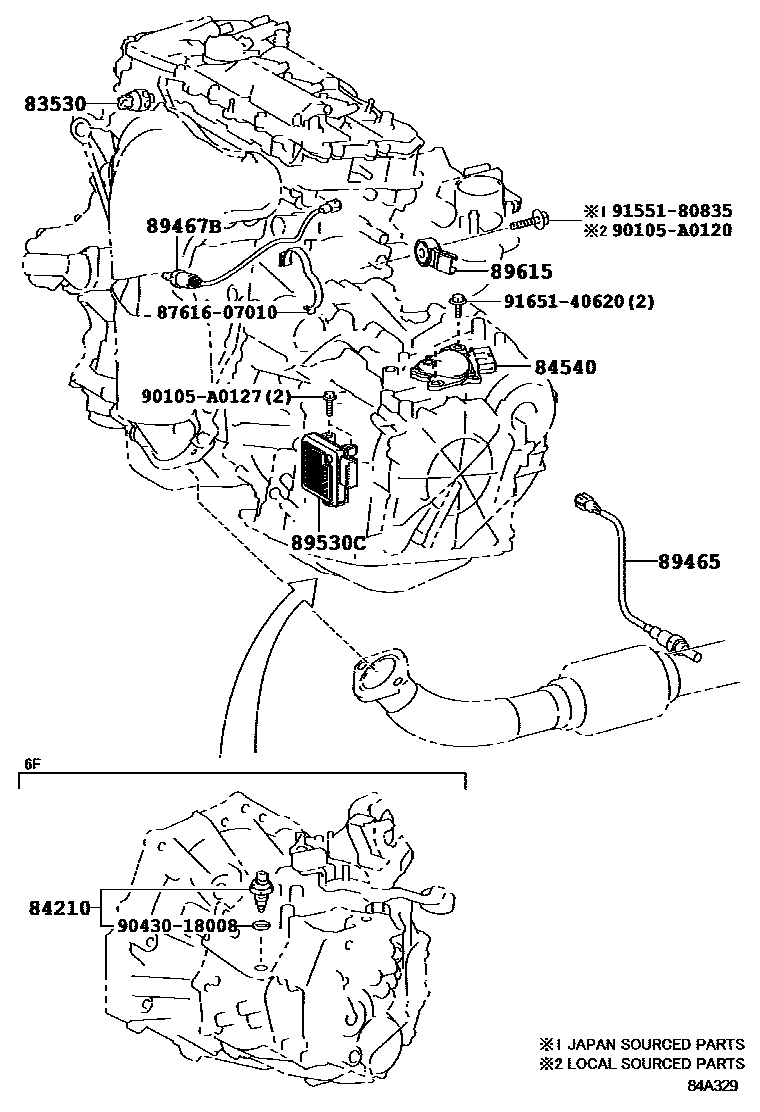

| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 · 83530-AA011 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-06390 · 84140-06391 · 84140-06400 · 84140-06401 · 84140-06410 · 84140-06411 · 84140-06420 · 84140-06421 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |

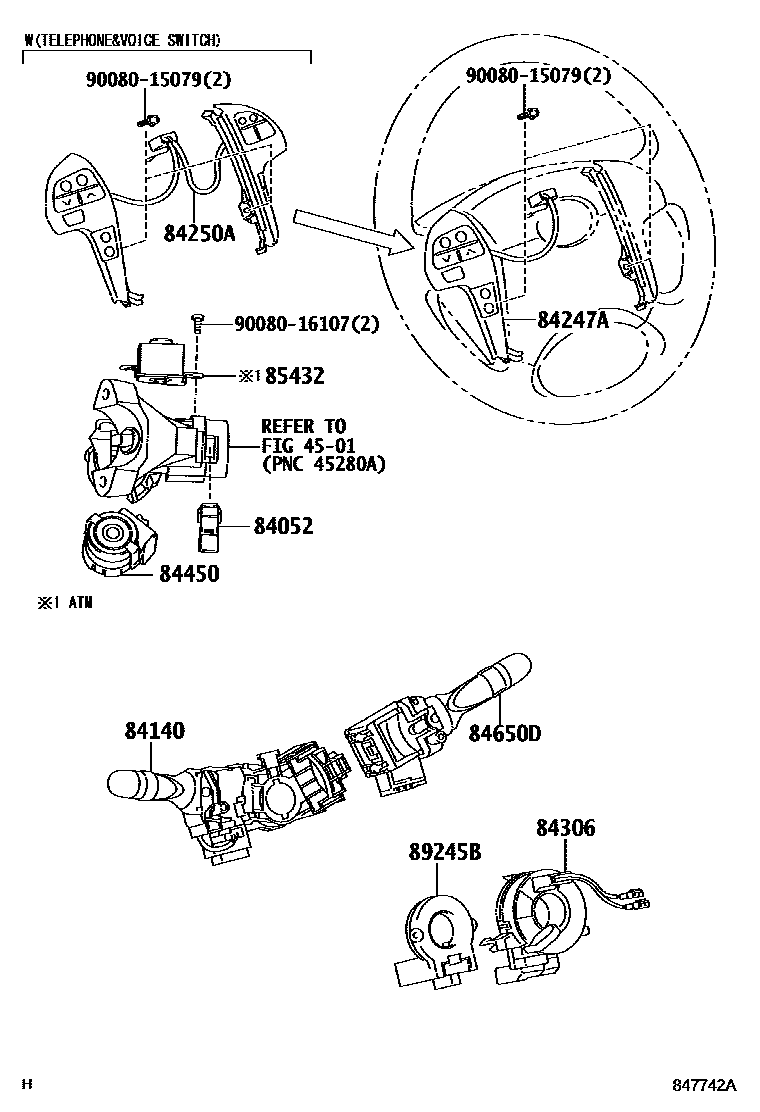

| 84250A | Steering wheel decorative cover switch assembly | 84250-06040 · 84250-06070 |
| 84306 | Spiral cable sub-assembly | 84306-06150 |
| 84340 | brake light switch assembly | 84340-09010 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84450 | Ignition or starter switch assembly | 84450-71010 |
| 84520 | Clutch start switch assembly | 84520-33010 |
| 84540 | Neutral start switch assembly | 84540-07010 · 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-04030 · 84550-33010 |
| 84650D | ENS. COMM, ESS-GL PARE-BRISE AV RELAIS, COMM ESS-GL | 84652-02610 · 84652-04141 |
| 84751 | Seat heater switch | 84751-06010 |
| 84751B | Seat heater switch light bulb | 90011-01002 |

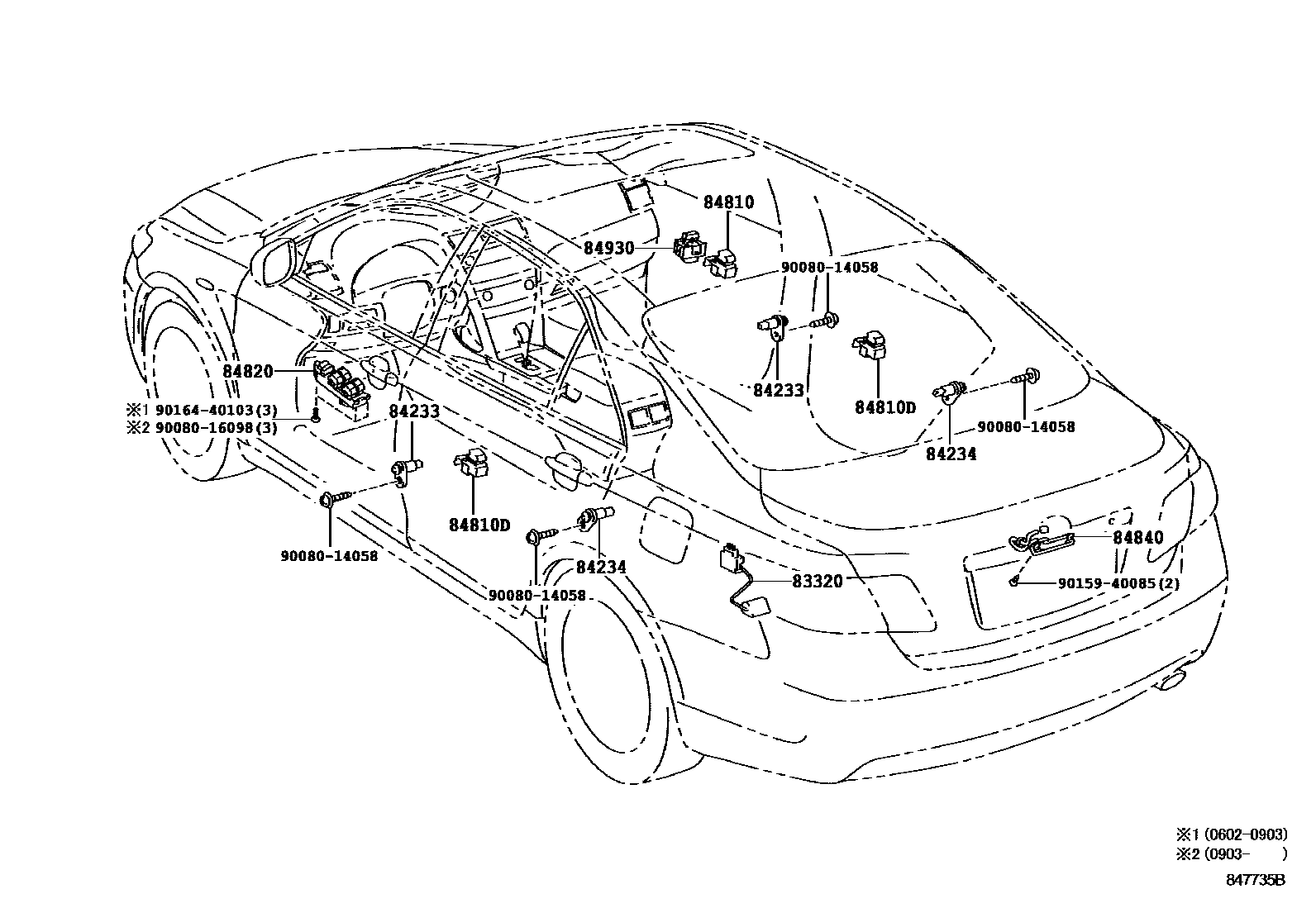

| 84810 | Electric window lift switch assembly | 84810-06030 · 84810-06090 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 · 84810-06090 |
| 84820 | Electric window lift main switch assembly | 84040-06030 · 84820-06060 · 84820-06061 · 84820-06070 · 84820-06071 |
| 84840 | Trunk door opening switch assembly | 84840-20010 · 84840-33090 · 84905-33010 |

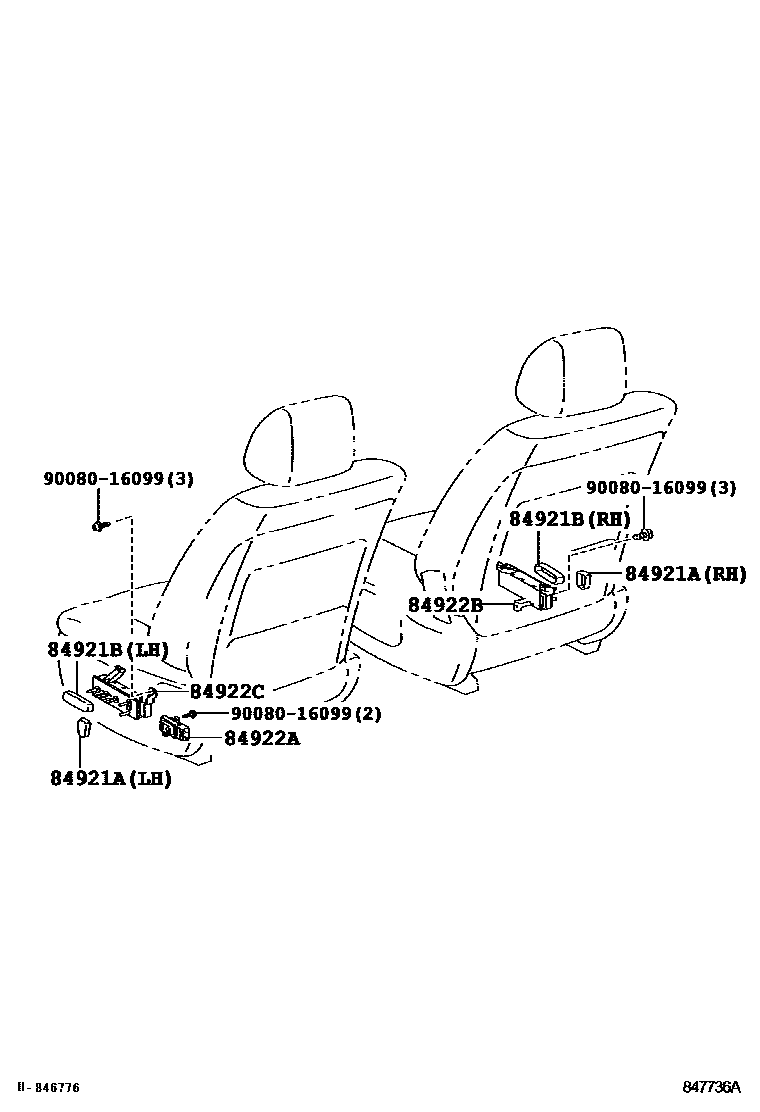

| 84922B | Front right electric seat switch | 84922-0E010 |
| 84922C | Front left electric seat switch | 84922-AE010 |
| 84930 | Door control switch assembly | 84930-06020 · 84930-0C010 |
| 84988L | VSC off switch | 84988-0T010 |
| 85432 | Key interlock solenoid valve | 85432-71010 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530B | No. 1 rear power socket assembly | 85530-06030 |
| 85535C | Rear power outlet cover | 85535-06020 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-06010 · 85903-06020 |
| 85912 | defogger relay | 90080-87025 |
| 85916D | fog light relay | 90080-87026 |
| 85916N | Tail light relay | 90080-87026 |
| 85927 | cooling fan relay | 90080-87024 · 90080-87026 |
| 85927A | Cooling fan relay No. 2 | 90084-98032 |
| 85927B | Cooling fan relay No. 3 | 90080-87026 |
| 85930 | Electric window relay assembly | 90080-87026 |
| 85930G | ACC relay | 90080-87024 · 90987-A2002 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 89245B | steering sensor | 89245-06040 |
| 89257 | Cooling fan ECU | 89257-30060 · 89257-30070 |
| 89465 | oxygen sensor | 89465-06150 · 89465-06190 · 89465-06200 · 89465-06250 · 89465-07080 · 89465-33450 |
| 89467B | air fuel ratio sensor | 89467-06030 · 89467-06070 · 89467-06100 · 89467-07010 · 89467-07020 · 89467-07030 · 89467-07040 · 89467-73010 |
| 89530C | Transmission control ECU assembly | 89530-06010 · 89530-06020 · 89530-06030 · 89530-33010 · 89530-33011 · 89530-33012 · 89530-33020 · 89530-33101 · 89530-33102 · 89530-33140 · 89530-33180 |
| 895A1 | brake light control relay | 895A1-12010 |

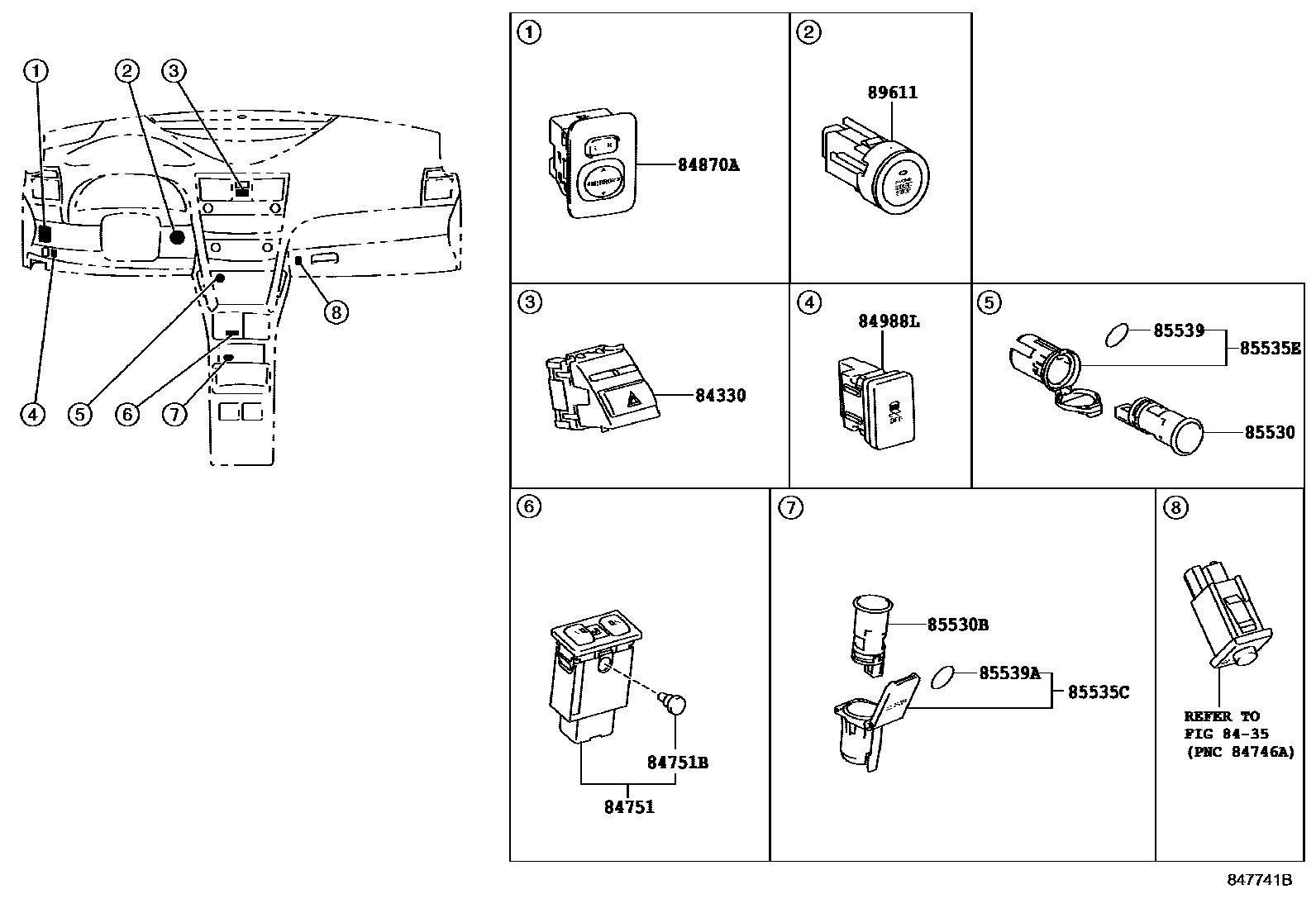

| 89611 | push button start switch | 89611-07010 · 89611-07011 · 89611-07012 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
