Toyota CAMRY 线束和卡夹 — Figure 8202

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 15 images and 66 PNC and OE references.

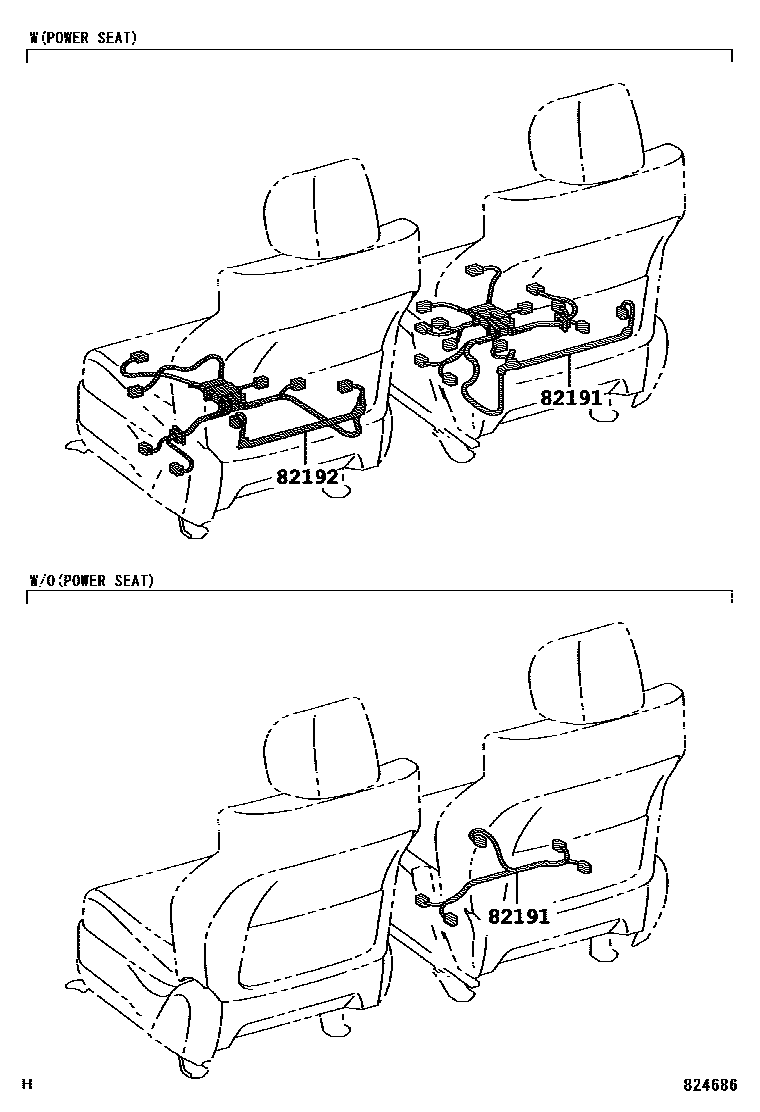

Toyota CAMRY 线束和卡夹 EPC diagram — 824686
线束和卡夹 — 824686 (200602 – 999999)

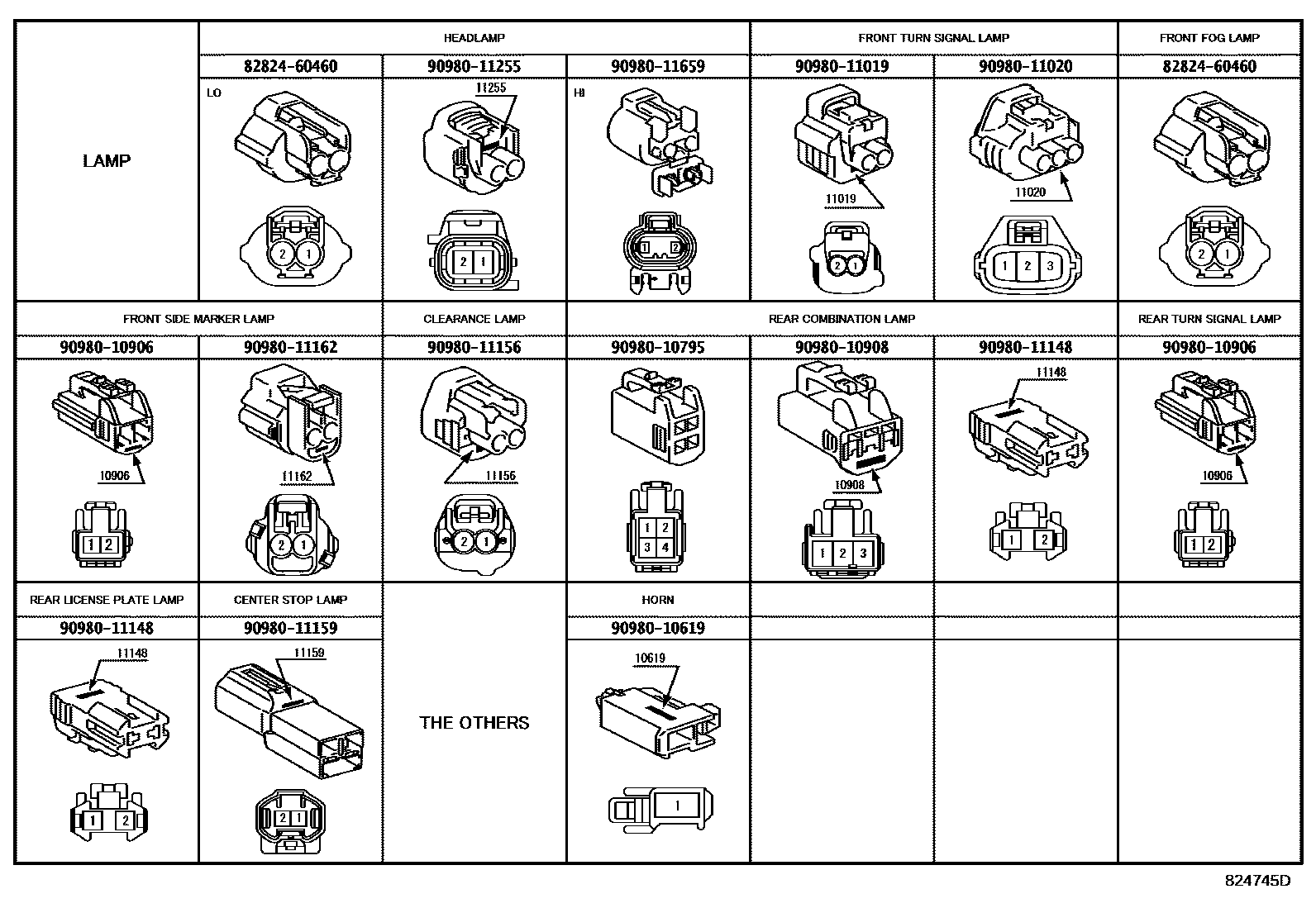

Toyota CAMRY 线束和卡夹 EPC diagram — 824745D
线束和卡夹 — 824745D (200602 – 999999)

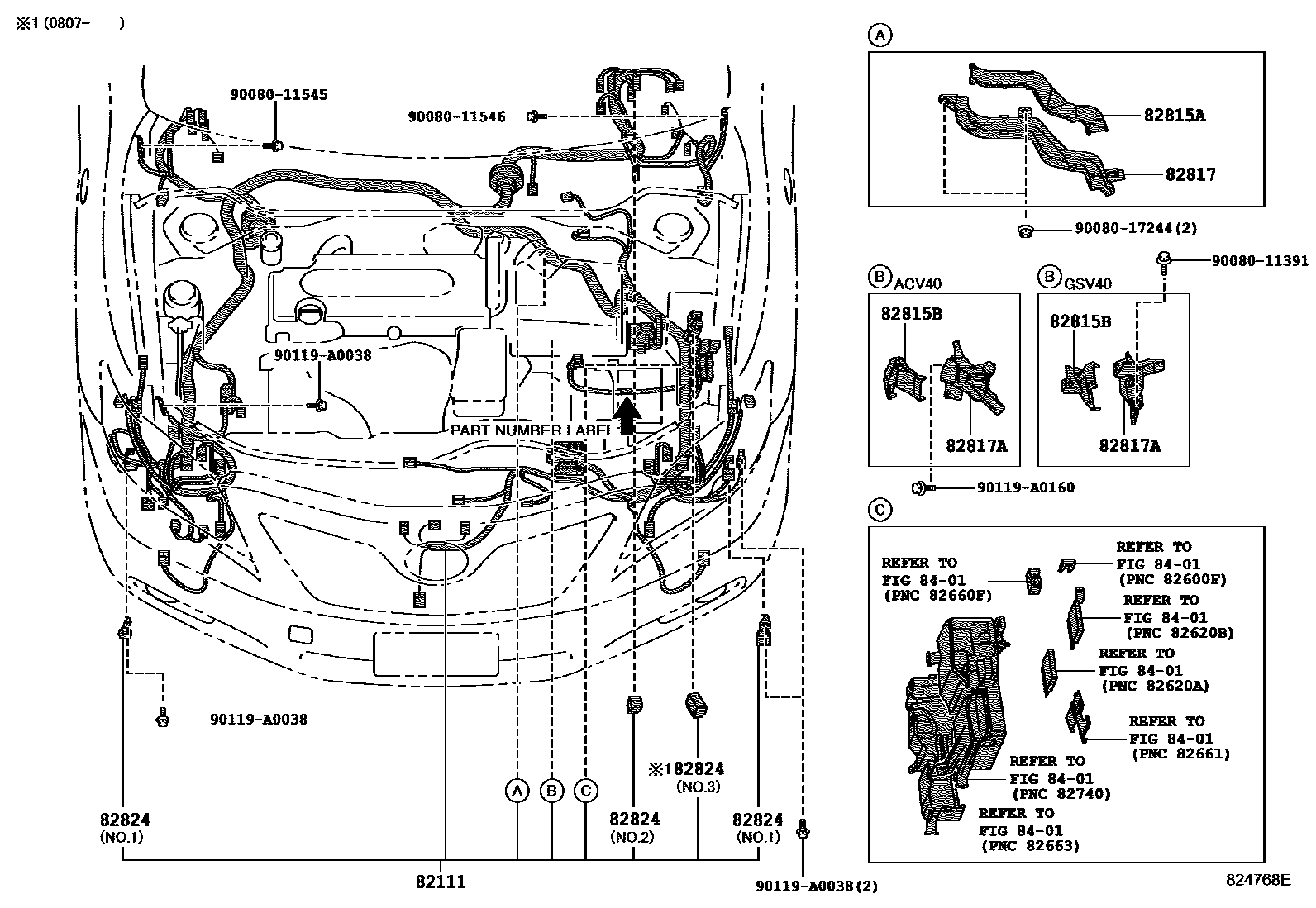

Toyota CAMRY 线束和卡夹 EPC diagram — 824768E
线束和卡夹 — 824768E (200602 – 200903)

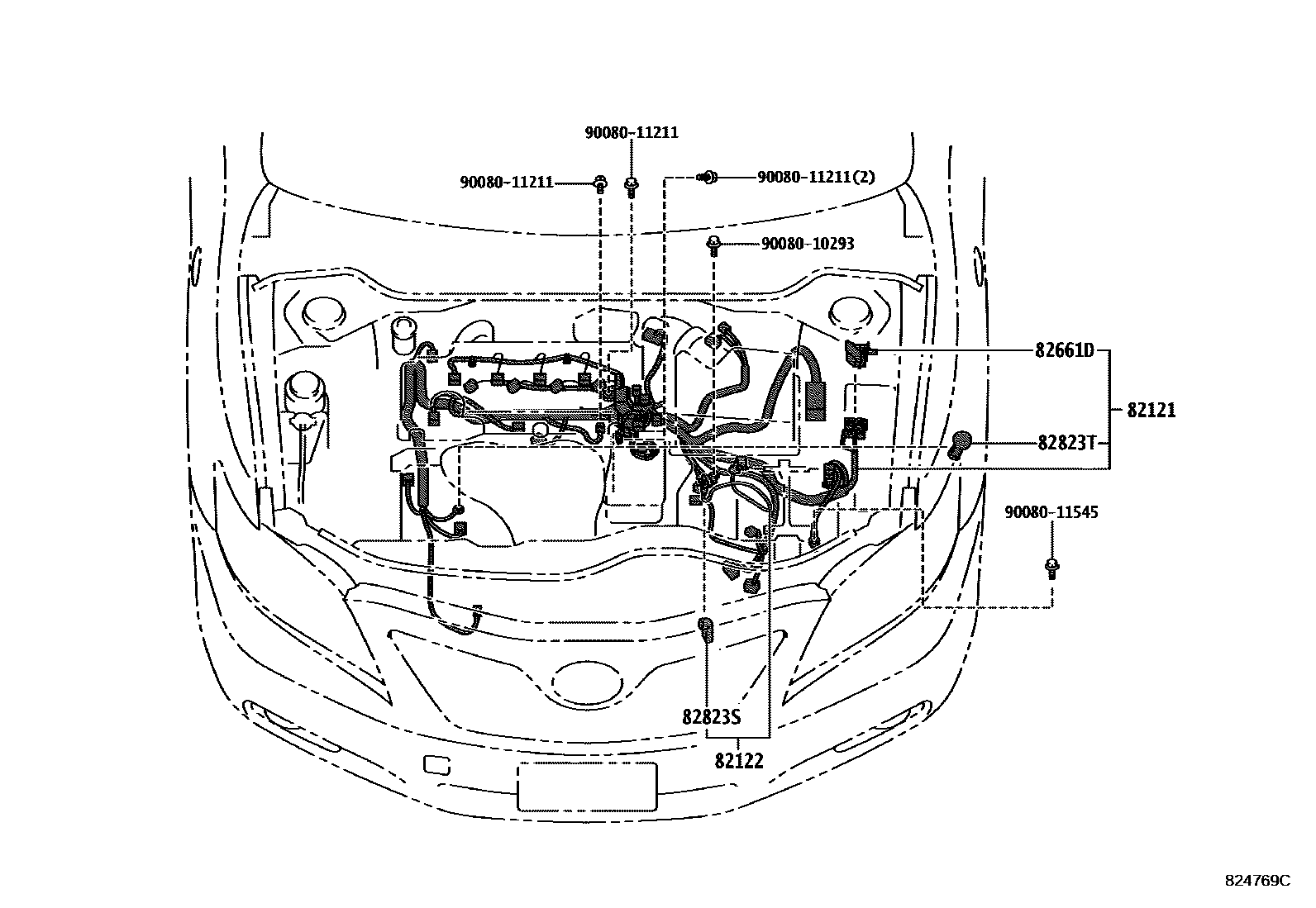

Toyota CAMRY 线束和卡夹 EPC diagram — 824769C
线束和卡夹 — 824769C (200602 – 999999)

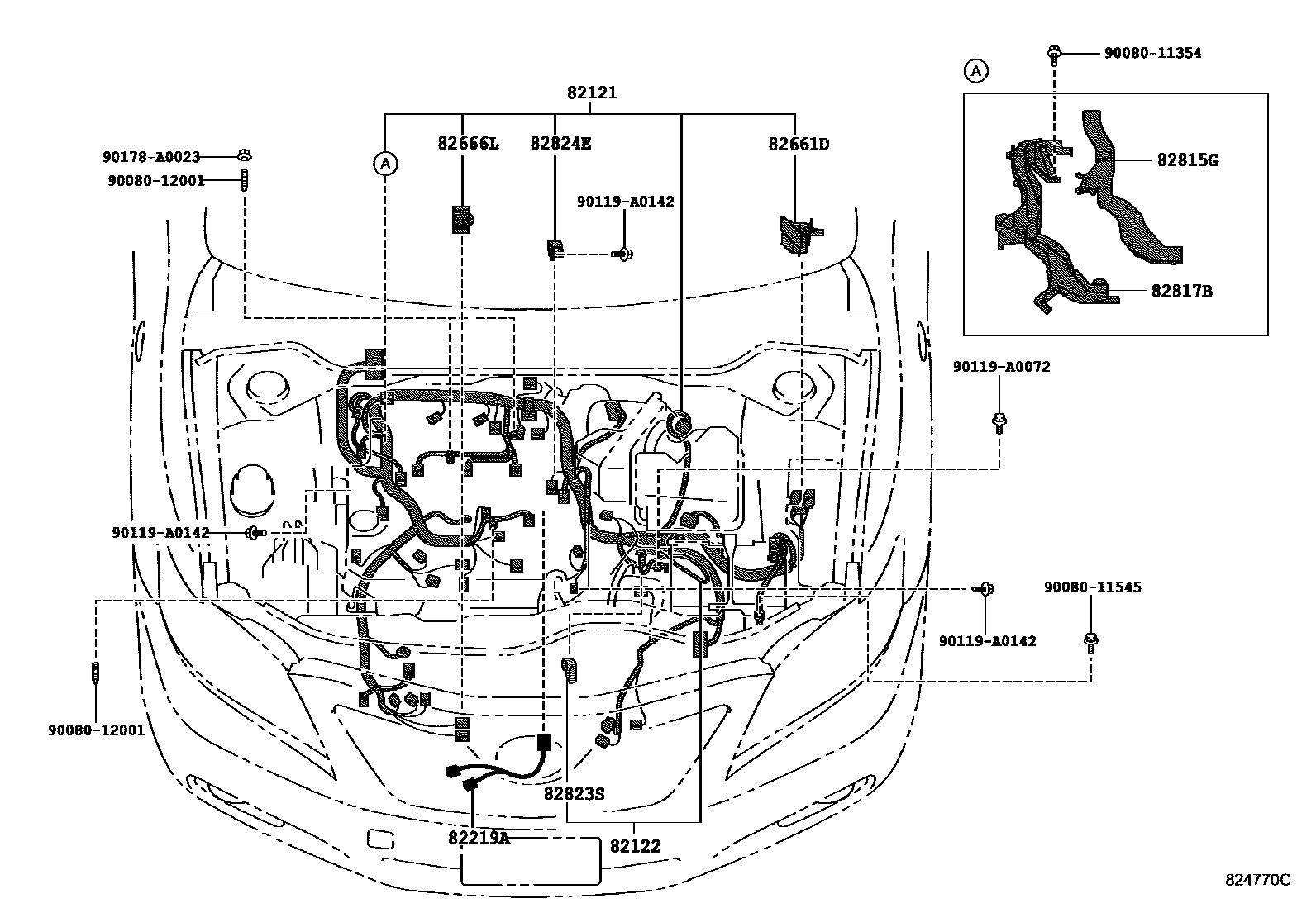

Toyota CAMRY 线束和卡夹 EPC diagram — 824770C
线束和卡夹 — 824770C (200602 – 999999)

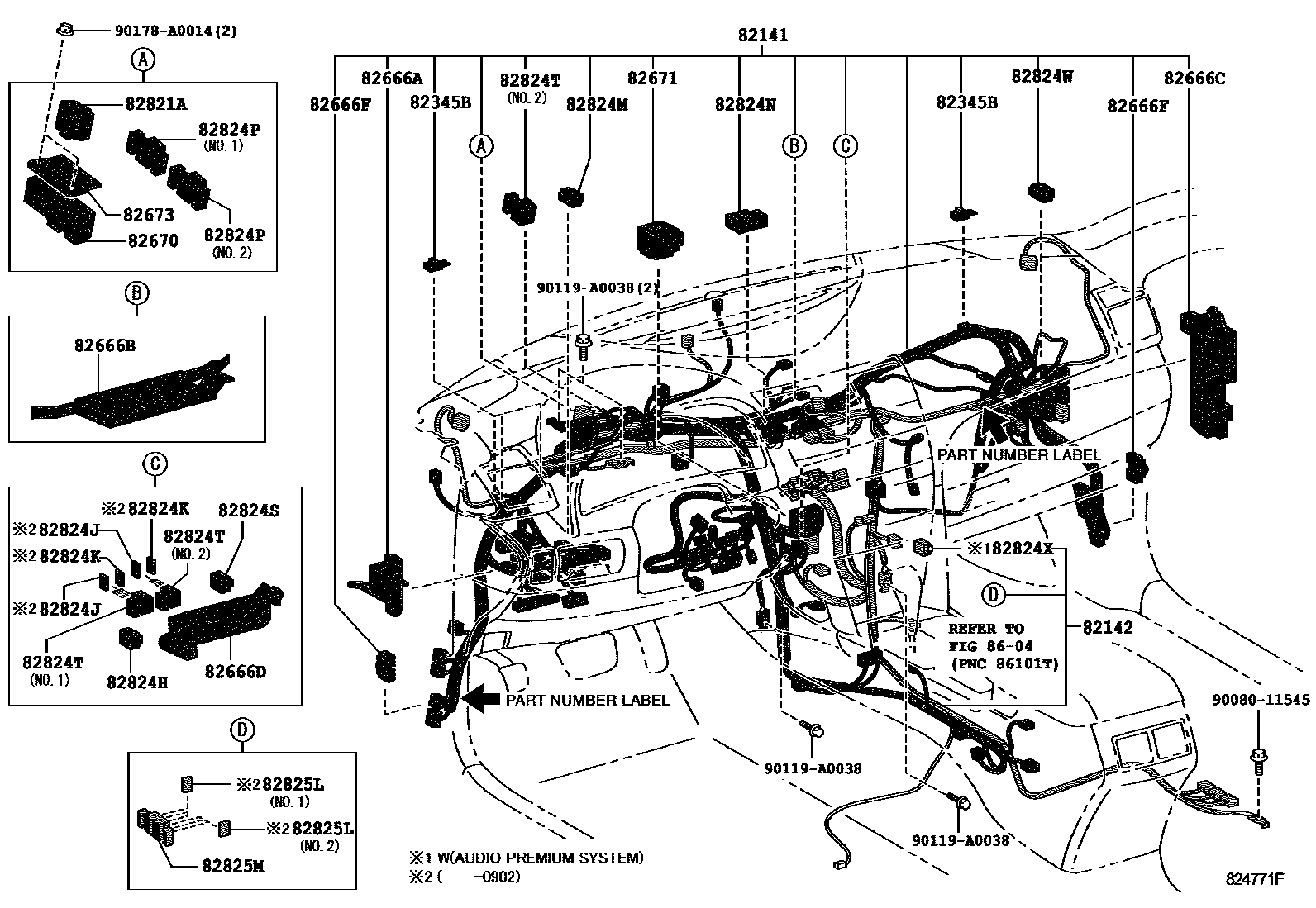

Toyota CAMRY 线束和卡夹 EPC diagram — 824771F
线束和卡夹 — 824771F (200602 – 999999)

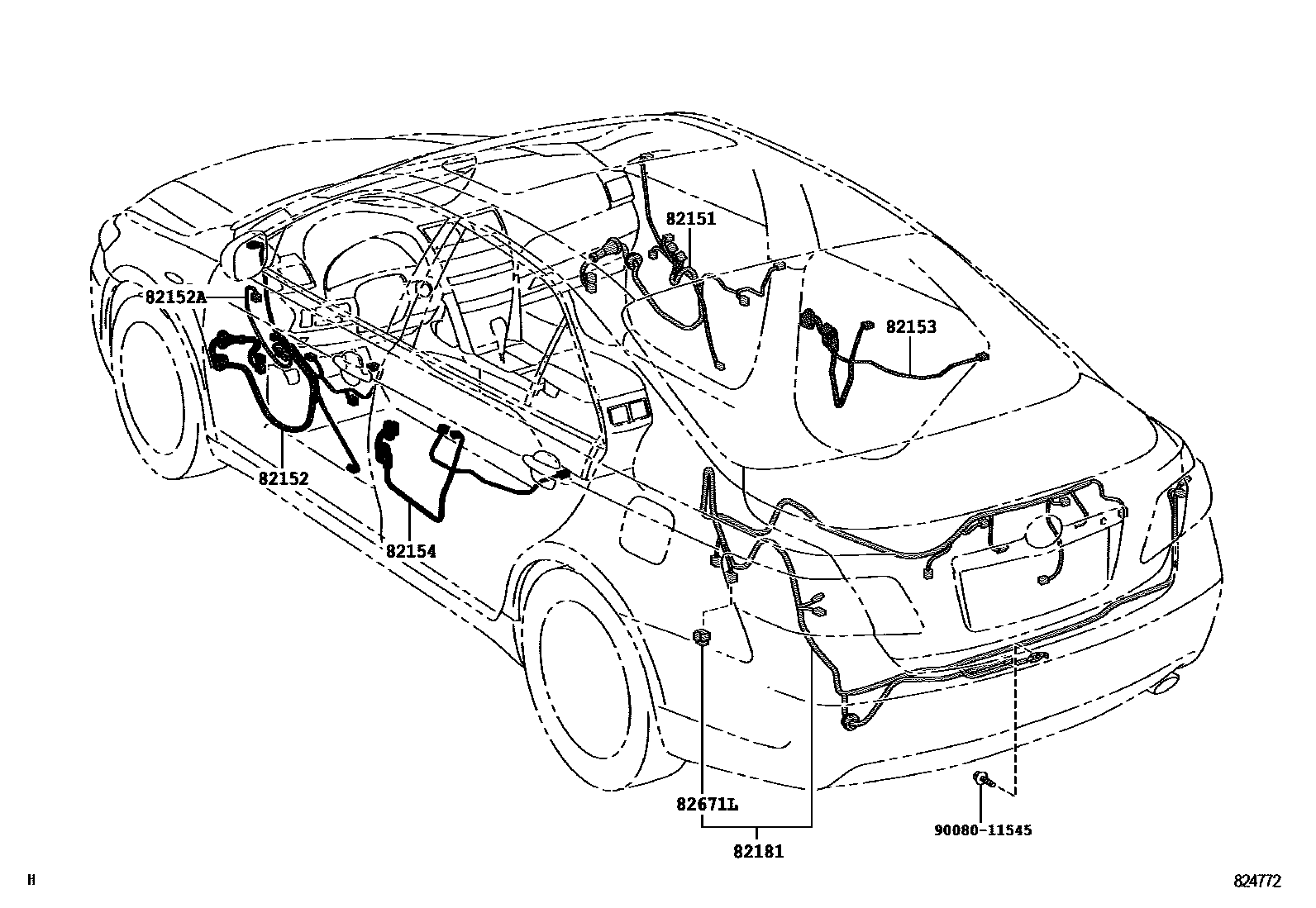

Toyota CAMRY 线束和卡夹 EPC diagram — 824772
线束和卡夹 — 824772 (200602 – 999999)

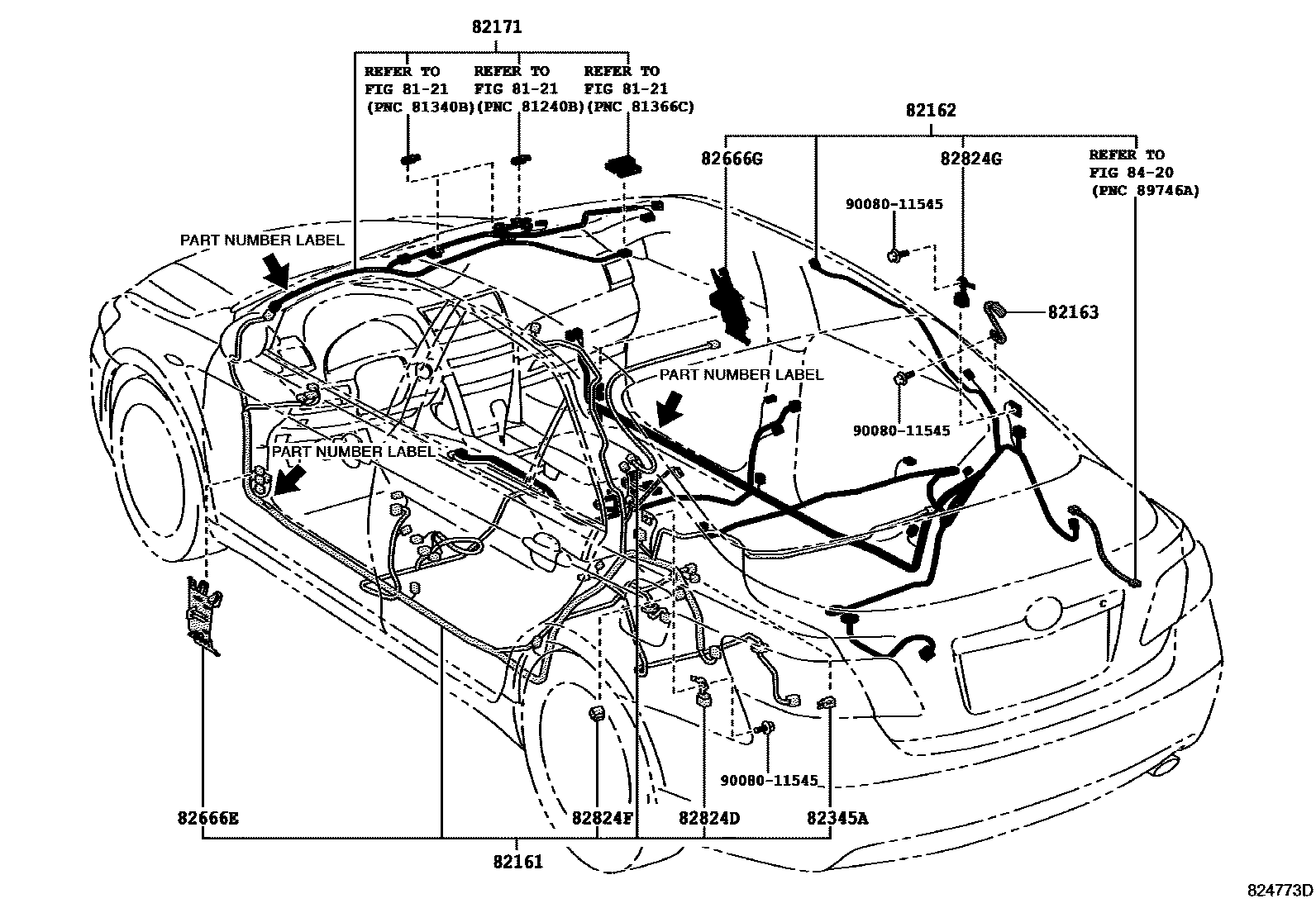

Toyota CAMRY 线束和卡夹 EPC diagram — 824773D
线束和卡夹 — 824773D (200602 – 999999)

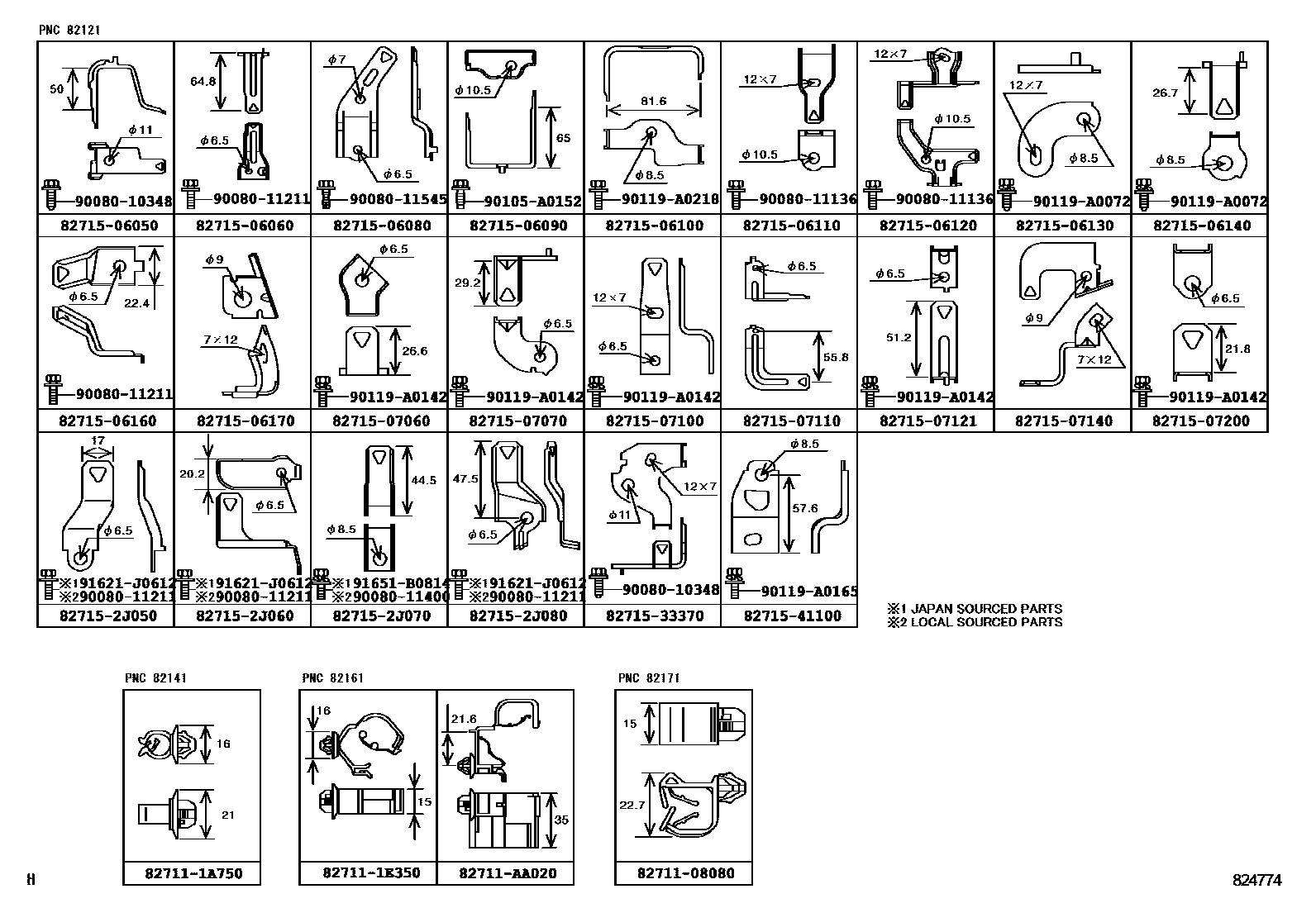

Toyota CAMRY 线束和卡夹 EPC diagram — 824774A
线束和卡夹 — 824774A (200602 – 999999)

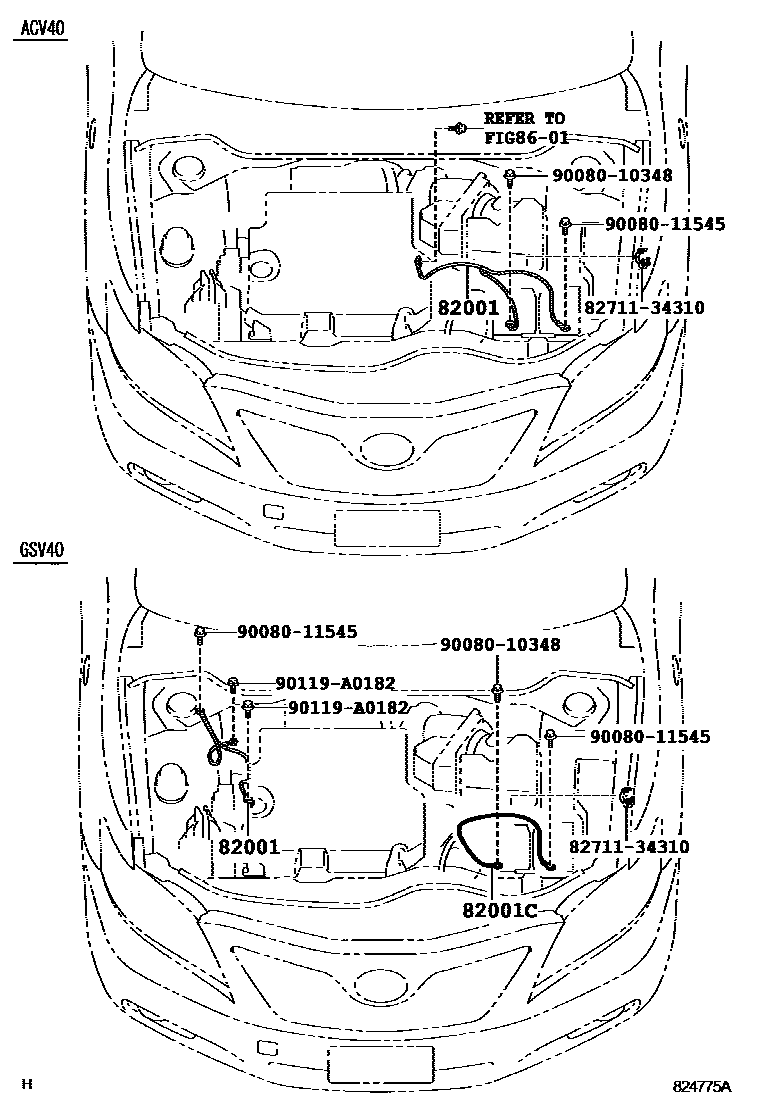

Toyota CAMRY 线束和卡夹 EPC diagram — 824775A
线束和卡夹 — 824775A (200602 – 999999)

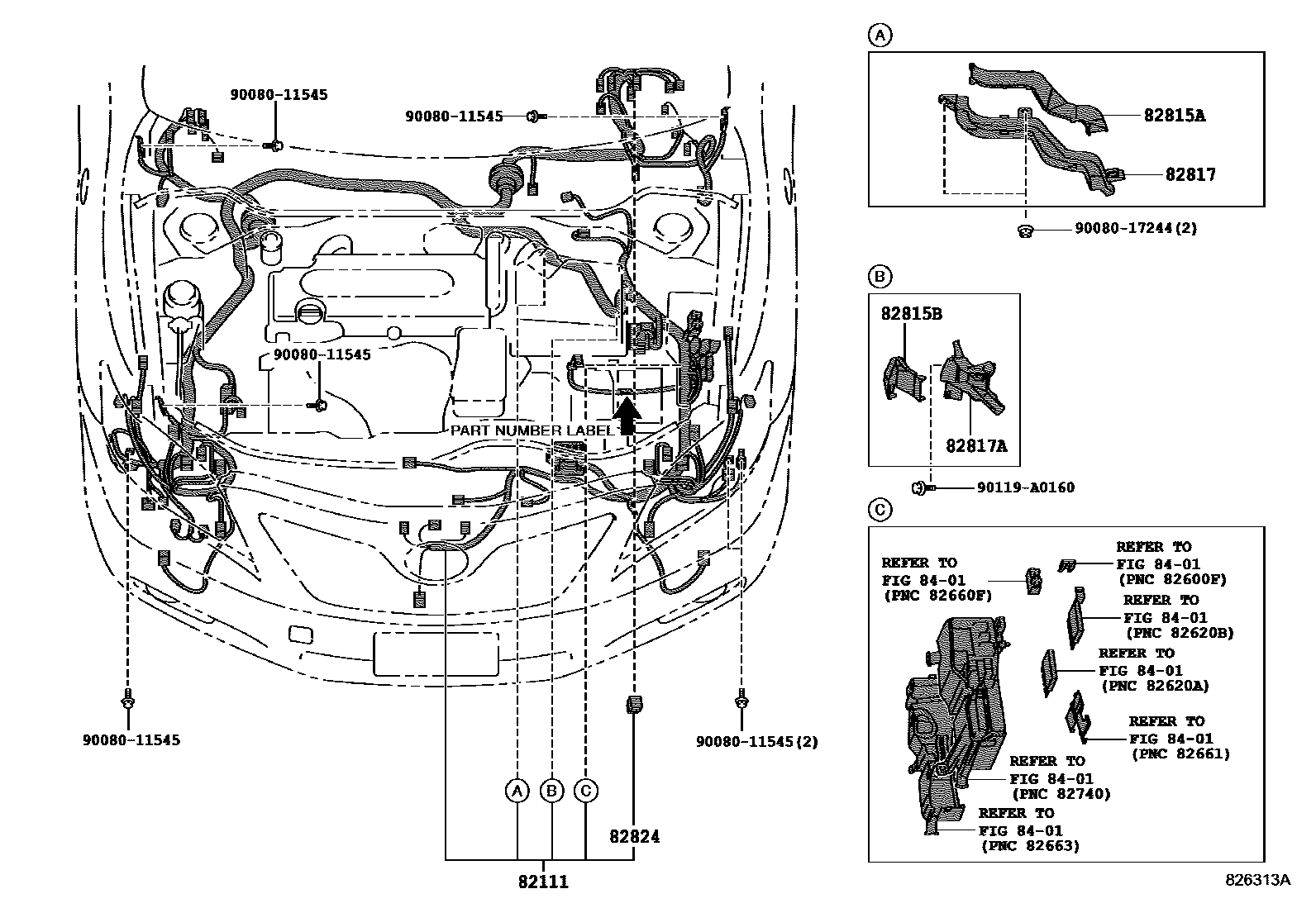

Toyota CAMRY 线束和卡夹 EPC diagram — 826313A
线束和卡夹 — 826313A (200903 – 999999)

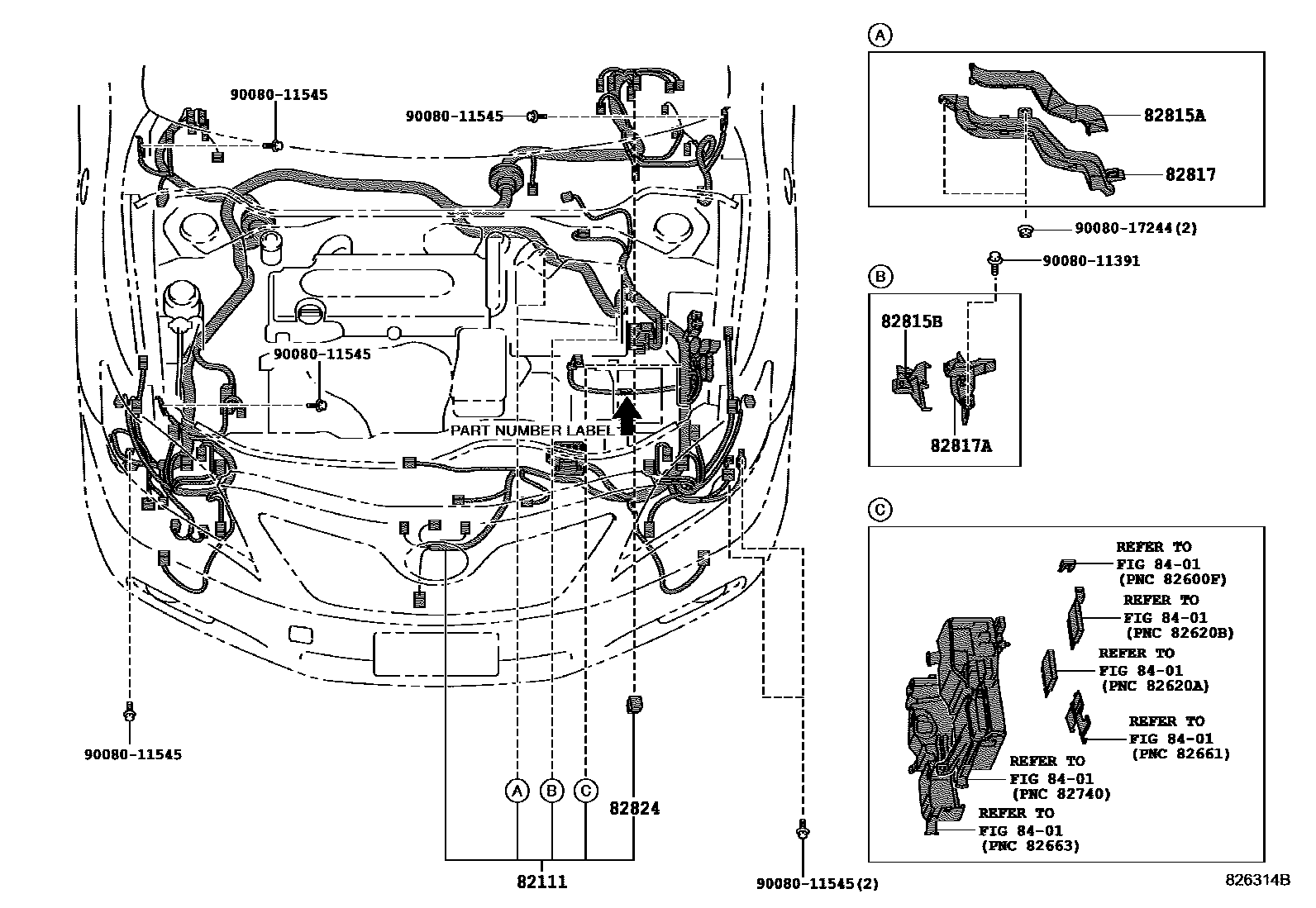

Toyota CAMRY 线束和卡夹 EPC diagram — 826314B
线束和卡夹 — 826314B (200903 – 999999)

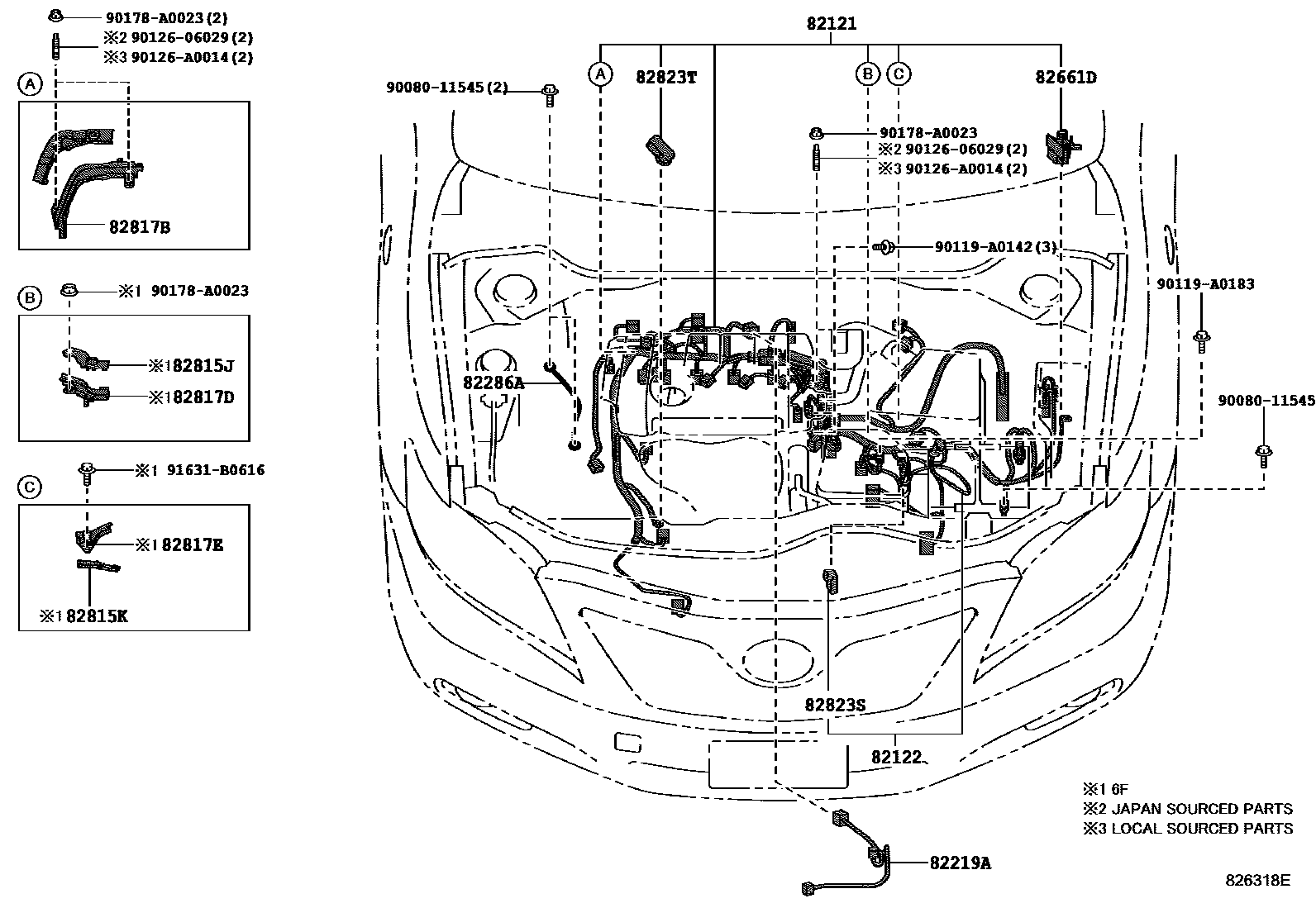

Toyota CAMRY 线束和卡夹 EPC diagram — 826318E
线束和卡夹 — 826318E (200903 – 999999)

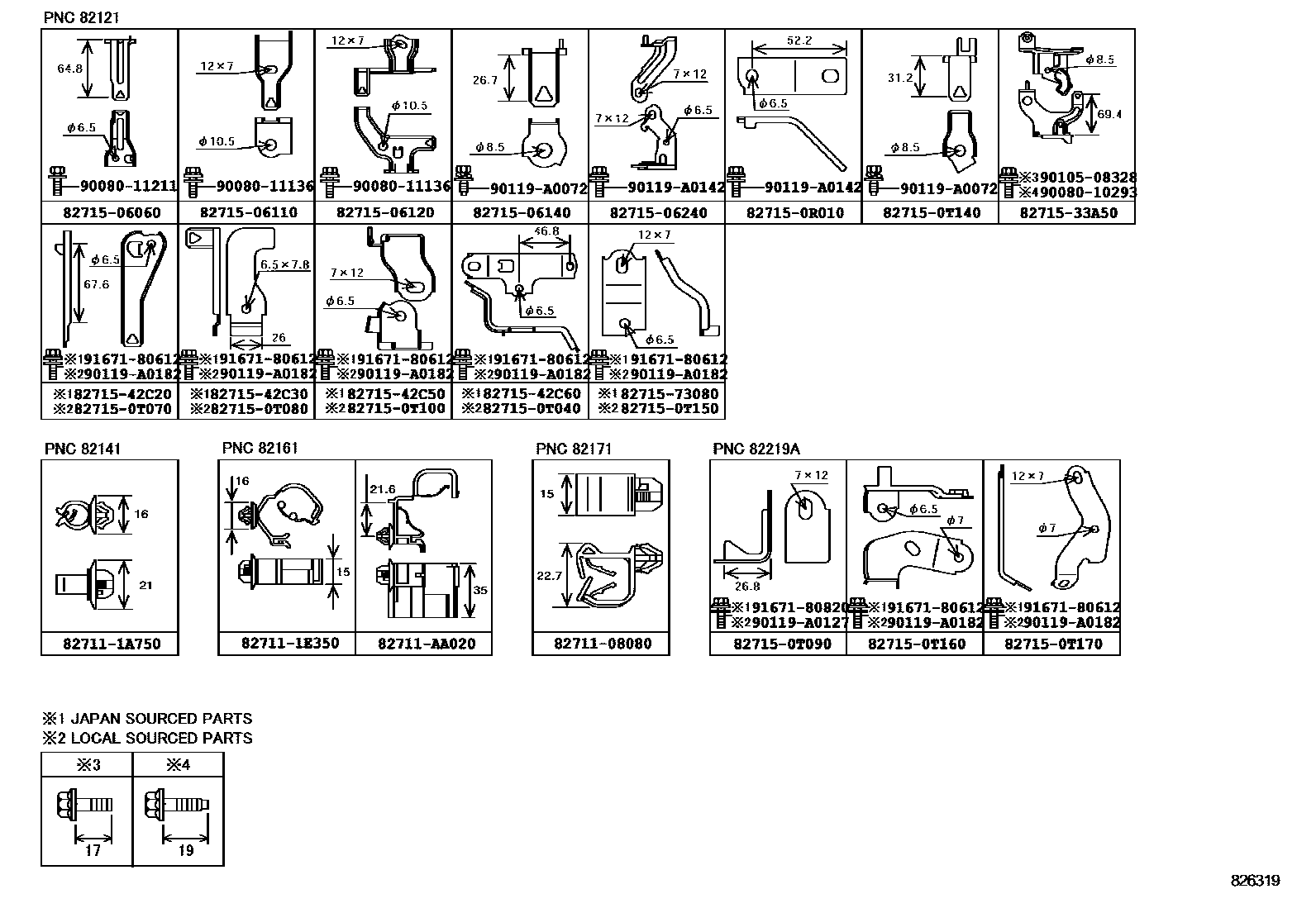

Toyota CAMRY 线束和卡夹 EPC diagram — 826319
线束和卡夹 — 826319 (200903 – 999999)

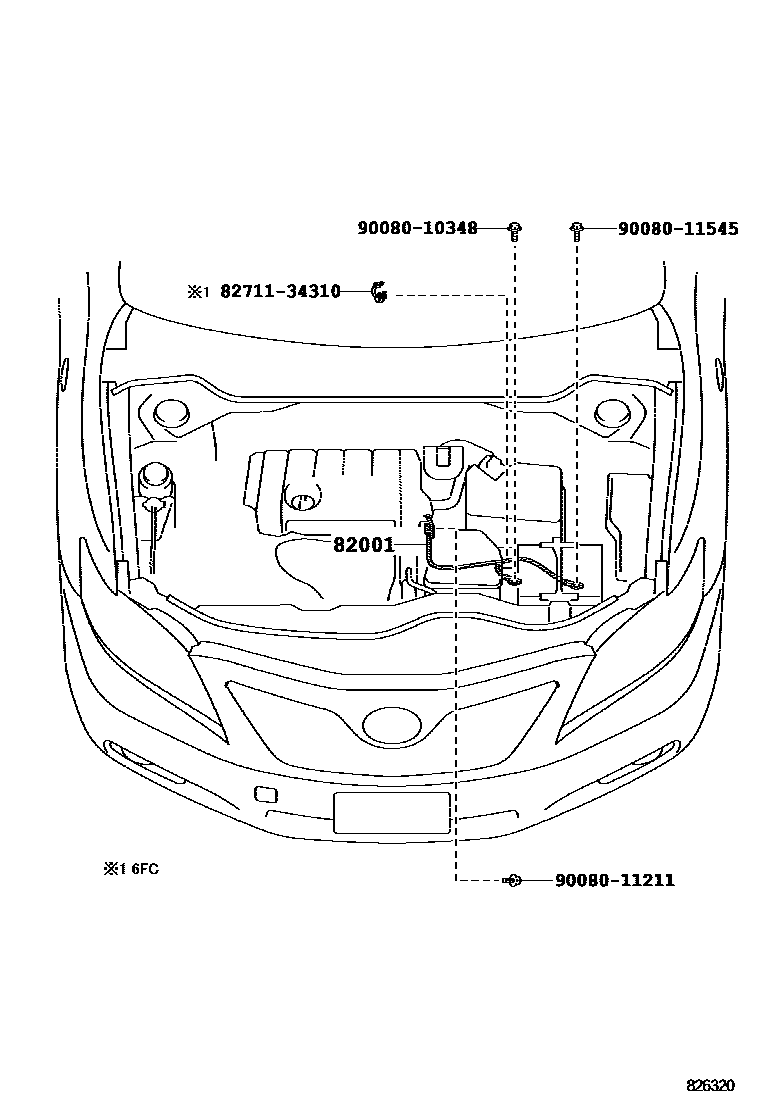

Toyota CAMRY 线束和卡夹 EPC diagram — 826320
线束和卡夹 — 826320 (200903 – 999999)

PNC and OE references

PNCPart nameOE numbers
82001Connection cable No. 190980-A7002 · 90980-A7005 · 90980-A7026 · 90980-A7029
82001CConnection cable No. 290980-A7003
82111Engine room main wiring harness82111-06E80 · 82111-06E81 · 82111-06E90 · 82111-06E91 · 82111-06F00 · 82111-06F01 · 82111-06F10 · 82111-06F11 · 82111-06F20 · 82111-06F21 · 82111-06F30 · 82111-06F31 · 82111-06F40 · 82111-06F41 · 82111-06P40 · 82111-06P41 · 82111-06P50 · 82111-06P51 · 82111-06P60 · 82111-06P61 · 82111-06P70 · 82111-06P71 · 82111-06P80 · 82111-06P81 · 82111-06V40 · 82111-06V50
82121Engine wiring harness82121-06750 · 82121-06751 · 82121-06760 · 82121-06761 · 82121-06770 · 82121-06771 · 82121-06780 · 82121-06781 · 82121-06810 · 82121-06811 · 82121-06840 · 82121-06C20 · 82121-06C30 · 82121-06C40
82122Engine No. 2 wiring harness82122-06060
82141Dashboard wiring harness82141-06J00 · 82141-06J01 · 82141-06J10 · 82141-06J11 · 82141-06J20 · 82141-06J21 · 82141-06J30 · 82141-06J31 · 82141-06J40 · 82141-06J41 · 82141-06J50 · 82141-06J51 · 82141-06J60 · 82141-06J61 · 82141-06J70 · 82141-06J71 · 82141-06J80 · 82141-06J81 · 82141-06J90 · 82141-06J91 · 82141-06K00 · 82141-06K01 · 82141-06K10 · 82141-06K11 · 82141-06K20 · 82141-06K21 · 82141-06T50 · 82141-06T51 · 82141-06T60 · 82141-06T61 · 82141-06T70 · 82141-06T71 · 82141-06T80 · 82141-06T81 · 82141-06T90 · 82141-06T91 · 82141-06U00 · 82141-06U01 · 82141-06U10 · 82141-06U11 · 82141-06U20 · 82141-06U21 · 82141-06U30 · 82141-06U31 · 82141-06U40 · 82141-06U41 · 82141-0X360 · 82141-0X370
82142Instrument panel wiring harness No. 282142-06130 · 82142-06131 · 82142-06140 · 82142-06141 · 82142-06150 · 82142-06151 · 82142-06160 · 82142-06161 · 82142-06170 · 82142-06171 · 82142-06180 · 82142-06181 · 82142-06650 · 82142-06660 · 82142-06670 · 82142-06680 · 82142-06690 · 82142-06720 · 82142-06C00
82151Right front door wiring harness82151-06600 · 82151-06610 · 82151-06620 · 82151-06A60 · 82151-06A70 · 82151-06A80 · 82151-06B60
82152Left front door wiring harness82152-06700 · 82152-06710 · 82152-06720 · 82152-06730 · 82152-06C10 · 82152-06C20 · 82152-06C30 · 82152-06C90
82152ALeft front door wiring harness No. 282155-06060 · 82156-06010 · 82156-06020
82153Rear door wiring harness No. 182153-06100 · 82153-06300 · 82153-06320
82154Rear door wiring harness No. 282154-06100 · 82154-06300 · 82154-06320
82161floor wiring harness82161-06B70 · 82161-06B80 · 82161-06B90 · 82161-06C00 · 82161-06C10 · 82161-06C20 · 82161-06G50 · 82161-06G60 · 82161-06K70 · 82161-06K80 · 82161-06K90 · 82161-06L00 · 82161-06L10 · 82161-06L20 · 82161-06L30 · 82161-06L40 · 82161-06L50
82162Floor wiring harness No. 282162-06390 · 82162-06400 · 82162-06410 · 82162-06420 · 82162-06430 · 82162-06440 · 82162-06450 · 82162-06460 · 82162-06470 · 82162-06480 · 82162-06B70 · 82162-06B90 · 82162-06B91 · 82162-06C00 · 82162-06C10 · 82162-06C11 · 82162-06C40 · 82162-06C50 · 82162-06C51 · 82162-06C60 · 82162-06C70 · 82162-06C71 · 82162-06D00 · 82162-06D30
82163Floor wiring harness No. 382163-06080
82171Roof No. 1 wiring harness82171-06630 · 82171-06640 · 82171-06650 · 82171-06E20 · 82171-06E30 · 82171-06E50
82181Luggage No. 1 wiring harness82181-06120 · 82181-06130 · 82181-06260 · 82181-06380 · 82181-06390 · 82181-06400 · 82181-06410 · 82181-06420
82191Front right seat wiring harness82191-06100 · 82191-06110 · 82191-06290 · 82191-06300 · 82191-AA040
82192Front left seat wiring harness82192-06110 · 82192-06120 · 82192-06280 · 82192-06290
82219Asensor harness82219-06010 · 82219-73010
82286ALine 282286-06010
82345Adiode82345-32010
82345Bdiode82345-32010
82661DNo. 1 relay box side cover82661-33010
82666AConnector holder No. 282666-33300
82666BNo. 3 connector holder82666-33310
82666CNo. 4 connector holder82666-33320
82666DNo. 5 connector holder82666-33380
82666ENo. 6 connector holder82666-33360
82666FNo. 7 connector holder82666-60220
82666GNo. 8 connector holder82666-33370
82666LNo. 9 connector holder82666-43040
82670No. 1 junction box assembly82671-33070
82671junction box82671-33080
82671LNo. 4 junction box82671-30340
82673Junction box bracket82673-33040
82815AWiring harness protector cover82815-07240
82815BWiring harness protector cover82815-07250 · 82815-33310
82815GWiring harness protector cover82815-33350
82815JNo. 7 wire harness protector cover82815-06050
82815KNo. 8 wire harness protector cover82815-06060
82817No. 1 wire harness protection device82817-07470
82817ANo. 2 wire harness protection device82817-07480 · 82817-33B00
82817BNo. 3 wire harness protection device82817-0T050 · 82817-33C11
82817DNo. 5 wire harness protection device82817-06170
82817ENo. 6 wire harness protection device82817-06180
82821AConnector cover82821-33250
82823SBOUCHON, BORNE DEMARREUR82823-12090
82823TBOUCHON, BORNE ALTERNATEUR82823-22080
82824Harness connector82824-33300 · 82824-48020 · 82824-52280
82824DHarness connector82824-48070
82824EHarness connector82824-48020
82824FHarness connector82824-30220
82824GHarness connector82824-48070
82824HHarness connector82824-20110
82824JHarness connector82824-42200
82824KHarness connector82824-42210
82824MHarness connector82824-12210
82824NHarness connector82824-48080
82824PHarness connector82824-33250
82824SHarness connector82824-50110
82824THarness connector82824-42180 · 82824-42190
82824WHarness connector82824-30170
82824XHarness connector82824-20110 · 82824-22080
82825LHarness connector82824-42200 · 82824-42210
82825MHarness connector82824-33240
