Toyota CAMRY accelerator pedal connecting rod — Figure 7801

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.

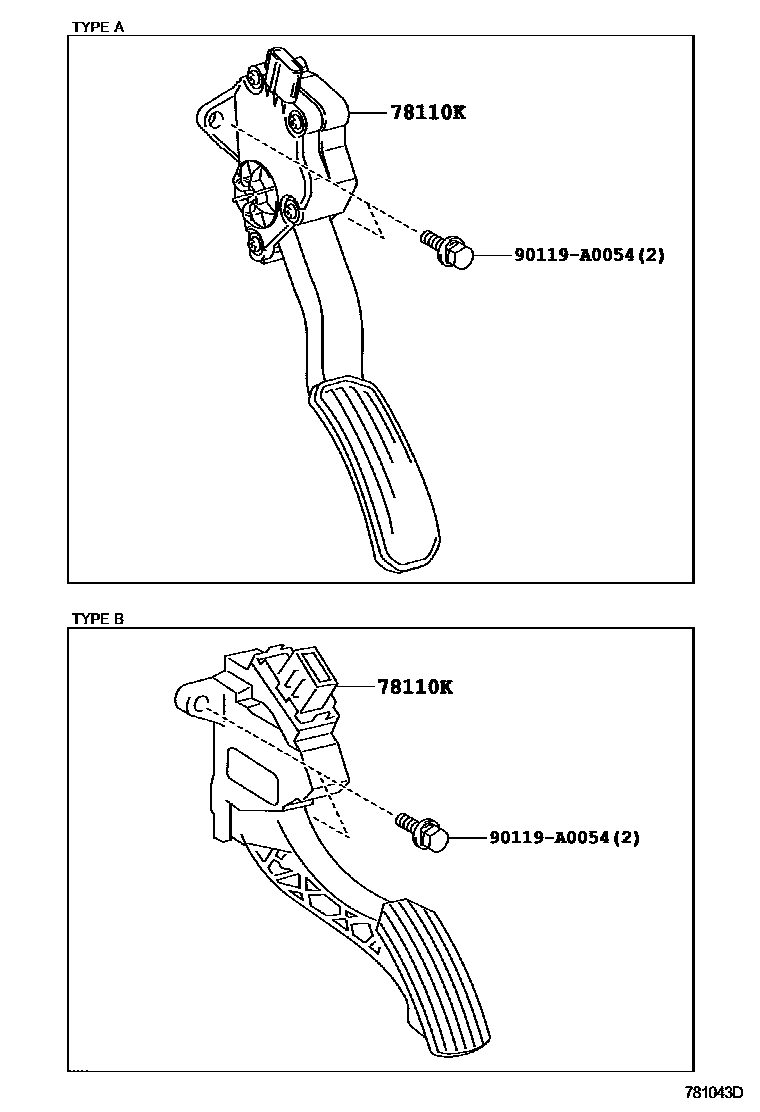

Toyota CAMRY accelerator pedal connecting rod EPC diagram — 781043D
accelerator pedal connecting rod — 781043D (200602 – 999999)

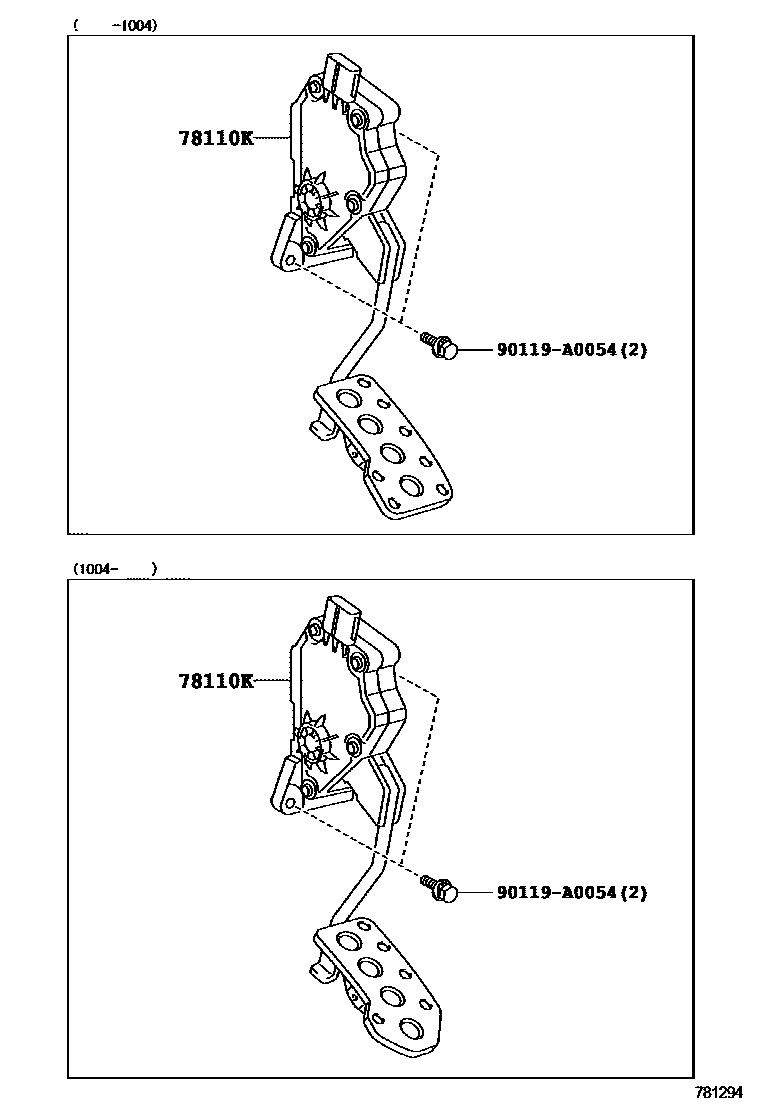

Toyota CAMRY accelerator pedal connecting rod EPC diagram — 781294
accelerator pedal connecting rod — 781294 (200902 – 999999)

PNC and OE references

PNCPart nameOE numbers
78110KAccelerator pedal sensor assembly78110-06070 · 78110-07010 · 78110-07011 · 78110-33020 · 78110-33060 · 78110-33120
