Toyota CAMRY 燃油箱和燃油管 — Figure 7701

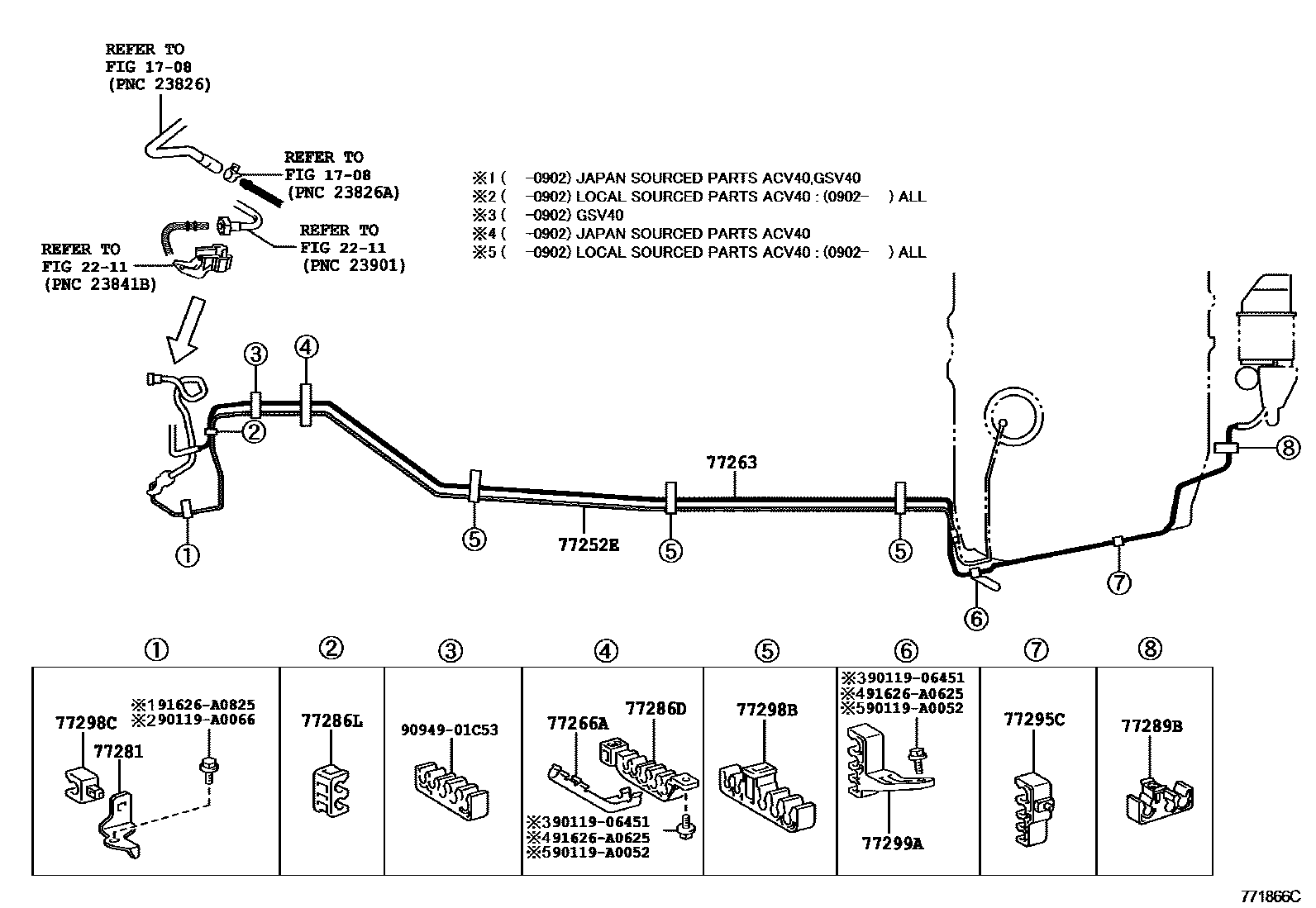

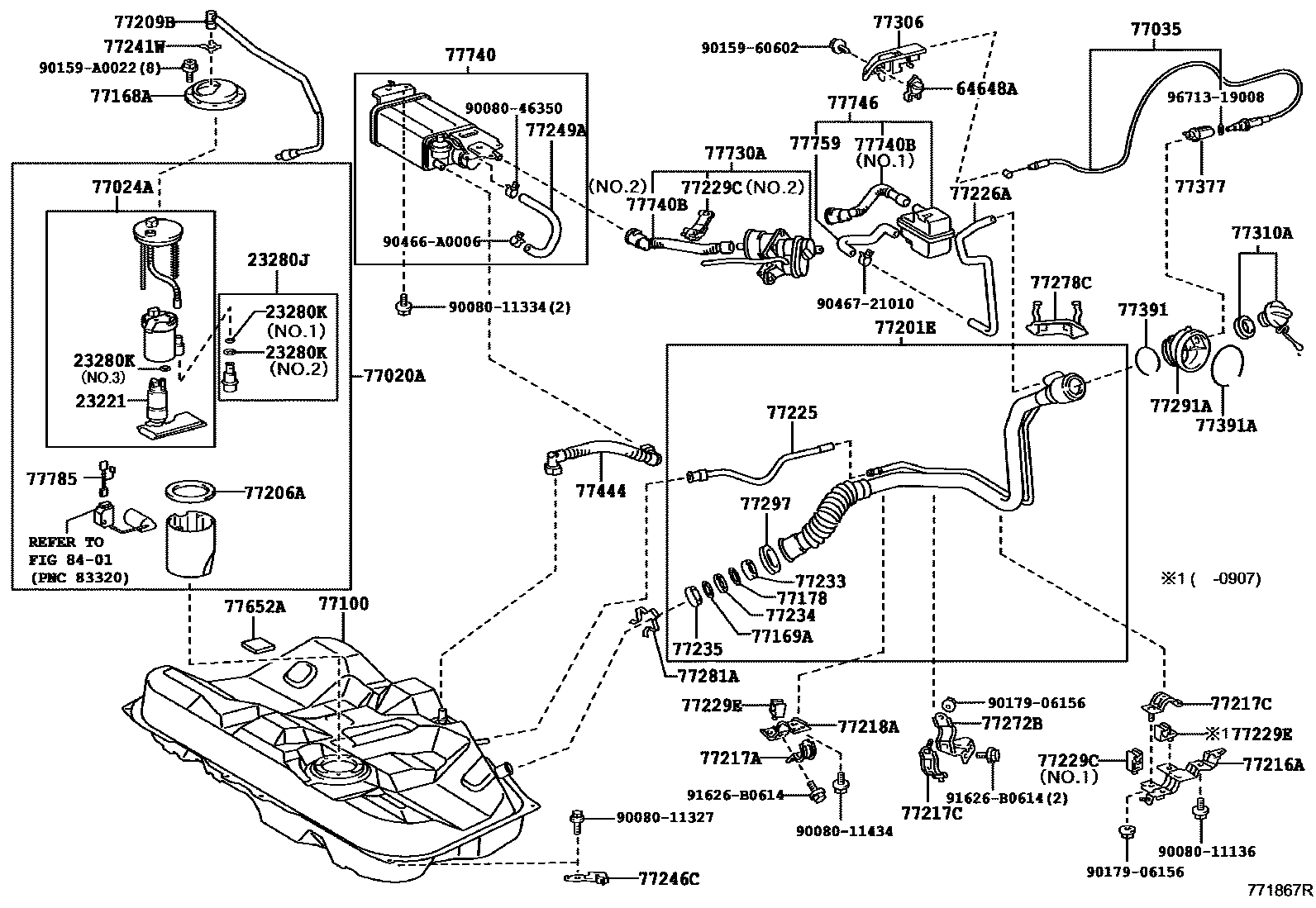

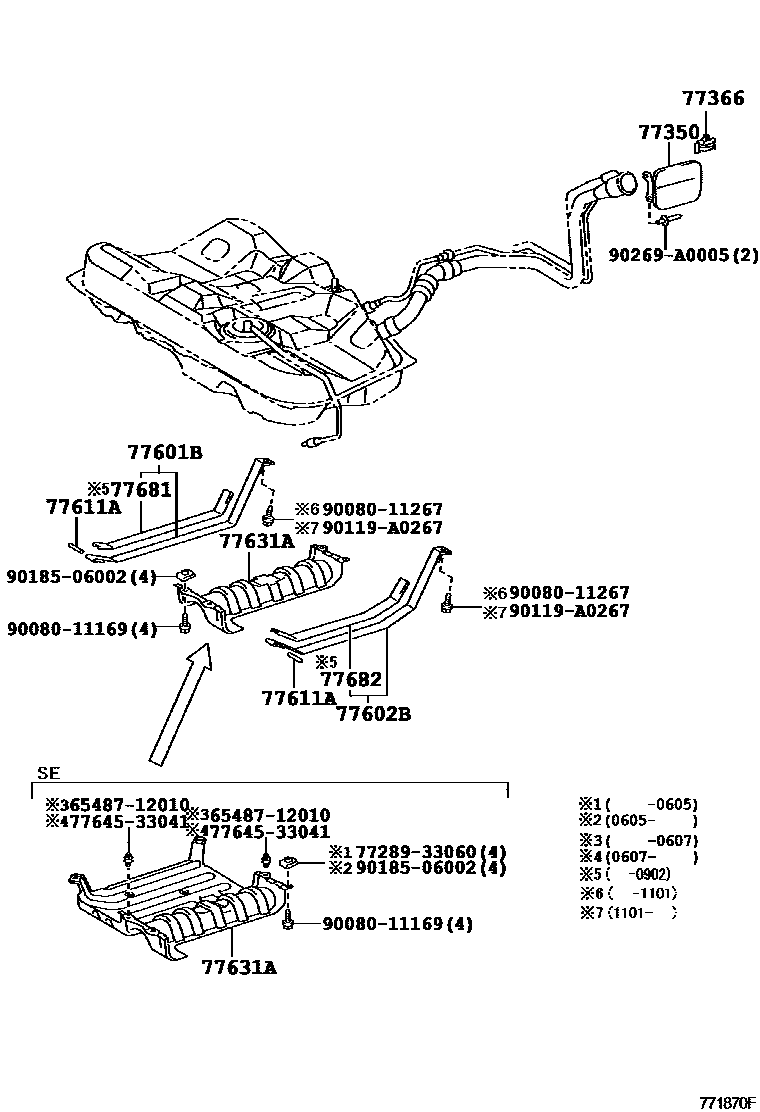

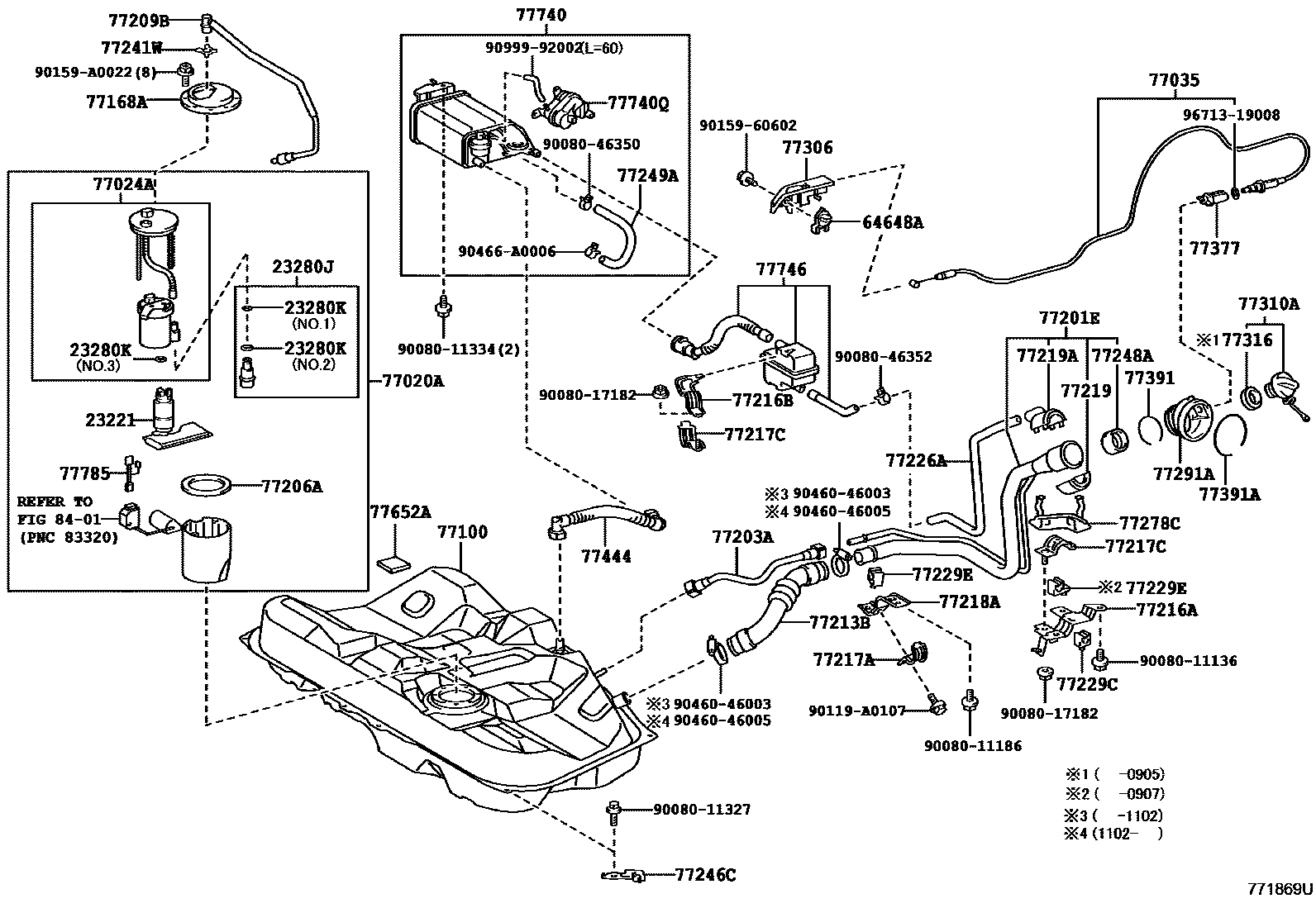

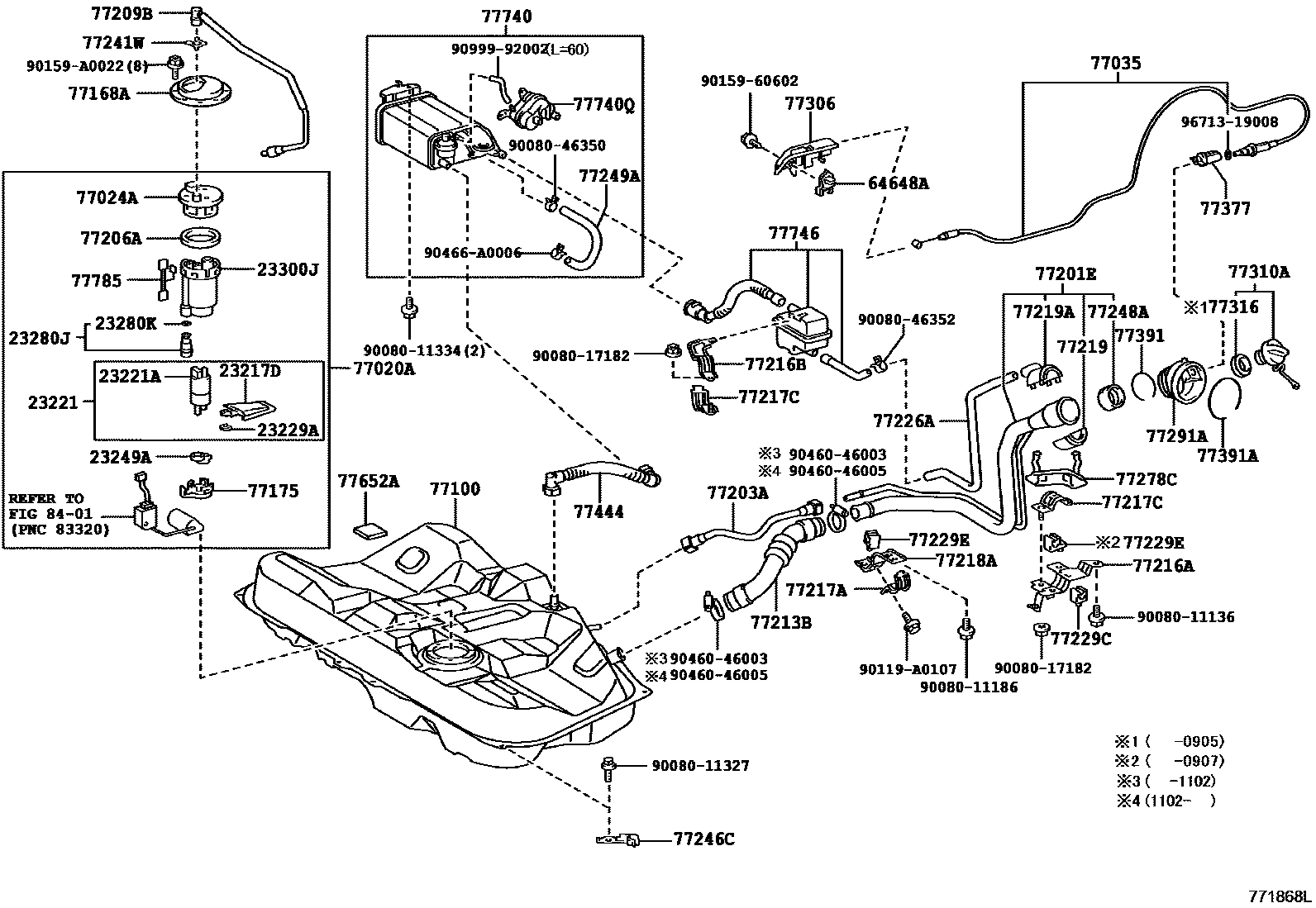

Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 5 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0C010 |
| 23221 | fuel pump | 23220-0A040 · 23220-0H060 · 23220-0H061 · 23220-0H062 |
| 23221A | No. 1 fuel pump | 23221-0A040 |
| 23229A | Clip (for fuel pump filter) | 23219-03010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-0A020 |
| 23280J | Fuel pressure regulator assembly | 23280-20060 · 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-07020 · 90301-15024 · 90301-A0013 |
| 23300J | fuel filter assembly | 23300-0A020 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06120 · 77020-06121 · 77020-06130 · 77020-06131 · 77020-07040 |
| 77024A | Fuel absorber sub-assembly | 77024-06020 · 77024-06030 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-06090 |
| 77100 | fuel tank assembly | 77001-06080 · 77001-06081 · 77001-06082 · 77001-06110 · 77001-06111 · 77001-06112 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-33050 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33050 |
| 77175 | No. 2 oil suction pipe bracket | 77175-06020 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33010 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06080 · 77201-33310 · 77201-33311 |
| 77203A | Fuel suction pipe sub-assembly | 77203-06020 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-02020 · 77169-33030 |
| 77209B | Fuel pump pipe sub-assembly | 77209-06030 |
| 77213B | Fuel tank to filler pipe hose | 77213-06040 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77205-33030 · 77216-06050 |
| 77216B | No. 2 fuel tank filler pipe bracket | 77216-07020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06040 · 77217-33030 |
| 77217C | No. 2 fuel tank filler pipe bracket | 77217-07010 · 77217-33020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-06050 · 77218-33051 · 77218-33052 |
| 77219 | Fuel tank filler pipe cap | 77219-06050 |
| 77219A | Fuel tank filler pipe cap | 77289-06060 |
| 77225 | lower snorkel | 77203-33040 · 77203-33041 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06020 · 77226-33060 |
| 77229C | Snorkel clamp | 77229-07010 · 77229-33080 · 77229-33100 |
| 77229E | Snorkel clamp | 77229-06040 · 77229-33060 |
| 77233 | fuel hose connector | 77233-33040 |
| 77234 | fuel line connector seal | 77234-33020 |
| 77235 | No. 1 fuel evaporation vent pipe | 77235-33010 |
| 77241W | Pipe joint clip | 77241-02010 · 77241-06020 |
| 77246C | Main fuel pipe bracket | 77246-06010 · 77246-33020 |
| 77248A | Fuel tank filler pipe cap holder | 77248-06020 |
| 77249A | fuel drain hose | 77249-06070 · 77249-07020 · 77249-07021 |
| 77252E | No. 2 fuel pipe (for front main fuel pipe) | 77251-06070 |
| 77263 | No. 3 fuel tank to carbon canister pipe | 77261-06090 |
| 77266A | No. 1 fuel line protection device | 77266-06030 |
| 77272B | No. 1 snorkel holder | 77272-33060 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-07030 · 77278-33020 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06020 |
| 77281A | Fuel filler pipe clamp | 77281-33020 |
| 77286D | No. 2 fuel pipe clamp | 77286-06030 |
| 77286L | No. 5 fuel pipe clamp | 77285-42110 |
| 77289B | No. 3 fuel pipe clamp | 77289-06040 |
| 77291A | Fuel tank filler pipe cover | 77291-06040 · 77291-33060 |
| 77295C | Fuel pipe retaining ring | 77295-06030 |
| 77297 | fuel line connector | 77297-33030 |
| 77298B | No. 4 fuel pipe clamp | 77298-20110 |
| 77298C | No. 4 fuel pipe clamp | 77298-30170 |
| 77299A | No. 5 fuel pipe clamp | 77299-06040 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06020 |
| 77310A | Fuel tank cap assembly | 77300-06040 · 77300-06050 |
| 77316 | fuel tank cap gasket | 77316-06050 · 77316-06070 · 77316-06090 |
| 77350 | Fuel filler cap assembly | 77350-06030 |
| 77366 | Fuel filler cap hinge spring | 77360-33030 |
| 77377 | Fuel filler cap lock retainer | 77377-AA020 |
| 77391 | fuel inlet ring | 77391-02040 · 77391-02041 |
| 77391A | fuel inlet ring | 77391-06010 |
| 77444 | fuel tank vent hose | 77404-06050 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06070 · 77601-07010 · 77601-33040 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06070 · 77602-07010 · 77602-33040 |
| 77611A | Pin (for fuel tank strap) | 90250-08019 |
| 77631A | Fuel tank center lower protective shell | 77631-06020 · 77631-06030 · 77631-06031 · 77631-06060 |
| 77652A | No. 2 fuel tank liner | 77652-06010 · 77652-33020 |
| 77681 | Fuel tank right side strap seat | 77681-32060 |
| 77682 | Fuel tank left side strap seat | 77681-32060 |
| 77730A | Capture carbon canister assembly with oil outlet valve | 77730-33090 |
| 77740 | Carbon canister assembly | 77740-06210 · 77740-07020 |
| 77740B | No. 2 fuel hose (for charcoal canister) | 77404-33090 · 77404-33130 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-AF002 |
| 77746 | No.2 carbon canister filter | 77706-07010 · 77706-33030 |
| 77759 | Carbon canister hose | 77759-33030 |
| 77785 | fuel pump wiring harness | 77785-06020 · 77785-06040 |
