Toyota CAMRY 挡泥板和扰流板 — Figure 7601

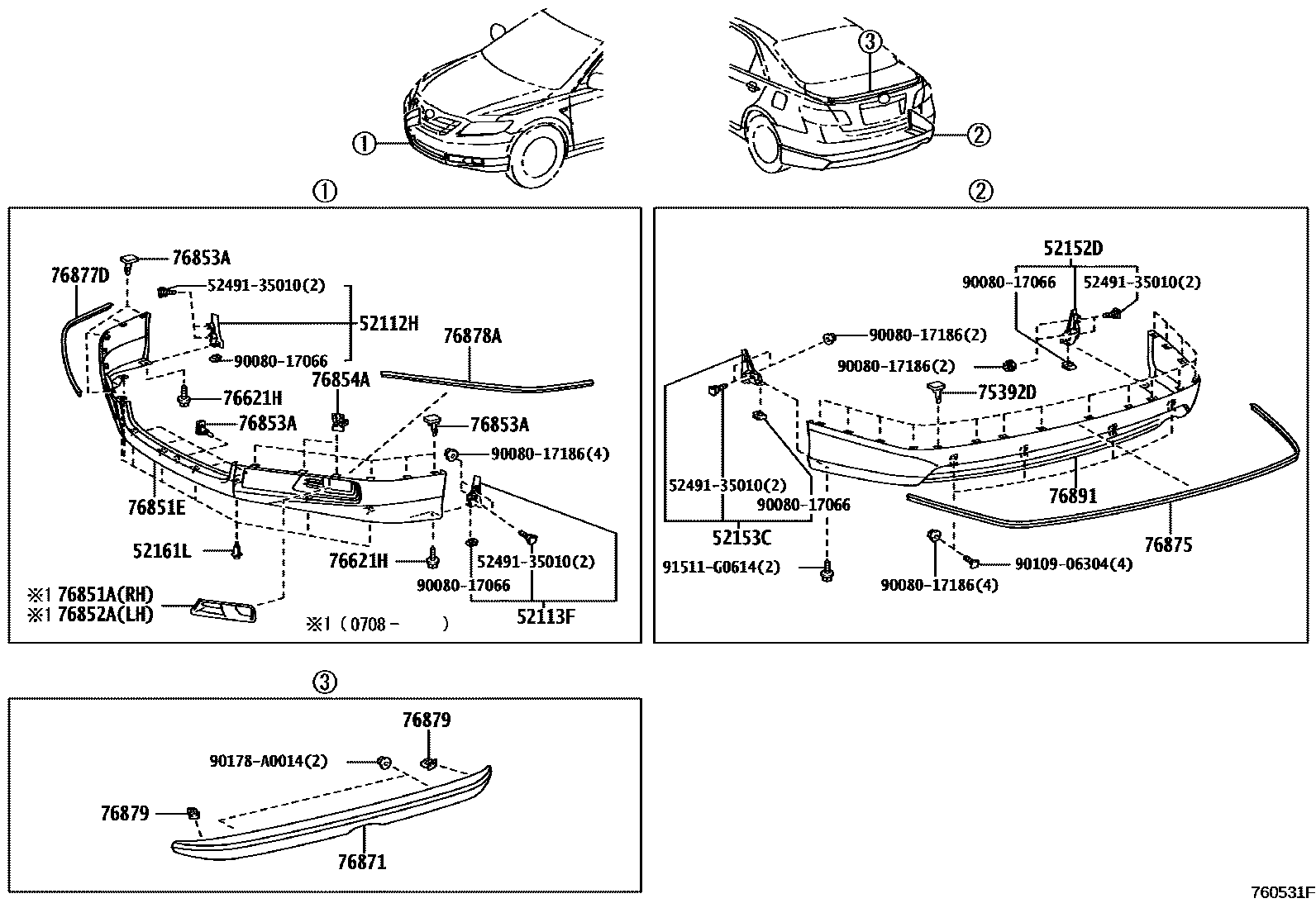

Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112H | Front bumper right extension | 52112-06010 · 52112-06040 |
| 52113F | Front bumper left extension | 52113-06010 · 52113-06040 |
| 52152D | Rear bumper right extension | 52152-06010 |
| 52153C | Rear bumper left extension | 52153-06010 |
| 52161L | front spoiler insert | 52161-02020 |
| 75392D | External protective strip fixings | 75392-35200 |
| 76621H | BOULON, NO.1 | 91511-G0614 |
| 76851A | Right front spoiler cover | 52127-06130 |
| 76851E | front spoiler | 76851-06901 · 76851-06905 · 76851-06906 |
| 76852A | Left front spoiler cover | 52128-06130 |
| 76853A | No. 1 front spoiler fixings | 75392-35200 |
| 76854A | No. 2 front spoiler fixing piece | 76854-06010 |
| 76871 | rear spoiler | 76871-06905 |
| 76879 | No. 1 rear spoiler clip | 76879-24020 |
| 76891 | No. 1 rear spoiler | 76891-06901 · 76891-06902 |
