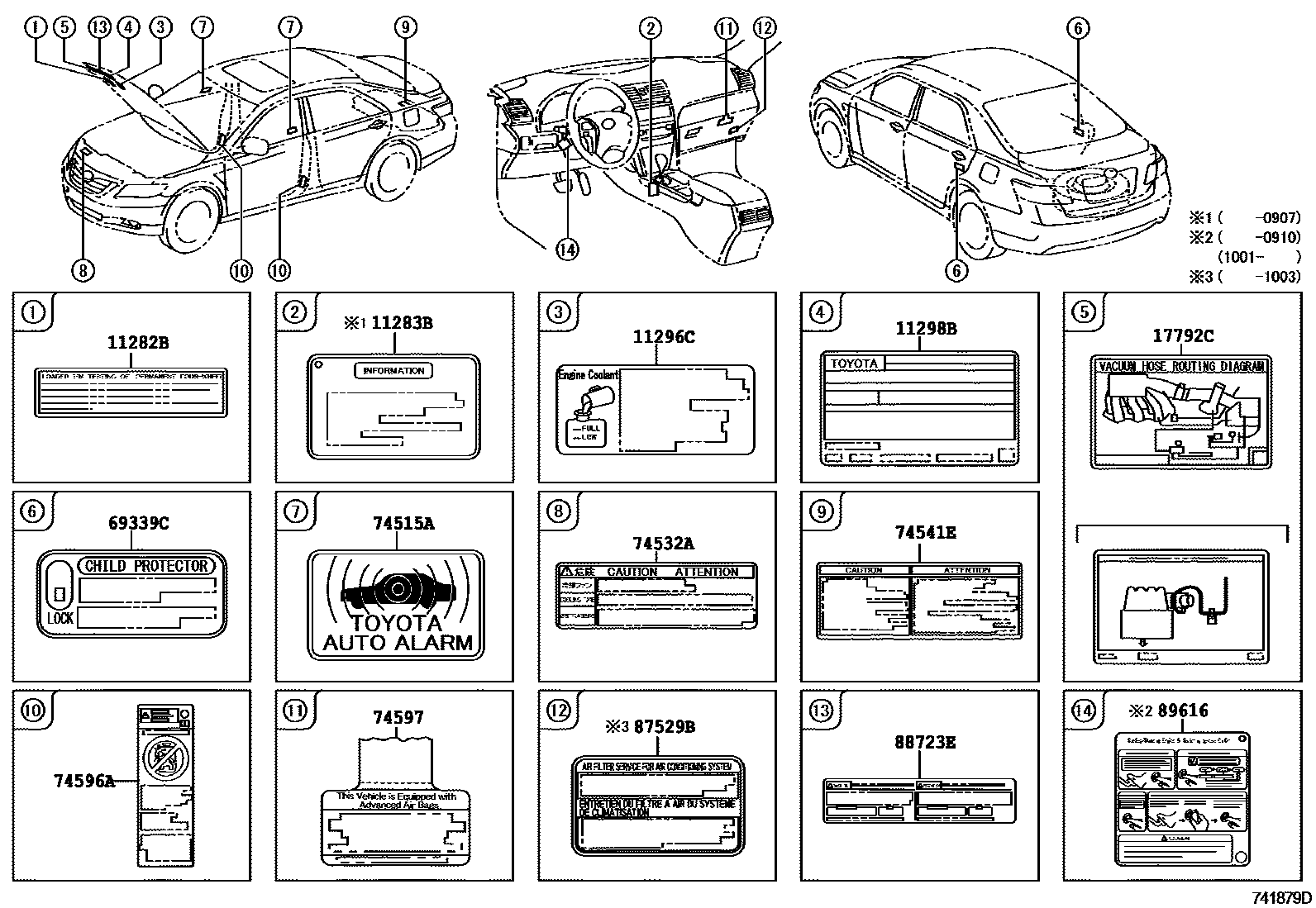

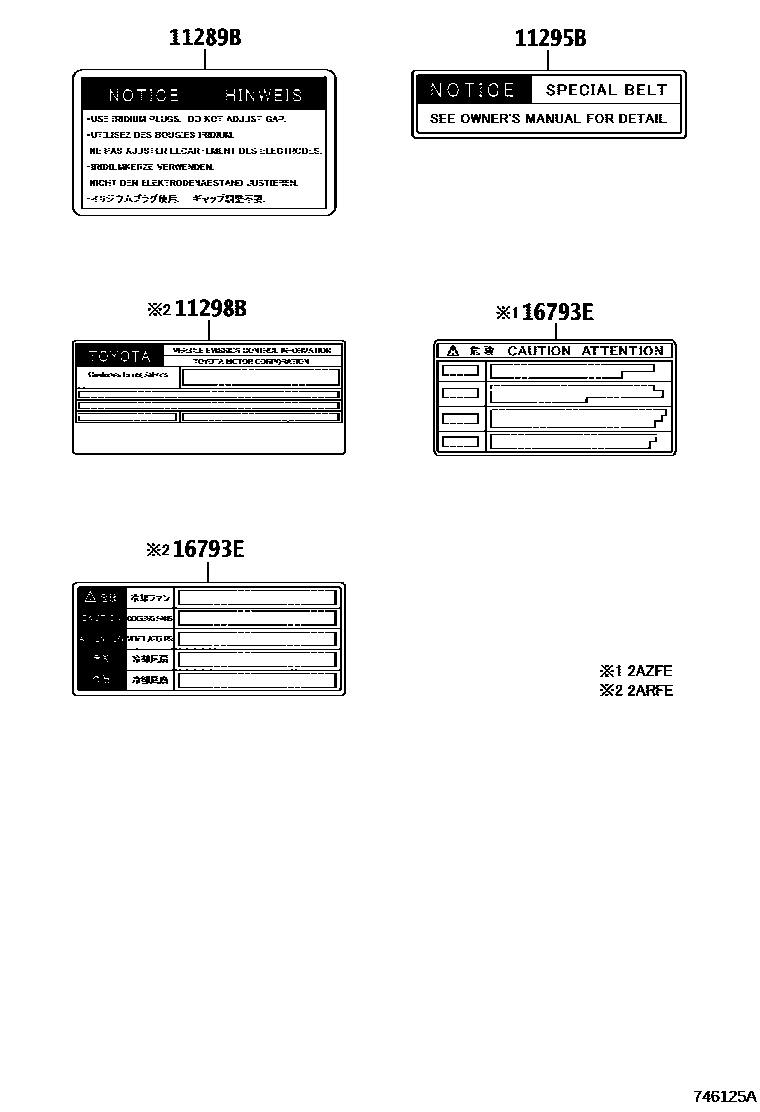

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11282B | Load testing warning labels | 11282-74010 |
| 11283B | Leak Detection Pump Information Label | 11294-28010 |
| 11289B | spark plug caution label | 11289-28010 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-36020 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 11298B | Emission Control Information Label | 11298-28390 · 11298-28400 · 11298-28630 · 11298-28640 · 11298-28710 · 11298-28720 · 11298-31130 · 11298-31400 · 11298-31590 · 11298-31790 · 11298-31820 · 11298-36070 · 11298-36071 · 11298-36080 · 11298-36081 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-28010 · 16793-28020 |
| 17792C | Engine vacuum hose information label | 17792-0H030 · 17792-0H050 · 17792-0P040 |
| 69339C | Child Restraint Information Label | 69339-AA020 |
| 74515A | Anti-theft warning nameplate | 74515-06010 |
| 74532A | warning nameplate | 16793-46010 |
| 74541E | Small spare tire warning plate | 42668-06010 |
| 74596A | Side air bag warning label | 74596-02020 |
| 74597 | Driver and Passenger Air Bag Warning Labels | 74599-0E020 |
| 87529B | Cabin filter information label | 87529-0E010 |
| 88723E | Cooler maintenance warning label | 88723-07030 |
| 89616 | Button start information label | 89616-30031 |
