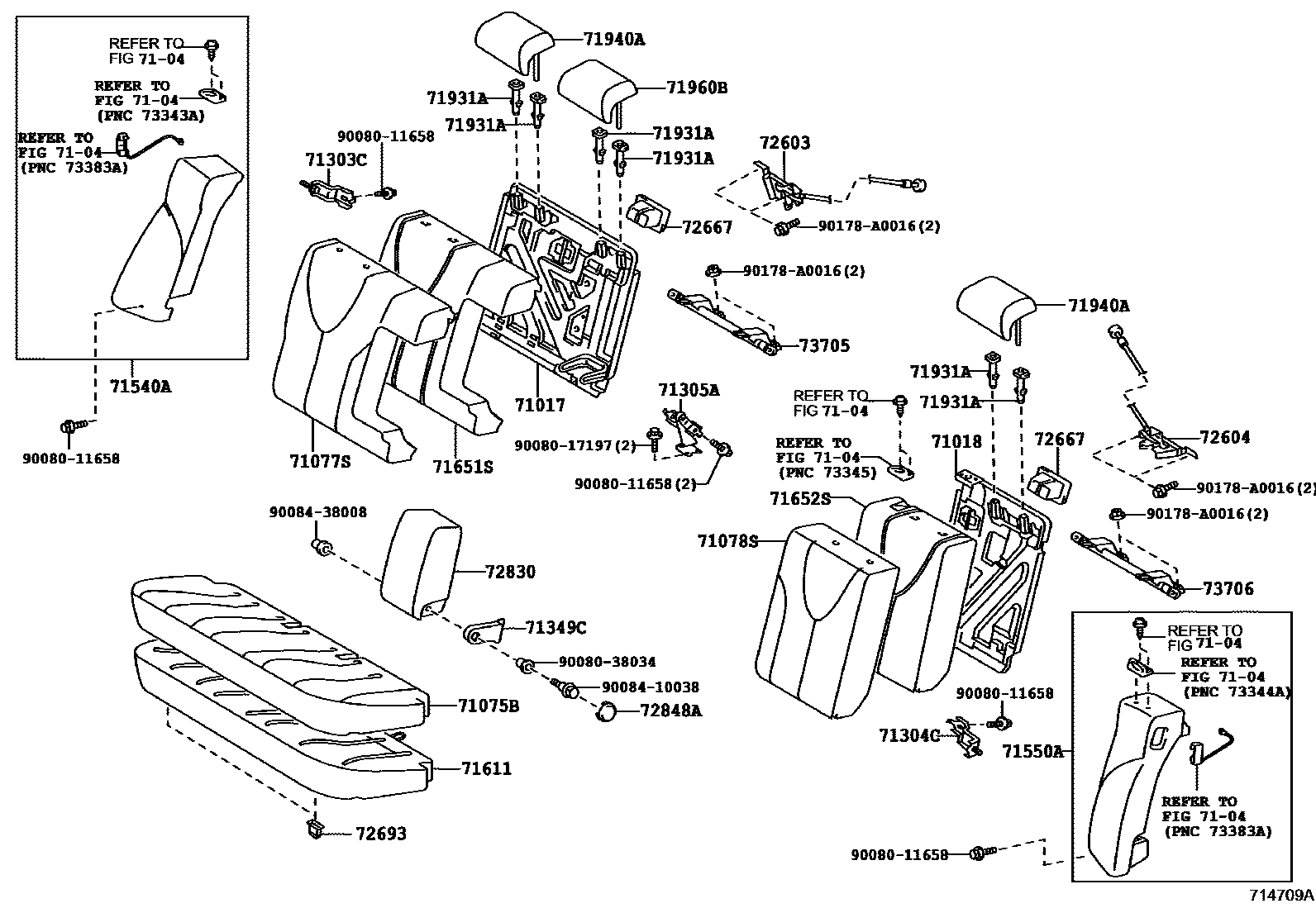

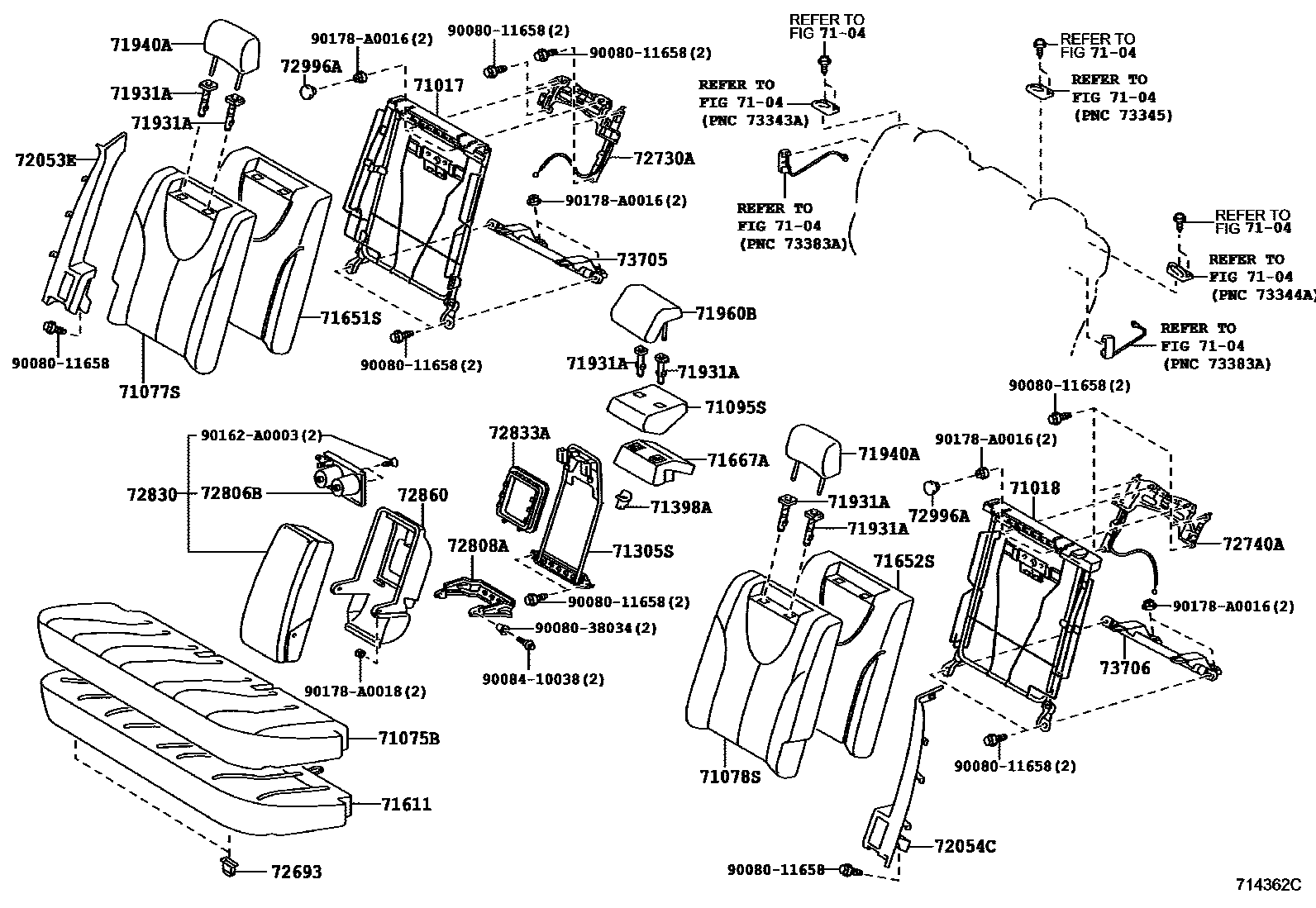

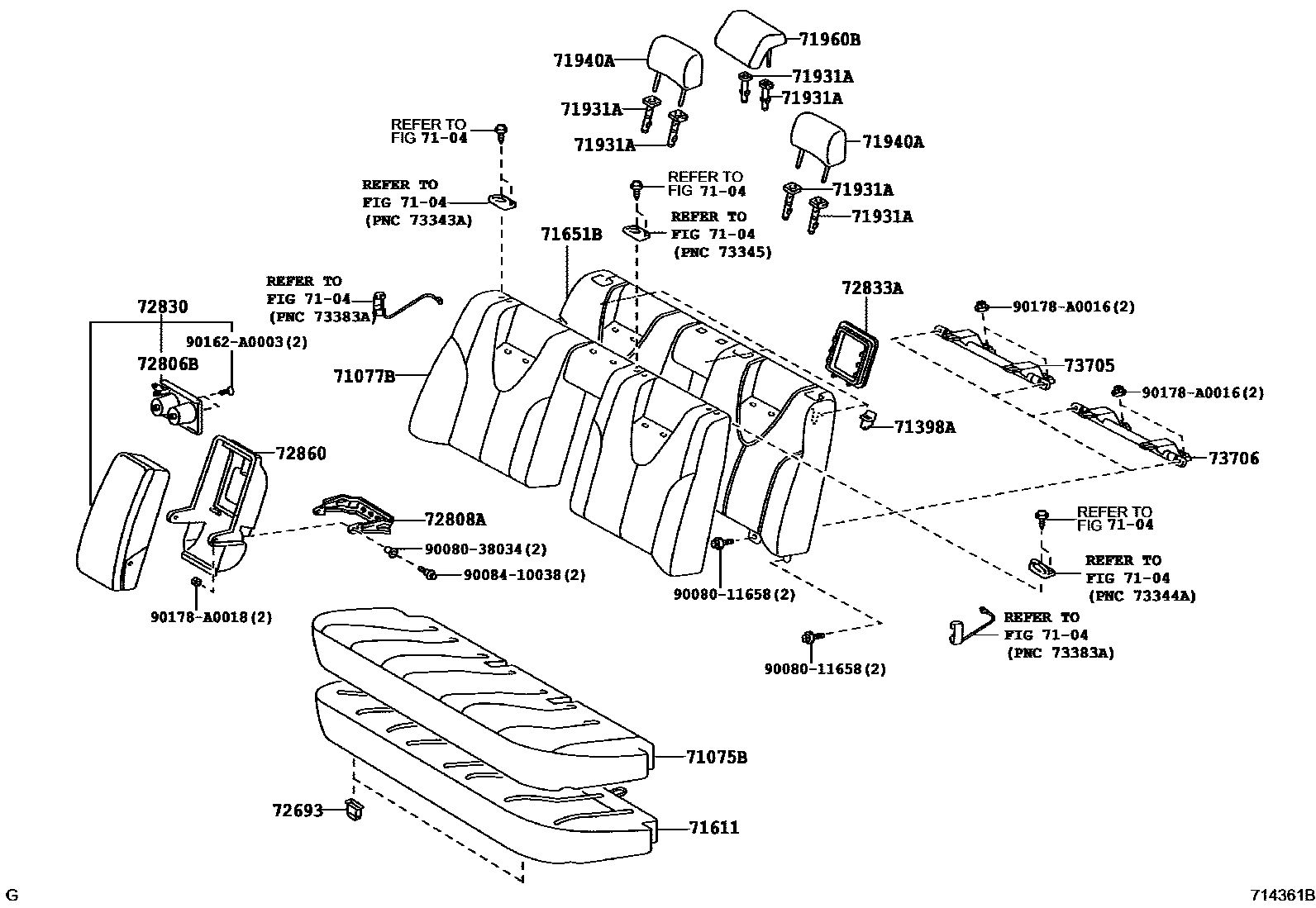

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06090 · 71017-06100 · 71017-06150 · 71017-06151 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06050 · 71018-06060 · 71018-06100 · 71018-06101 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06010 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-06010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06010 |
| 71305S | Center seat back frame sub-assembly | 71305-06020 |
| 71349C | Rear seat back hinge cover | 71349-06010 |
| 71398A | Rear seat back retainer | 71398-AC010 |
| 71611 | Rear seat cushion cushion | 71503-06090 · 71503-06100 · 71503-06110 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06110 · 71651-06250 · 71651-06251 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06090 · 71651-06100 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06060 · 71652-06070 |
| 71667A | Rear center A seat back cushion | 71507-06040 |
| 72603 | Rear right seat back lock sub-assembly | 72630-06020 |
| 72604 | Rear left seat back lock sub-assembly | 72640-06020 |
| 72667 | Rear seat back locking frame | 72667-06010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72730A | Rear right seat backrest tilt adjuster assembly | 72730-06010 · 72730-06030 · 72730-06031 |
| 72740A | Rear left seat backrest angle adjuster assembly | 72740-06010 · 72740-06030 · 72740-06031 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06020 |
| 72833A | Seat center armrest inner panel | 72831-06030 |
| 72848A | No. 1 seat armrest cover | 72848-06010 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06020 · 73705-06030 · 73705-33030 · 73705-33040 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06020 · 73706-06030 · 73706-33030 · 73706-33040 |
