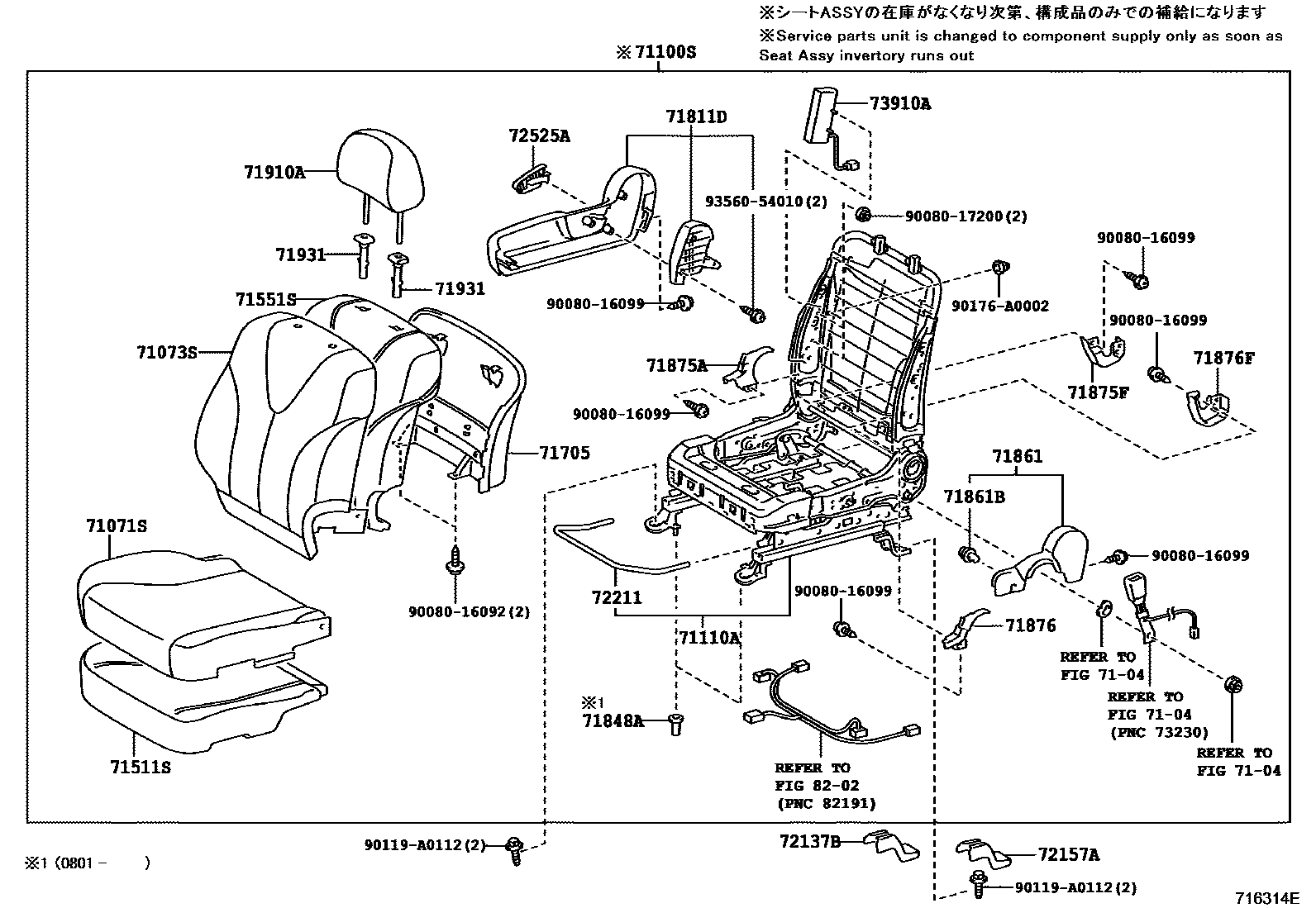

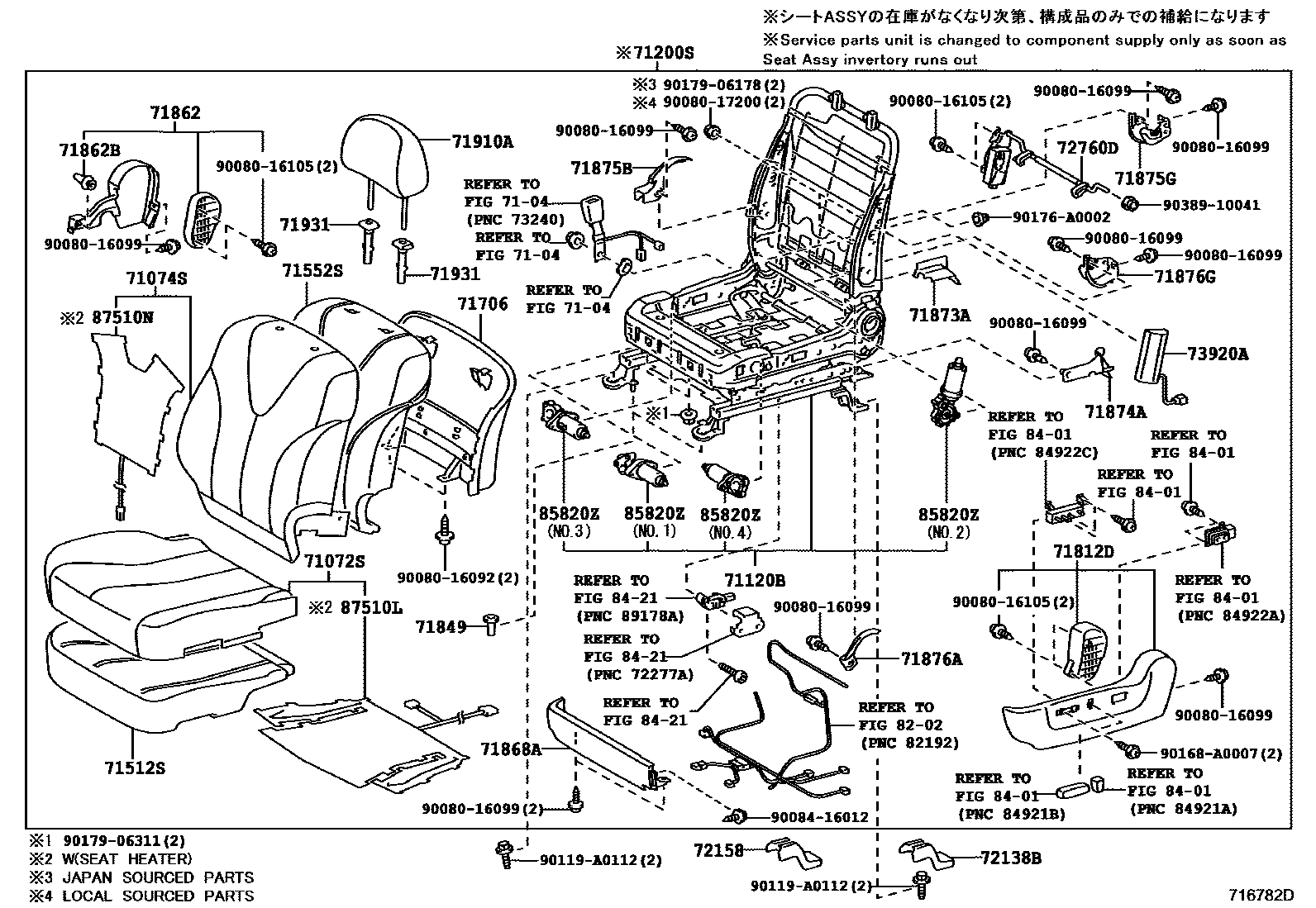

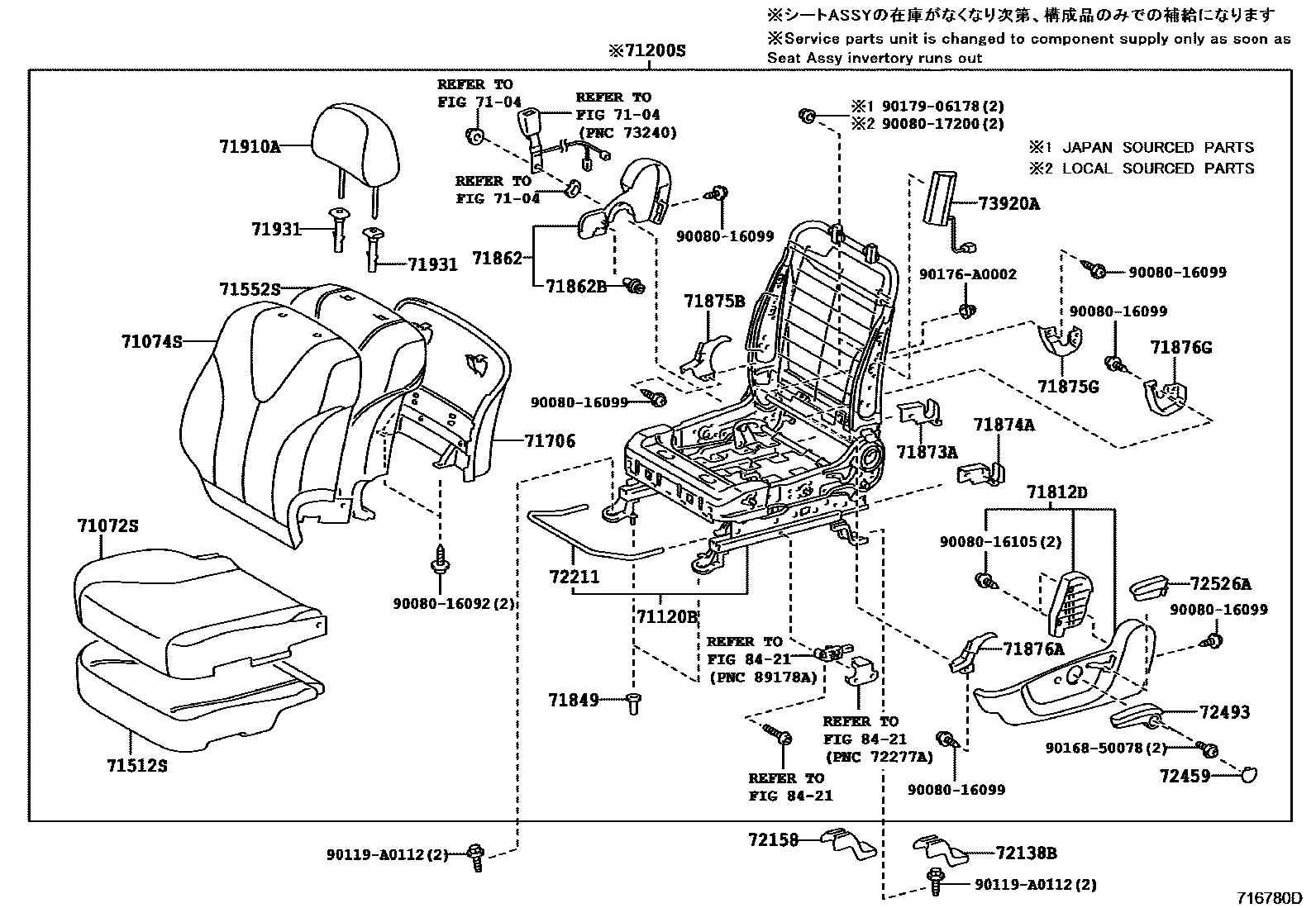

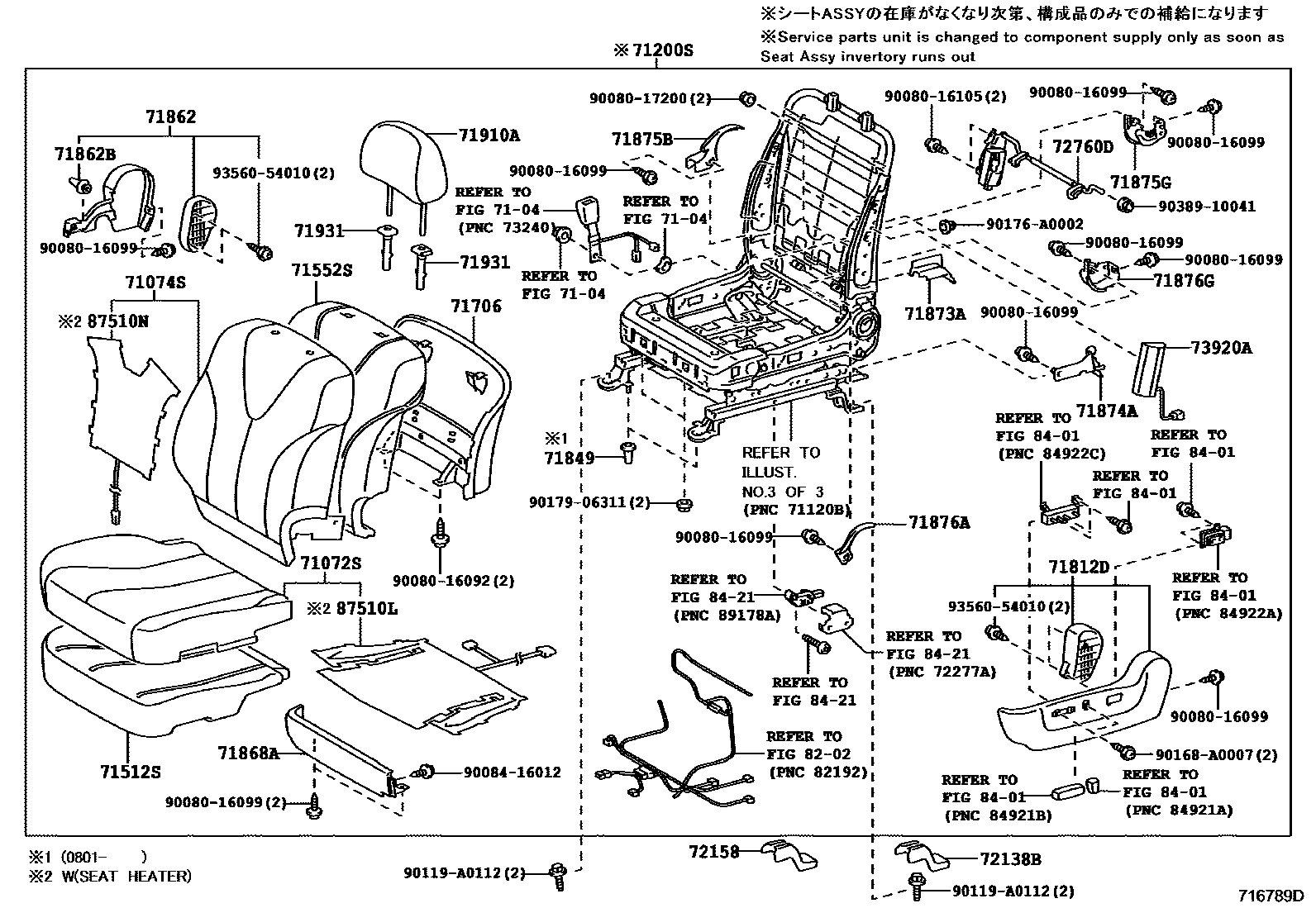

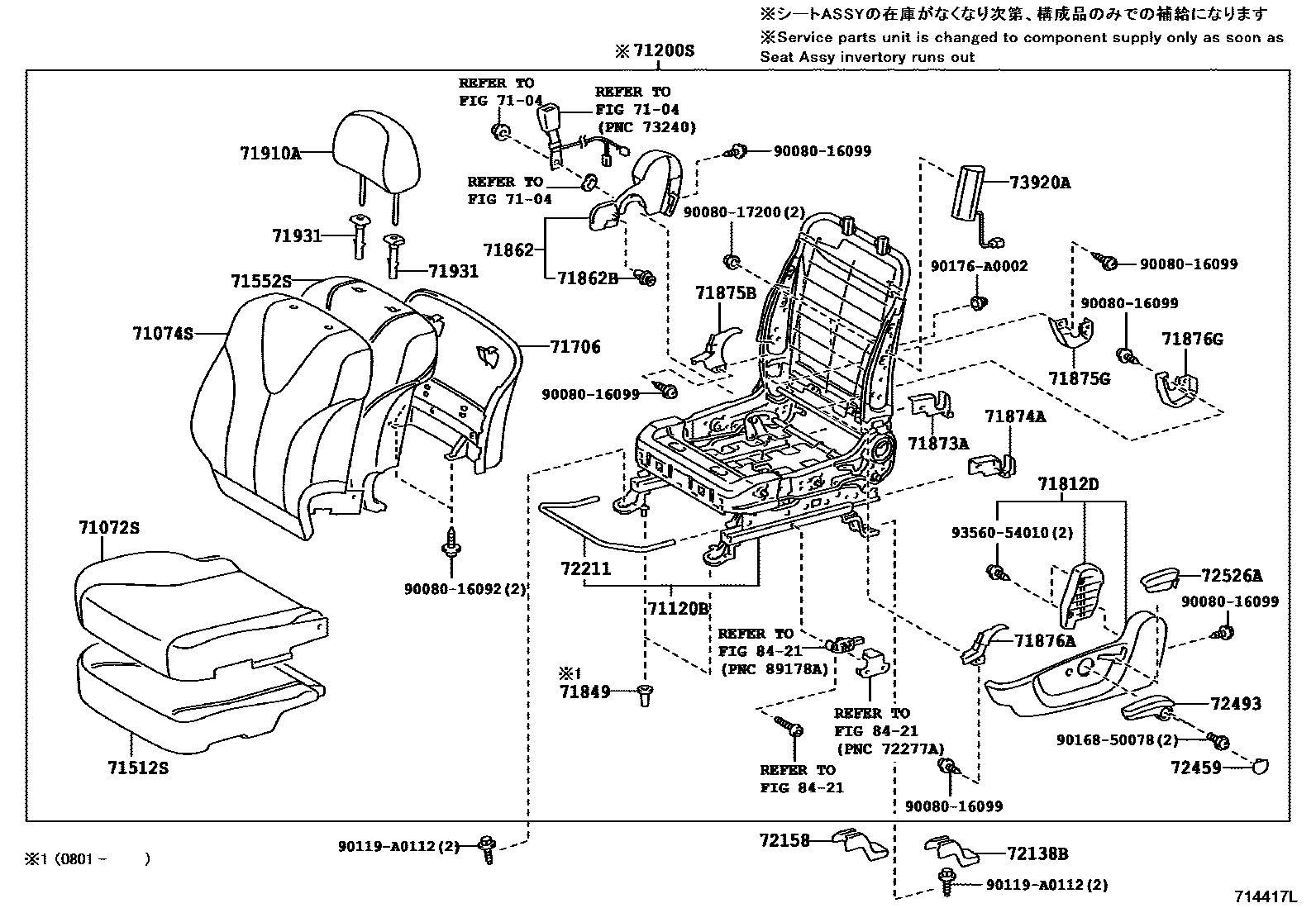

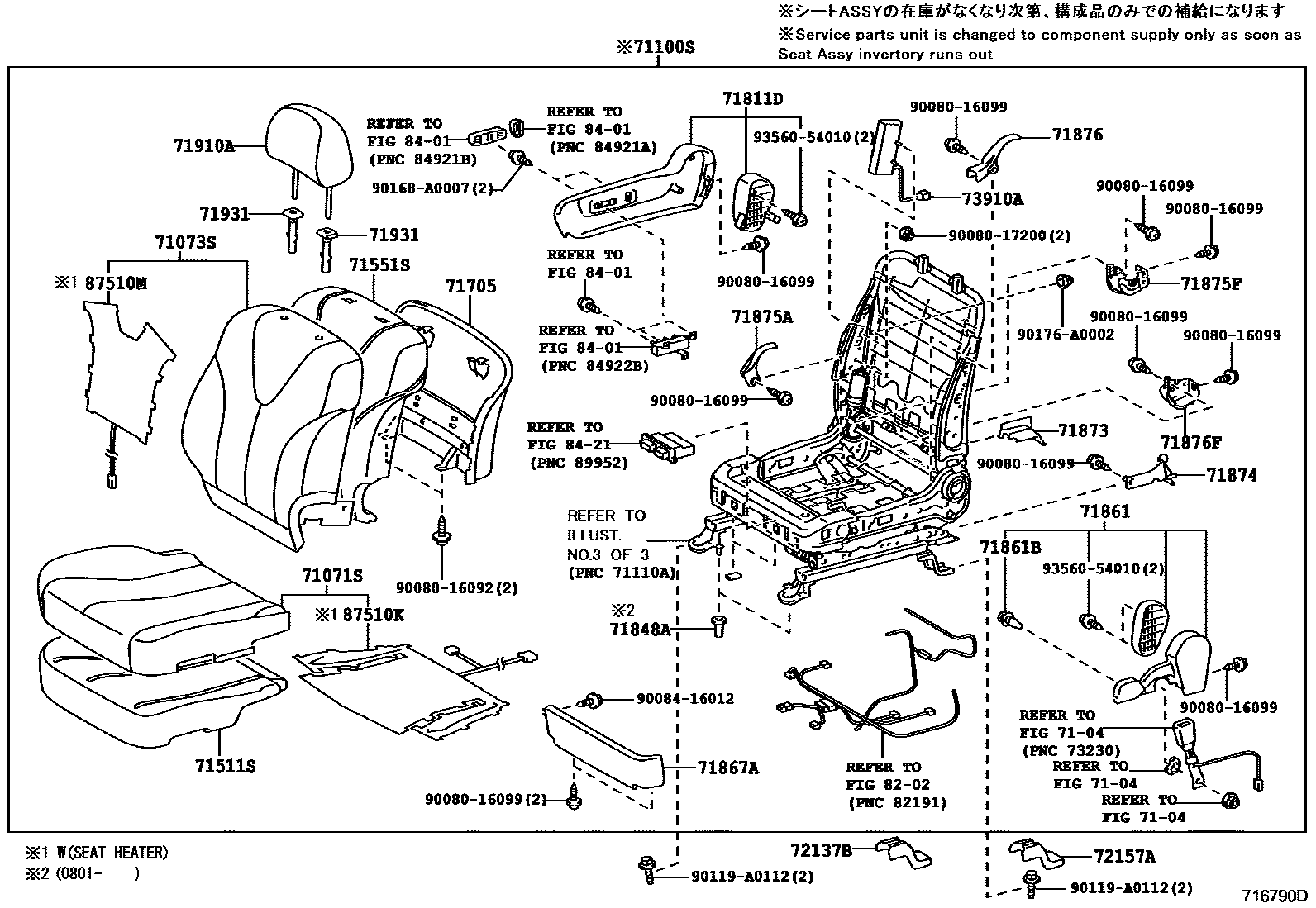

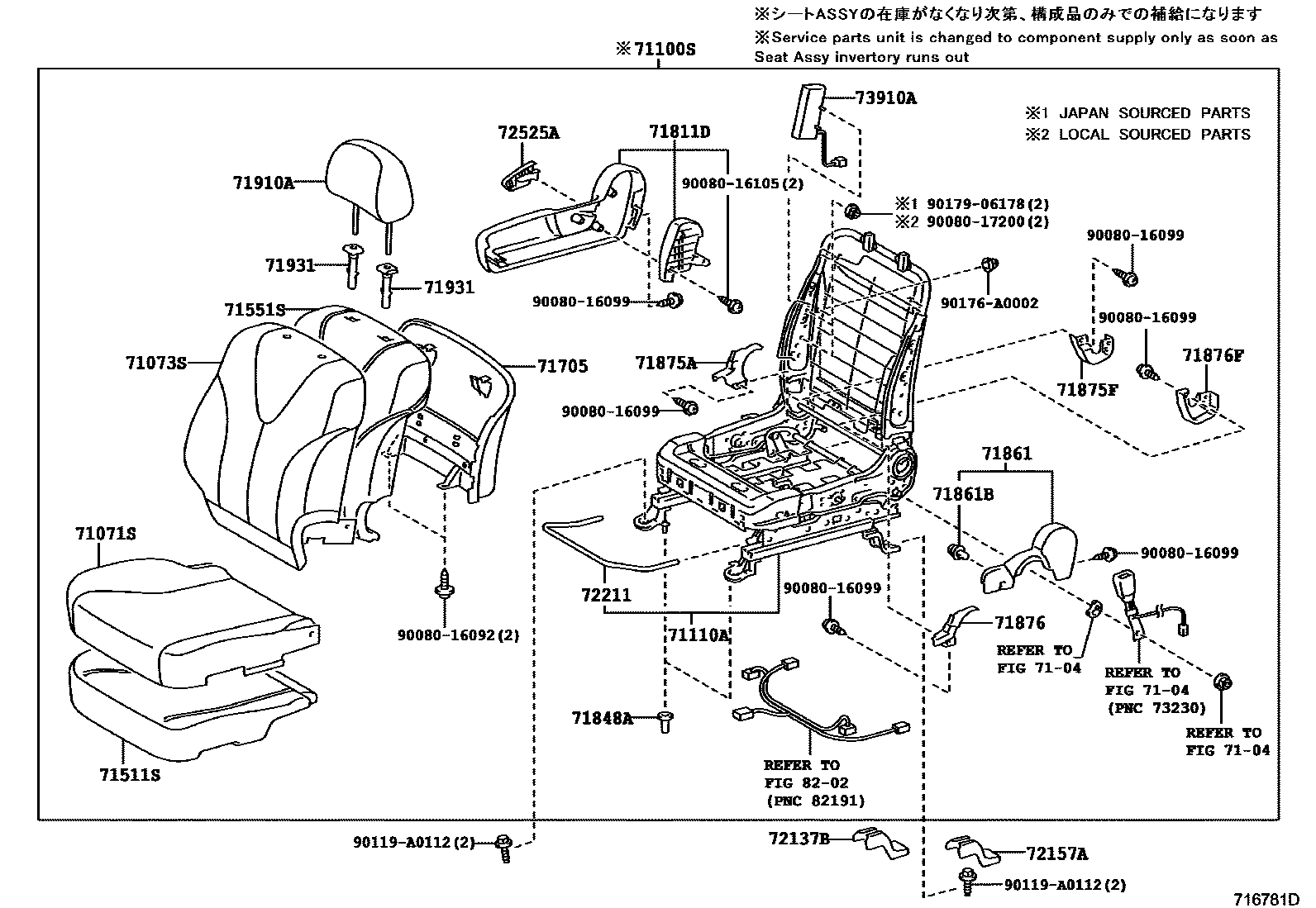

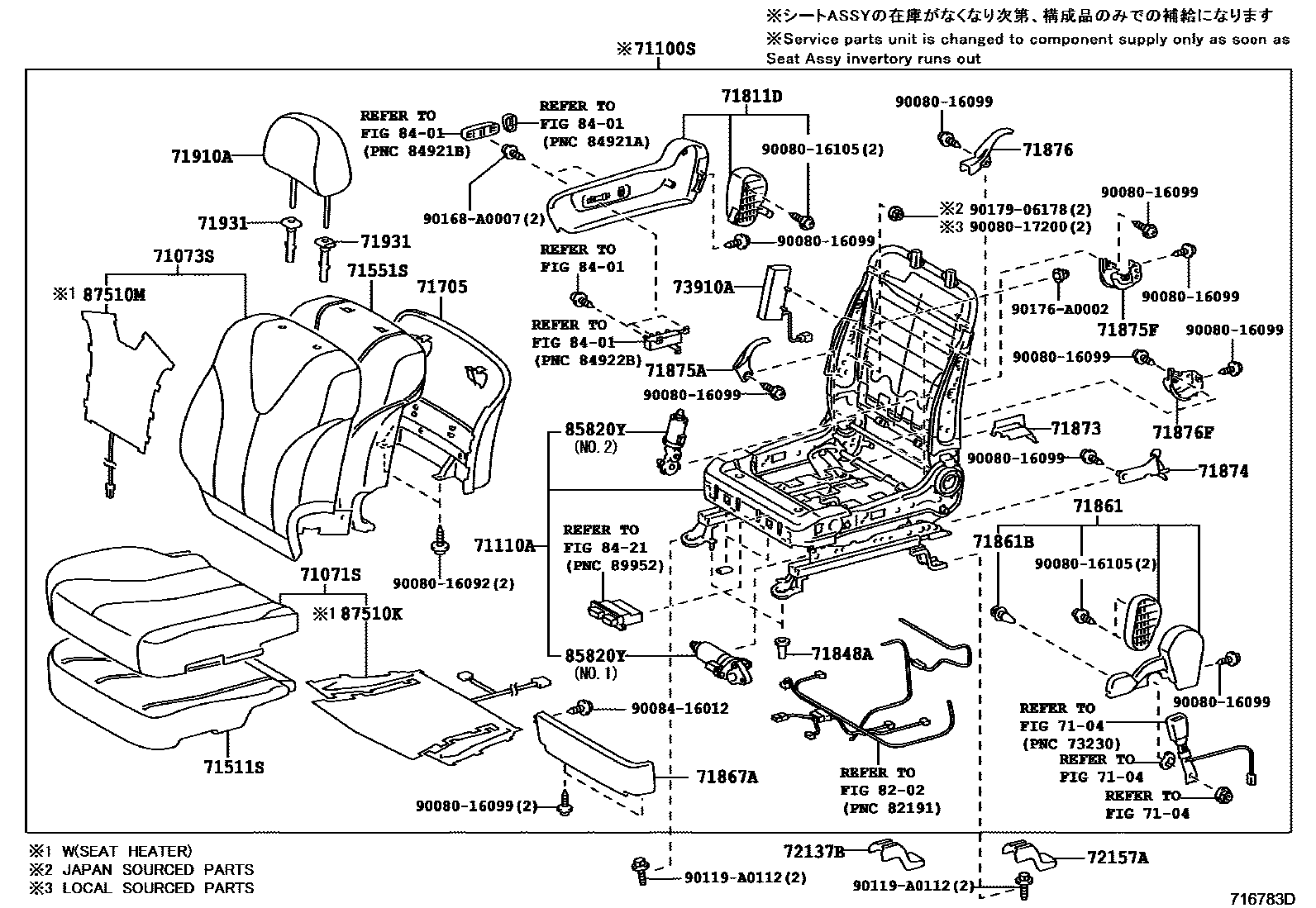

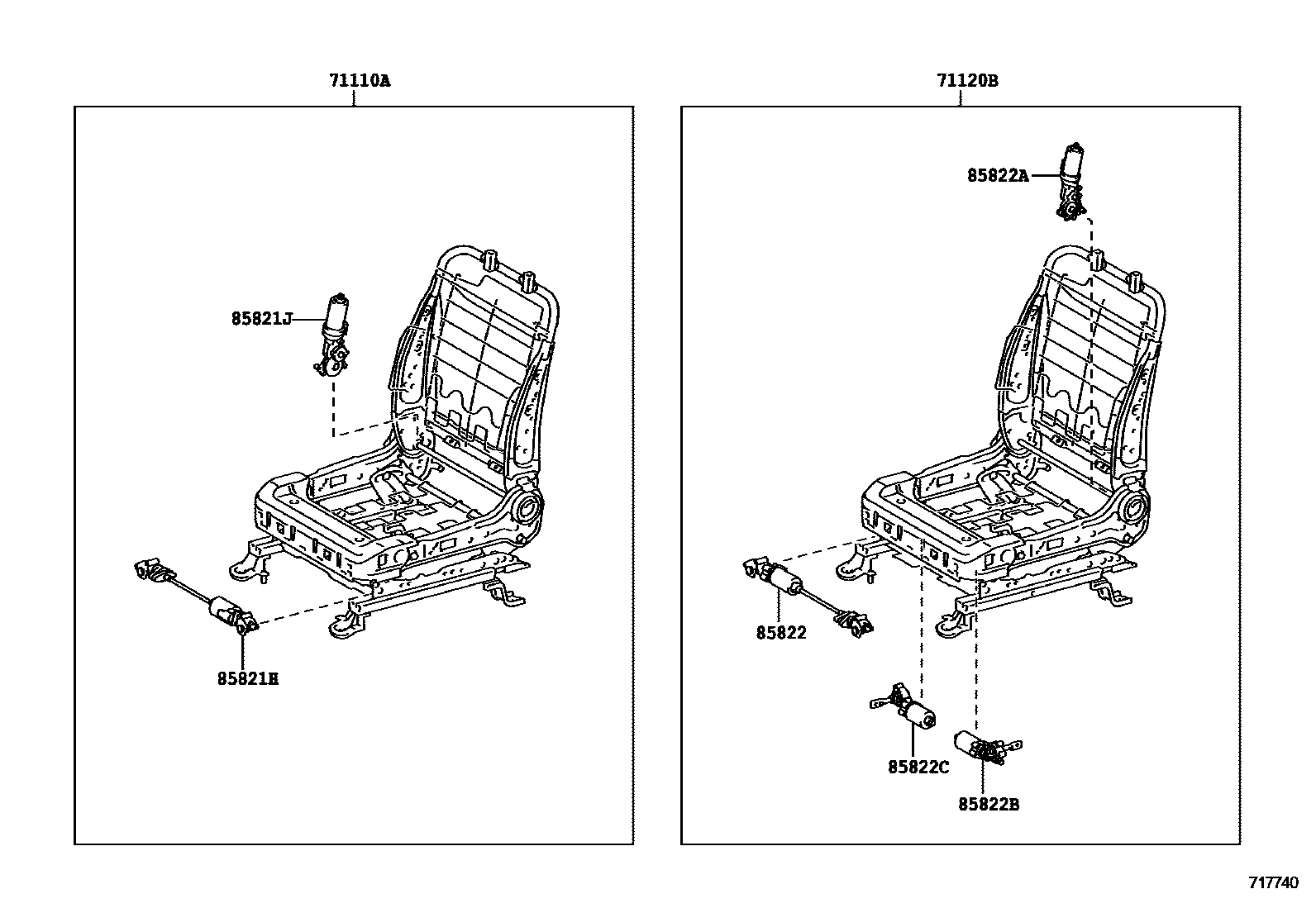

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-06010 · 71110-06011 · 71110-06020 · 71110-06021 · 71110-06030 · 71110-06031 · 71110-06040 · 71110-06041 · 71110-06070 · 71110-06080 · 71110-06090 · 71110-06100 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-06010 · 71120-06011 · 71120-06020 · 71120-06021 · 71120-06030 · 71120-06031 · 71120-06040 · 71120-06041 · 71120-06050 · 71120-06051 · 71120-06090 · 71120-06100 · 71120-06110 · 71120-06120 · 71120-06130 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-06230 · 71511-06240 · 71511-06250 · 71511-06260 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06040 · 71512-06050 · 71512-06060 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06150 · 71551-06160 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06090 · 71552-06100 |
| 71848A | Right seat adjuster cover | 71848-0T020 · 71848-33010 |
| 71849 | left seat adjuster cover | 71848-0T020 · 71848-33010 |
| 71861B | Clip (for front right seat guard) | 71769-33020 |
| 71862B | Clip (for front left seat guard) | 71769-33020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06040 |
| 71873A | Front seat cushion lower guard | 71873-06070 · 71873-06080 |
| 71874 | Front left seat cushion lower guard | 71874-06070 |
| 71874A | Front left seat cushion lower guard | 71874-06080 · 71874-06090 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71813-0E010 · 71875-AA060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71814-0E020 · 71875-AA060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71814-0E010 · 71876-AA060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71813-0E020 · 71876-AA060 |
| 72211 | Seat slide adjustment handle | 72211-06050 |
| 72760D | Left lumbar support adjuster assembly | 72760-0E010 |
| 73910A | Front right seat airbag assembly | 73910-06030 · 73910-06031 |
| 73920A | Front left seat airbag assembly | 73920-06040 · 73920-06041 |
| 85820Y | Electric seat motor assembly | 85801-28010 · 85801-28020 |
| 85820Z | Electric seat motor assembly | 85801-28050 · 85801-28060 · 85801-28070 · 85801-28080 |
| 85821H | Right electric seat sliding motor assembly | 85820-06070 |
| 85821J | Right electric seat tilt adjustment motor assembly | 85801-58020 |
| 85822 | Left electric seat sliding motor assembly | 85820-06080 |
| 85822A | Left electric seat tilt adjustment motor assembly | 85801-60020 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-60040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-60030 |
| 87510K | Front right seat cushion heater assembly | 87510-06050 · 87510-06051 · 87510-06060 · 87510-06061 |
| 87510L | Front left seat cushion heater assembly | 87510-06050 · 87510-06051 · 87510-06060 · 87510-06061 |
| 87510M | Front right seat back heater assembly | 87530-06030 · 87530-06031 · 87530-06040 · 87530-06041 |
| 87510N | Front left seat back heater assembly | 87530-06030 · 87530-06031 · 87530-06040 · 87530-06041 |
