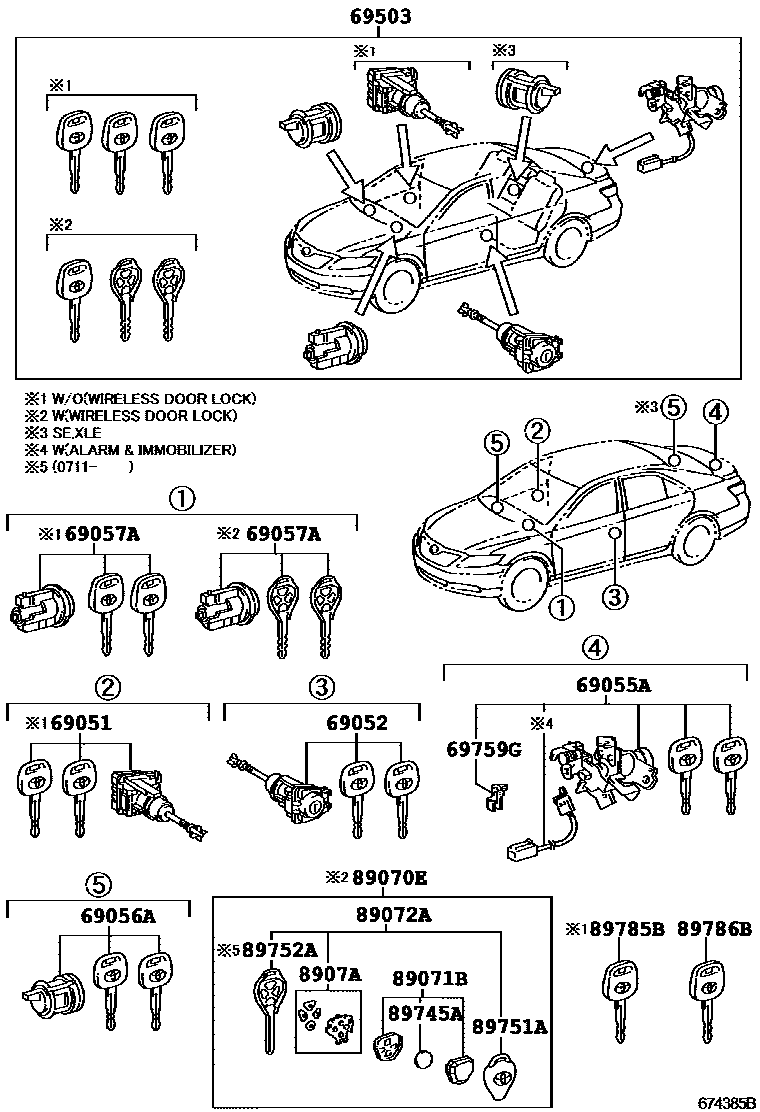

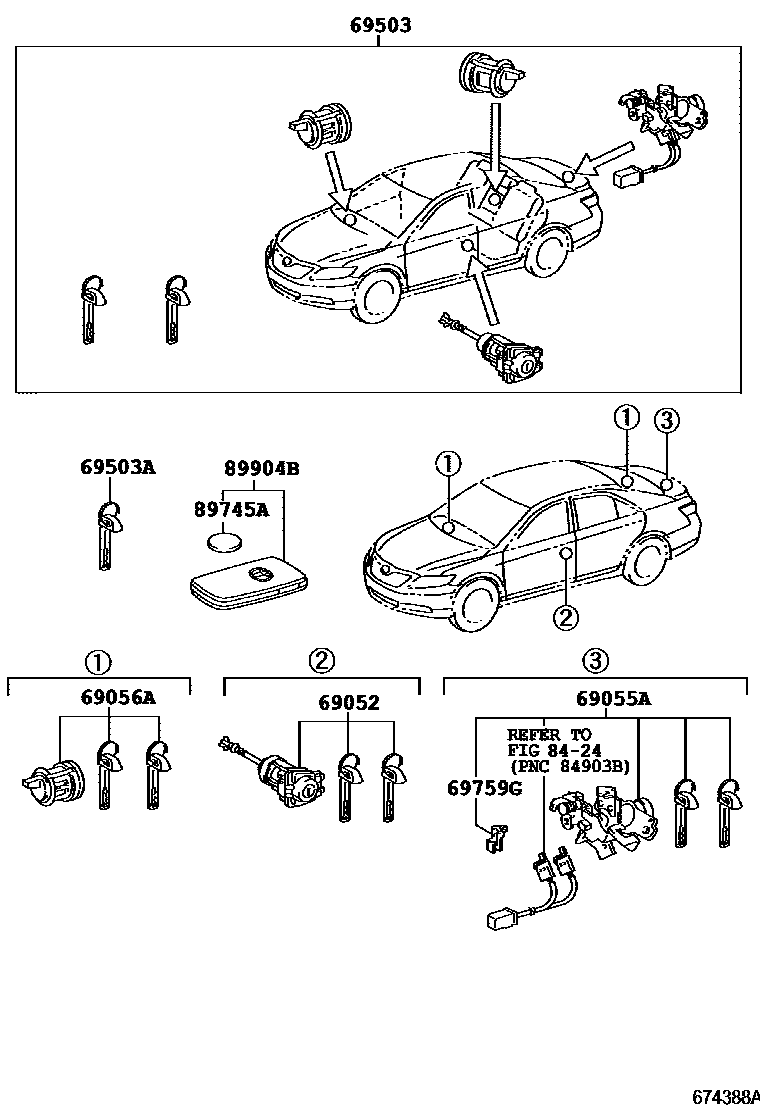

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-04020 |
| 69052 | Left door lock cylinder and key assembly | 69052-04020 · 69052-06050 · 69052-33300 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06060 · 69055-06070 · 69055-06080 · 69055-33460 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06040 · 69056-33200 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02361 · 69057-04030 · 69057-06150 · 69057-06151 · 69057-06270 · 69057-0T030 |
| 69503 | Door lock cylinder components | 69005-06220 · 69005-06250 · 69005-06251 · 69005-06252 · 69005-06260 · 69005-06261 · 69005-06270 · 69005-06271 · 69005-06272 · 69005-06280 · 69005-06281 · 69005-06282 · 69005-06290 |
| 69503A | external tooth key | 69515-52120 |
| 69759G | Trunk door lock core buckle | 69759-06020 · 69759-24080 |
| 89070E | Remote key assembly | 89070-06230 · 89070-06231 · 89070-06232 · 89070-06500 · 89070-06650 |
| 89071B | Remote key sub-assembly module assembly | 89071-06040 · 89071-06041 · 89071-06170 |
| 89072A | Remote key shell assembly | 89072-06190 · 89072-06440 · 89072-33470 · 89072-33471 |
| 8907A | Transmitter switch assembly | 8907A-33010 |
| 89745A | Transmitter battery | 89745-48030 · 89745-52020 |
| 89751A | Transmitter housing cover | 89751-06090 · 89751-0R030 · 89751-33070 |
| 89752A | transmitter housing | 89752-0T030 · 89752-28071 |
| 89785B | transceiver key master transmitter | 89785-08020 · 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08020 · 89786-08040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06040 · 89904-06041 · 89904-06070 · 89904-06130 |
