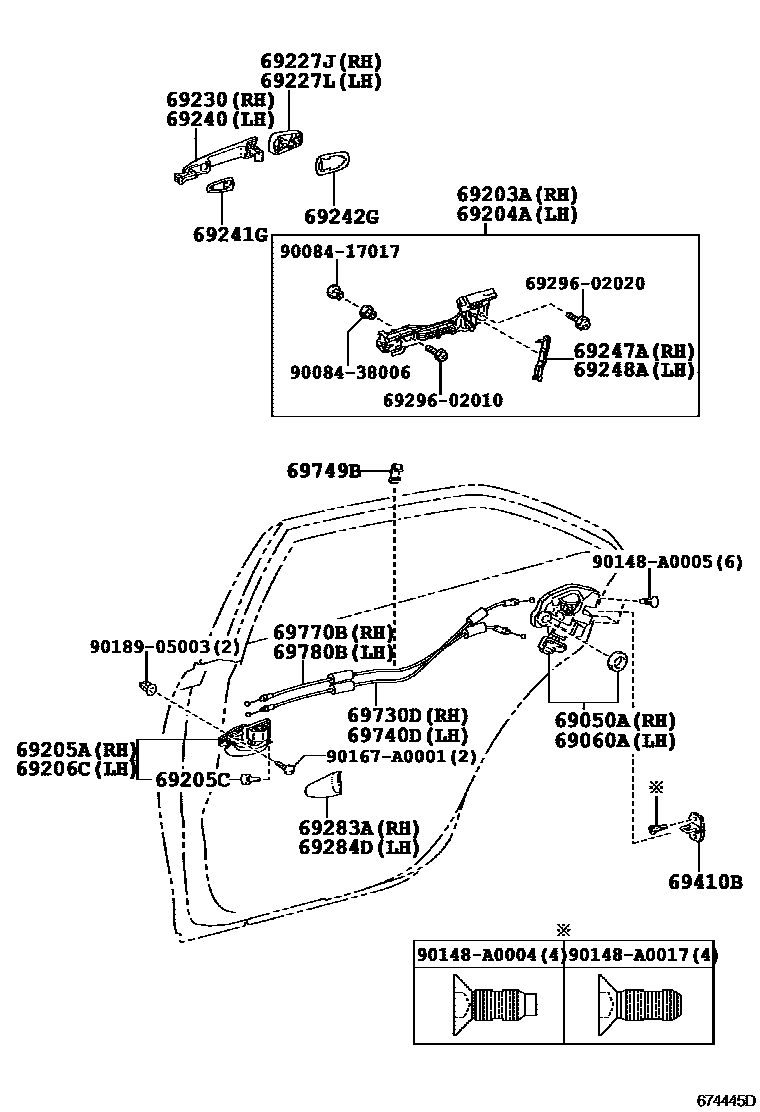

Toyota CAMRY 后门锁和后门把手 — Figure 6706
Toyota CAMRY EPC diagram 6706, 后门锁和后门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-06100 |
| 69060A | Left rear door lock assembly with motor | 69060-06100 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-06030 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-06030 |
| 69205C | Cushion pad (for rear door inner handle) | 90080-54005 |
| 69241G | Rear door front exterior handle pad | 69241-AE010 |
| 69242G | Rear door rear outer handle pad | 69242-AC031 |
| 69247A | Right rear door outer handle separation panel | 69247-06030 |
| 69248A | Left rear door outer handle separation panel | 69248-06030 |
| 69410B | Rear door lock plate assembly | 69410-AA030 |
| 69730D | Right rear door lock remote control cable assembly | 69730-06040 |
| 69740D | Left rear door lock remote control cable assembly | 69730-06040 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-06030 |
| 69780B | Left rear door inner lock cable assembly | 69770-06030 |
