Toyota CAMRY 内饰板和车门防水胶条 — Figure 6401

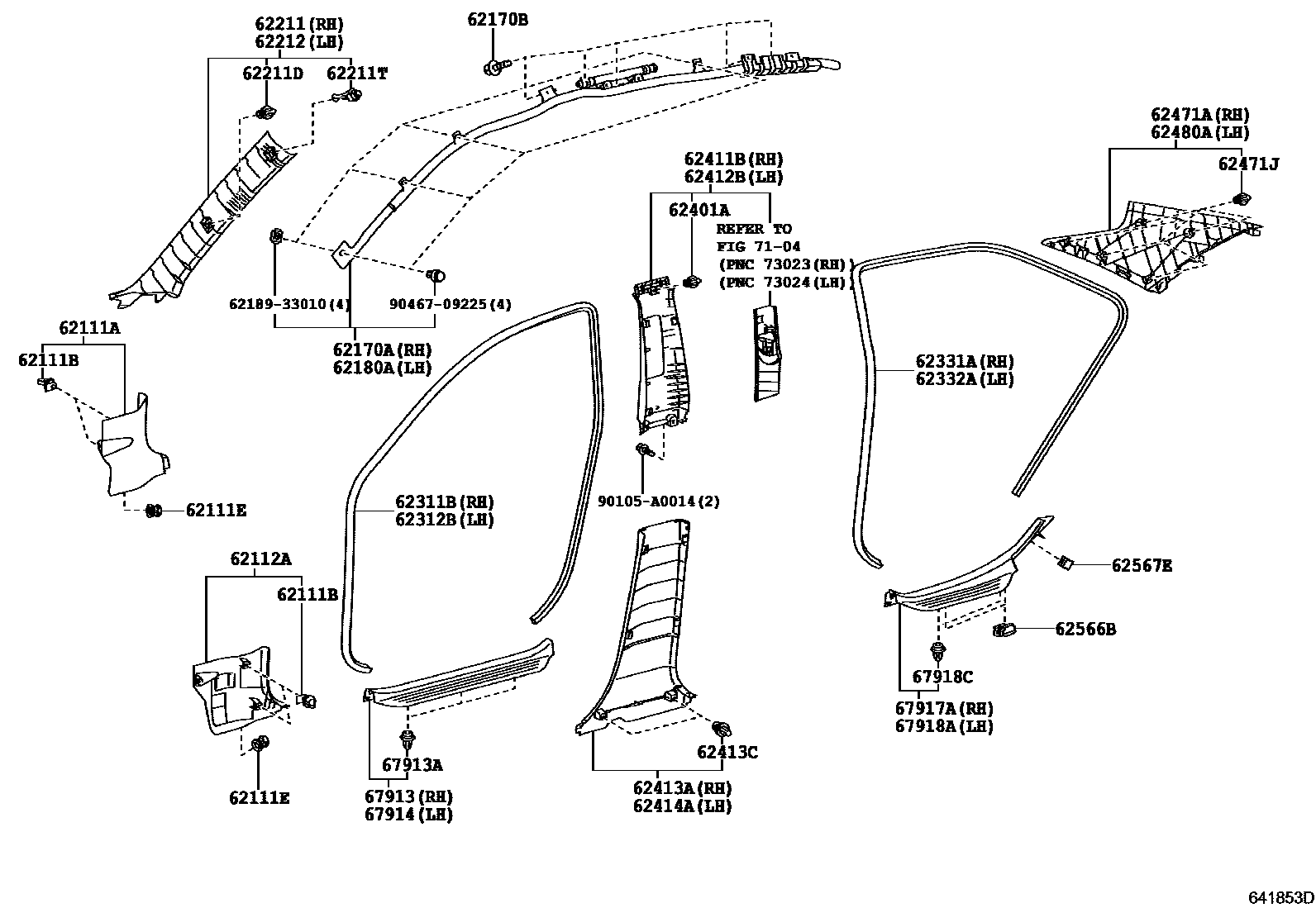

Toyota CAMRY EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-09212 |
| 62111E | Front wall side trim panel fixings | 90467-06147 · 90467-A0024 |
| 62170A | Right curtain air bag assembly | 62170-06021 · 62170-06022 |
| 62170B | Bolts with washers | 90080-11628 · 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-06021 · 62180-06022 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-A0006 |
| 62211T | Clip (for front pillar decorative panel) | 62217-06010 · 62217-33030 · 90950-A8001 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-A0006 |
| 62471J | Clips (for roof side trim panels) | 90467-10188 · 90467-A0006 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67913A | Clip (for wear plate) | 90467-A0006 |
| 67918C | Catch (for rear door wear plate) | 90467-A0006 |
