Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

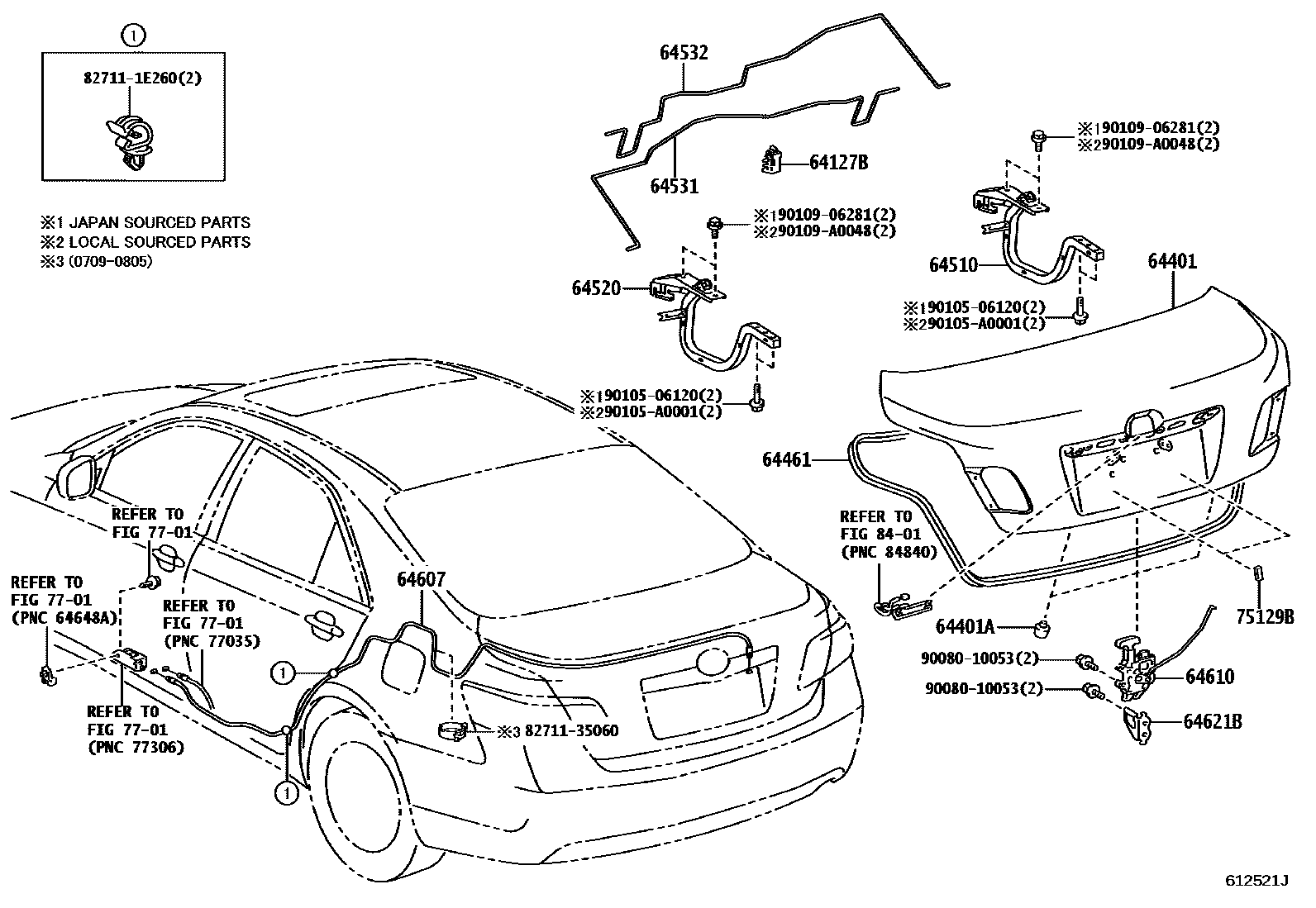

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-06050 · 64127-06051 · 64127-06052 · 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-06280 · 64401-06281 · 64401-06290 · 64401-06291 · 64401-06470 · 64401-06471 · 64401-06490 · 64401-06491 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90084-54011 · 90541-09116 |
| 64461 | Trunk door seal | 64461-06060 |
| 64510 | Trunk door right hinge assembly | 64510-06030 |
| 64520 | Trunk door left hinge assembly | 64510-06030 |
| 64531 | Trunk door right hinge torsion bar | 64531-06050 · 64531-06051 |
| 64532 | Trunk door left hinge torsion bar | 64532-06100 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06070 |
| 64610 | Trunk door lock assembly | 64600-06010 · 64610-33080 |
| 64621B | Trunk door latch | 64621-06020 |
| 75129B | rear license plate cushion | 75129-AC010 |
