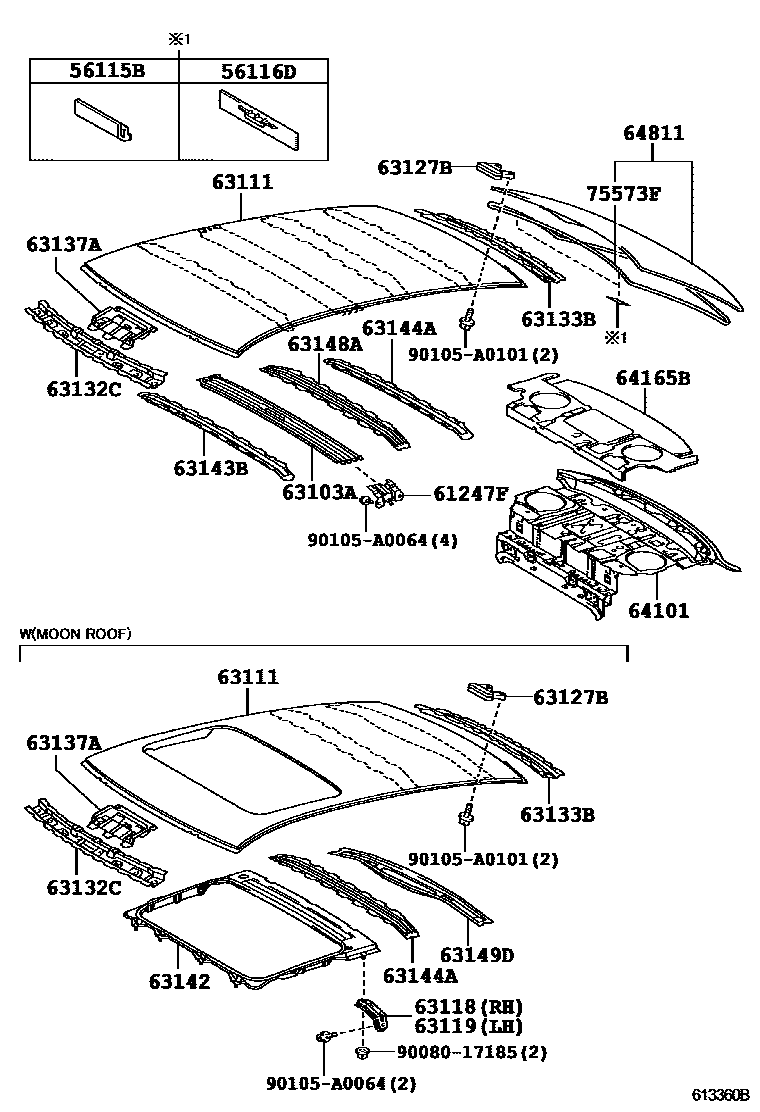

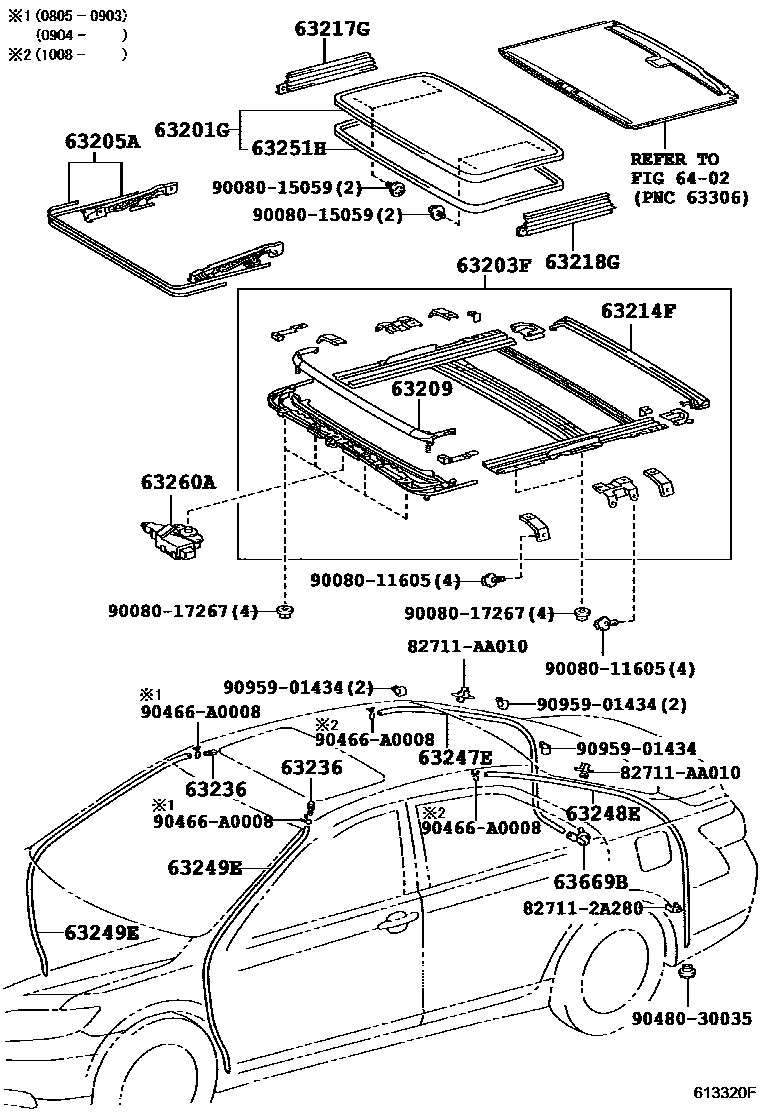

Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104
Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-06020 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-06010 |
| 63111 | roof panel | 63111-06300 · 63111-06310 · 63111-06420 · 63111-06430 |
| 63118 | Right roof panel bracket | 63118-06020 |
| 63119 | Left roof panel bracket | 63118-06020 |
| 63127B | Frame shock absorber on rear window | 63127-06060 |
| 63132C | Windshield inner roof panel | 63132-06040 |
| 63133B | back window frame | 63133-06040 |
| 63137A | No. 1 ceiling light bracket | 63137-06030 |
| 63142 | No. 2 roof panel reinforcement | 63142-06040 |
| 63143B | No. 3 roof panel reinforcement | 63143-06030 |
| 63144A | No. 4 roof panel reinforcement | 63144-06060 · 63144-06070 |
| 63148A | No. 7 roof panel reinforcement | 63148-06030 |
| 63149D | No. 8 roof panel reinforcement | 63149-06010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-AA030 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-06030 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-0E020 |
| 63209 | Roof deflector sub-assembly | 63209-06040 |
| 63214F | Roof rear drain channel | 63214-0E010 |
| 63217G | Right sliding sunroof trim | 63217-0E010 |
| 63218G | Sliding sunroof trim, left | 63218-0E010 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-08010 |
| 63247E | Right rear sliding sunroof drain hose | 63247-06010 · 63247-06011 |
| 63248E | Left rear sliding sunroof drain hose | 63248-06010 · 63248-06011 |
| 63249E | Sliding skylight drain hose | 63249-06050 · 63249-06051 |
| 63251H | Sliding skylight seal | 63251-0E010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-06030 · 63260-06031 |
| 63669B | Sliding skylight drain seal | 63669-50010 |
| 64101 | Upper back panel sub-assembly | 64101-06150 |
| 64165B | No. 1 upper back panel hole cover | 64165-06040 |
| 64811 | back window glass | 64801-06010 · 64801-06020 · 64801-06021 |
| 75573F | Protective strip for rear window | 75573-06020 |
