Toyota CAMRY 侧梁 — Figure 6101

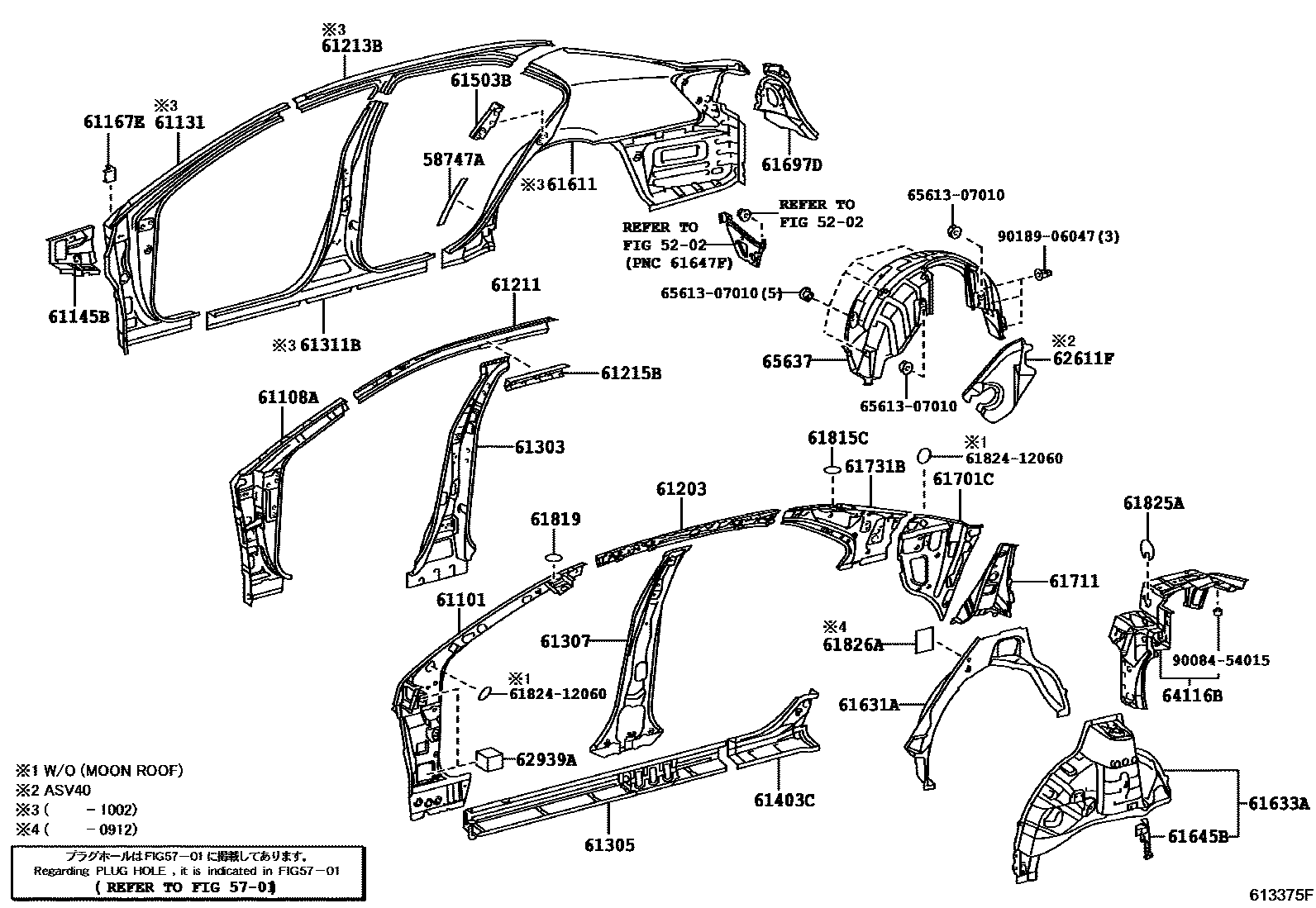

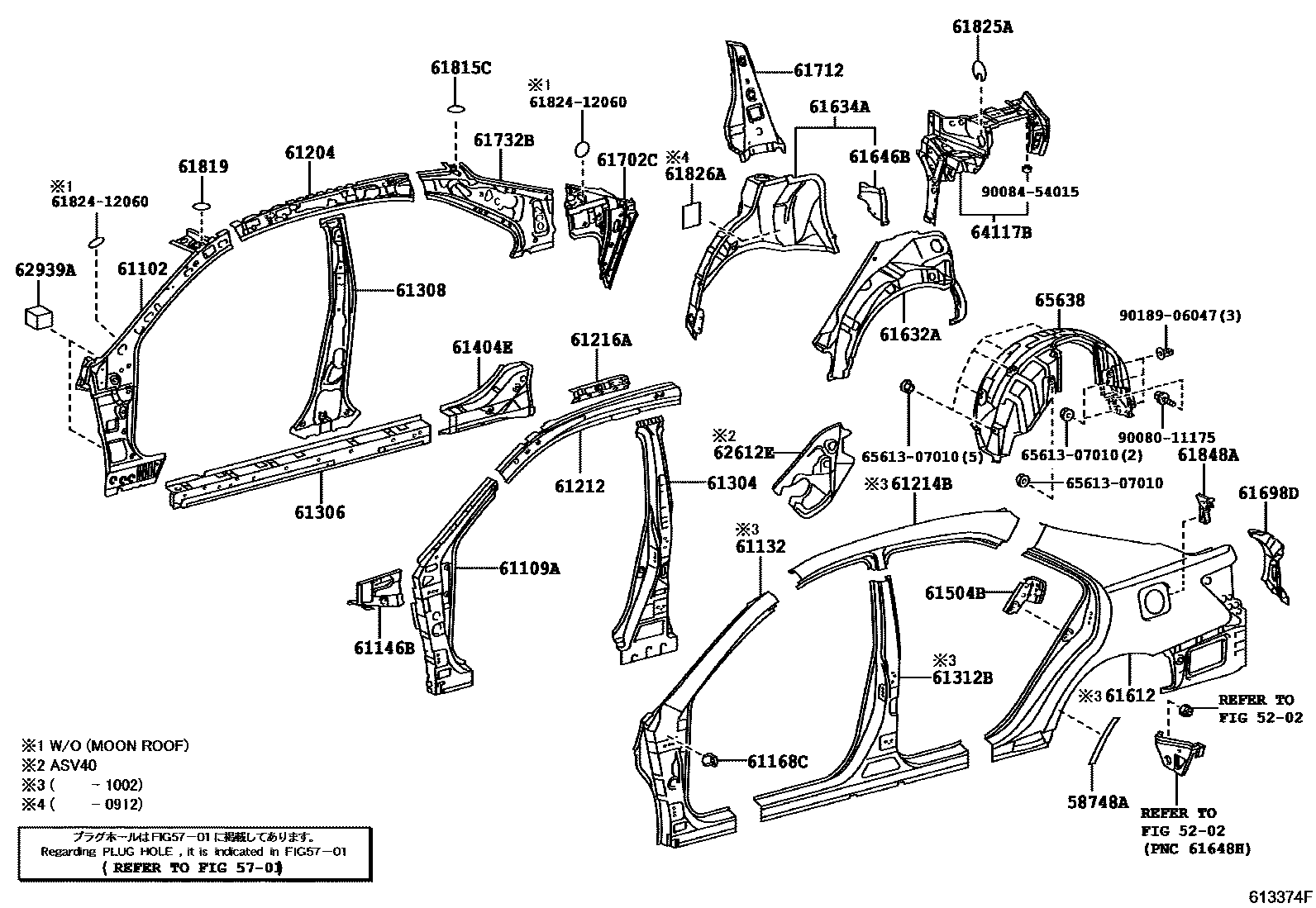

Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 60 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58747A | Right rear side panel protector | 58747-06020 |
| 58748A | Left rear side panel protector | 58748-06020 |
| 61101 | Right front wall side panel sub-assembly | 61101-06080 |
| 61102 | Left front wall side panel sub-assembly | 61102-06100 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06050 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06050 |
| 61131 | Right body outer front upper pillar | 61131-06060 |
| 61132 | Left body outer front upper pillar | 61132-06050 |
| 61145B | Right body front pillar lower corner panel | 61145-06030 |
| 61146B | Left body front pillar lower corner panel | 61146-06030 |
| 61167E | No. 6 outer column bracket | 61168-06010 |
| 61168C | No. 6 outer column bracket | 61168-06010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06070 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06070 |
| 61211 | Roof right outer longitudinal beam | 61211-06060 |
| 61212 | Roof left outer longitudinal beam | 61212-06060 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06040 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06030 |
| 61215B | No. 3 longitudinal beam on the outer right side of the roof | 61215-06010 |
| 61216A | Left rear roof rail | 61216-06010 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06902 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06902 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06901 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06901 |
| 61307 | Right body inner center pillar sub-assembly | 61307-06030 |
| 61308 | Left body inner center pillar sub-assembly | 61308-06030 |
| 61311B | Right body outer center pillar | 61311-06030 |
| 61312B | Left body outer center pillar | 61312-06030 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-06020 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-06020 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-06050 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-06050 |
| 61611 | Right side hoarding | 61601-06130 |
| 61612 | left side panel | 61602-06120 |
| 61631A | Right wheel cover outer panel | 61631-06060 |
| 61632A | Left side wheel cover outer panel | 61632-06060 |
| 61633A | Right wheel housing lining panel | 61633-AA903 |
| 61634A | Left side wheel housing lining panel | 61634-AA904 |
| 61645B | Right rear side wheel housing corner panel | 61645-AC010 |
| 61646B | Left rear side wheel housing corner panel | 61646-AC010 |
| 61697D | Right side enclosure end cover | 61697-06901 |
| 61698D | Left side enclosure end cover | 61698-06901 |
| 61701C | Roof right side outer panel sub-assembly | 61701-06030 |
| 61702C | Roof left outer panel sub-assembly | 61702-06030 |
| 61711 | Roof right side outer panel | 61711-06050 |
| 61712 | Roof left outer panel | 61712-06050 |
| 61731B | Roof right inner panel | 61731-06080 |
| 61732B | Roof left inner panel | 61732-06070 |
| 61815C | Inner roof cover | 61815-AC030 · 61824-12060 |
| 61819 | Roof inner lower cover | 61817-AA010 · 61824-12060 |
| 61825A | Noise Control Panel No. 2 | 61825-AA020 |
| 61826A | Noise Control Panel No. 3 | 61826-AA010 |
| 61848A | Left side panel fixing | 61848-06030 |
| 62611F | Right wheel cover vibration isolation pad | 62611-06080 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-06080 |
| 62939A | Side ventilation silencers | 62939-32030 |
| 64116B | Right rear upper reinforcement | 64201-06070 |
| 64117B | Left rear upper reinforcement | 64202-06070 |
| 65637 | Right rear wheel house lining | 65637-06010 |
| 65638 | Left rear wheel house lining | 65638-06010 |
