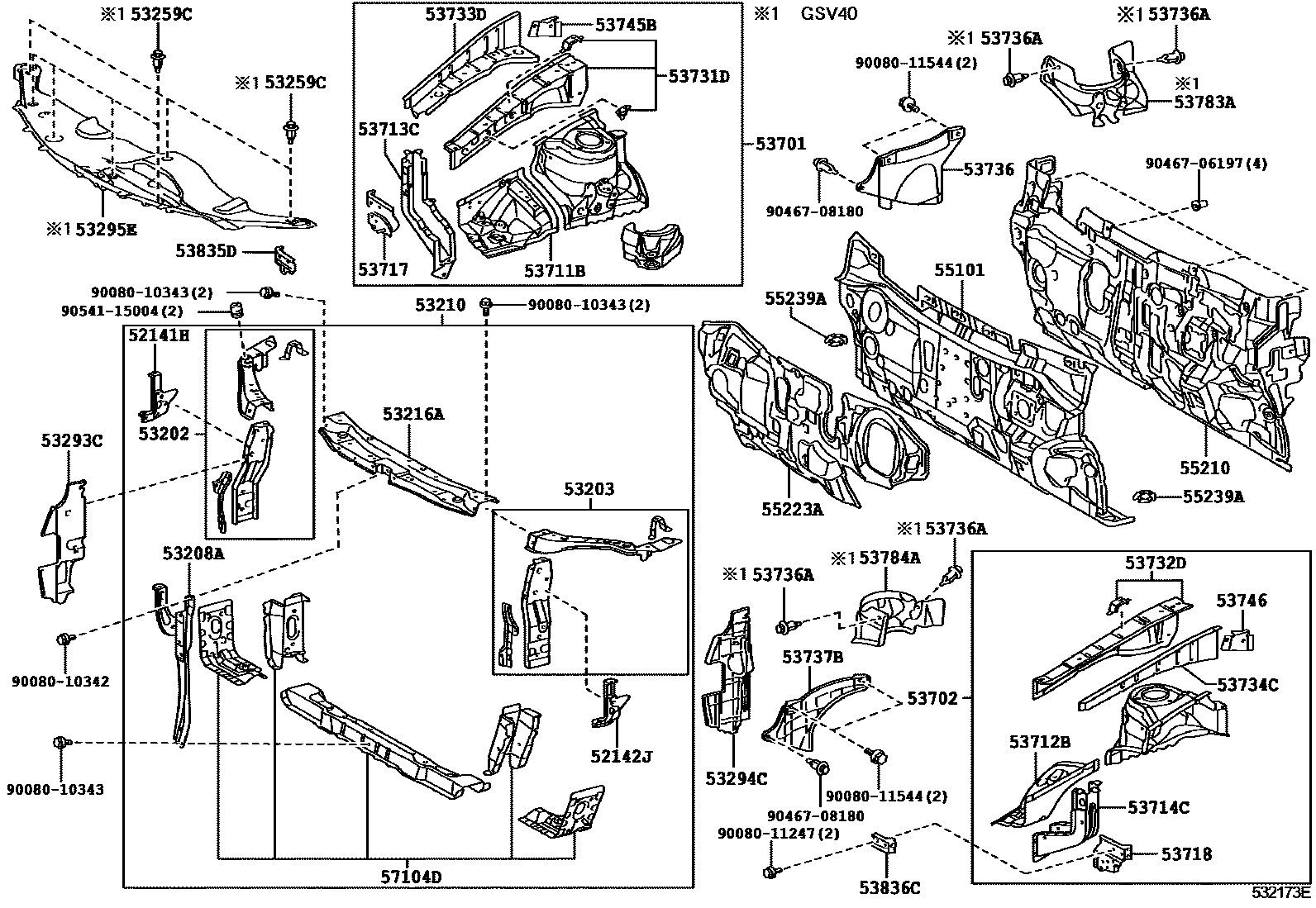

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06020 |
| 52142J | Front bumper left upper arm | 52142-06020 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06050 |
| 53203 | Radiator left bracket sub-assembly | 53203-06090 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06020 |
| 53210 | Radiator bracket assembly | 53210-06030 · 53210-06031 |
| 53216A | Radiator upper bracket | 53216-06080 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 |
| 53293C | Radiator right baffle | 53293-06040 · 53293-06140 |
| 53294C | Radiator left baffle | 53294-06030 · 53294-06130 |
| 53295E | Cold air intake pipe seal | 53295-06010 |
| 53701 | Right front fender fender sub-assembly | 53701-06090 |
| 53702 | Left front fender fender sub-assembly | 53702-06100 |
| 53711B | Right front fender front fender | 53711-06110 |
| 53712B | Left front fender front fender | 53712-07020 |
| 53713C | Right front fender fender front extension | 53713-07010 |
| 53714C | Left front fender fender front extension | 53714-07010 |
| 53717 | Right fender fender side panel | 53717-06030 |
| 53718 | Left fender fender side panel | 53718-06030 |
| 53731D | Right front fender to cowl side upper beam | 53731-07904 |
| 53732D | Left front fender to cowl side upper beam | 53732-07904 |
| 53733D | Right front fender to cowl side front lower beam | 53733-07020 |
| 53734C | Left front fender to cowl side front lower beam | 53734-07020 |
| 53736 | Right front fender fender seal | 53736-07021 |
| 53737B | Left front fender fender seal | 53737-06020 · 53737-06040 |
| 53745B | Right front fender fender rear reinforcement | 53745-07010 |
| 53746 | Left front fender rear reinforcement | 53746-07010 |
| 53783A | Right front fender fender vibration isolation pad | 53783-07010 |
| 53784A | Left front fender fender vibration isolation pad | 53784-07010 |
| 53835D | Right front side panel bracket | 53835-06020 |
| 53836C | Left front side panel bracket | 53836-06020 |
| 55101 | Front apron sub-assembly | 55101-06310 · 55101-06320 |
| 55210 | Front wall insulation pad assembly | 55210-06130 · 55210-06131 |
| 55223A | Front wall outer heat insulation pad | 55223-06080 · 55223-06090 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06020 |
| 57104D | Front cross member sub-assembly | 57104-07020 · 57104-07021 · 57104-07022 |
