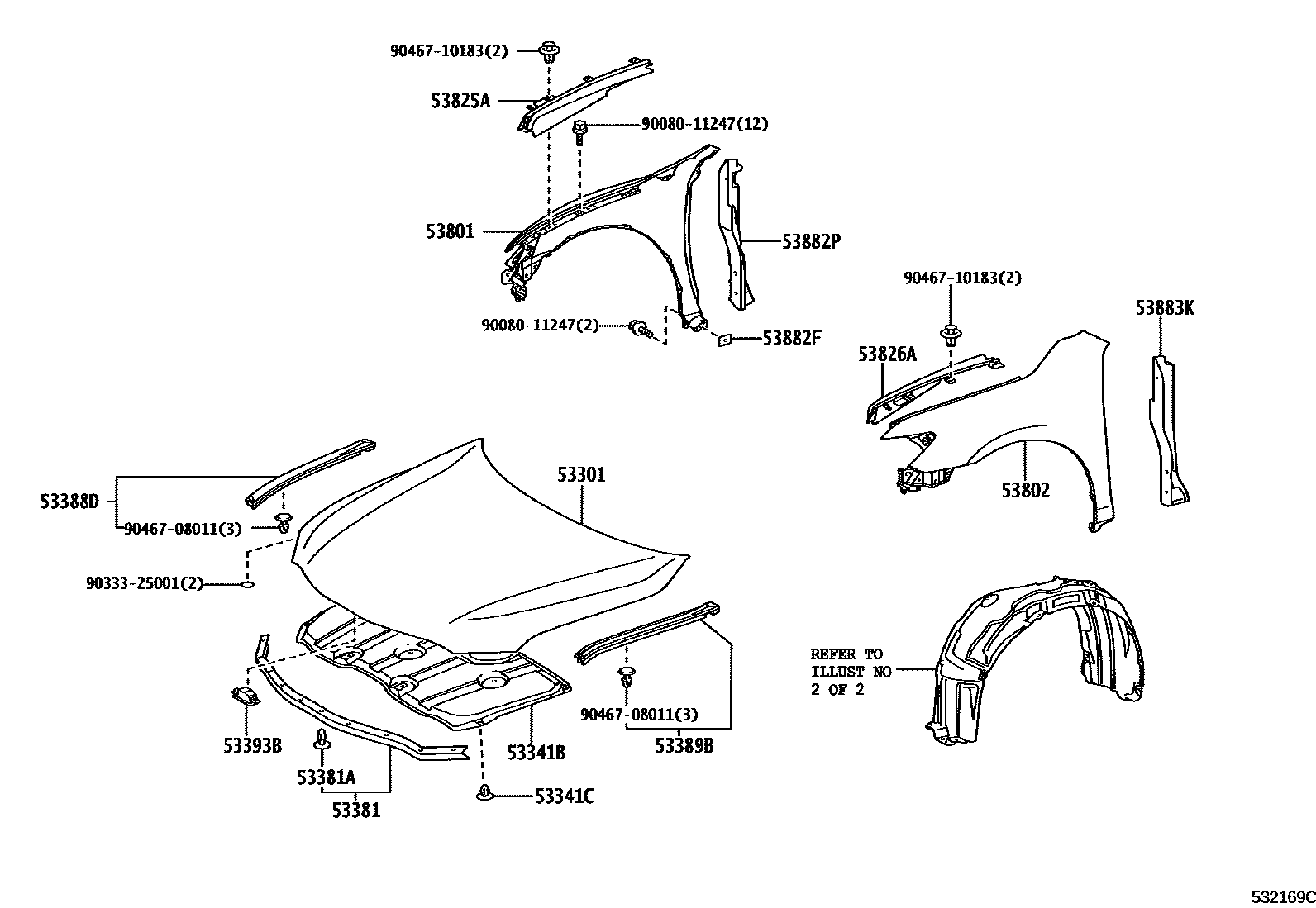

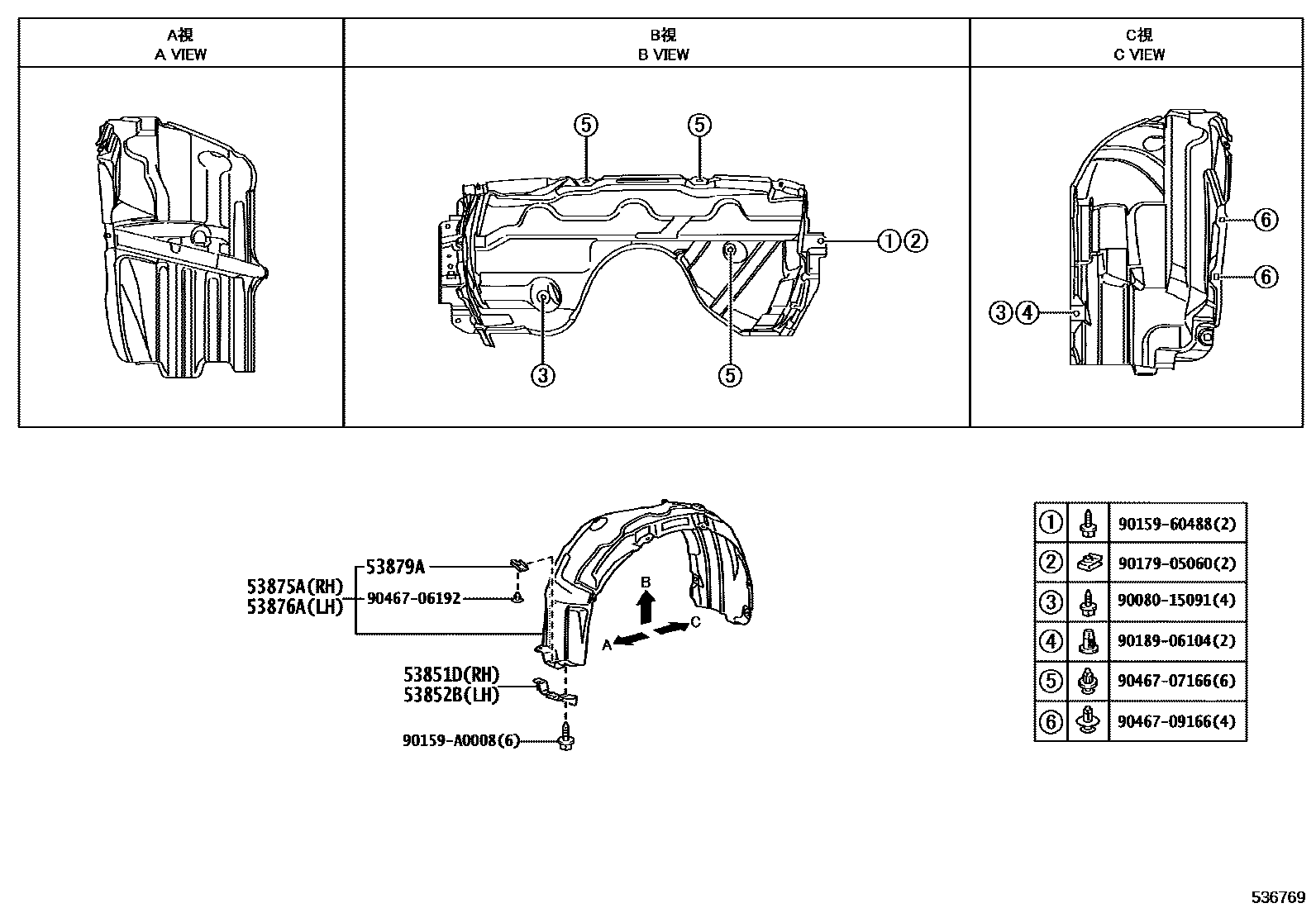

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06090 |
| 53341B | engine cover gasket | 53341-06110 · 53341-06120 · 53341-06130 |
| 53341C | Clip (for engine cover gasket) | 90467-A0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-06040 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53388D | Engine cover to right front fender seal | 53388-06020 |
| 53389B | Engine cover to left front fender seal | 53389-06020 |
| 53393B | Engine cover front protector | 53393-06010 |
| 53801 | Right front fender sub-assembly | 53801-06110 |
| 53802 | Left front fender sub-assembly | 53802-06120 |
| 53825A | Right front fender protection piece | 53825-06020 |
| 53826A | Protection piece on left front fender | 53826-06020 |
| 53851D | Right front fender outer panel pad | 53851-06010 |
| 53852B | Left front fender exterior panel pad | 53852-06010 |
| 53875A | Right front fender lining | 53875-06060 |
| 53876A | Left front fender lining | 53876-06060 |
| 53879A | Front fender lining fixing parts | 53879-06010 |
| 53882F | front fender seal | 53882-16030 |
| 53882P | Right front fender seal | 53882-06010 · 53882-06011 |
| 53883K | Left front fender seal | 53883-06010 · 53883-06011 |
