Toyota CAMRY 前保险杠及附件 — Figure 5201

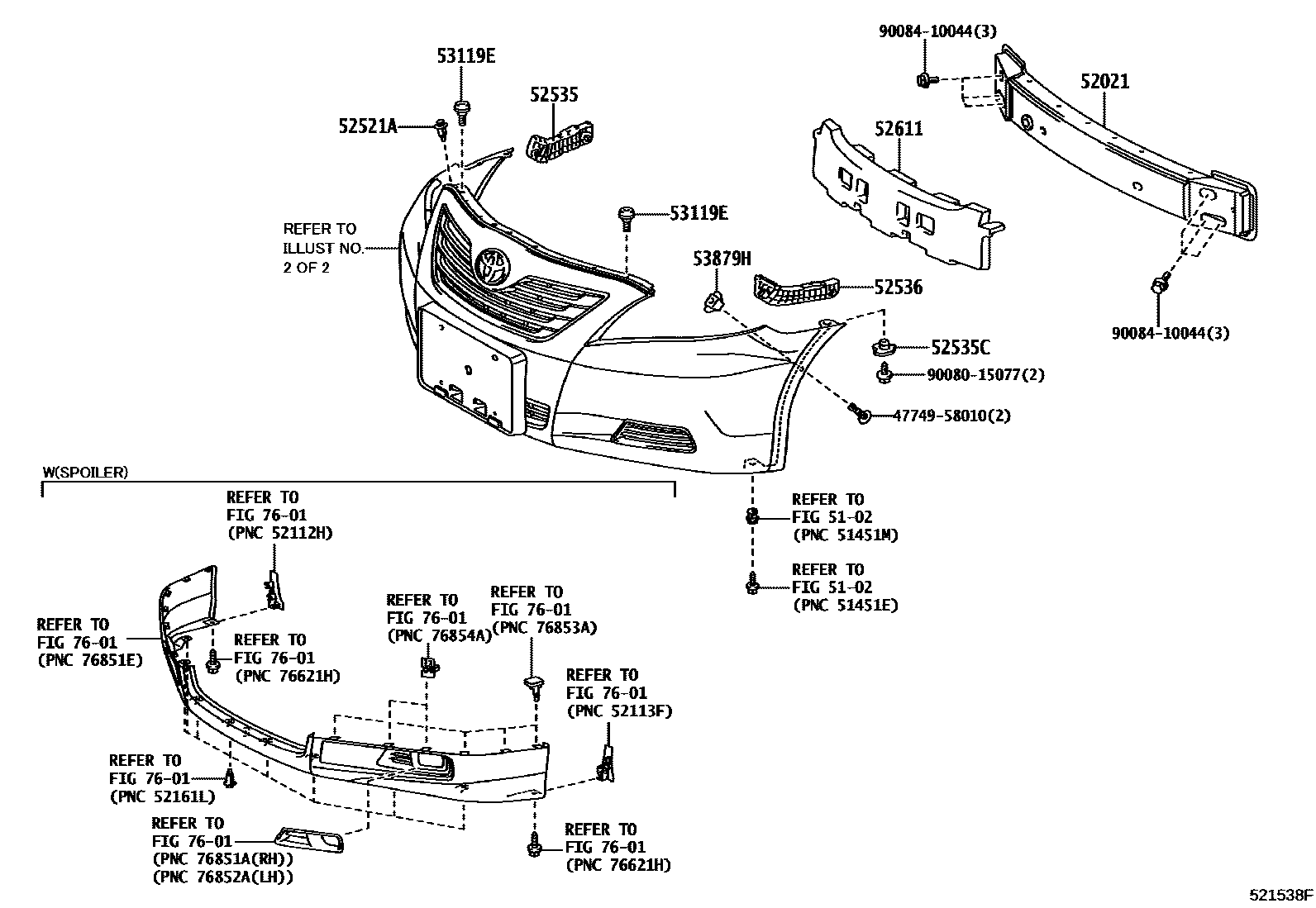

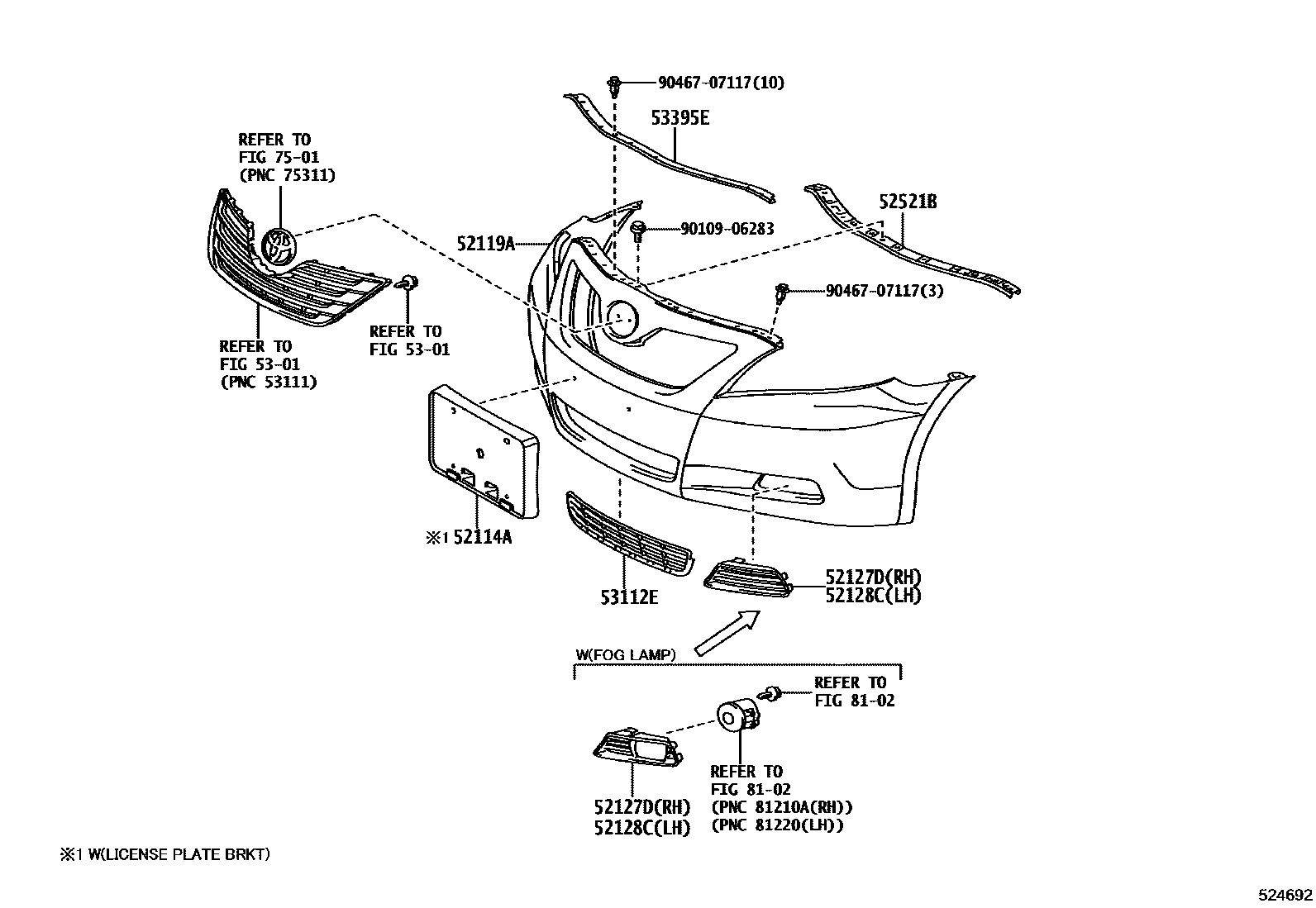

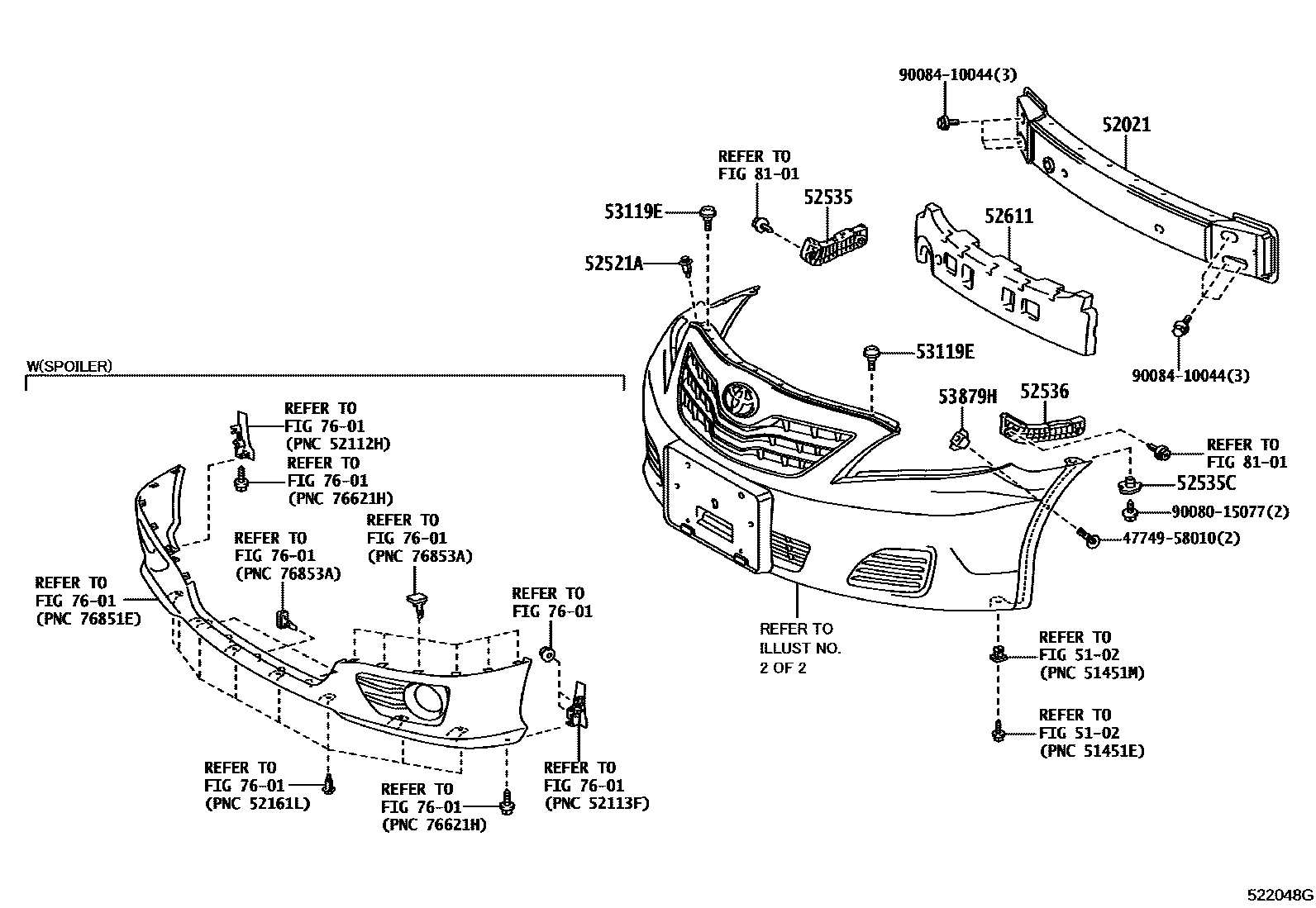

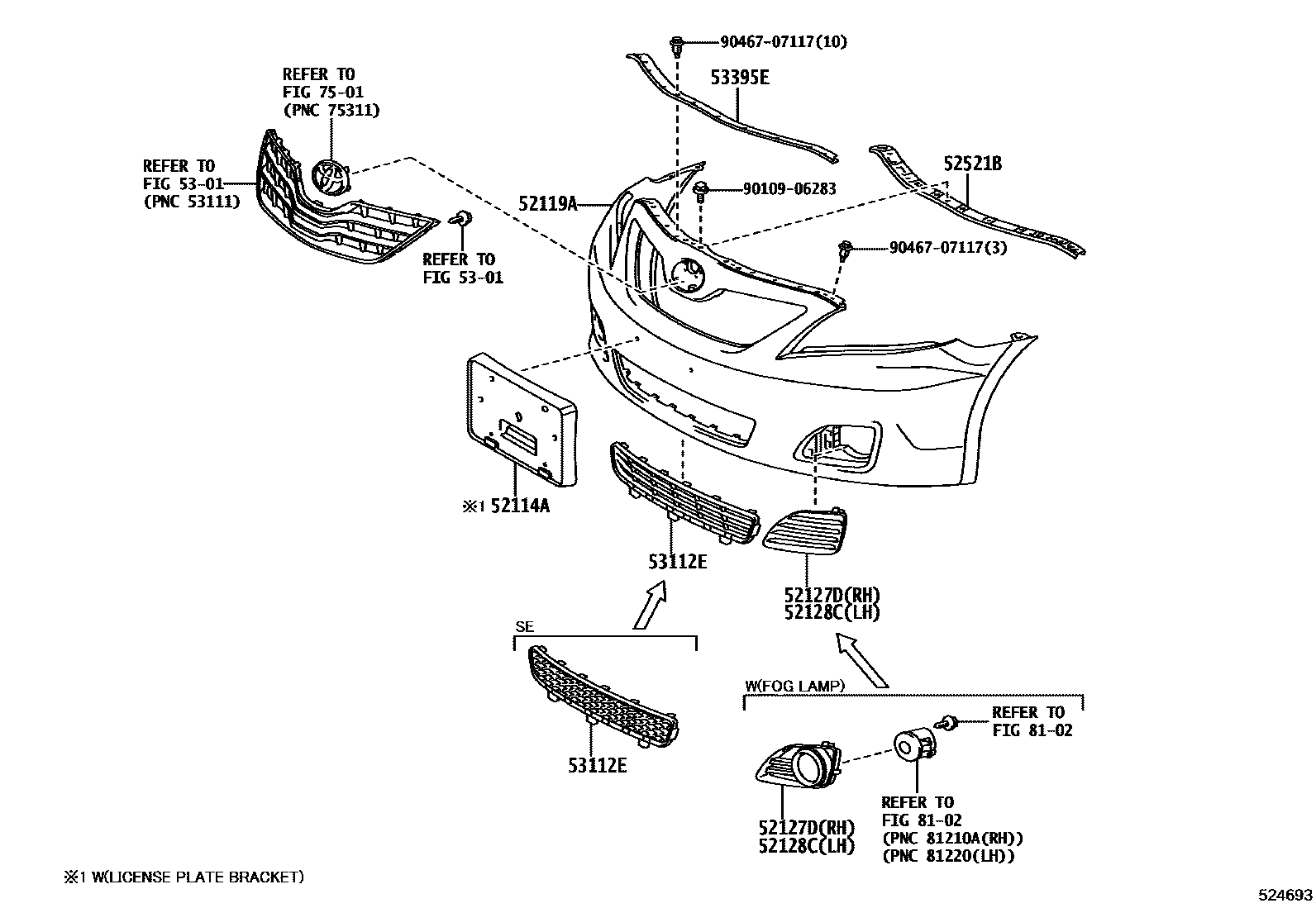

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-06040 · 52021-06041 |
| 52114A | Front bumper extension mounting bracket | 52114-06030 · 52114-06080 |
| 52119A | front bumper cover | 52119-06919 · 52119-06921 · 52119-06958 · 52119-06959 |
| 52127D | Front bumper right hole cover | 52030-06050 · 52127-06040 · 52127-06050 · 52127-06140 |
| 52128C | Front bumper left hole cover | 52040-06050 · 52128-06040 · 52128-06050 · 52128-06140 |
| 52521A | Clip (for front bumper mount) | 90467-08180 |
| 52521B | Front bumper upper fixing bracket | 52521-06020 · 52521-06060 |
| 52535 | Front bumper right side fixing bracket | 52535-06030 |
| 52535C | Front bumper side fixing bracket | 52535-50060 |
| 52536 | Front bumper left fixed bracket | 52536-06020 |
| 52611 | front bumper energy absorber | 52611-06050 · 52611-06130 |
| 53112E | No. 1 radiator lower grille | 53112-06010 · 53112-06090 · 53112-06170 |
| 53119E | Radiator grille protector | 53119-20120 |
| 53395E | Engine cover to front end plate seal | 53395-06010 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
