Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102

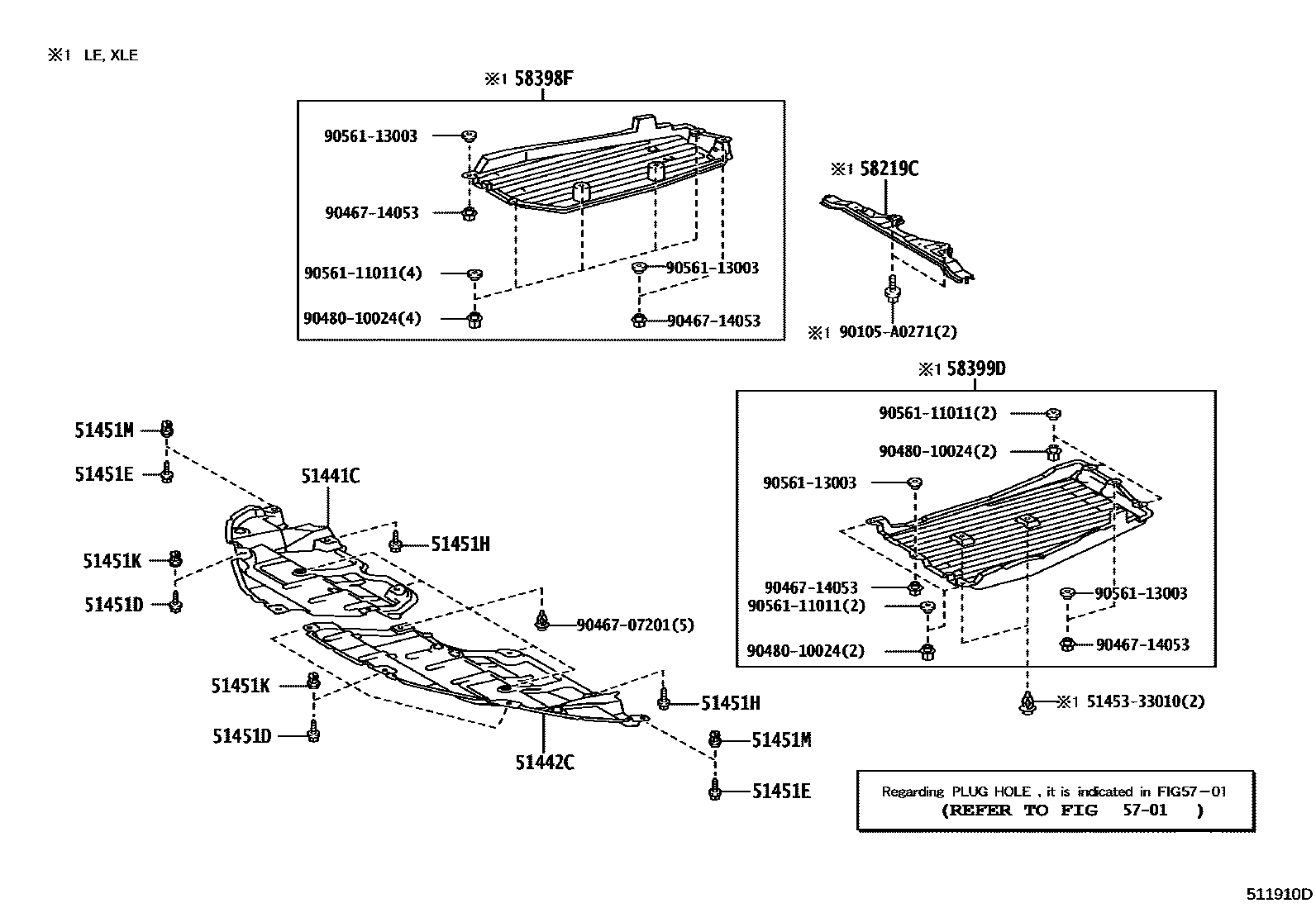

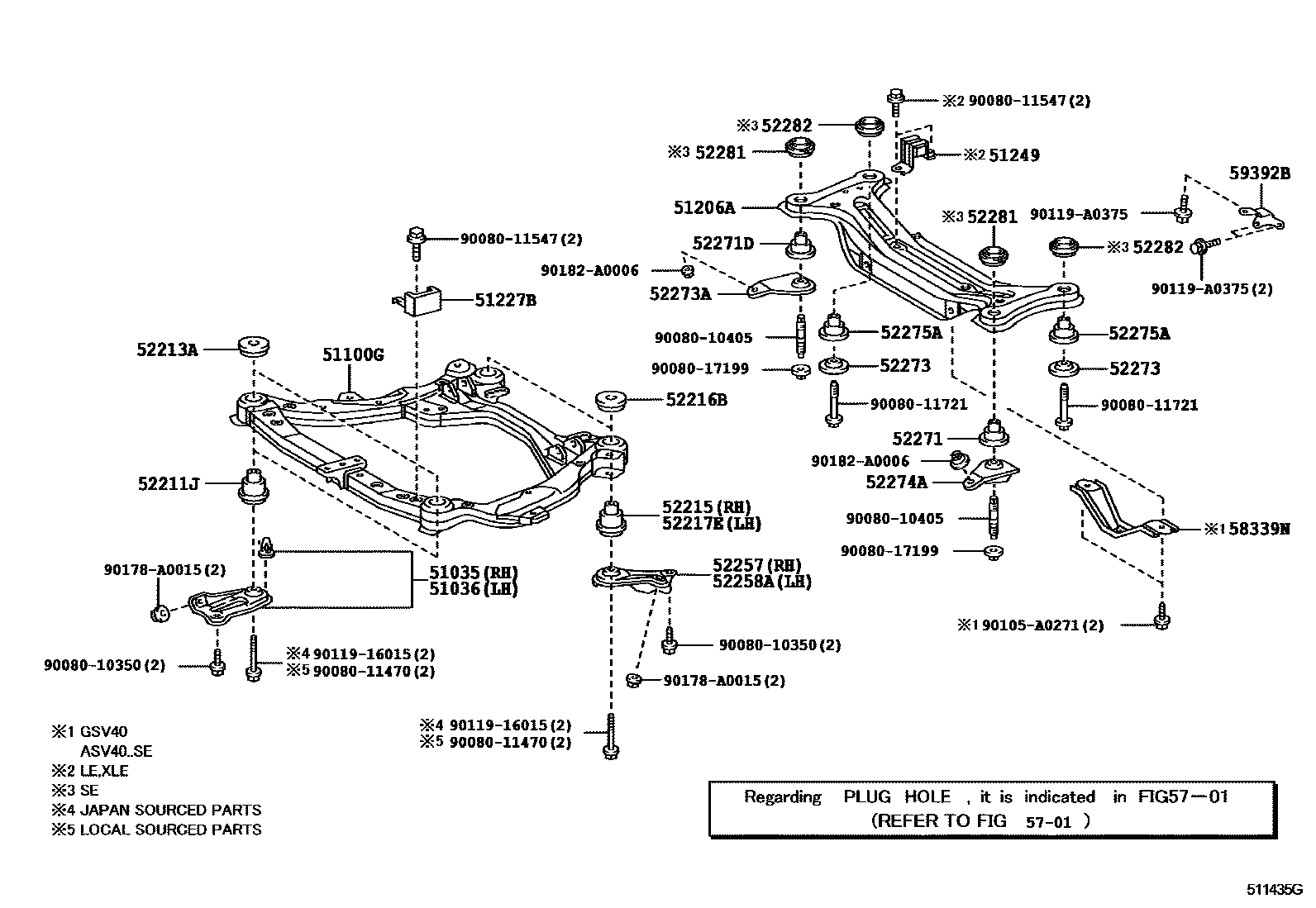

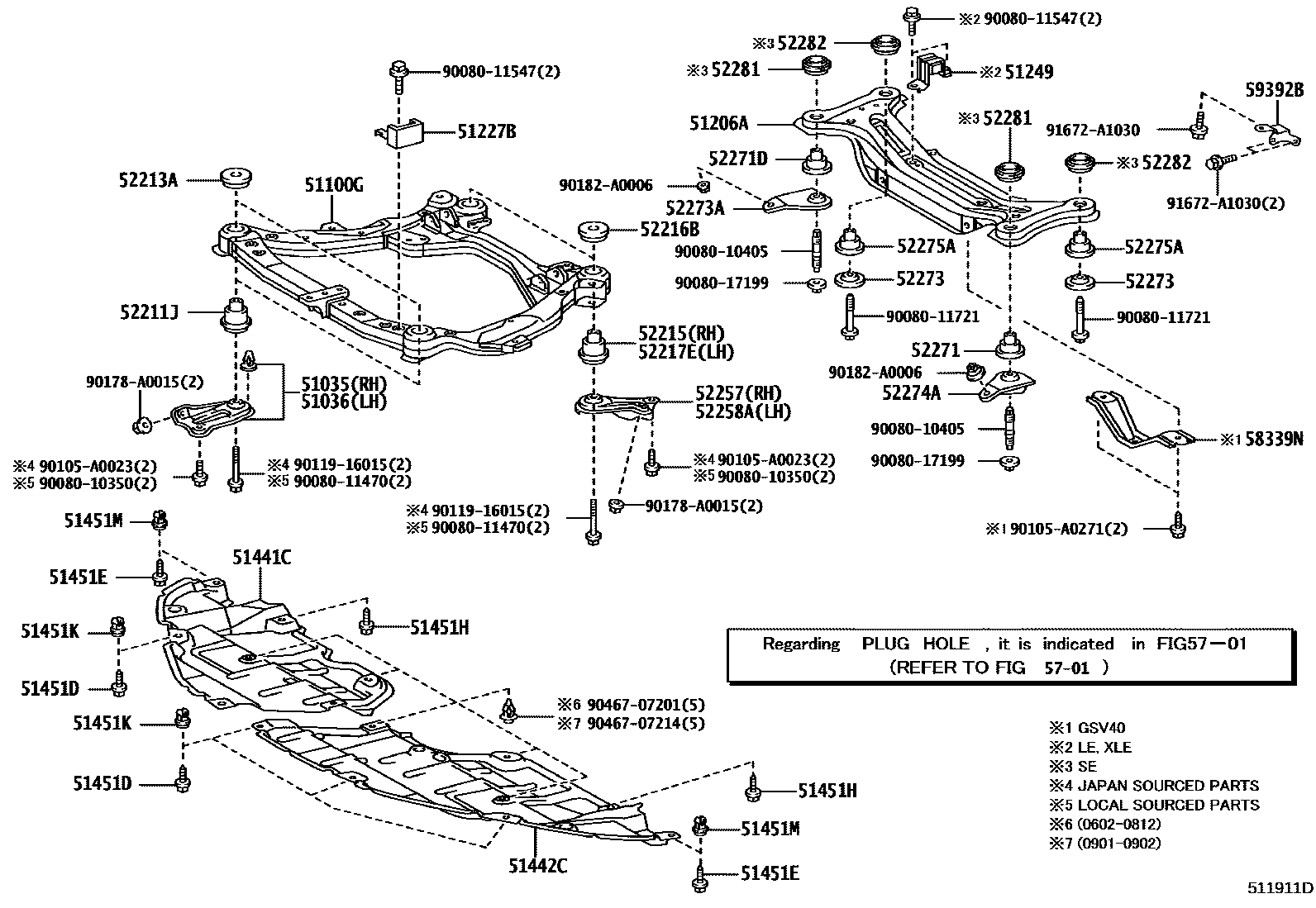

Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-07010 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-07010 |
| 51100G | Front frame assembly | 51100-06050 · 51100-06070 · 51100-06180 · 51100-07030 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06100 · 51206-06101 · 51206-06102 · 51206-06103 |
| 51227B | Front suspension beam dynamic damper | 51227-08010 |
| 51249 | Rear suspension cross member shock absorber | 51249-06050 |
| 51441C | Engine right bottom cover | 51441-06060 · 51441-06110 |
| 51442C | Engine left bottom cover | 51442-06050 · 51442-06100 |
| 51451D | VIS, NO.1 | 90159-60525 |
| 51451E | VIS, NO.2 | 90159-60525 |
| 51451H | VIS, NO.3 | 90159-60525 |
| 51451K | RONDELLE, VIS, NO.1 | 90189-06193 · 90467-09230 |
| 51451M | RONDELLE, VIS, NO.2 | 90189-06193 · 90467-09230 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06070 · 52211-06080 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06070 · 52213-06080 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06060 · 52215-07030 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06060 · 52216-07020 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06040 · 52217-07010 |
| 52257 | Right front suspension cross member rear bracket | 51023-07010 |
| 52258A | Left front suspension cross member rear bracket | 51024-07010 |
| 52271 | Rear suspension cross member cushion | 52272-06040 · 52272-06041 · 52272-33060 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06050 · 52271-06051 · 52271-33040 |
| 52273 | Rear suspension cross member lower block | 52273-06010 |
| 52273A | Rear suspension cross member right lower stop | 52203-06010 |
| 52274A | Rear suspension cross member left lower stop | 52204-06010 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06050 · 52275-06051 · 52275-33060 |
| 52281 | Differential support beam cushion | 52281-33010 |
| 52282 | Differential support beam upper stop | 52282-33050 |
| 58219C | Center floor rear end panel | 58219-06010 |
| 58339N | Lift the bracket | 58339-07010 · 58339-07011 |
| 58398F | No. 1 floor under cover | 58398-06020 · 58398-33010 |
| 58399D | Floor No. 2 lower cover | 58399-06020 · 58399-33011 |
| 59392B | Rear floor fixing No. 2 | 59392-33010 |
