Toyota CAMRY 制动配管和卡箍 — Figure 4708

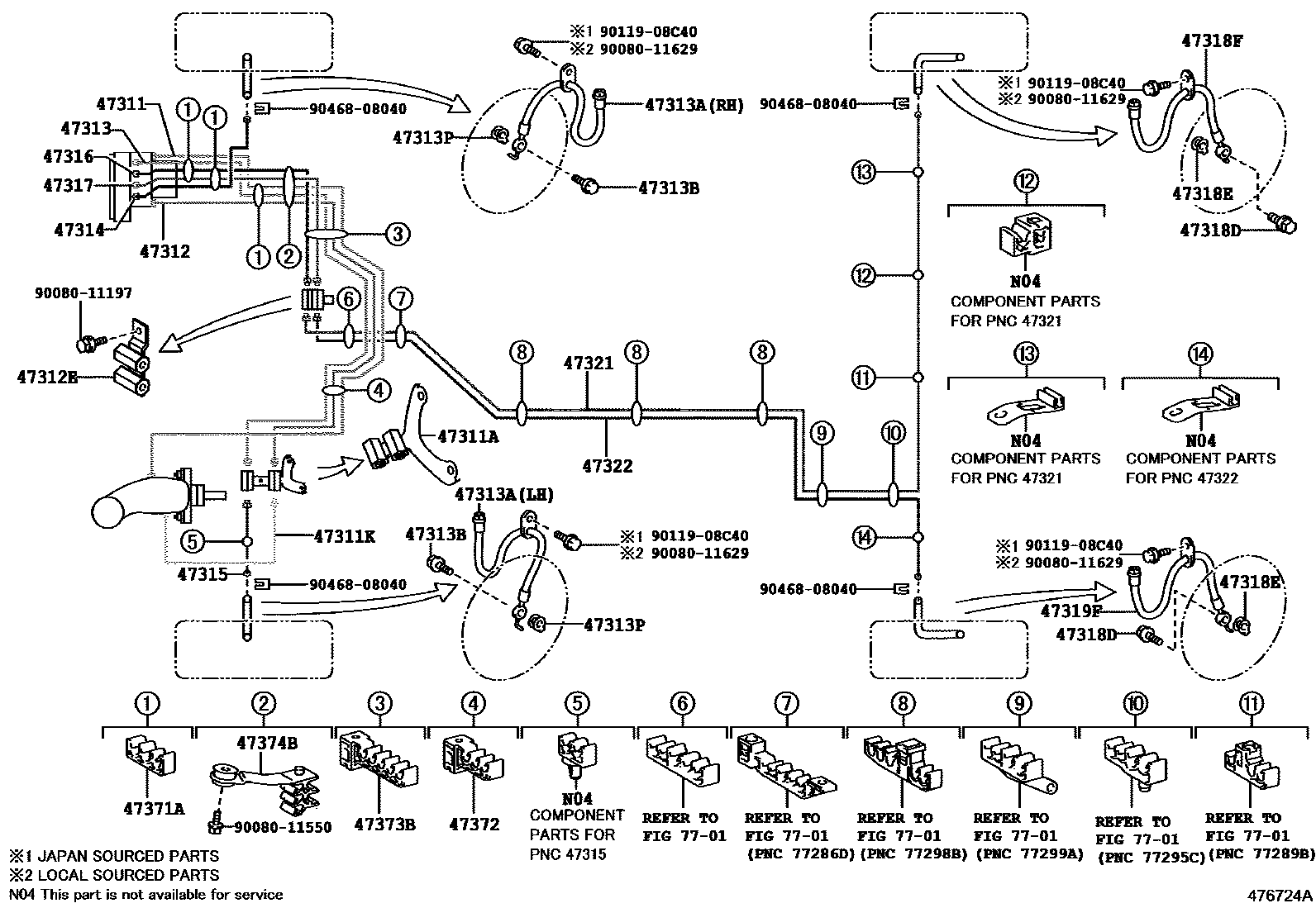

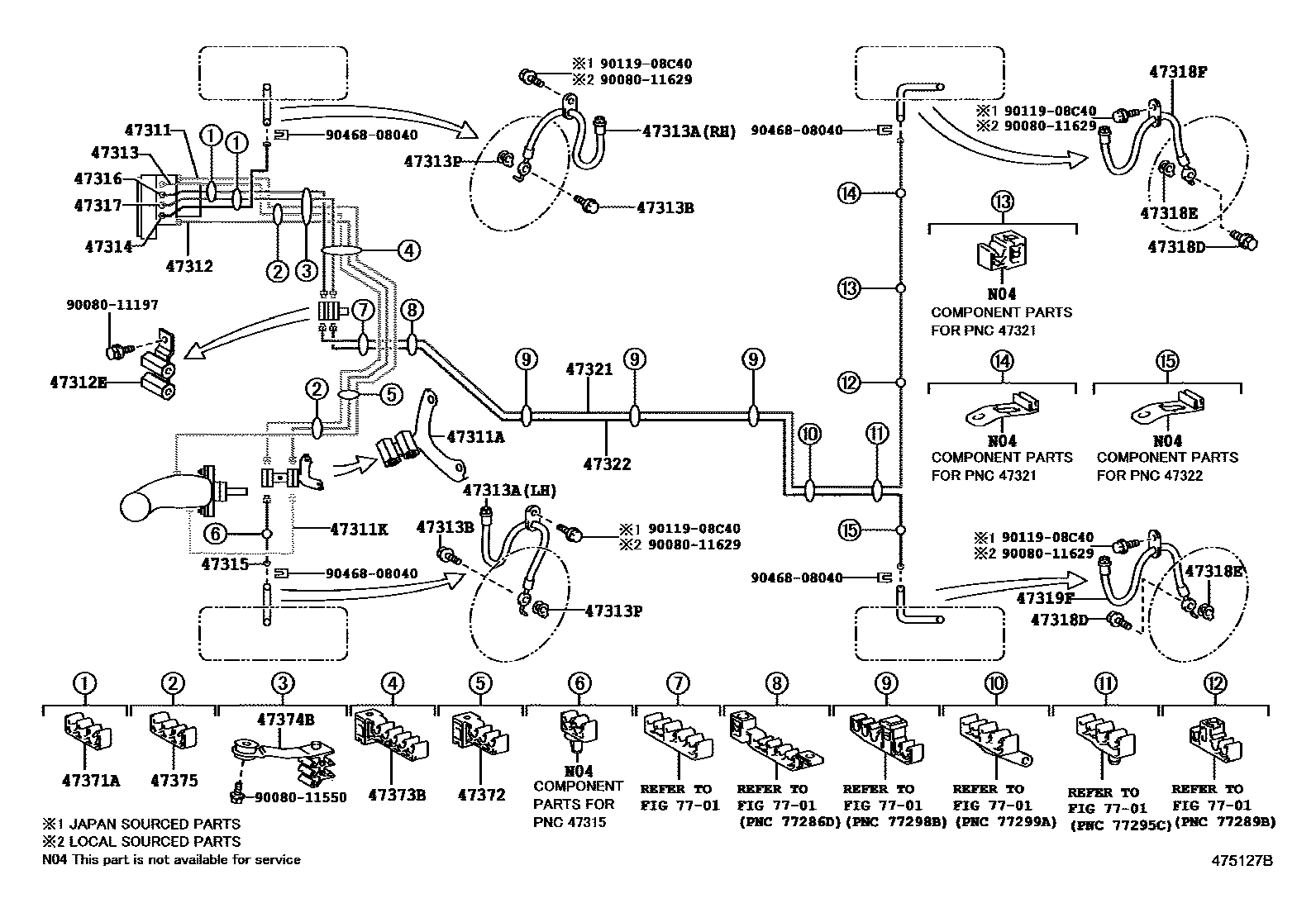

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

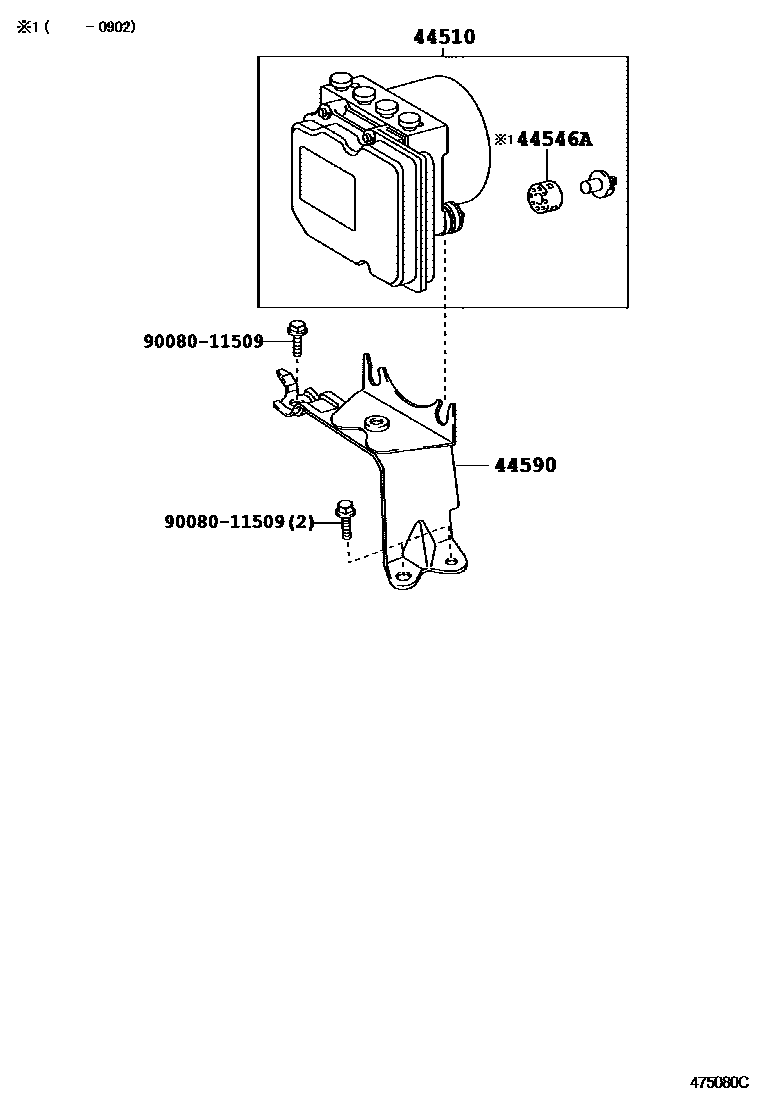

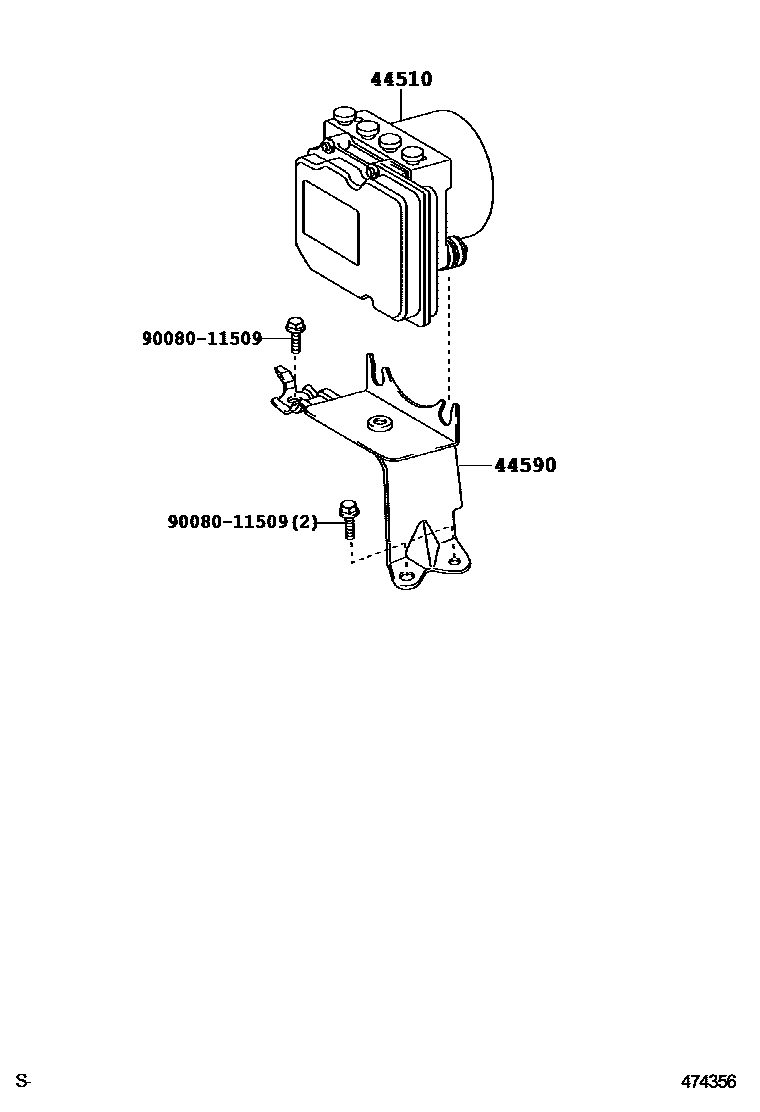

| 44510 | brake actuator assembly | 44050-06070 · 44050-06080 · 44050-06130 |
| 44546A | Brake actuator bolt cushion | 44546-8Y001 |
| 44590 | Brake actuator bracket assembly | 44590-06040 · 44590-07010 |
| 47311 | No. 1 front brake pipe | 47311-06140 · 47311-06150 · 47311-06360 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10262 · 90412-10264 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-06130 · 47311-06270 |
| 47312 | No. 2 front brake pipe | 47312-06110 · 47312-06120 · 47312-06270 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10246 |
| 47313 | No. 3 front brake pipe | 47313-06100 · 47313-06110 · 47313-06260 |
| 47313A | No. 1 front flexible hose | 90947-A2011 · 90947-A2012 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06100 · 47314-06110 · 47314-06250 |
| 47315 | No. 5 front brake pipe | 47315-06140 · 47315-06160 · 47315-06240 |
| 47316 | No. 6 front brake pipe | 47316-06170 · 47316-06180 |
| 47317 | No. 7 front brake pipe | 47317-06150 · 47317-06160 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2017 |
| 47319F | Left rear flexible hose | 90947-A2018 |
| 47321 | No. 1 rear brake pipe | 47321-06090 |
| 47322 | No. 2 rear brake pipe | 47322-06090 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 |
| 47372 | No. 2 brake pipe clamp | 90949-01C95 · 90949-A1013 |
| 47373B | No. 3 brake pipe clamp | 90949-A1009 · 90949-A1014 |
| 47374B | No. 4 brake pipe clamp | 90949-A4009 · 90949-A4010 |
| 47375 | No. 5 brake pipe clamp | 90464-A0003 |
