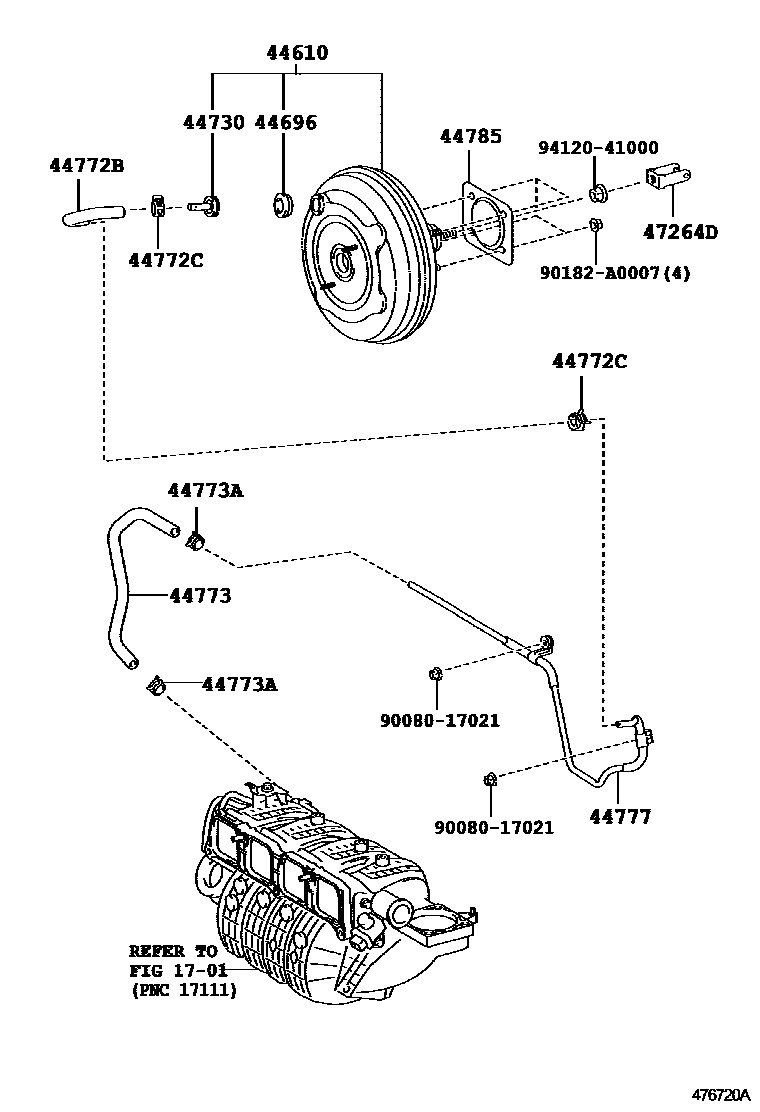

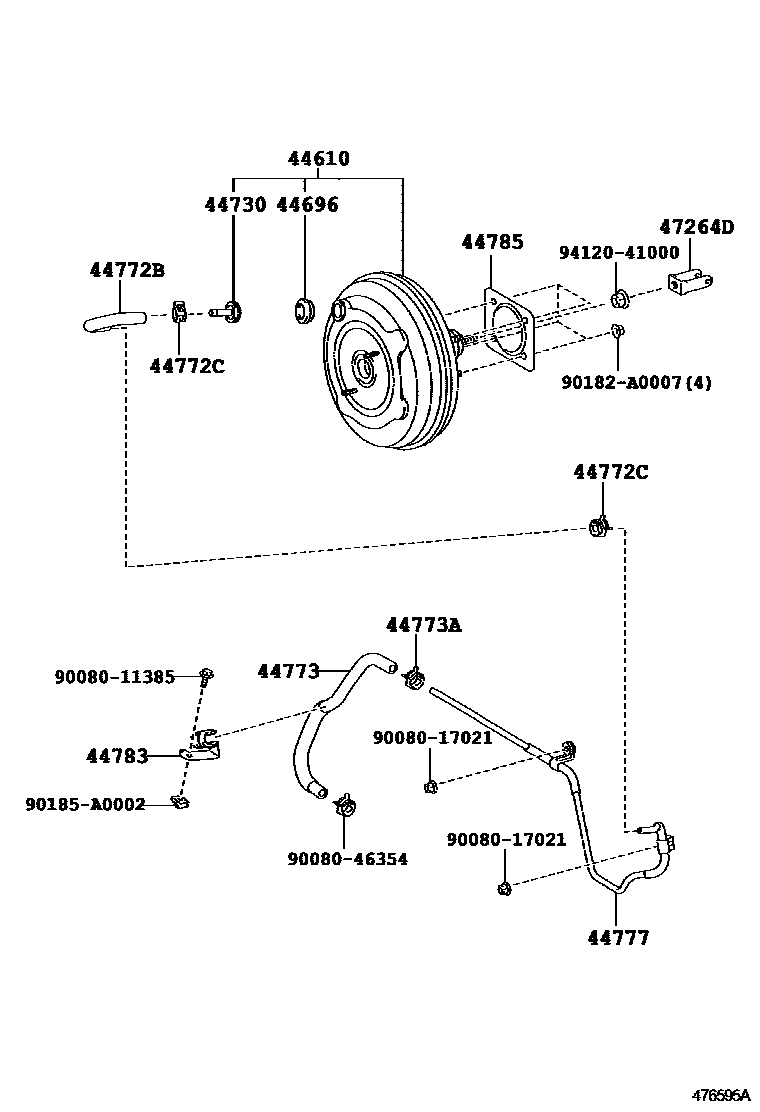

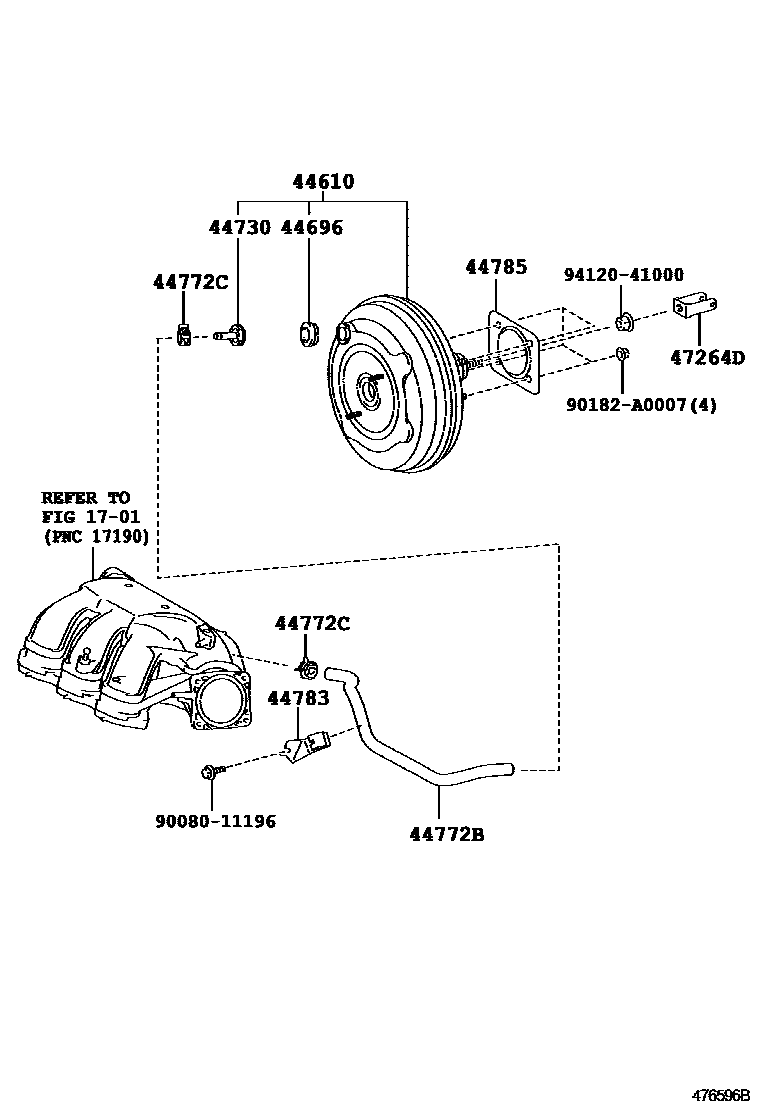

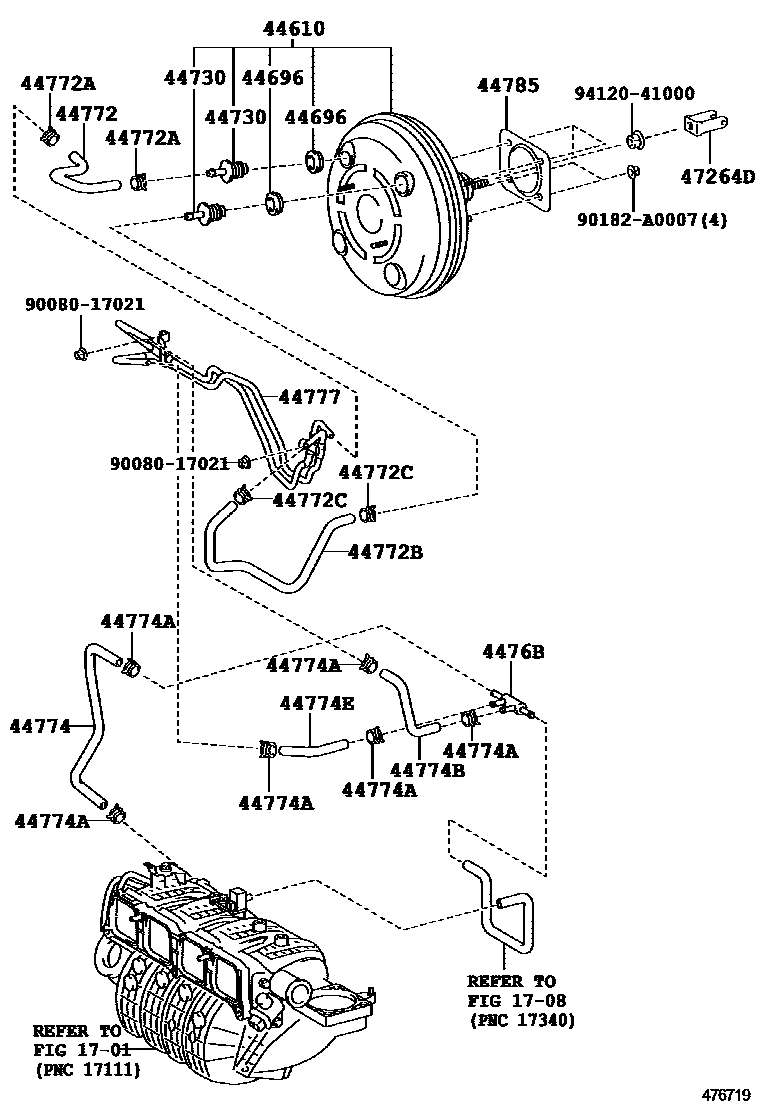

Toyota CAMRY 制动助力器和真空管 — Figure 4703
Toyota CAMRY EPC diagram 4703, 制动助力器和真空管, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-06300 · 44610-06301 · 44610-06302 · 44610-06310 · 44610-06440 · 44610-06441 · 44610-07131 · 44610-07132 |
| 44696 | One-way valve seal | 90080-48071 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-22150 |
| 4476B | Brake booster vacuum injection pump | 4476B-48010 |
| 44772 | Hoses (check valve to connector tube) | 44772-06100 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44772B | Hoses (check valve to brake booster) | 44772-06120 · 44772-06130 · 44773-06090 |
| 44772C | Clip (for check valve to brake booster hose) | 90466-A0003 · 90467-16014 |
| 44773 | No. 2 vacuum hose | 44772-06140 · 44772-06320 |
| 44773A | Clamp No. 1 (for vacuum hose No. 2) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-33100 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44774B | Hoses (joints to connector tubes) | 44774-33080 |
| 44774E | Hoses (joints to connector tubes) | 44774-33090 |
| 44777 | No. 1 Vacuum Hose Connector | 44770-06100 · 44770-06261 |
| 44783 | Vacuum hose clamp | 44783-06060 · 44783-28010 |
| 44785 | brake booster pad | 44785-07010 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 |
