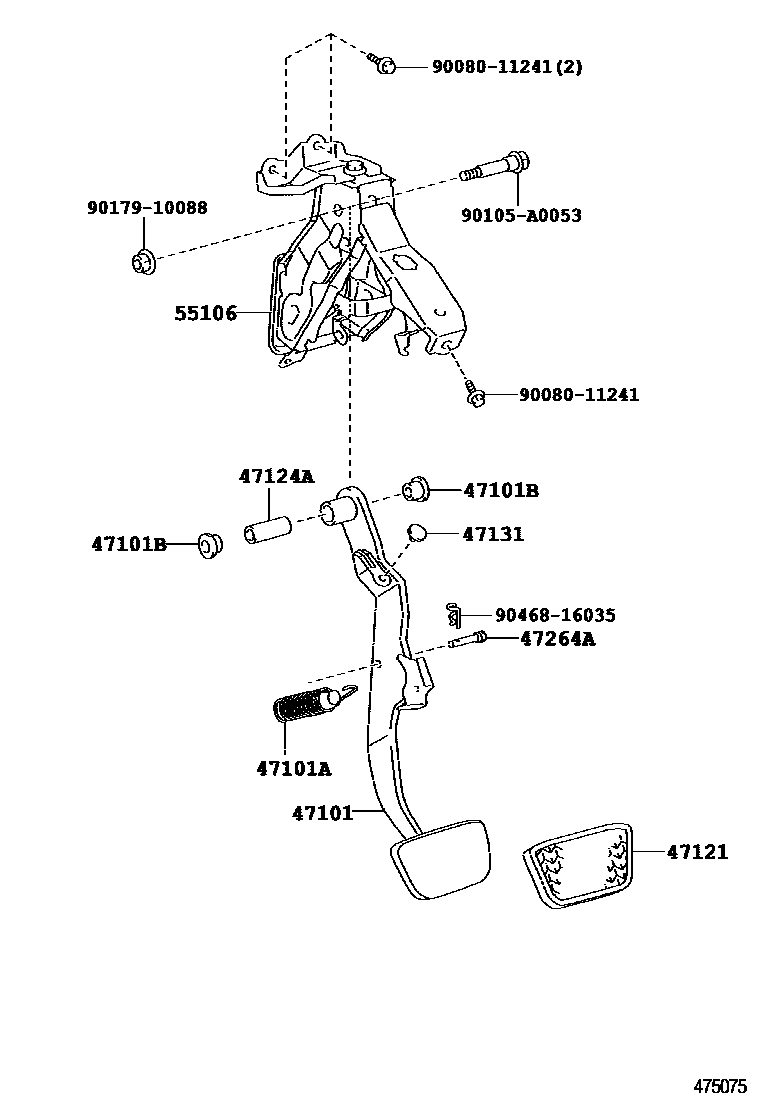

Toyota CAMRY Brake Pedal & Bracket — Figure 4701
Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-06170 · 47101-06180 · 47101-06230 |
| 47101A | Spring (for brake pedal return) | 90507-14036 |
| 47101B | Bushing (for brake pedal) | 90080-38144 |
| 47121 | brake pedal pad | 31321-52010 · 31321-53010 · 47121-0E010 · 47121-53010 |
| 47124A | Collar (for brake pedal shaft) | 90080-38147 |
| 47131 | Bump pad (for brake light switch) | 90080-54033 |
| 47264A | Pin (for push rod) | 90249-08256 |
| 55106 | Brake pedal bracket sub-assembly | 55106-06070 |
