Toyota CAMRY 前转向齿轮和连杆 — Figure 4505
Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 13 PNC and OE references.
PNC and OE references

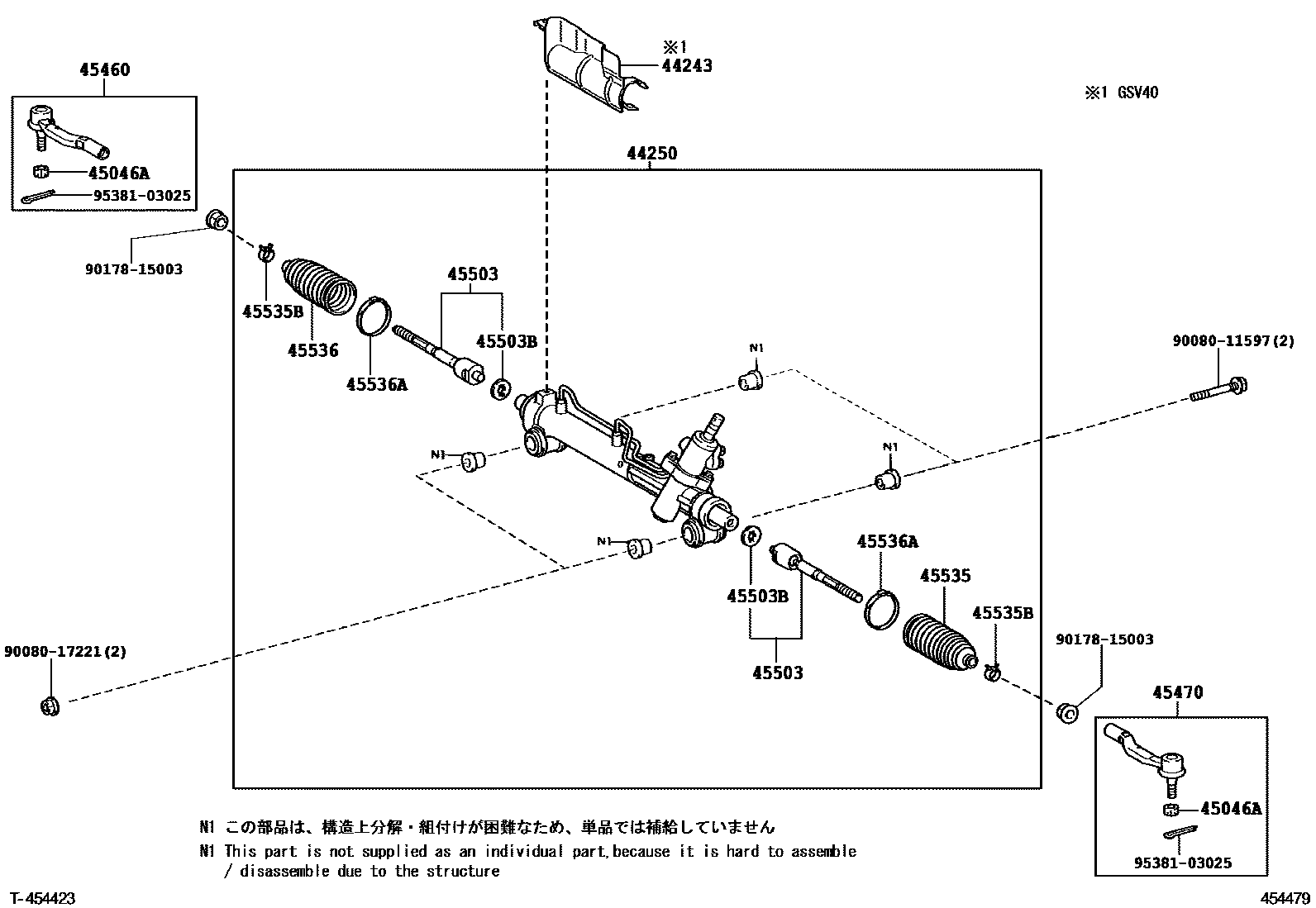

| PNC | Part name | OE numbers |
|---|---|---|

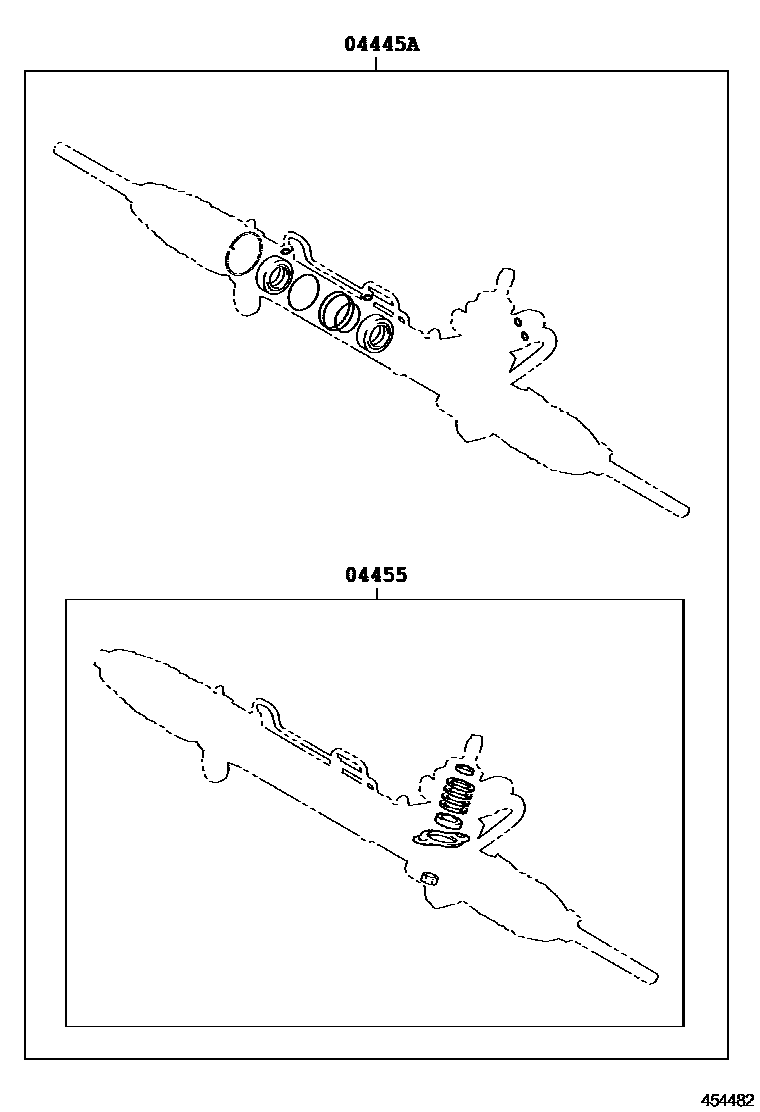

| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-06170 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06030 |
| 44243 | Power steering rack housing heat insulation pad | 44243-33011 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06330 · 44250-06340 |
| 45046A | Castle nuts (for tie rod ends) | 90080-17220 |
| 45460 | Right tie rod assembly | 45460-09110 |
| 45470 | Left tie rod assembly | 45470-09080 |
| 45503 | Steering rack end sub-assembly | 45503-09420 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45535 | No. 1 steering rack dust cover | 45535-06060 |
| 45535B | Clamp (for steering rack dust boot) | 90080-46153 |
| 45536 | No. 2 steering rack dust cover | 45535-06060 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90080-46271 |
