Toyota CAMRY Steering Wheel — Figure 4504

Toyota CAMRY EPC diagram 4504, Steering Wheel, with 2 images and 3 PNC and OE references.

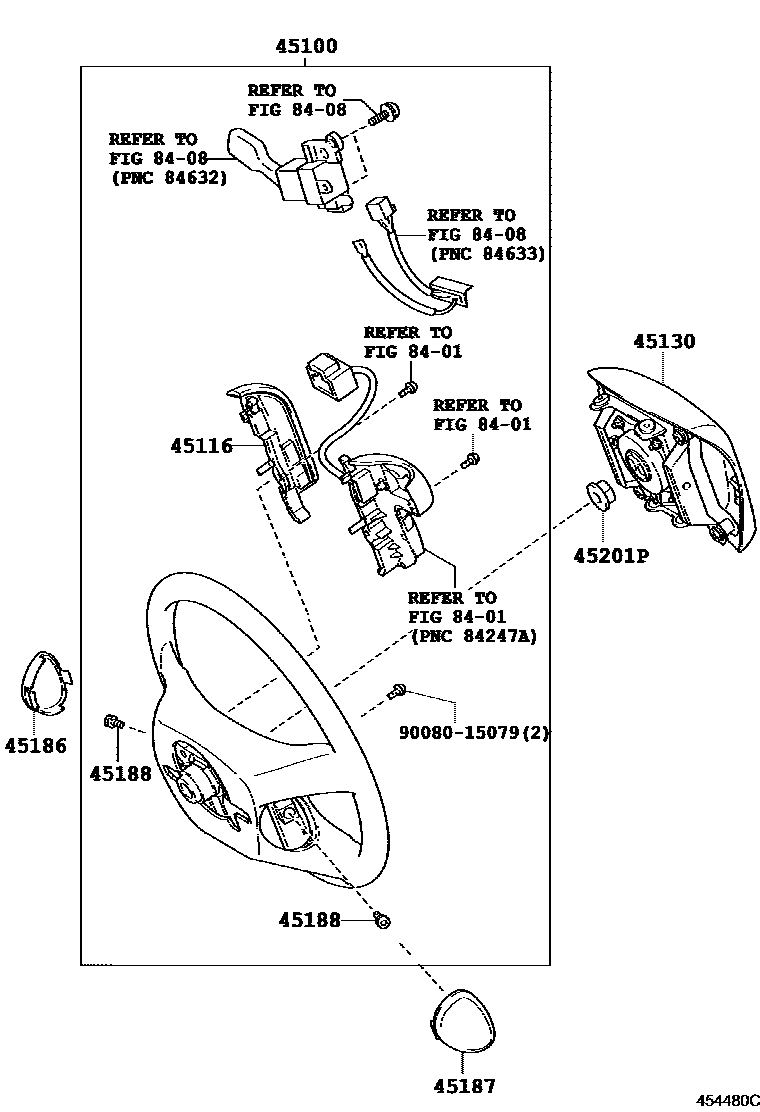

Toyota CAMRY Steering Wheel EPC diagram — 454480C
Steering Wheel — 454480C (200602 – 999999)

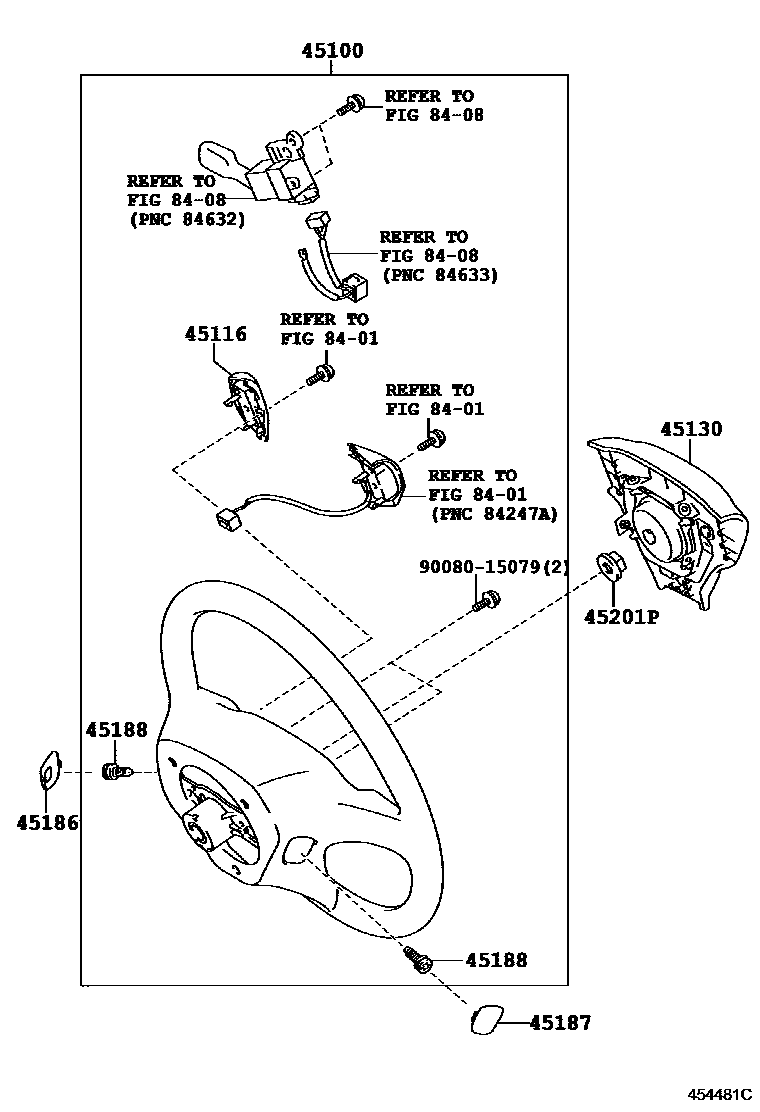

Toyota CAMRY Steering Wheel EPC diagram — 454481C
Steering Wheel — 454481C (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
45116No. 1 steering wheel decorative parts45116-06010 · 45116-06020
45188Steering wheel trim cover fixing screws45188-07010
45201PSteering wheel fixing nut90080-17234
