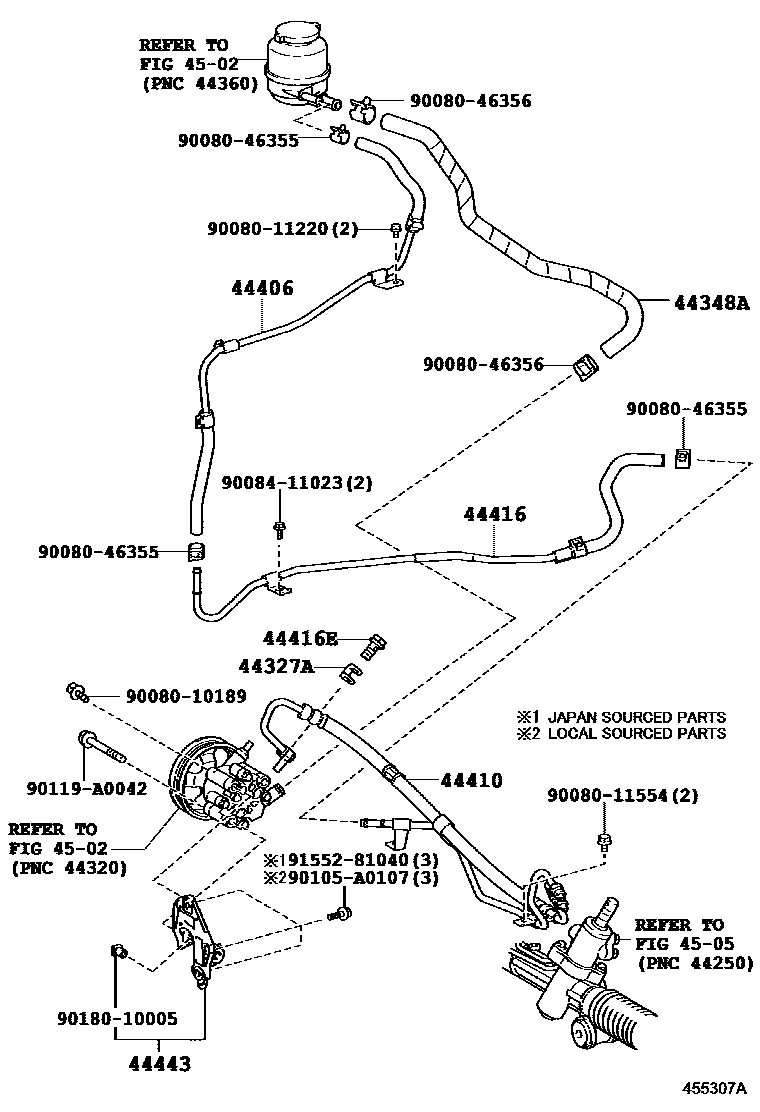

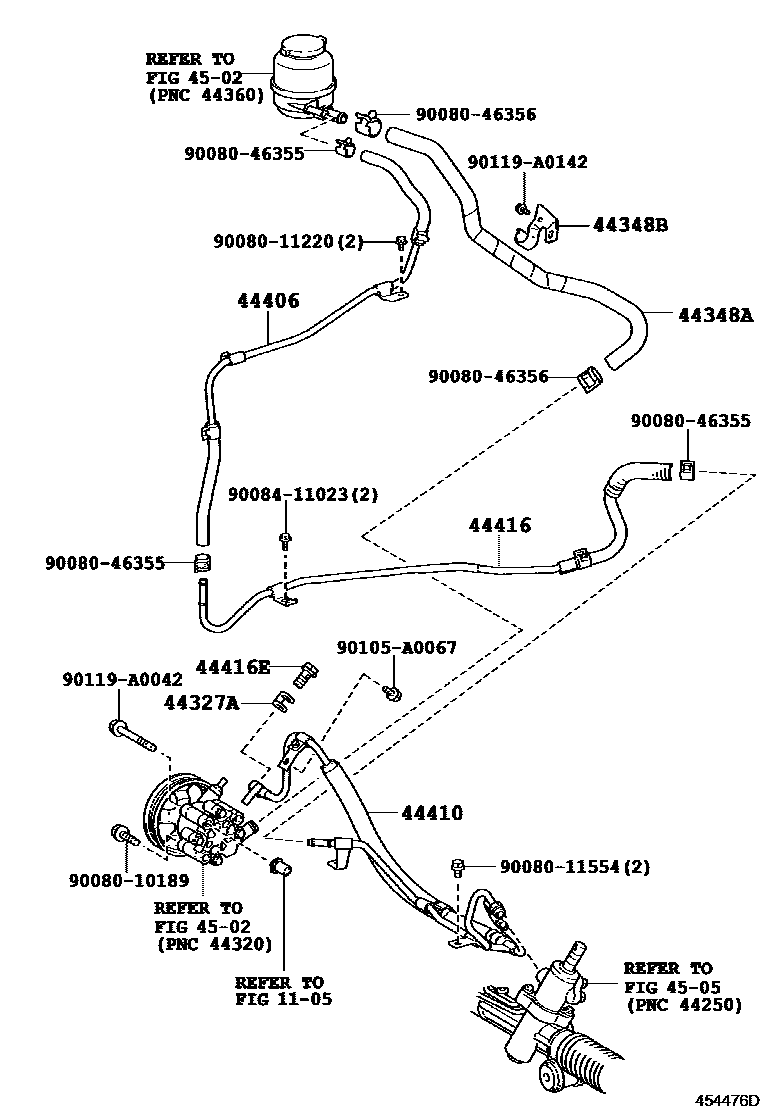

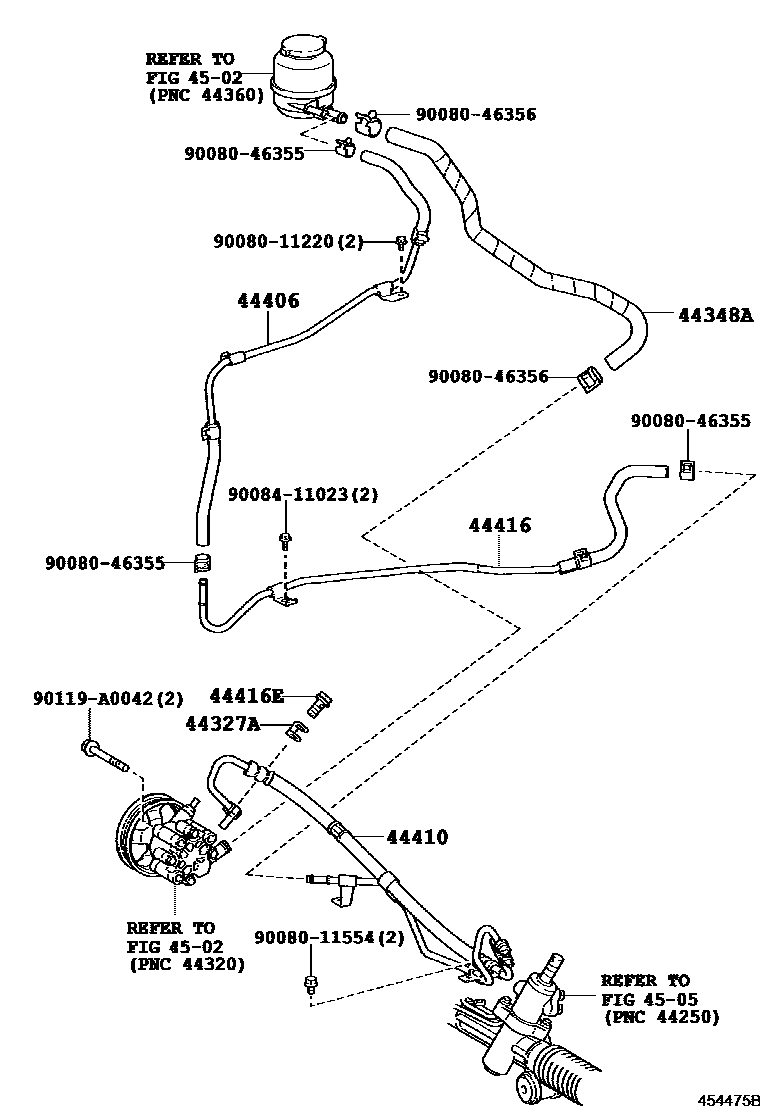

Toyota CAMRY 动力转向配管 — Figure 4503
Toyota CAMRY EPC diagram 4503, 动力转向配管, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-06260 · 44348-06270 · 44348-06370 |
| 44348B | Clamp (for reservoir to pump hose) | 44349-41010 |
| 44406 | Oil return pipe sub-assembly | 44406-06171 |
| 44410 | Pressure supply pipe assembly | 44410-06141 · 44410-06142 · 44410-06241 · 44410-06242 · 44410-06243 · 44410-06350 · 44410-06351 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06161 · 44416-06171 · 44416-06290 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
| 44443 | pump bracket | 44443-33050 |
