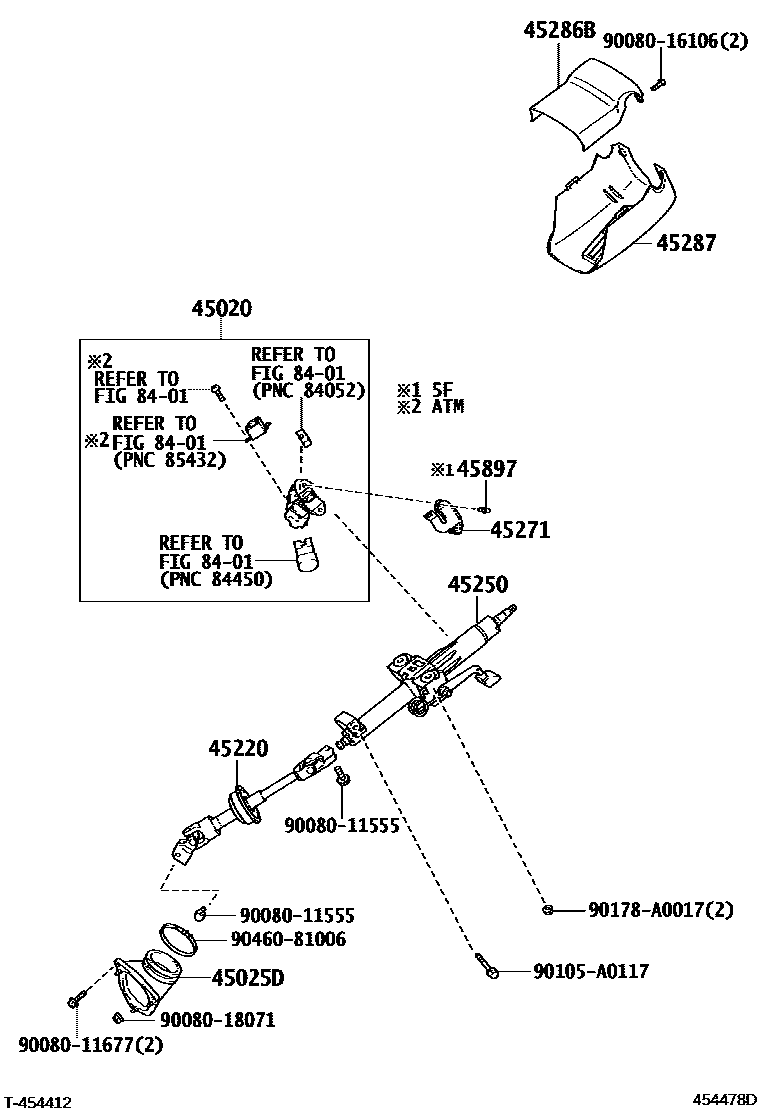

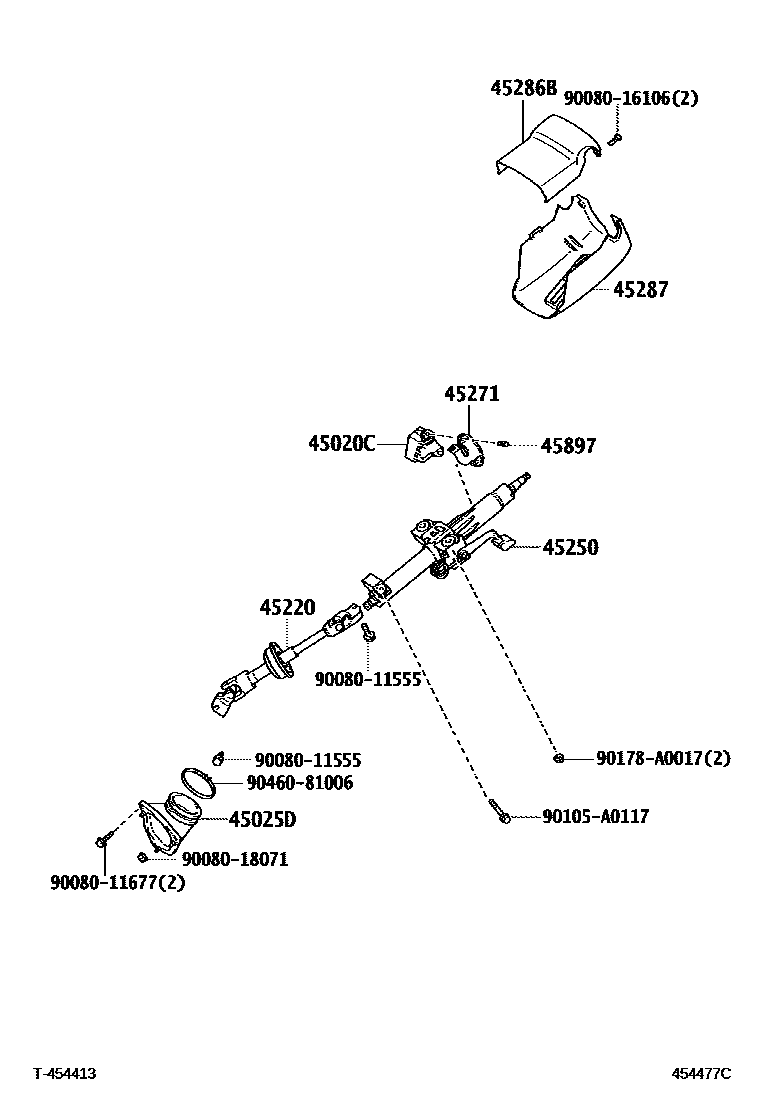

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-04010 · 45020-04020 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-06070 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06060 · 45025-33110 |
| 45220 | Steering intermediate shaft assembly | 45220-06110 · 45220-06111 · 45220-06112 · 45220-06113 · 45220-06114 |
| 45250 | Steering column assembly | 45250-06380 · 45250-06480 |
| 45271 | Clamp on steering column | 45271-06020 |
| 45897 | Steering lock fixing bolt | 45897-08010 |
