Toyota CAMRY Front Drive Shaft — Figure 4302

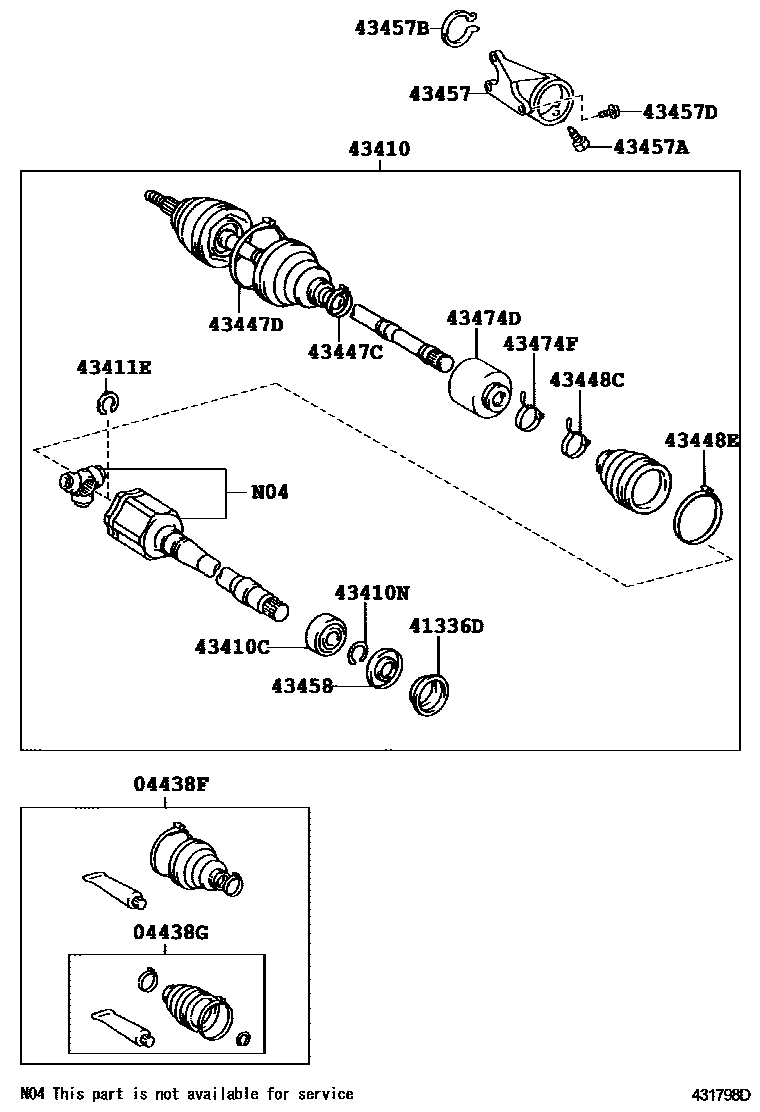

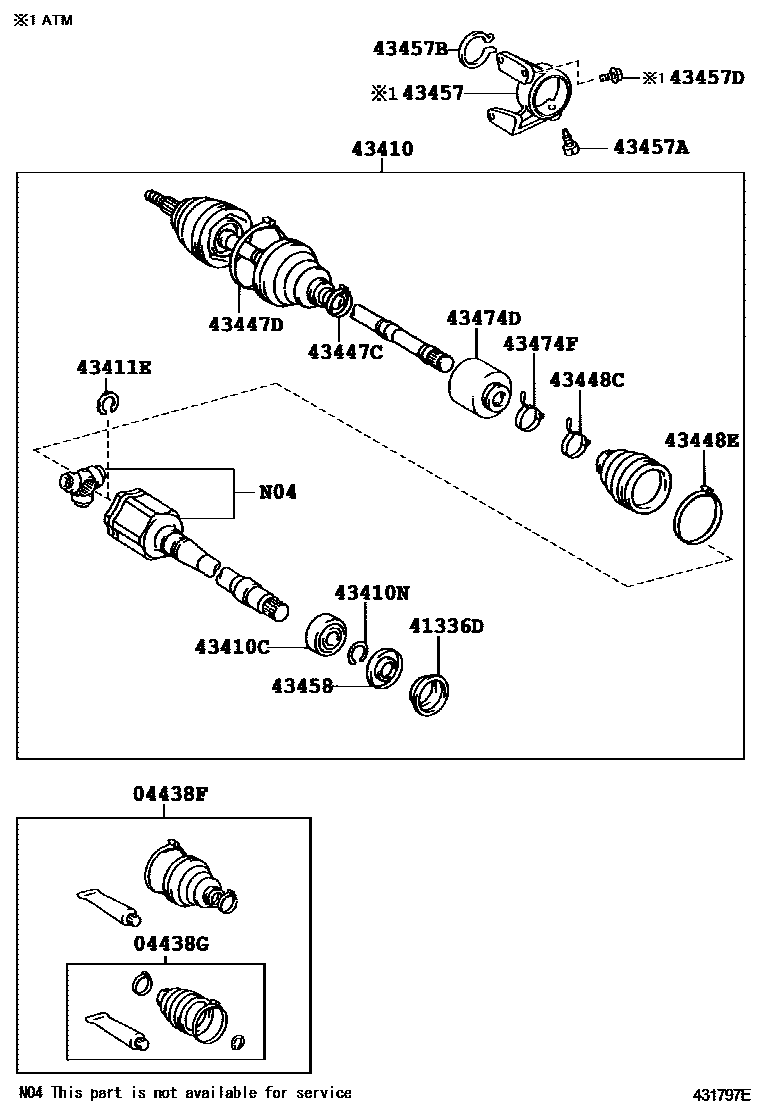

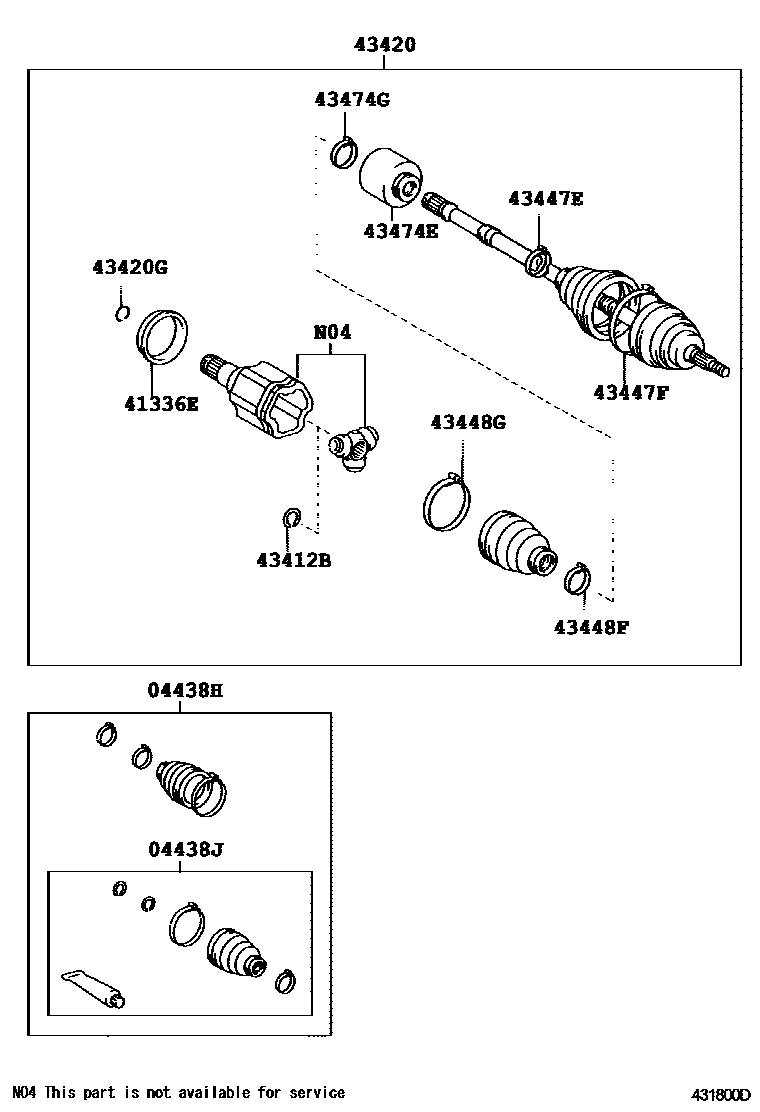

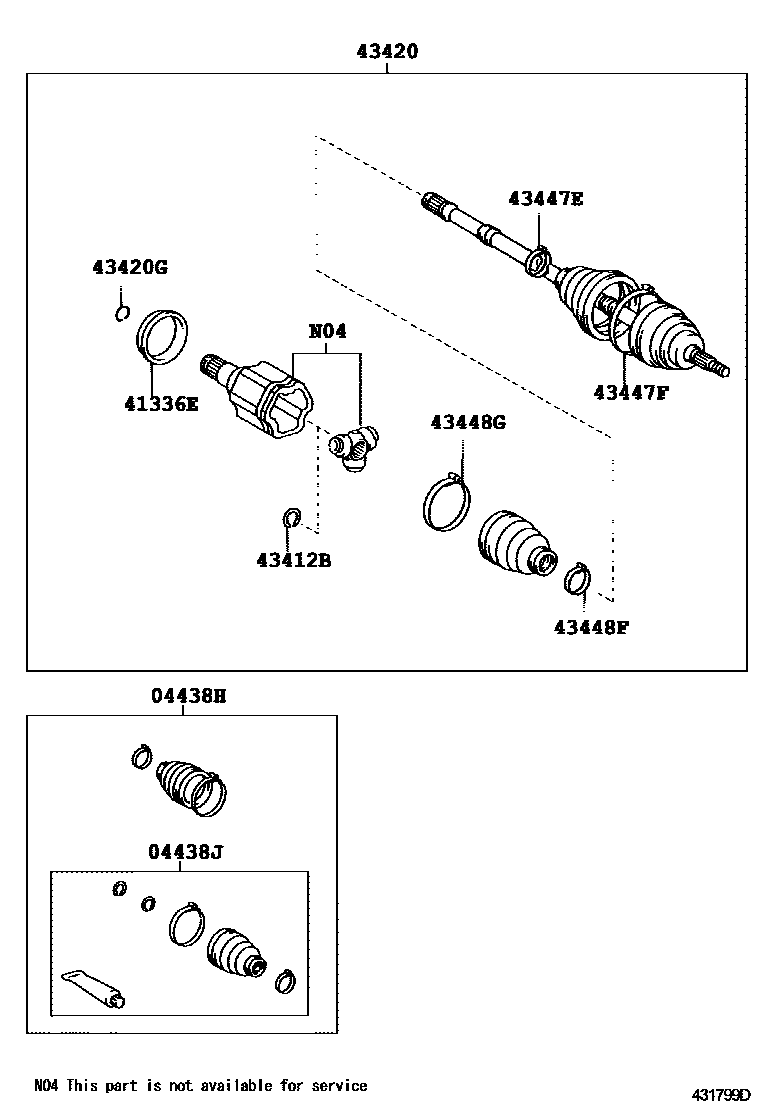

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 4 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06280 · 04427-06290 · 04427-06300 · 04427-0E030 · 04428-0E060 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06110 · 04438-07010 · 04438-08130 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06330 · 04428-06340 · 04428-08080 · 04428-0E060 · 04428-0W030 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06400 · 04438-08130 |
| 41336D | Right front driveshaft dust cover | 41336-06020 |
| 41336E | Left front driveshaft dust cover | 41336-06060 |
| 43410 | Right front driveshaft assembly | 43410-06560 · 43410-06570 · 43410-06580 · 43410-06690 · 43410-06700 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 |
| 43410N | Hole snap ring (for right front driveshaft) | 90080-52013 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-08040 · 90080-52118 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-08040 · 90080-52118 |
| 43420 | Left front drive shaft assembly | 43420-06510 · 43420-06600 · 43420-06610 · 43420-06770 · 43420-06780 |
| 43420G | Hole snap ring (for left front driveshaft) | 90080-52017 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-04030 · 42345-06090 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06040 · 42345-06080 · 42345-06250 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-04030 · 42345-06090 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06040 · 42345-06080 · 42345-06250 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-07020 · 42345-08070 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06240 · 42345-07010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-07020 · 42345-08070 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06240 · 42345-07010 |
| 43457 | drive shaft bearing bracket | 43457-06020 · 43457-07010 · 43457-0T010 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90080-10087 |
| 43458 | Front drive shaft dust cover | 43458-06020 |
| 43474D | Right front driveshaft shock absorber | 43474-0W030 |
| 43474E | Left front driveshaft shock absorber | 43474-06090 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06100 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06100 |
