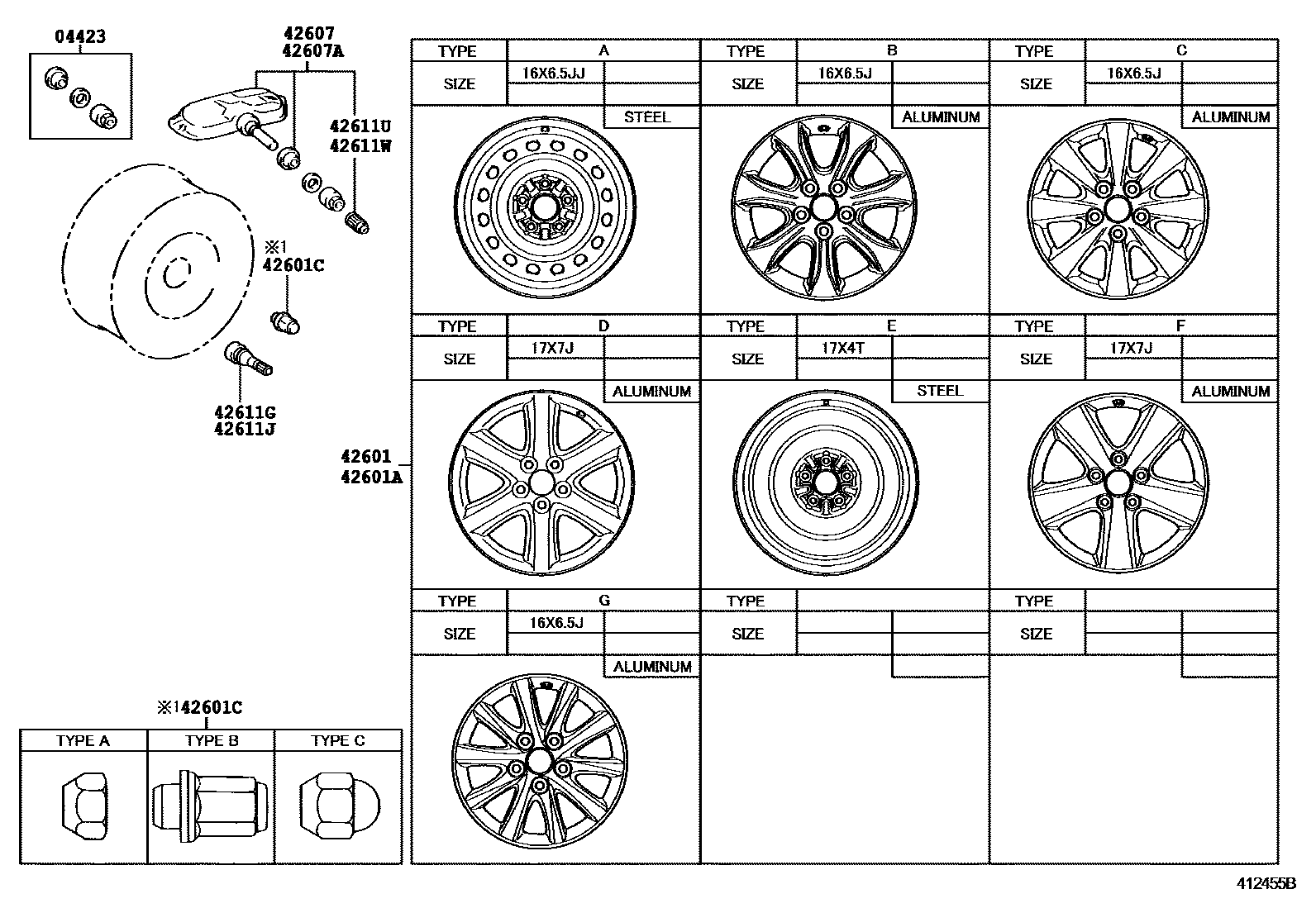

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-06350 · 42611-06360 · 42611-06361 · 42611-06370 · 42611-06390 · 42611-06540 · 42611-06640 |
| 42601A | Spoke wheel (for spare tire) | 42611-06350 · 42611-06370 · 42611-06380 · 42611-06540 |
| 42601C | Hub nut (for axle) | 90080-17035 · 90084-94001 · 90942-01082 |

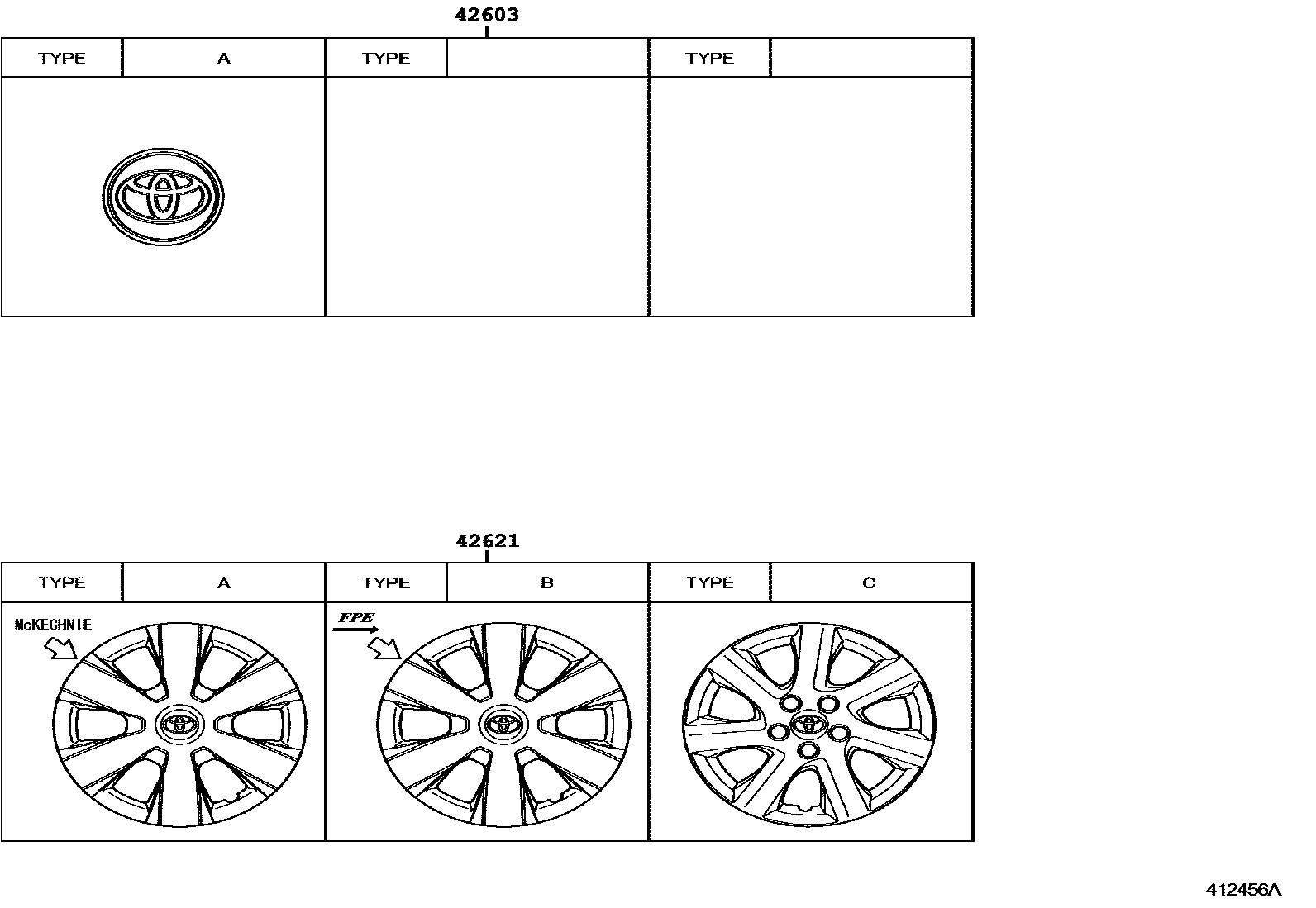

| 42603 | Wheel hub decorative parts sub-assembly | 42603-06080 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-06011 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-06011 |
| 42611G | Valve (for tubeless tires) | 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42611W | Tire valve cap (for spare tire) | 90942-A5002 |
| 42621 | wheel cover | 42602-06010 · 42602-06020 · 42602-06050 |
