Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

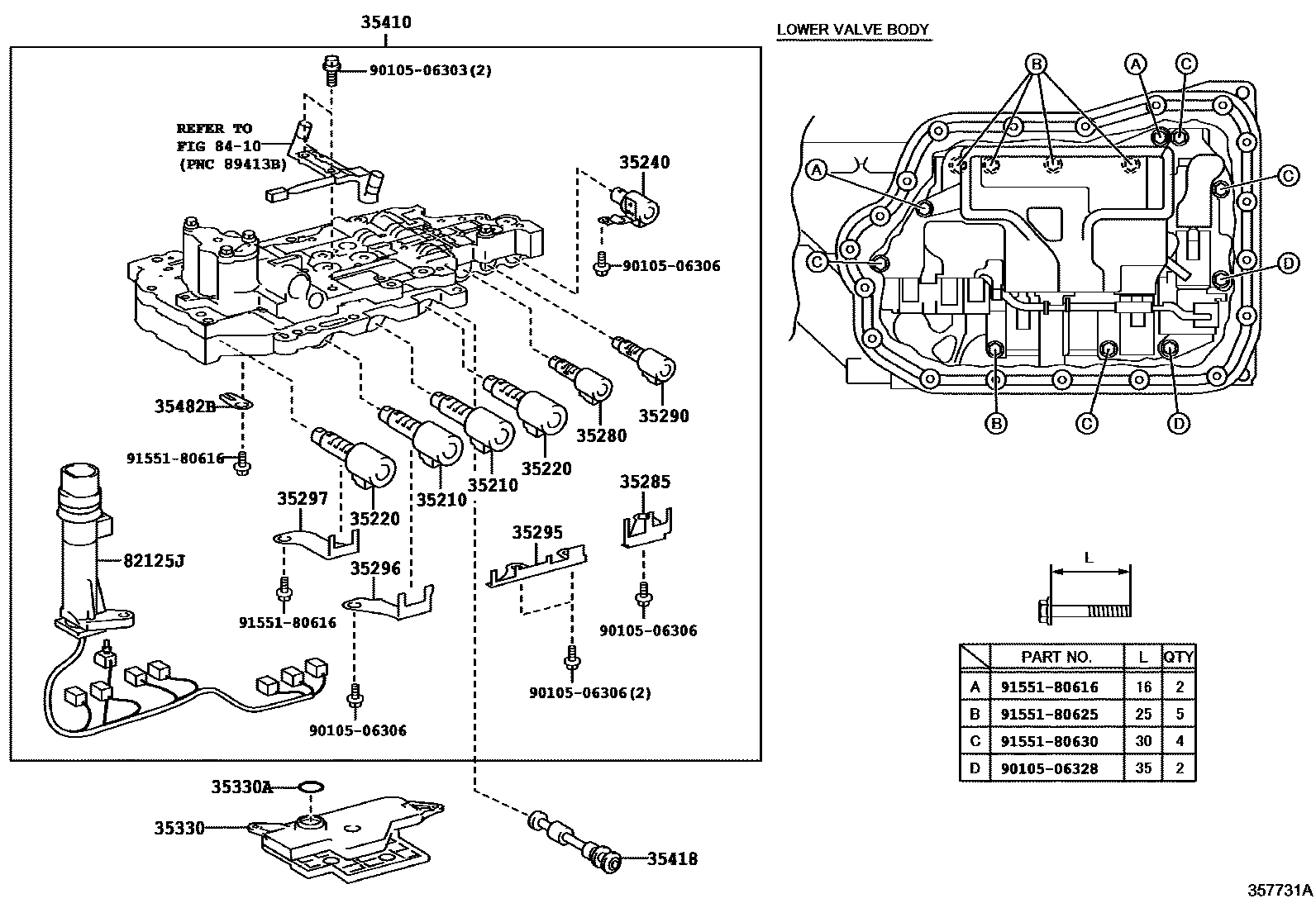

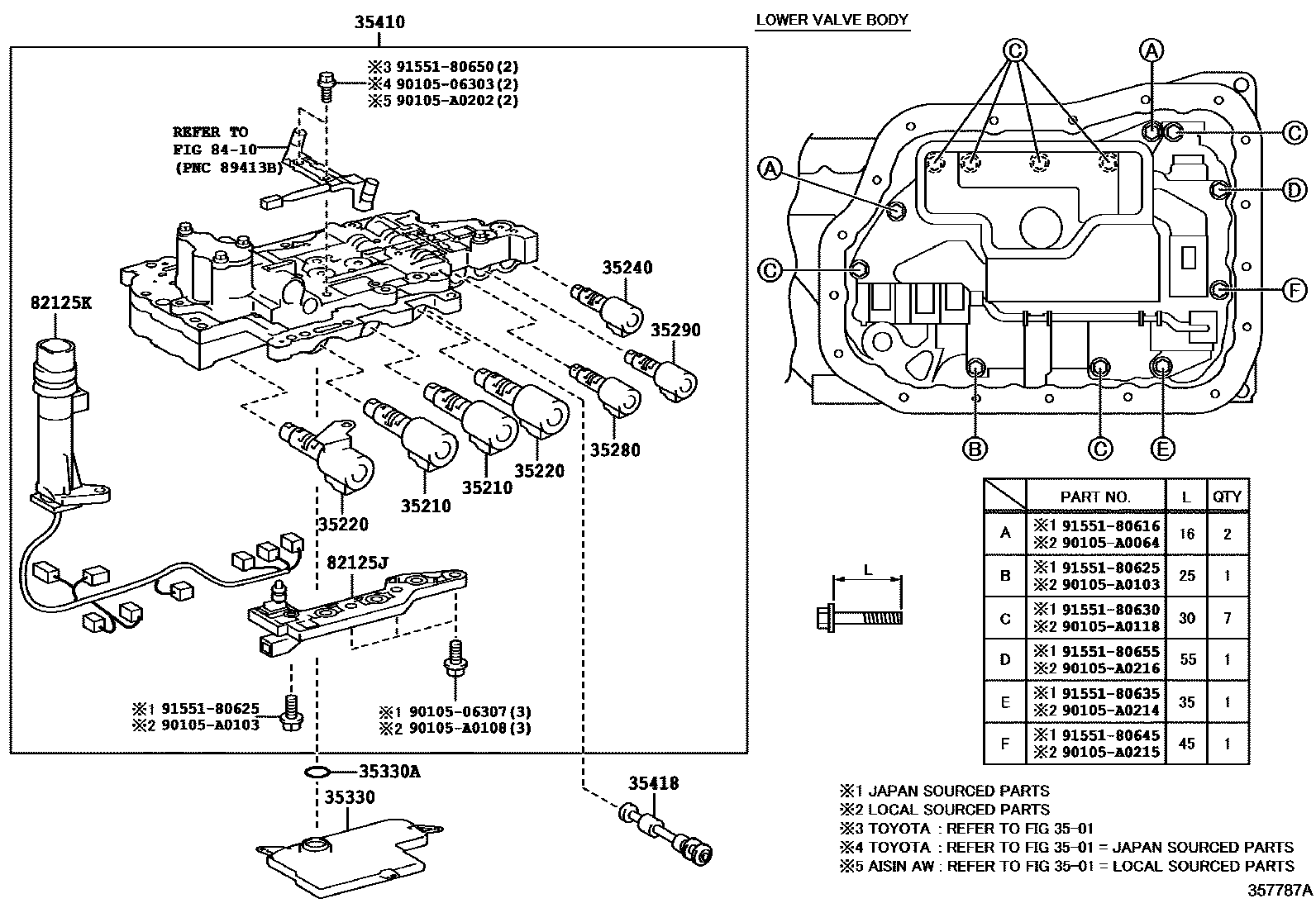

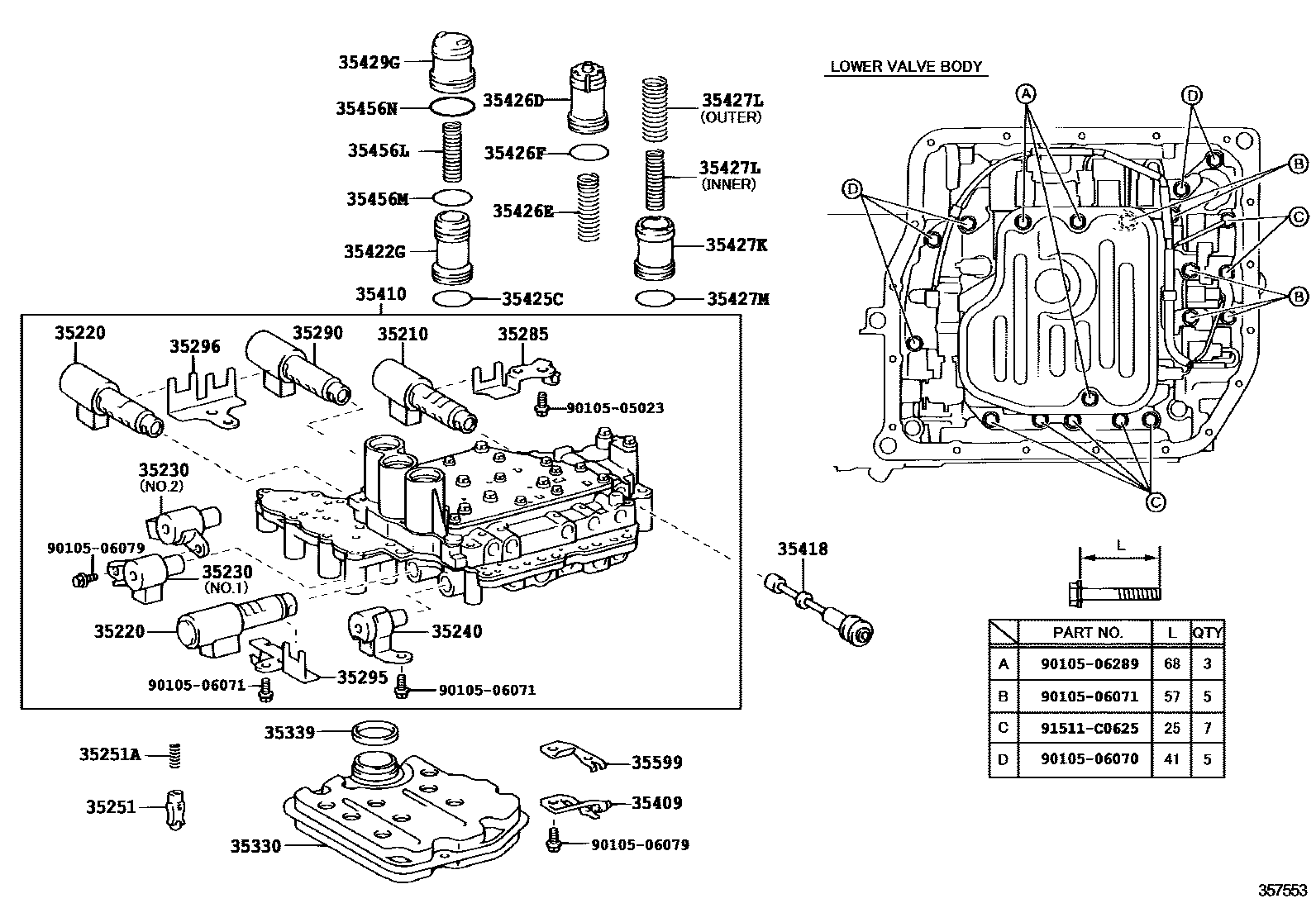

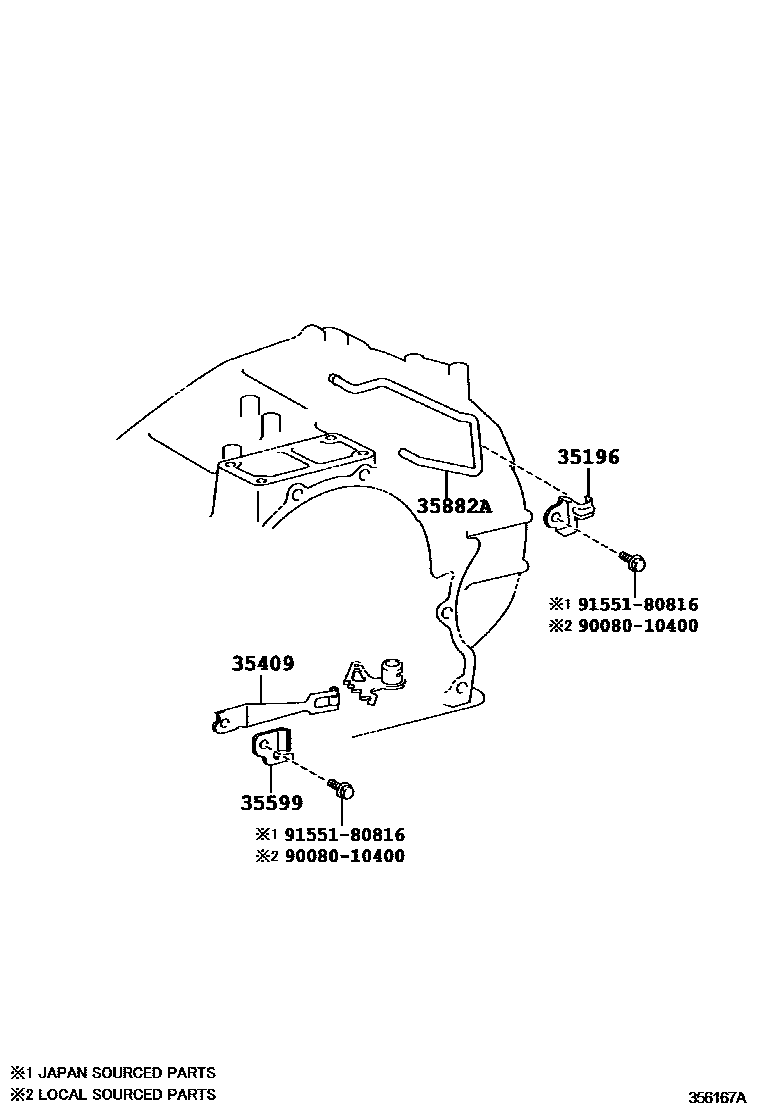

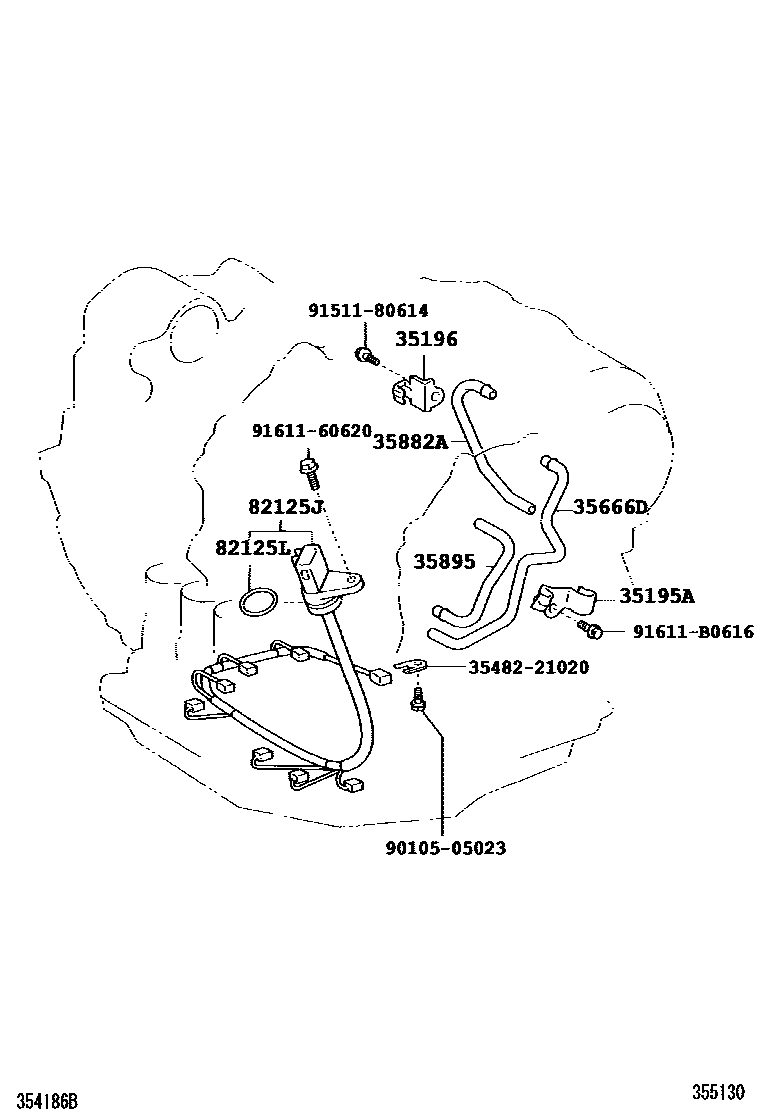

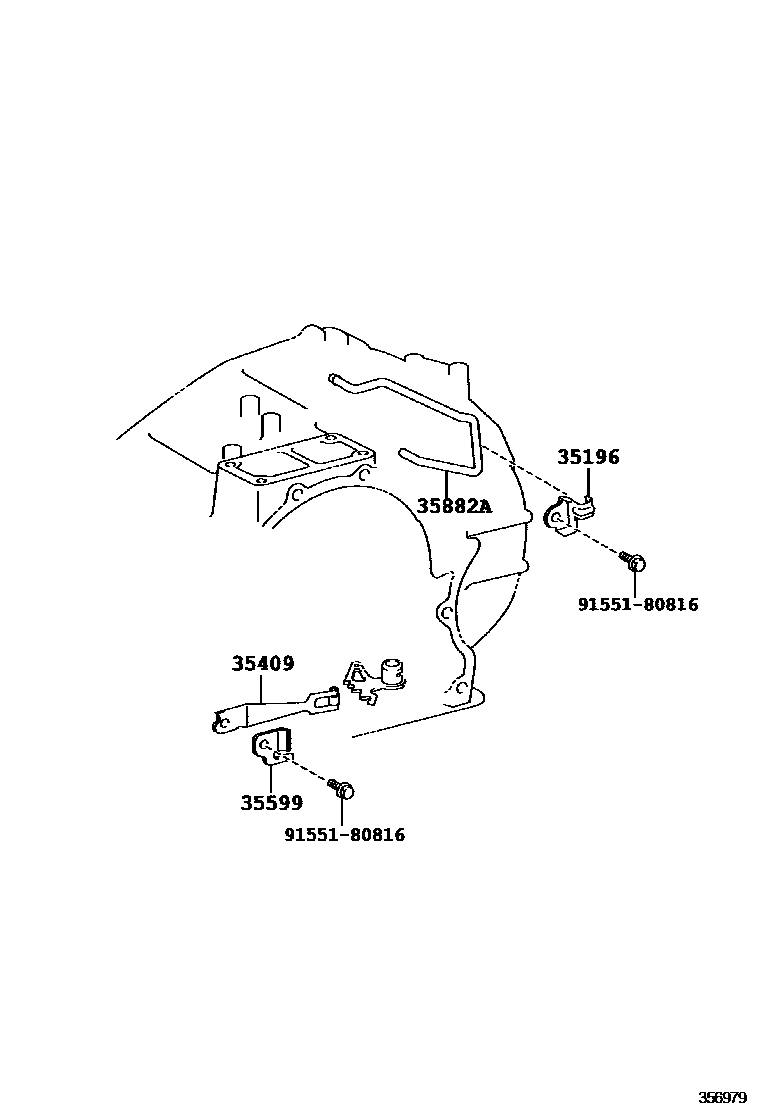

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-21010 |
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-21010 · 35196-33010 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-33020 · 35210-33030 · 35210-45010 · 35210-73010 |
| 35220 | No. 2 clutch control solenoid valve assembly | 35220-33020 · 35220-33040 · 35220-45010 · 35220-73010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-33010 · 35230-33020 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-33030 · 35240-33040 · 35240-73010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35280 | Lock control solenoid valve assembly | 35280-33020 · 35280-52040 |
| 35285 | Solenoid valve lock plate | 35285-33030 · 35285-33070 · 35285-45010 · 35285-73010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-33020 · 35290-33030 · 35290-33040 · 35290-45010 |
| 35295 | No. 2 solenoid valve locking plate | 35295-33010 · 35295-33050 · 35295-45010 · 35295-73010 |
| 35296 | No. 3 solenoid valve locking plate | 35296-33010 · 35296-33050 · 35296-45010 · 35296-73010 |
| 35297 | No. 4 solenoid valve locking plate | 35297-33020 · 35297-73010 |
| 35330 | Valve body oil filter assembly | 35330-08010 · 35330-33050 · 35330-73010 |
| 35330A | O-ring (for oil filter) | 90301-27010 · 90301-A0026 |
| 35339 | Oil filter gasket | 90301-32010 · 90301-32012 |
| 35409 | Manual lock spring sub-assembly | 35409-21010 · 35409-33010 |
| 35410 | Transmission valve body assembly | 35410-07010 · 35410-08020 · 35410-33131 · 35410-33150 · 35410-33151 · 35410-33170 · 35410-33171 · 35410-33210 · 35410-33250 · 35410-33260 · 35410-73010 |
| 35418 | Manual valve | 35418-33010 · 35418-33020 · 35418-73010 |
| 35422G | Reverse clutch accumulator piston | 35422-33040 · 35422-33050 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-30007 |
| 35426D | C-3 Accumulator Piston | 35406-21010 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-22056 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-30007 |
| 35427K | B-3 Accumulator Piston | 35427-21010 · 35427-28010 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-19037 · 90501-26096 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-28008 |
| 35429G | Reverse clutch accumulator sleeve | 35429-33020 |
| 35456L | Compression spring (for C-2 control valve) | 90501-19038 |
| 35456M | O-ring (for C-2 control valve) | 90301-19016 |
| 35456N | O-ring (for C-2 control valve) | 90301-28011 |
| 35482B | temperature sensor clip | 35482-73010 |
| 35599 | Manual locking spring cover | 35599-21010 · 35599-33010 |
| 35666D | Brake oil supply pipe | 35666-33020 · 35666-33030 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-07010 · 35882-28020 · 35882-32020 · 35882-33040 · 35882-73010 |
| 35895 | Front clutch oil supply pipe | 35895-21010 · 35895-28010 |
| 82125J | Transmission wiring harness | 82125-33060 · 82125-33090 · 82125-48010 · 82125-73010 |
| 82125K | Transmission wiring harness | 82125-33100 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
