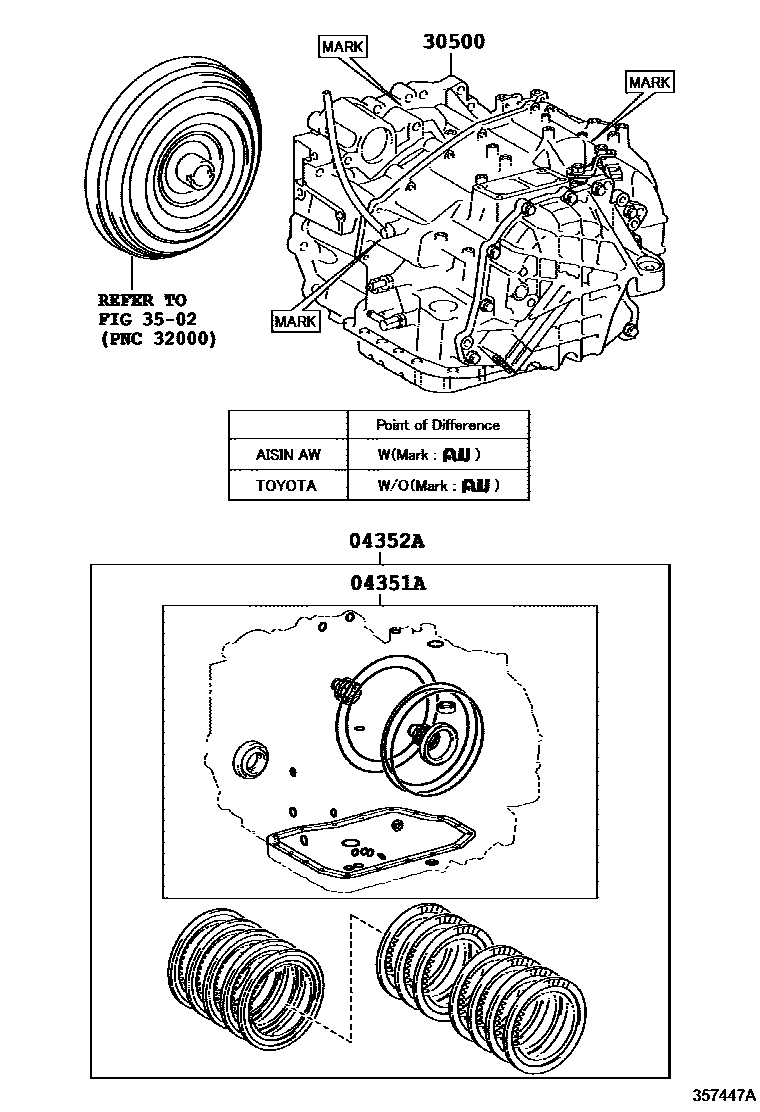

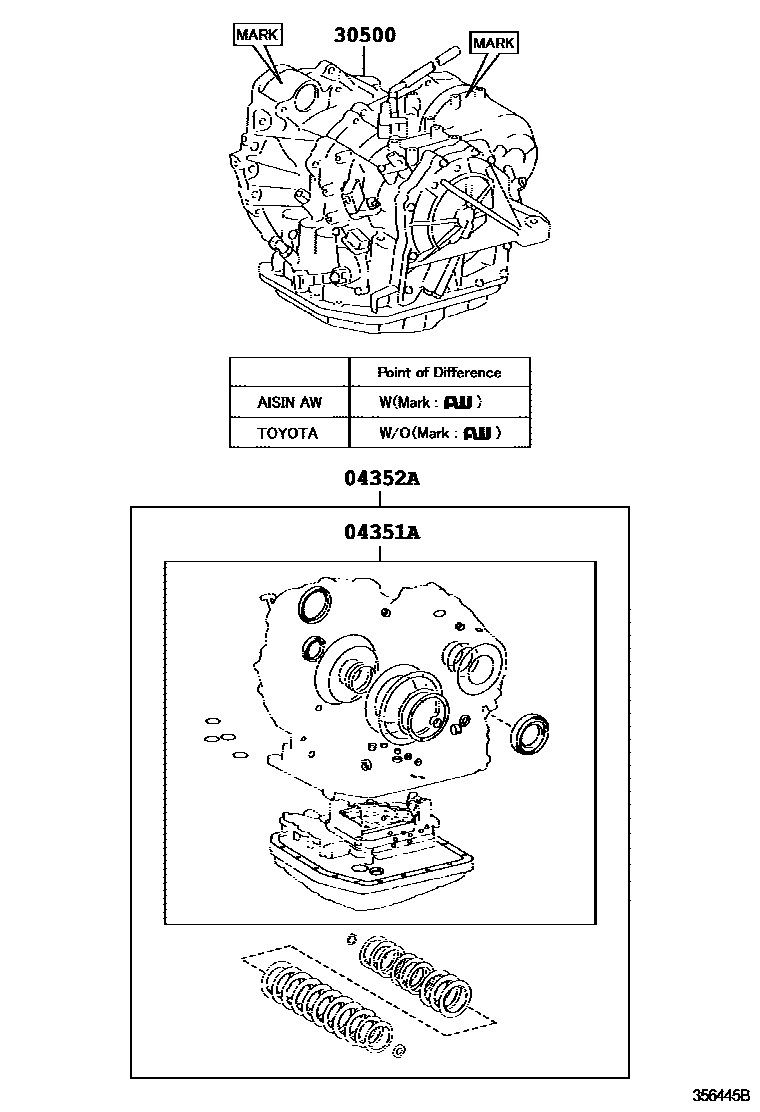

Toyota CAMRY 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota CAMRY EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-33400 · 04351-33401 · 04351-33450 · 04351-33490 · 04351-33530 · 04351-33531 · 04351-48180 · 04351-48182 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-33390 · 04352-33391 · 04352-33450 · 04352-33500 · 04352-33540 · 04352-33560 · 04352-33561 · 04352-48250 · 04352-48252 |
| 30500 | Automatic transmission axle assembly | 30500-07020 · 30500-33460 · 30500-33470 · 30500-33510 · 30500-33520 · 30500-33621 · 30500-33631 |
