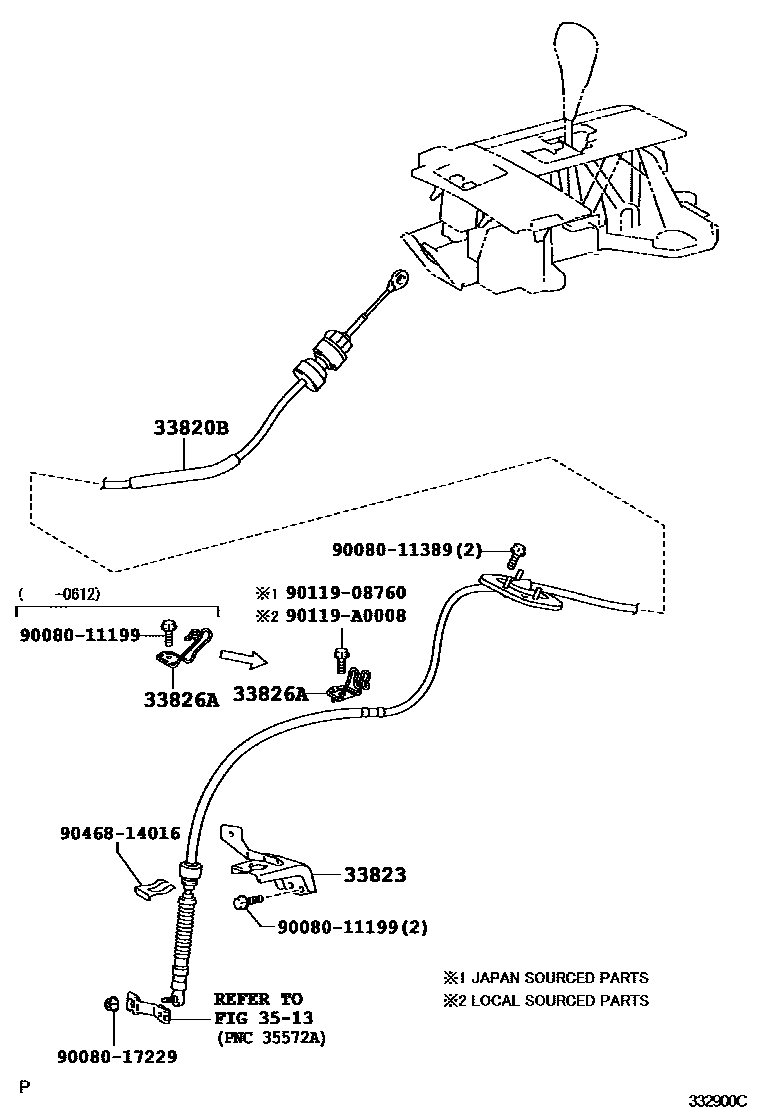

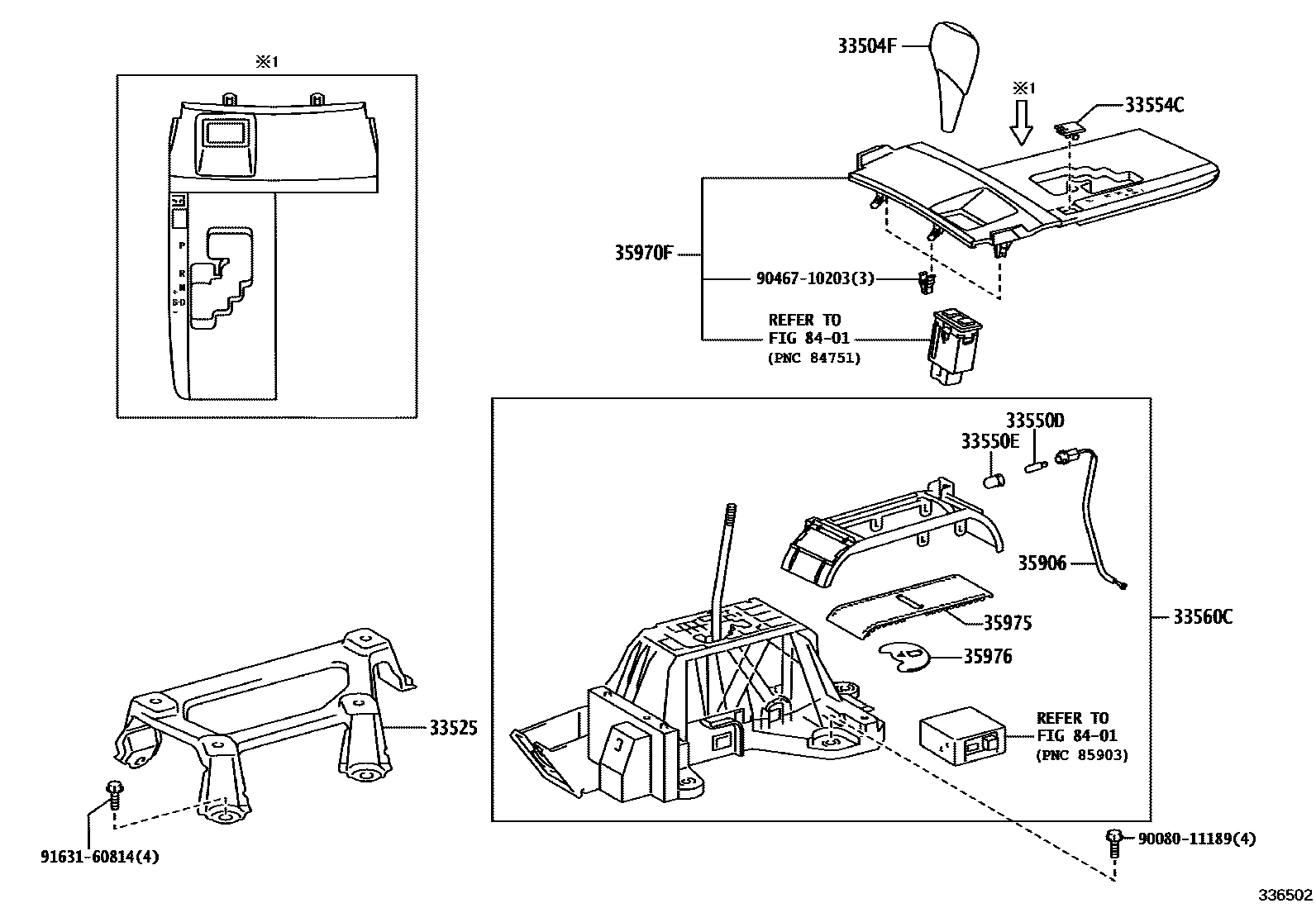

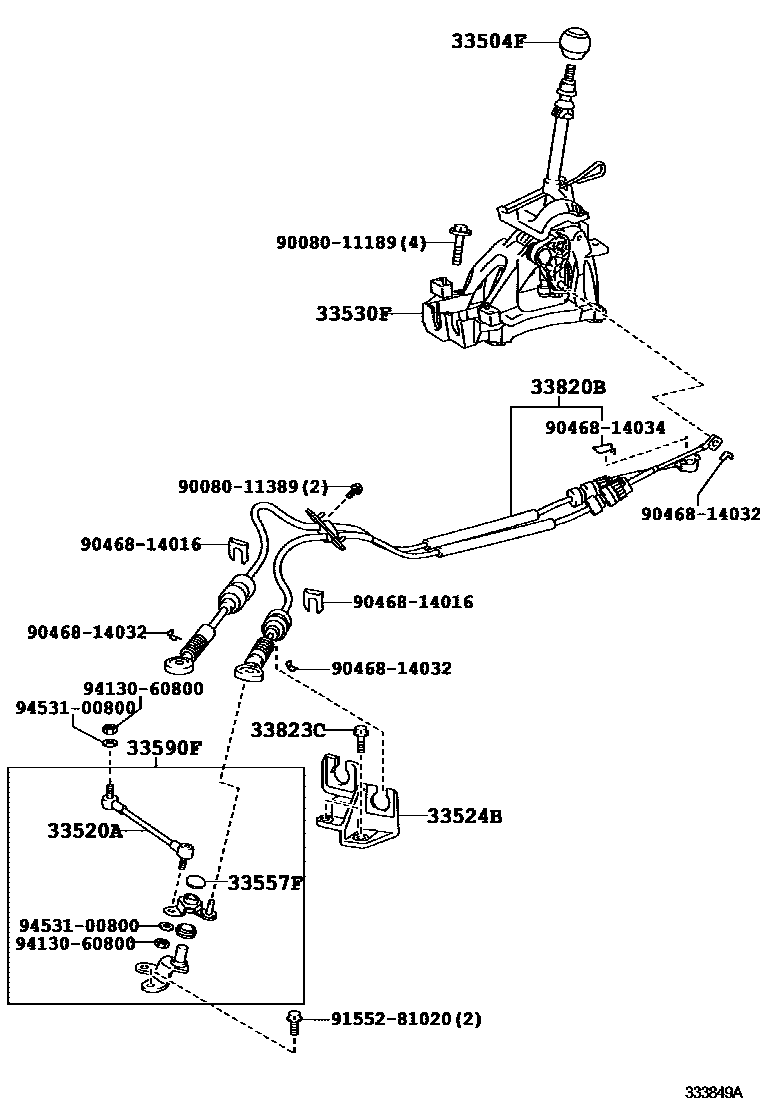

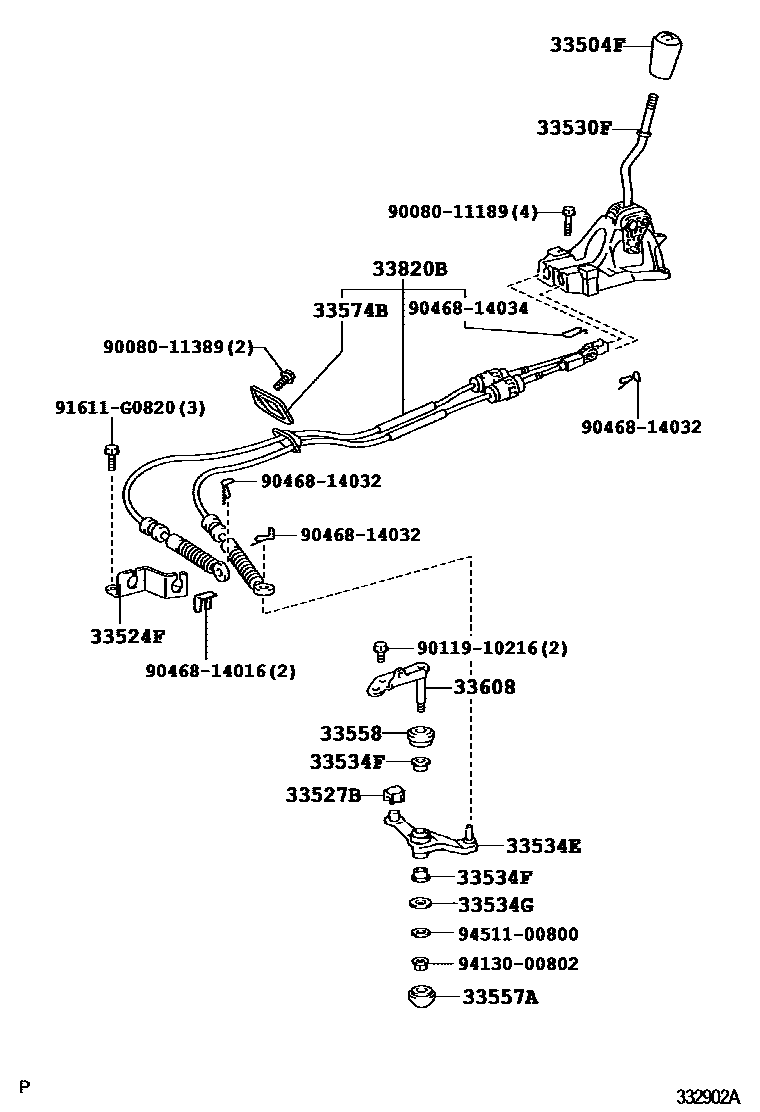

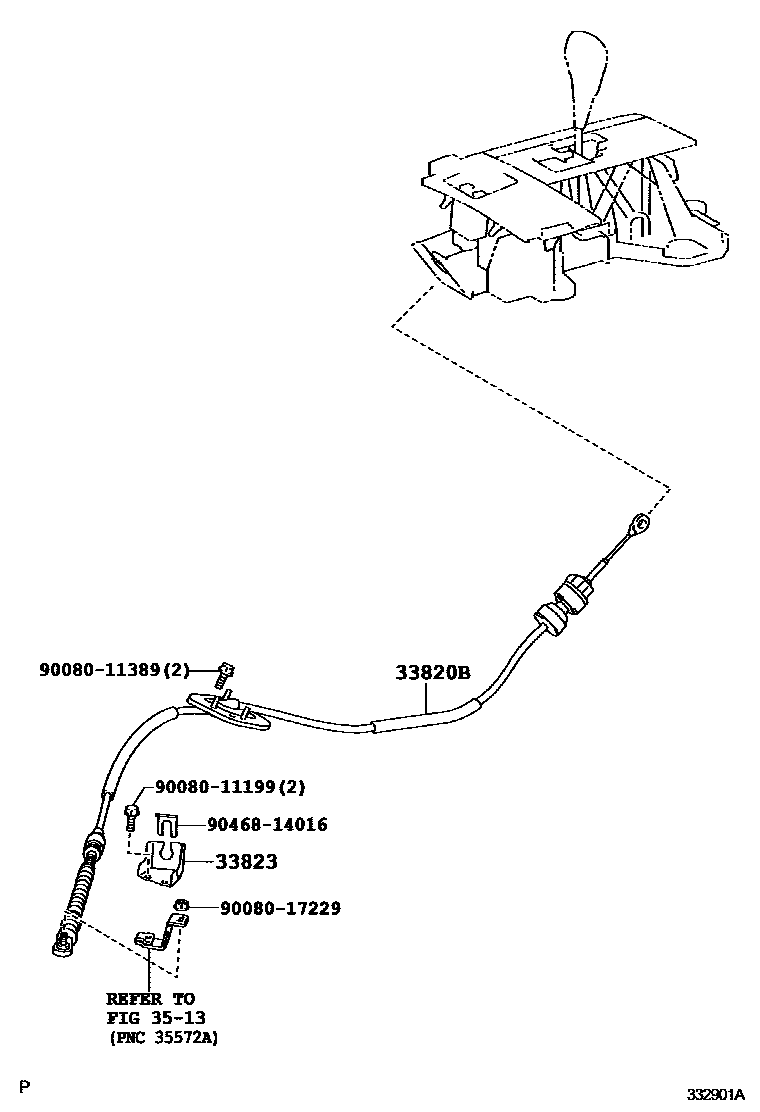

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 5 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33520A | Floor type shift control shaft assembly | 33520-33010 |
| 33524B | Control cable bracket | 33524-33030 · 33524-33031 |
| 33524F | Lever housing bracket (for floor shift) | 33524-28020 |
| 33525 | shift lever bracket | 58123-06010 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-33130 · 33530-33131 · 33530-33141 |
| 33534E | No. 2 gear selection right-angle lever | 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11040 |
| 33550E | position indicator cover | 90339-04077 |
| 33554C | Shift lock release button cover | 33554-06050 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560C | Lower shift lever assembly | 33560-06050 · 33560-06060 · 33560-06070 |
| 33574B | No. 2 shift cable seal | 33574-33060 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-33020 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 |
| 33820B | Transmission control cable assembly | 33820-06260 · 33820-06270 · 33820-06280 · 33820-06381 · 33820-06382 · 33820-06390 |
| 33823 | No. 1 transmission control cable bracket | 33823-06010 · 33823-06060 |
| 33823C | Bolt (for transmission control cable bracket) | 91551-80820 |
| 33826A | No. 2 transmission control cable bracket | 33826-33040 · 33826-33041 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06140 |
| 35975 | Slide cover (for position indicator light) | 35975-06090 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-06100 |
