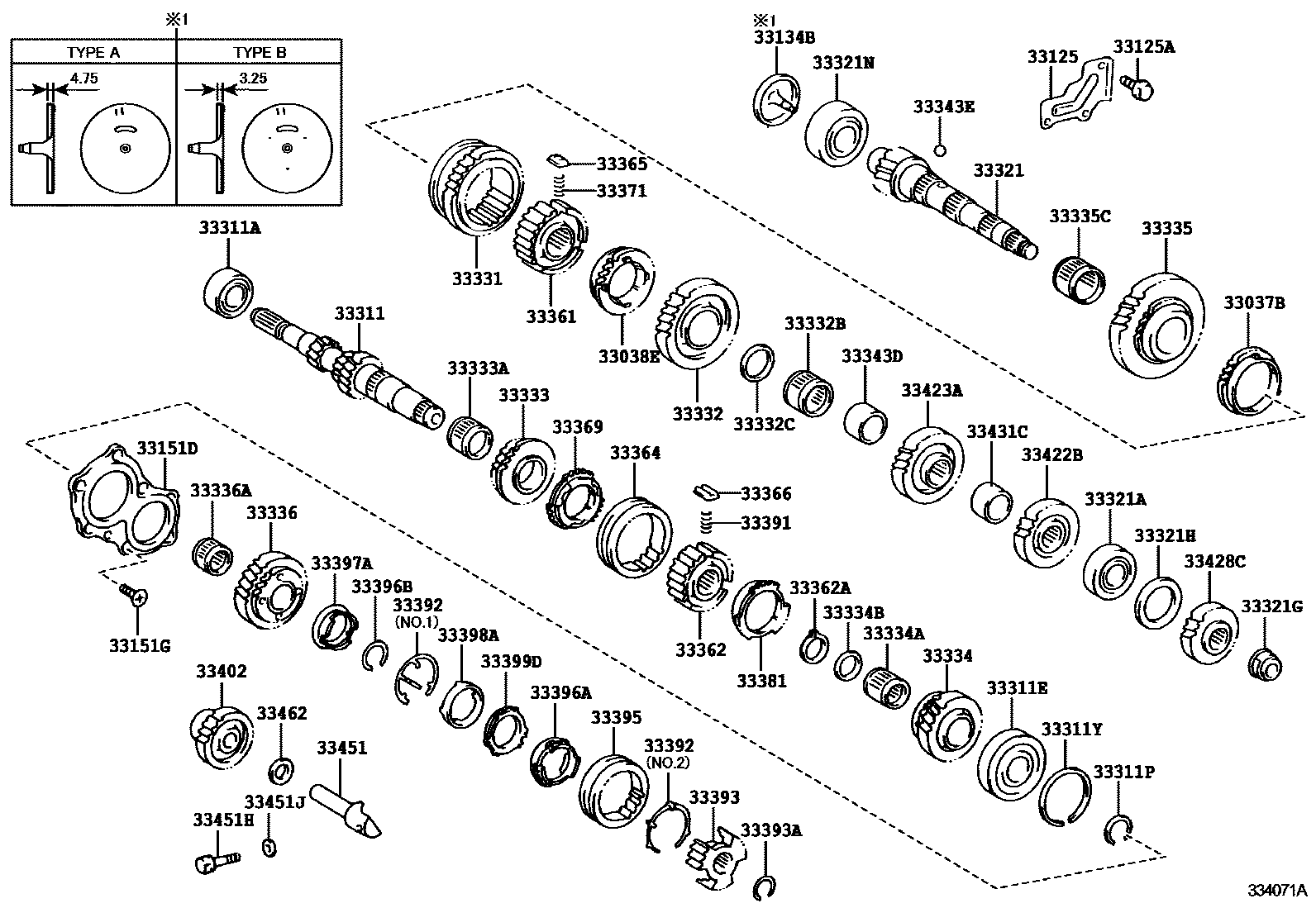

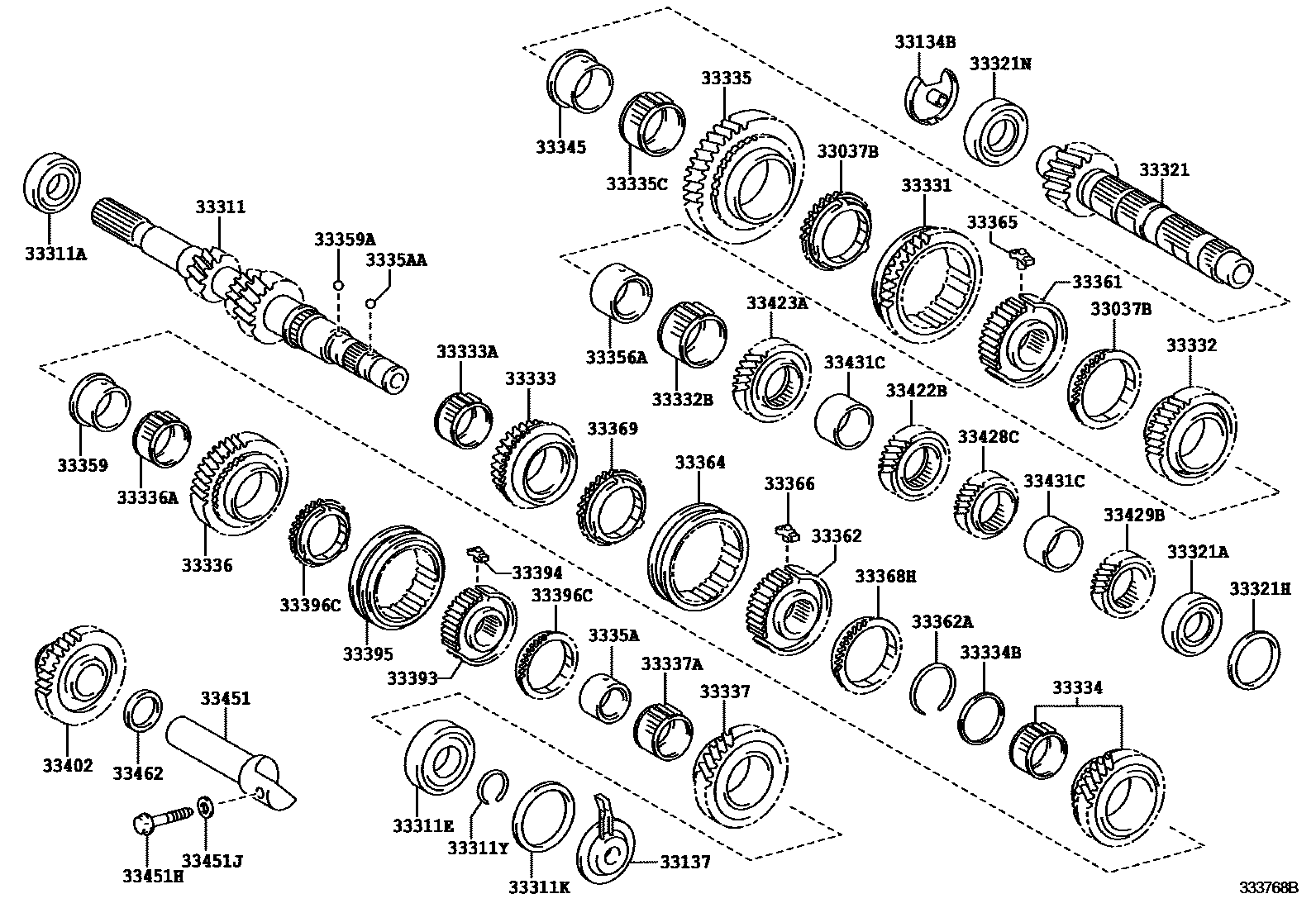

Toyota CAMRY 变速器齿轮(MTM) — Figure 3305
Toyota CAMRY EPC diagram 3305, 变速器齿轮(MTM), with 2 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-20110 · 33037-28010 |
| 33038E | No. 2 synchronizer lock ring assembly | 33038-28010 |
| 33125 | Manual transmission axle housing oil collection tank | 33125-20010 |
| 33125A | Bolt (for transaxle housing oil sump) | 91611-B0616 |
| 33134B | Output shaft cover (MTM) | 33134-20010 · 33134-20011 · 33134-20030 |
| 33137 | Input shaft cover (MTM) | 33137-20010 |
| 33151D | Rear bearing retainer (MTM) | 33151-28020 |
| 33151G | Screw (for rear bearing retainer) | 90149-80029 |
| 33311 | input shaft | 33311-20221 · 33311-20270 · 33311-33070 |
| 33311A | Bearing (for front input shaft) | 90363-27002 · 90365-30023 |
| 33311E | Radial ball bearing (for rear input shaft) | 90363-33007 · 90363-35068 |
| 33311K | Spacer (for input shaft rear bearing) | 90564-61063 · 90564-61064 · 90564-61065 · 90564-61066 · 90564-61067 · 90564-61068 · 90564-61069 · 90564-61070 · 90564-61071 · 90564-61072 · 90564-61073 · 90564-61074 · 90564-61075 · 90564-61076 · 90564-61113 · 90564-61114 · 90564-61115 · 90564-61116 · 90564-61117 · 90564-61118 · 90564-61119 · 90564-61120 · 90564-61121 · 90564-61122 · 90564-61123 · 90564-61124 · 90564-61125 · 90564-61126 |
| 33311P | Shaft snap ring (for input shaft rear bearing) | 90520-30008 · 90520-30009 · 90520-30010 · 90520-30011 · 90520-30012 · 90520-30013 · 90520-30021 · 90520-30022 |
| 33311Y | Shaft snap ring (for input shaft rear bearing) | 90520-33037 · 90520-33038 · 90520-33039 · 90520-33040 · 90520-33041 · 90520-33042 · 90520-33043 · 90520-33044 · 90520-33045 · 90520-33046 · 90520-33047 · 90520-76003 |
| 33321 | output shaft | 33302-20030 · 33302-20031 · 33321-20290 |
| 33321A | Bearings (for rear output shaft) | 90366-28002 · 90366-28013 |
| 33321G | Nut (used to secure the manual transmission rear output shaft) | 90179-20012 |
| 33321H | Spacer (for output shaft rear bearing) | 90564-52041 · 90564-52042 · 90564-52043 · 90564-52044 · 90564-52045 · 90564-52046 · 90564-52047 · 90564-52048 · 90564-52049 · 90564-52050 · 90564-52051 · 90564-52052 · 90564-52053 · 90564-52054 · 90564-52055 · 90564-52056 · 90564-52057 · 90564-52058 · 90564-52059 · 90564-52060 · 90564-52061 · 90564-52062 · 90564-52063 · 90564-52064 · 90564-52065 · 90564-52066 · 90564-52067 · 90564-52068 · 90564-52069 · 90564-52070 · 90564-52071 · 90564-52072 · 90564-52073 · 90564-52074 · 90564-52075 · 90564-52076 · 90564-52077 · 90564-52078 · 90564-52079 · 90564-52080 · 90564-52081 · 90564-52082 · 90564-52083 · 90564-52084 · 90564-52085 · 90564-52086 · 90564-52087 · 90564-52088 · 90564-52089 · 90564-52090 · 90564-59001 · 90564-59002 · 90564-59003 · 90564-59004 · 90564-59005 · 90564-59006 · 90564-59007 · 90564-59008 · 90564-59009 · 90564-59010 · 90564-59011 · 90564-59012 · 90564-59013 · 90564-59014 · 90564-59015 · 90564-59016 · 90564-59017 · 90564-59018 · 90564-59019 · 90564-59020 · 90564-59021 · 90564-59022 · 90564-59023 · 90564-59024 · 90564-59025 |
| 33321N | Bearing (for front output shaft) | 90366-32025 · 90366-36013 |
| 33331 | reverse gear | 33331-20100 · 33331-21010 · 33331-28021 |
| 33332 | Second gear | 33332-20180 · 33332-33060 · 33332-42020 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-44001 · 90364-51002 |
| 33332C | Spacer (for second gear bearing) | 90560-44001 |
| 33333 | Third gear | 33034-20140 · 33034-33030 · 33034-42020 |
| 33333A | Needle roller bearing (for third gear) | 90364-36011 · 90364-41004 |
| 33334 | fourth gear | 33025-33010 · 33035-42020 |
| 33334A | Needle roller bearing (for fourth gear) | 90364-36014 |
| 33334B | Spacer (for fourth gear bearing) | 90560-36002 · 90560-41005 |
| 33335 | first gear | 33335-20130 · 33335-20180 |
| 33335C | Needle roller bearing (for first gear) | 90364-45007 · 90364-51003 |
| 33336 | fifth gear | 33336-33040 · 33336-42020 |
| 33336A | Needle roller bearings (for fifth gear) | 90364-28023 · 90364-45016 |
| 33337 | Sixth speed gear sub-assembly | 33337-33010 |
| 33337A | Needle roller bearing (for sixth gear) | 90364-42006 |
| 33343D | Second gear bushing | 33343-12020 |
| 33343E | Steel ball (for second gear bushing) | 90360-05012 |
| 33345 | First gear bushing | 33345-20040 |
| 33356A | Second gear gear bearing inner race | 33356-20060 |
| 33359 | Fifth gear gear bearing inner race | 33359-20020 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 3335A | Sixth gear bearing inner race (MTM) | 3335A-20020 |
| 3335AA | Six-speed gear bearing inner race locking steel ball (MTM) | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-20080 · 33361-42010 |
| 33362 | No. 2 transmission clutch hub | 33362-20050 · 33362-42012 |
| 33362A | Shaft snap ring (used to secure No. 2 clutch hub) | 90520-34003 · 90520-34004 · 90520-34005 · 90520-34006 · 90520-34007 · 90520-34008 · 90520-34009 · 90520-39055 · 90520-39056 · 90520-39057 · 90520-39058 · 90520-39059 · 90520-39060 |
| 33364 | No. 2 transmission hub sleeve | 33364-20080 · 33364-42010 |
| 33365 | No. 1 synchromesh shift key | 33365-12040 · 33365-20070 |
| 33366 | No. 2 synchromesh shift key | 33365-20080 · 33366-42010 |
| 33368H | Synchronizer ring (for fourth gear) | 33381-20030 |
| 33369 | No. 3 synchronizer lock ring | 33369-20060 · 33369-28011 |
| 33371 | No. 1 synchromesh shift key spring | 90501-08112 |
| 33381 | Second gear synchronizer outer locking ring | 33381-28010 · 33381-28011 |
| 33391 | No. 2 synchromesh shift key spring | 90501-08218 |
| 33392 | No. 3 synchromesh shift key spring | 33392-12010 · 33392-12020 |
| 33393 | No. 3 transmission clutch hub | 33393-20050 · 33393-42010 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-27061 · 90520-27062 · 90520-27063 · 90520-27064 · 90520-27065 · 90520-27066 · 90520-27067 · 90520-27068 · 90520-27069 |
| 33394 | No. 3 synchromesh shift key | 33365-20080 |
| 33395 | No. 3 transmission hub sleeve | 33395-20070 · 33395-42011 · 33395-42012 |
| 33396A | synchronizer extension ring | 33396-28010 |
| 33396B | Snap ring (for synchronizer extension ring) | 90520-46035 |
| 33396C | No. 5 synchronizer locking ring (MTM) | 33396-20020 |
| 33397A | No. 5 synchronizer inner locking ring | 33397-28010 |
| 33398A | No. 5 synchronizer intermediate locking ring | 33398-12010 |
| 33399D | No. 5 synchronizer outer locking ring | 33399-12011 |
| 33402 | Reverse idler gear sub-assembly | 33402-20090 · 33402-28020 |
| 33422B | Fourth gear driven gear | 33422-33010 · 33422-42020 |
| 33423A | Third gear driven gear | 33423-20100 · 33423-33020 · 33423-42020 |
| 33428C | fifth speed driven gear | 33428-33010 · 33428-42020 |
| 33429B | Sixth speed driven gear | 33429-33010 |
| 33431C | Output gear spacer | 33431-20080 · 33431-20100 |
| 33451 | Reverse gear idler shaft | 33451-12032 · 33451-20070 |
| 33451H | Bolt (for reverse idler shaft) | 90105-08150 |
| 33451J | Gasket (for reverse idler shaft) | 90430-08010 |
| 33462 | Reverse idler thrust washer | 33462-20050 · 33462-20080 |
