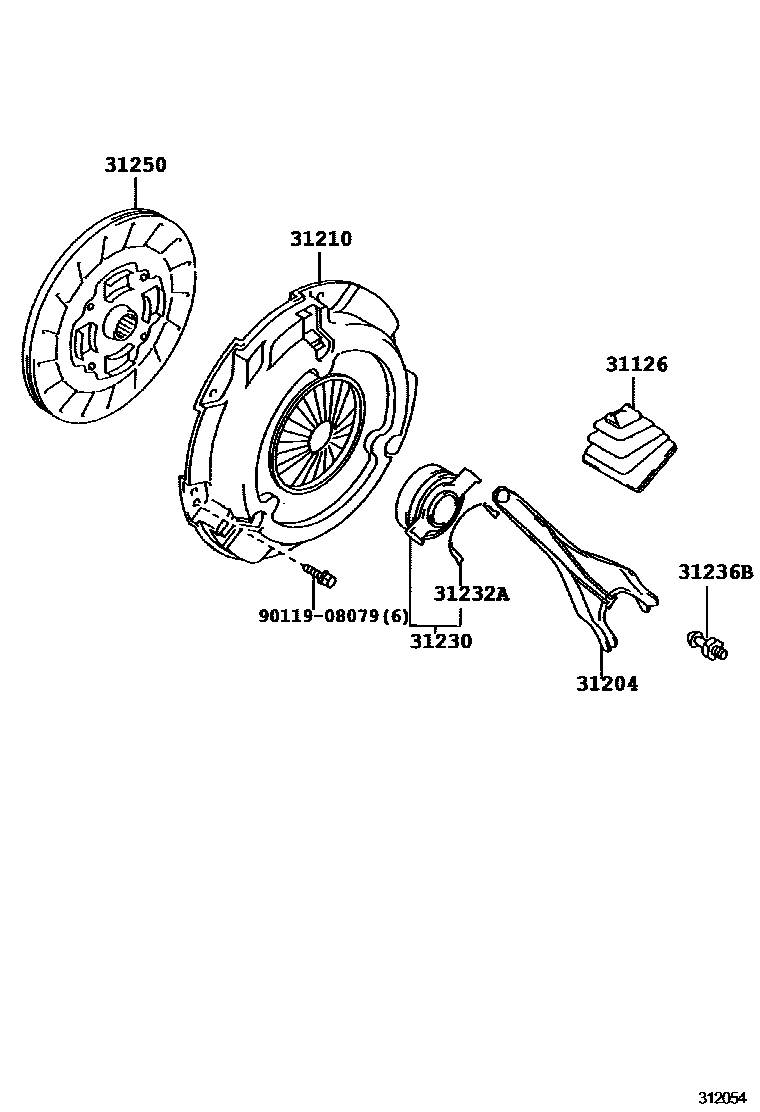

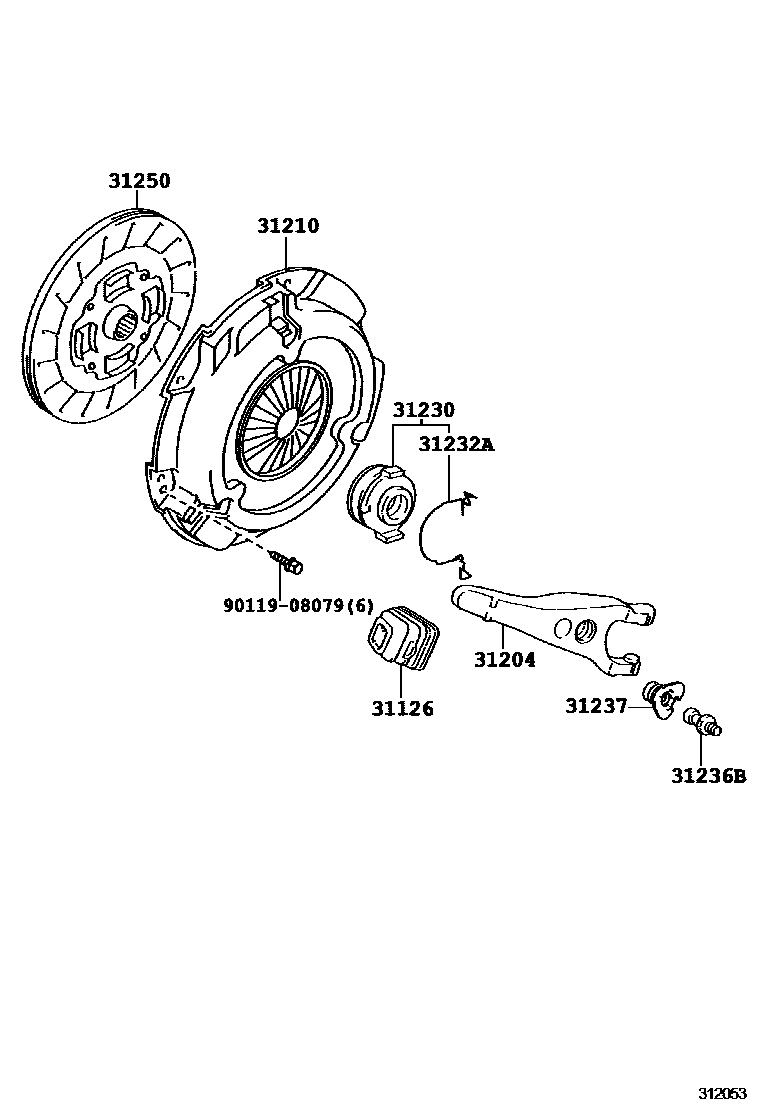

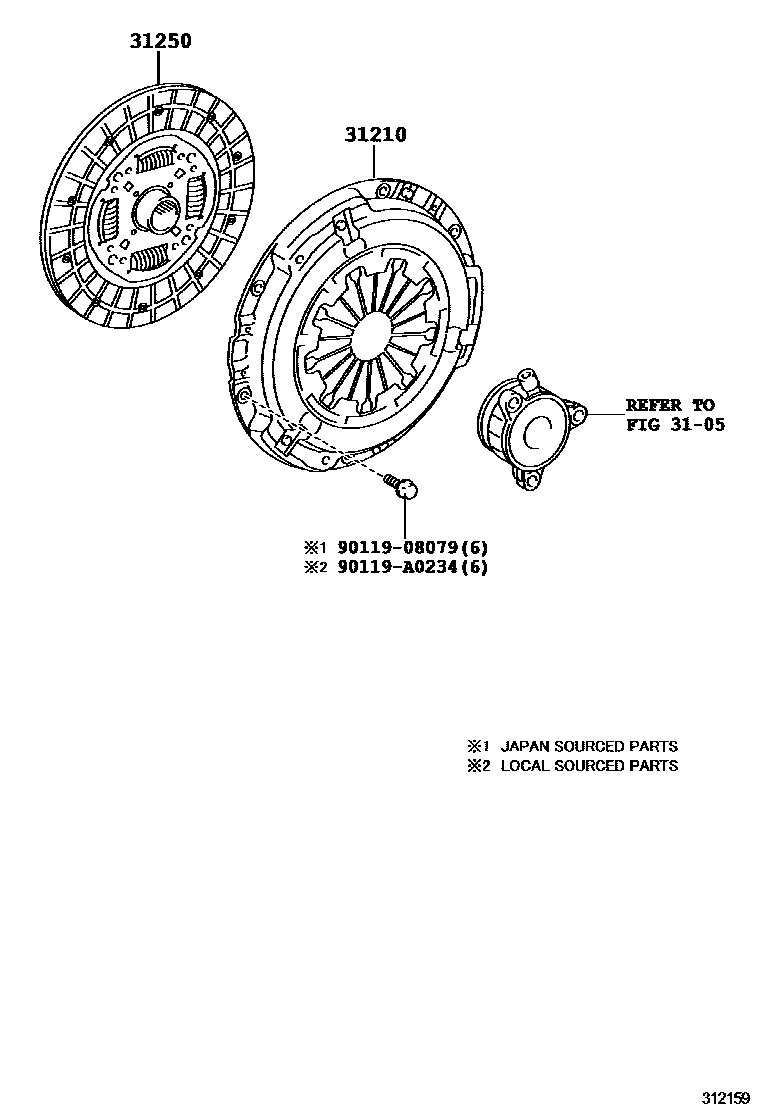

Toyota CAMRY 离合器和分离叉 — Figure 3101
Toyota CAMRY EPC diagram 3101, 离合器和分离叉, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20080 · 31126-32010 |
| 31204 | Clutch release fork assembly | 31204-20100 · 31204-20131 |
| 31210 | Clutch cover assembly | 31210-33040 · 31210-33041 · 31210-33042 · 31210-33050 |
| 31230 | Clutch release bearing assembly | 31230-20170 · 31230-20191 · 31230-33020 |
| 31232A | Release bearing hub clip | 31232-20020 · 31232-20031 |
| 31236B | Split fork bracket | 31236-20060 · 31236-20080 |
| 31237 | Clutch release fork bracket dust cover | 31237-20010 |
| 31250 | Clutch disc assembly | 31250-33040 · 31250-33050 · 31250-33051 |
