Toyota CAMRY Alternator — Figure 1903

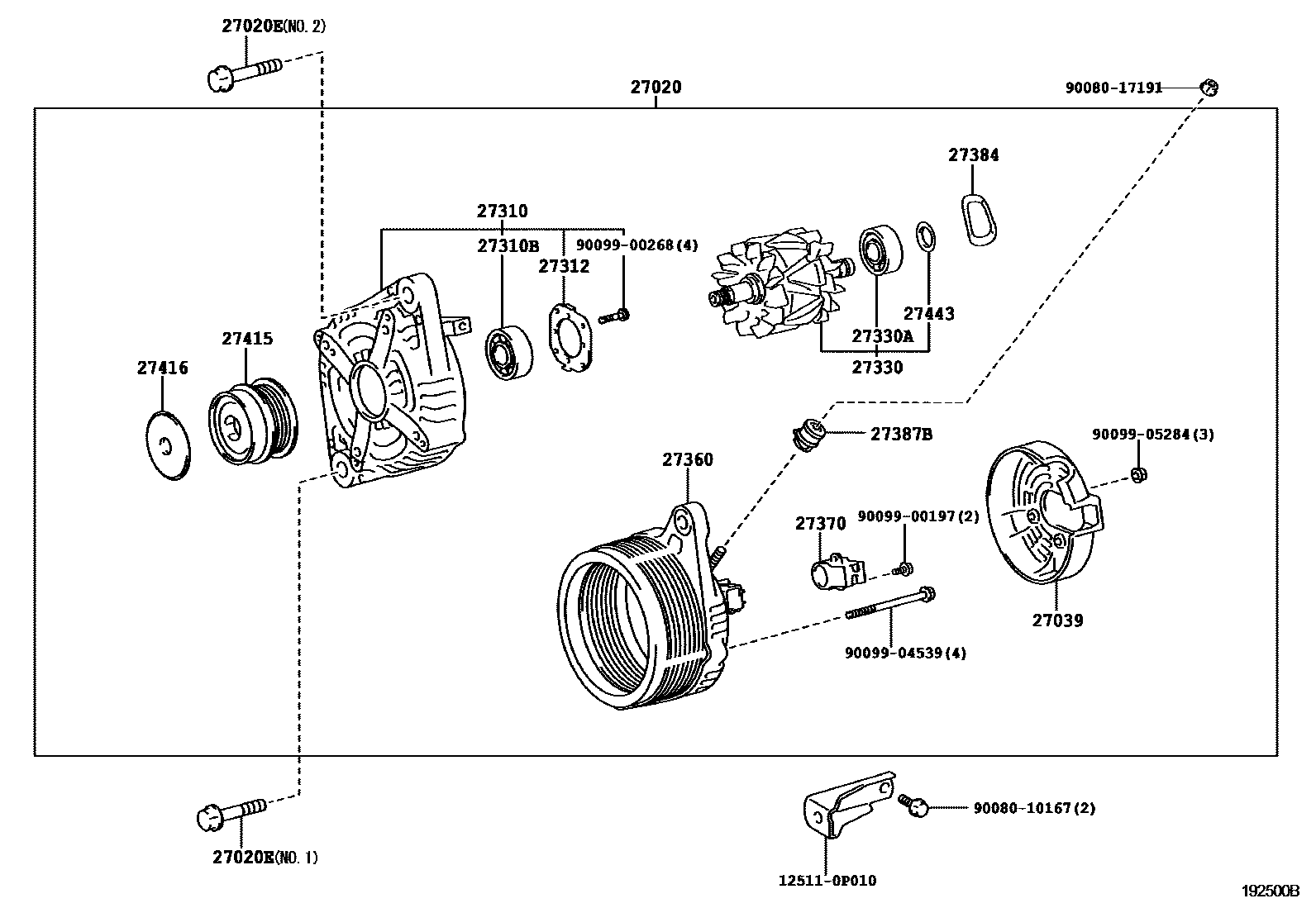

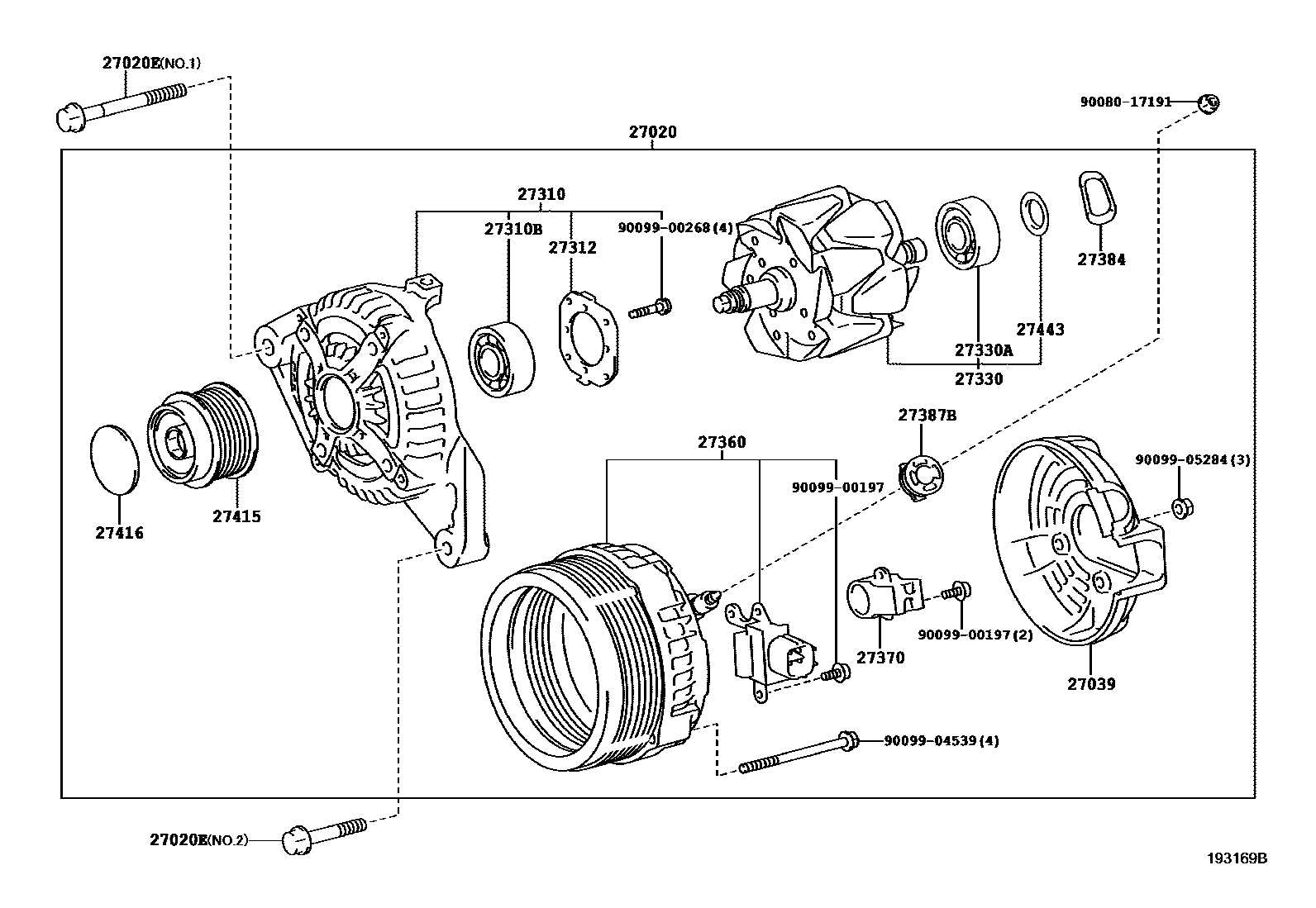

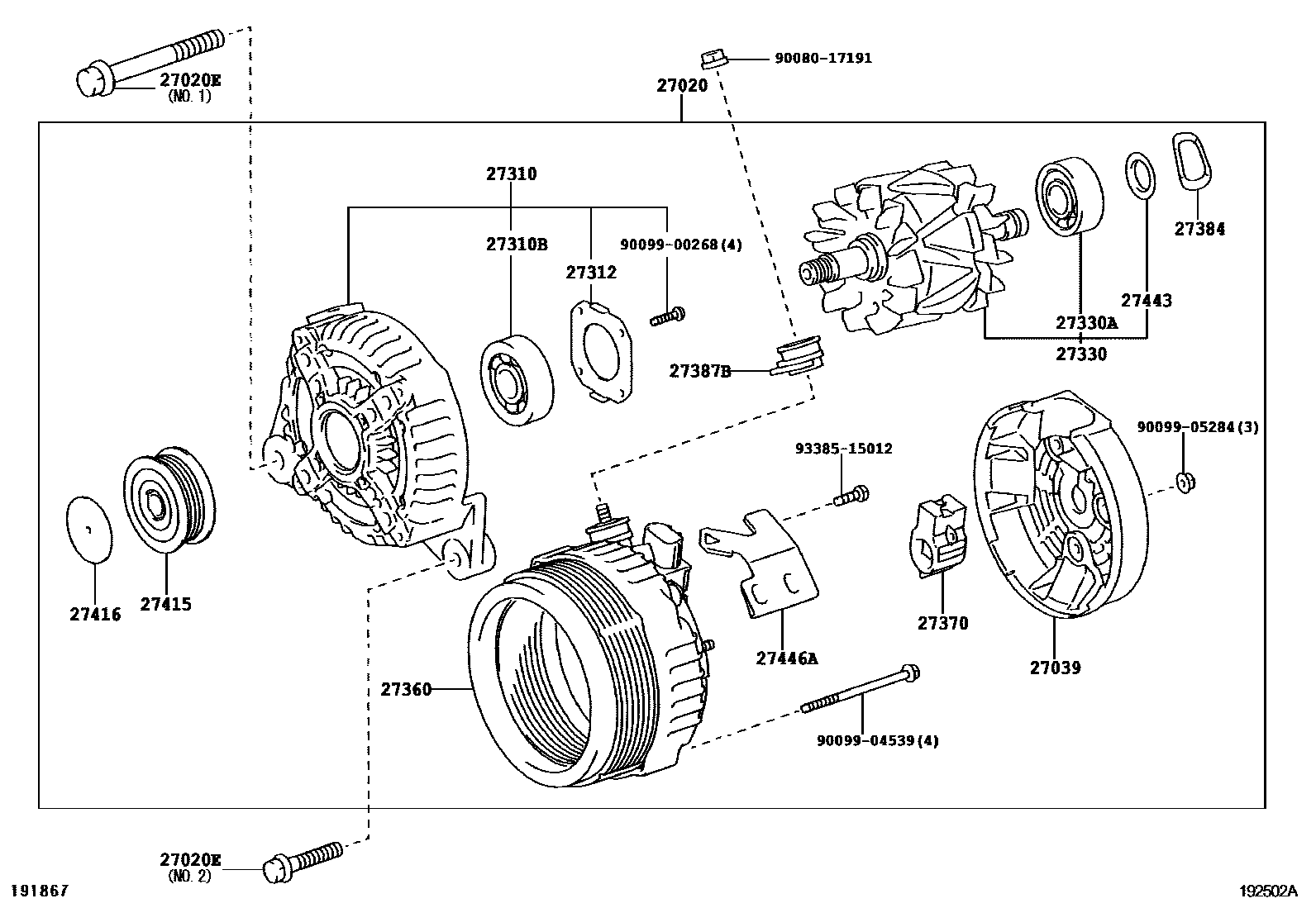

Toyota CAMRY EPC diagram 1903, Alternator, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0H110 · 27060-0H111 · 27060-0P140 · 27060-0P141 · 27060-0V060 |
| 27020E | Bolts (for generator) | 90080-10111 · 90105-A0107 · 90105-A0129 · 90105-A0145 · 90105-A0166 · 90105-A0230 · 91512-81085 · 91551-80840 |
| 27039 | Alternator Rear End Cover | 27039-0A110 · 27039-0T040 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0H060 · 27310-0P140 · 27310-0V010 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90068-10142 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0F060 |
| 27330A | Bearings (for generator rotor) | 90068-10001 |
| 27360 | Alternator Stator Coil Assembly | 27360-0H070 · 27360-0P140 · 27360-0V010 |
| 27370 | Alternator Brush Holder Assembly | 27370-0F060 · 27370-0P020 |
| 27384 | Washer | 27384-0A020 |
| 27387B | Generator terminal insulation pad | 27387-0F060 · 27387-0V060 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0W010 · 27415-0W040 · 27415-0W041 · 27415-0W120 · 27415-0W130 |
| 27416 | Generator pulley cover | 27416-0W010 · 27416-0W020 · 27416-0W050 |
| 27443 | Generator bearing cap | 27443-0A020 |
| 27446A | card holder | 27446-28120 |
