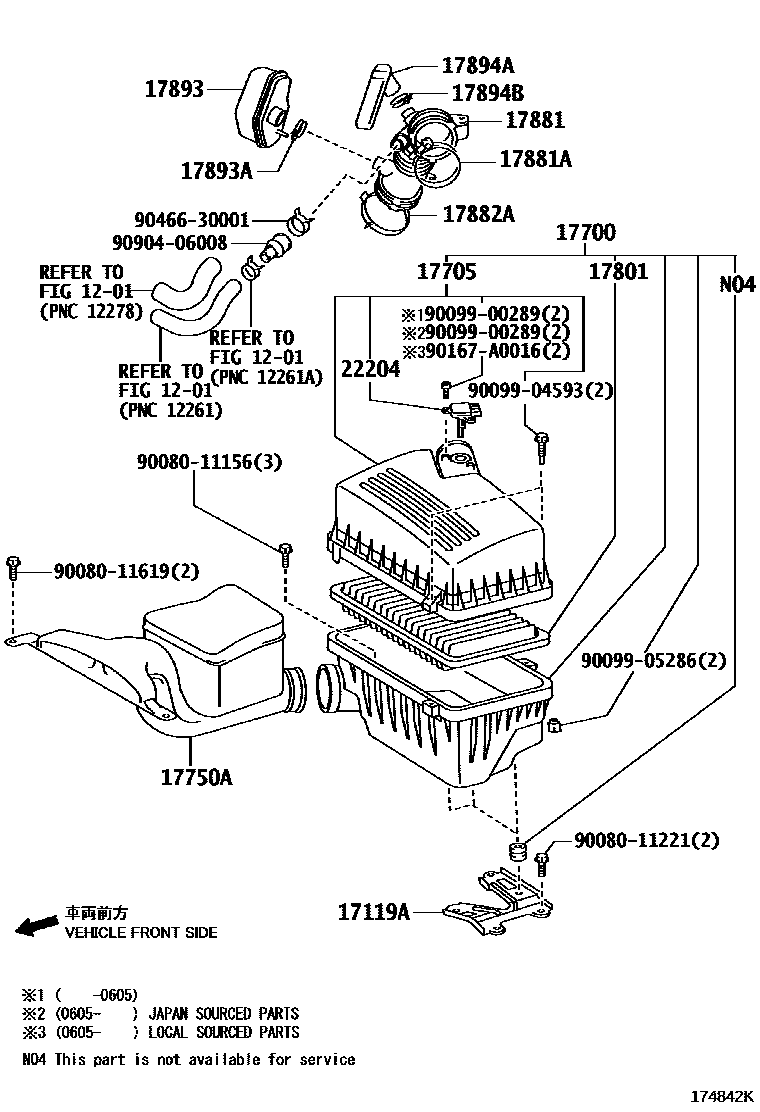

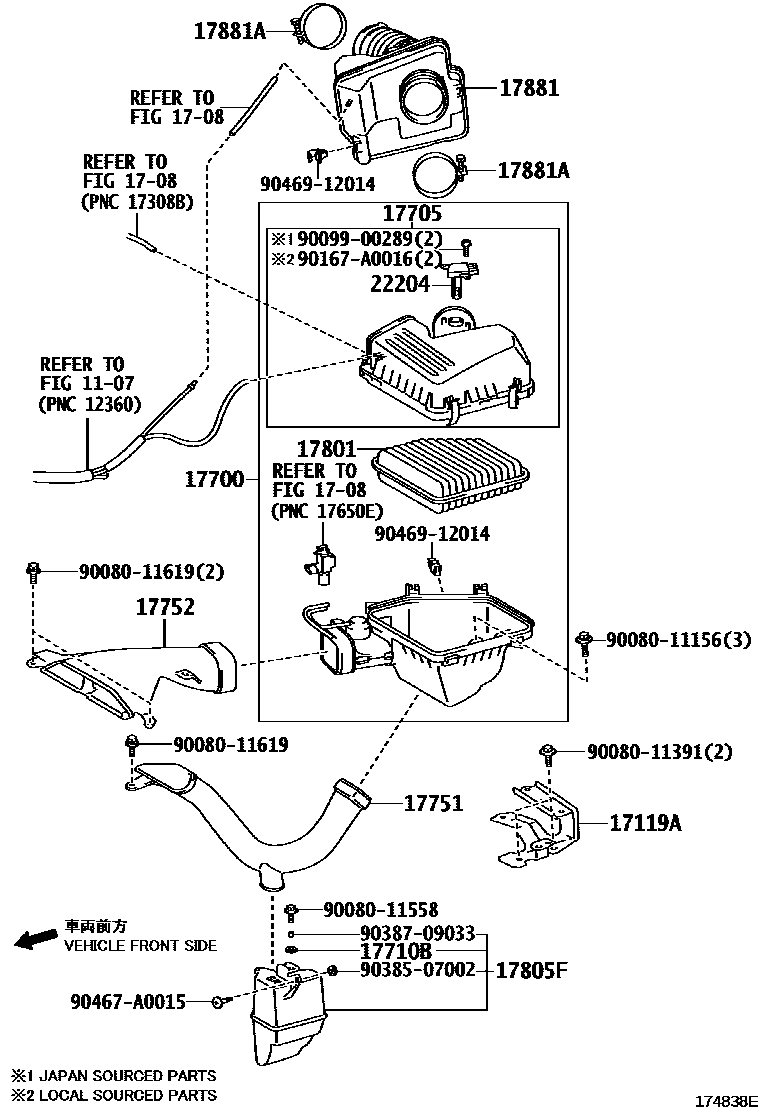

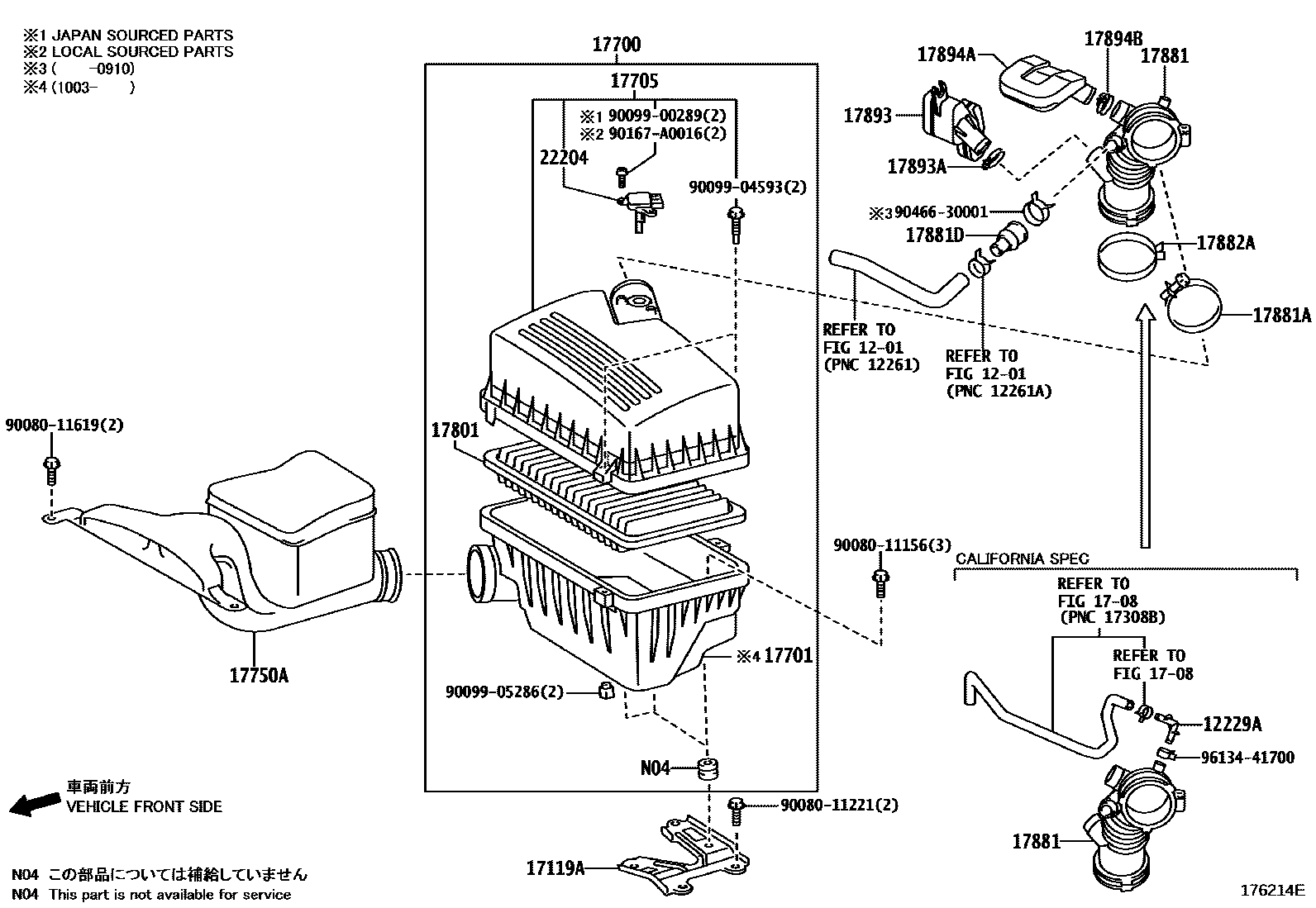

Toyota CAMRY Air Cleaner — Figure 1703
Toyota CAMRY EPC diagram 1703, Air Cleaner, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-36010 |
| 17119A | air filter bracket | 17119-0H080 · 17119-0P050 · 17119-31050 |
| 17700 | air filter assembly | 17700-0H100 · 17700-0H101 · 17700-0H102 · 17700-0H103 · 17700-AD013 · 17700-AD014 · 17700-AD015 · 17700-AD016 |
| 17701 | Air filter housing sub-assembly | 17701-0H080 |
| 17705 | Air filter cover sub-assembly | 17705-0H100 · 17705-0H101 · 17705-0H102 · 17705-0H103 · 17705-AD013 · 17705-AD014 · 17705-AD015 · 17705-AD016 |
| 17710B | gasket | 90480-17013 |
| 17750A | Air filter air inlet assembly | 17750-0H060 · 17750-0V010 |
| 17751 | No. 1 air filter air inlet | 17751-0P030 |
| 17752 | No. 2 air filter air inlet | 17752-0P010 |
| 17801 | Air filter element sub-assembly | 17801-0H050 · 17801-28030 · 17801-AD010 |
| 17805F | Intake resonator sub-assembly | 17805-0P010 |
| 17881 | No. 1 air cleaner hose | 17881-0H090 · 17881-0P030 · 17881-0V010 · 17881-0V050 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10880 · 96111-10900 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V010 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-71001 · 96111-10850 |
| 17893 | Intake resonator | 17893-0H010 · 17893-0V010 |
| 17893A | hose clamp | 96111-10430 |
| 17894A | No. 2 intake resonator | 17894-0H060 · 17894-0V010 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10400 · 96111-10430 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-31010 · 22204-31020 |
