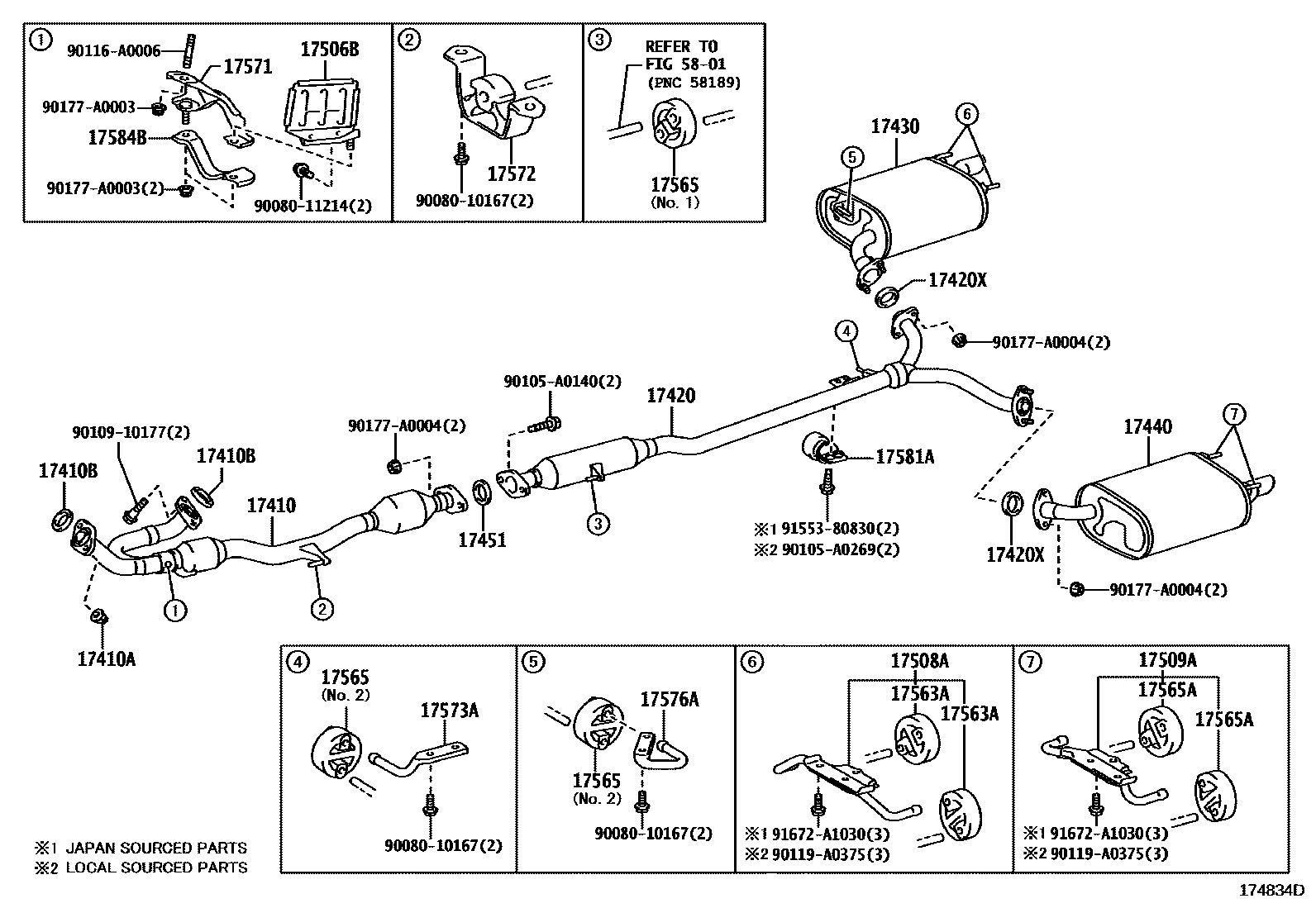

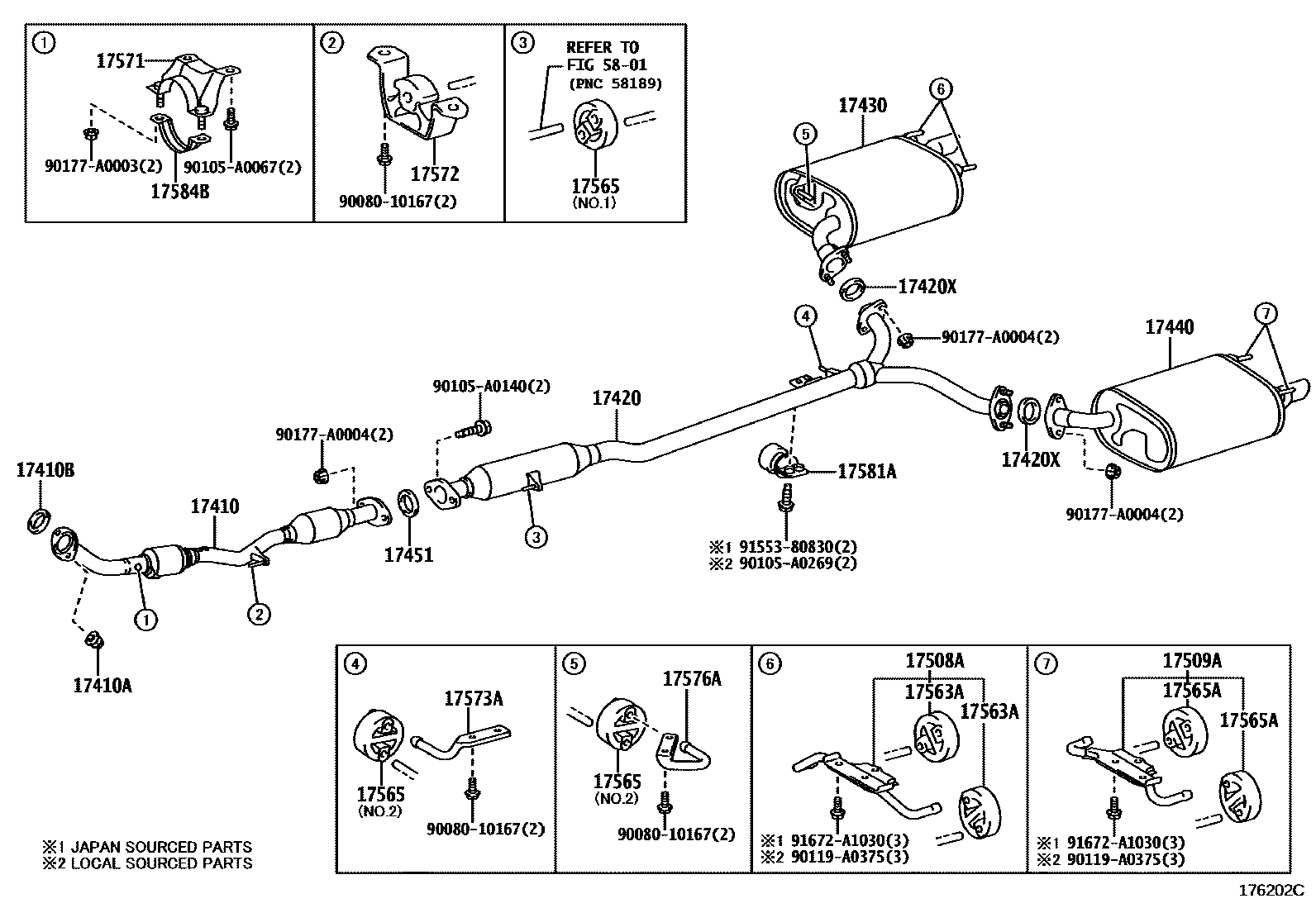

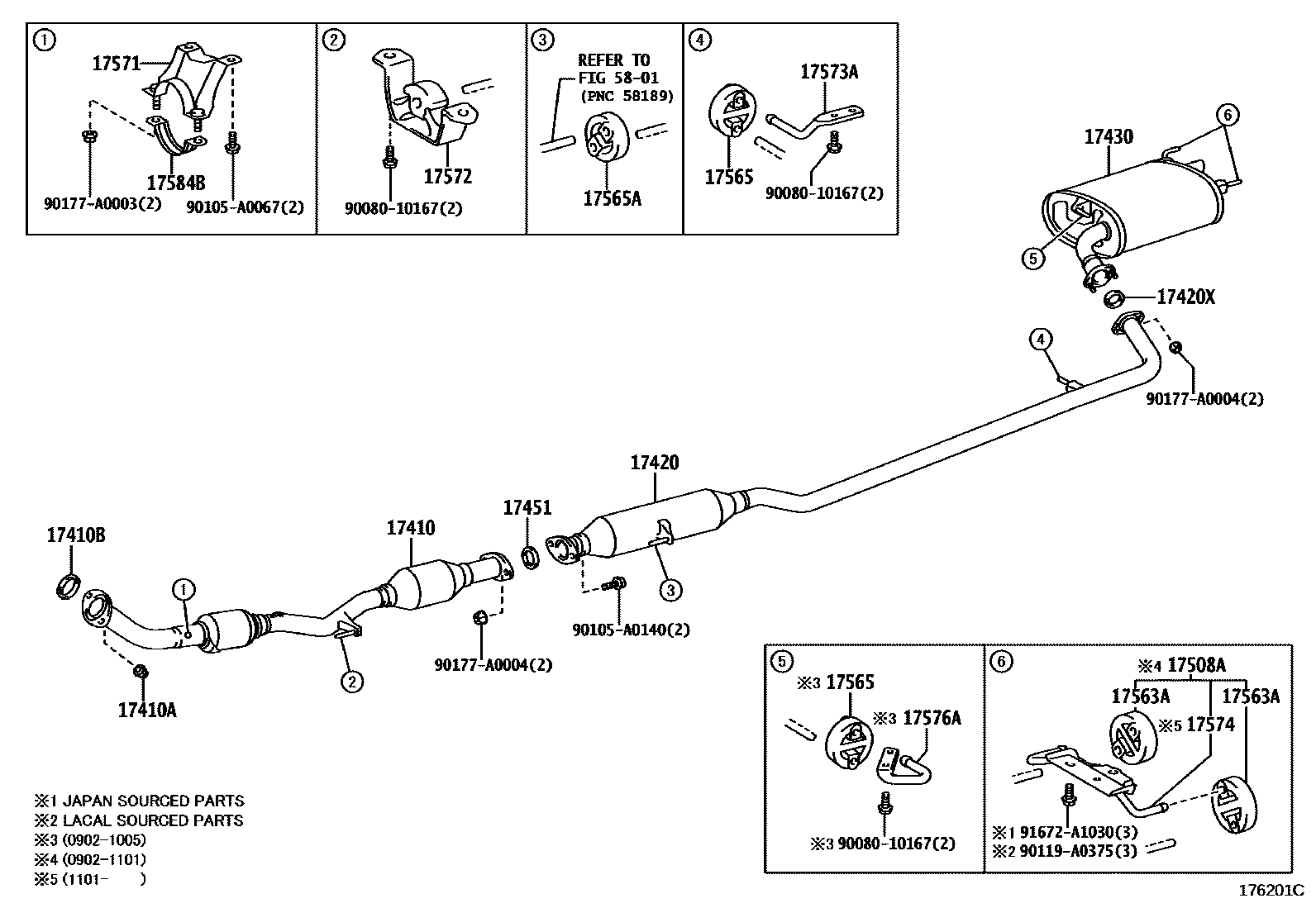

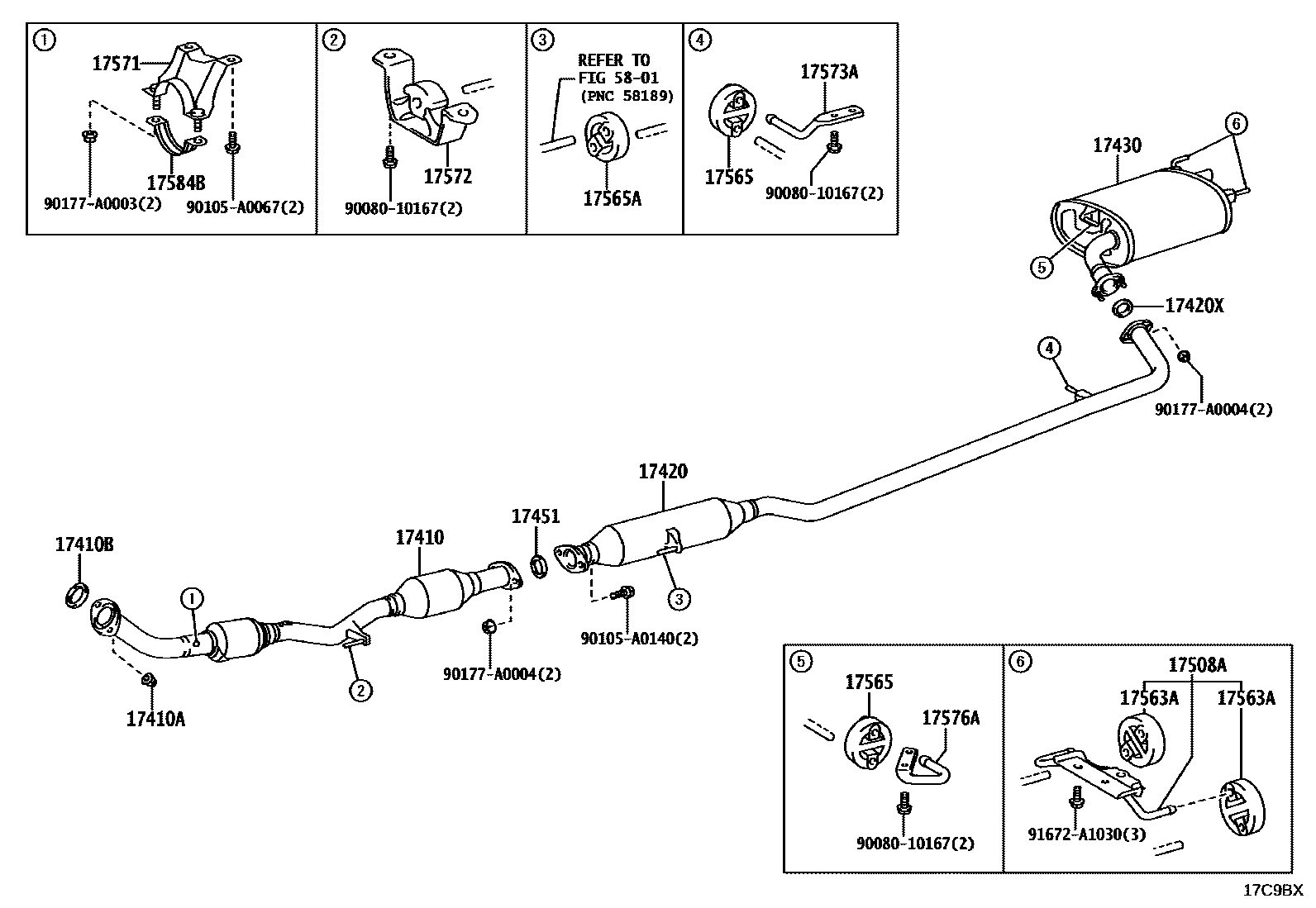

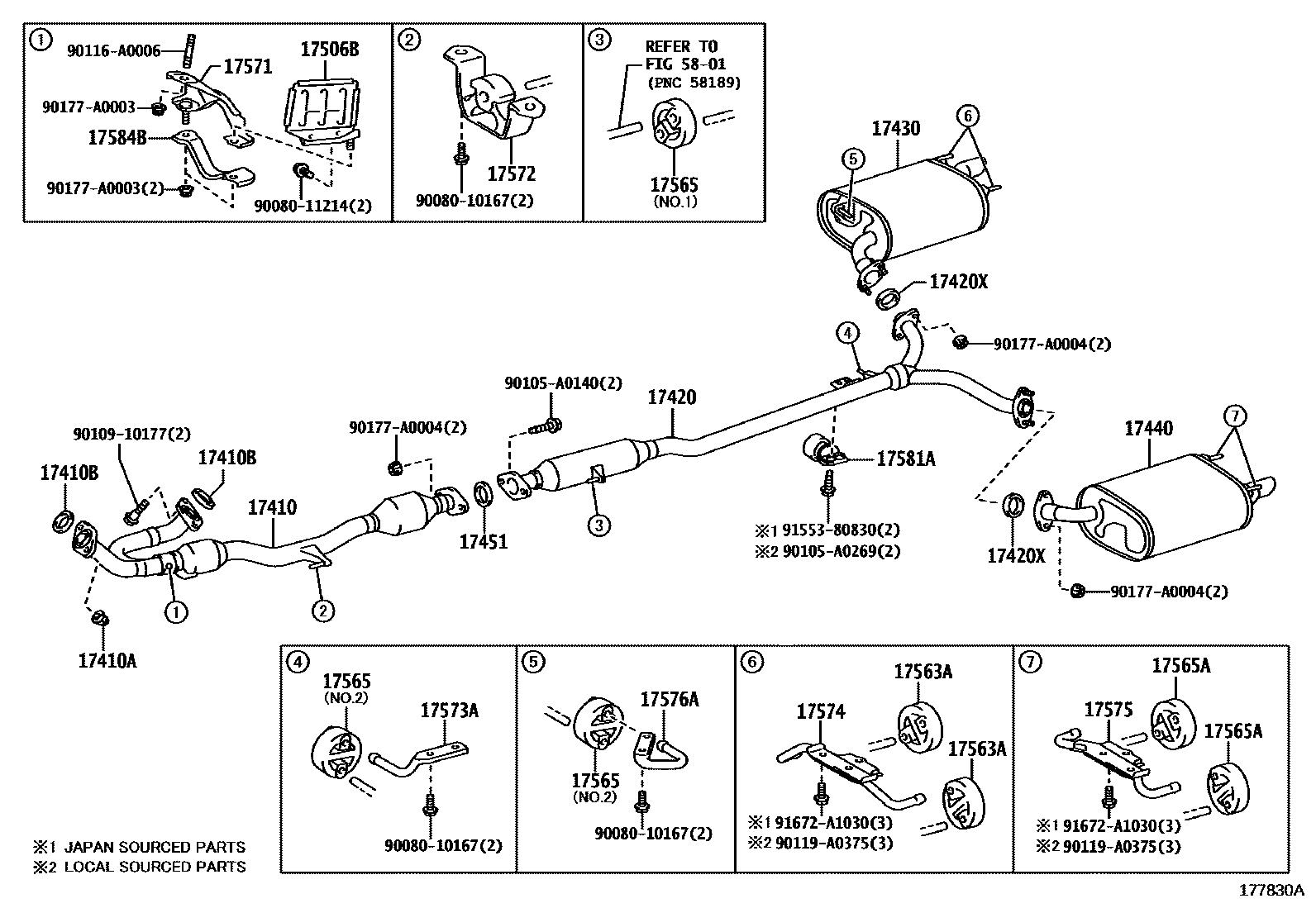

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0H180 · 17410-0H190 · 17410-0P100 · 17410-0V050 · 17410-0V060 |
| 17410A | Exhaust pipe fixing studs and nuts | 90080-17187 |
| 17410B | Exhaust pipe gasket | 90080-43036 · 90917-06089 · 90917-06090 · 90917-A6001 |
| 17420 | Central exhaust pipe assembly | 17420-0H130 · 17420-0P020 · 17420-0P021 · 17420-0V060 |
| 17420X | Center exhaust pipe liner | 90080-43028 · 90917-06045 |
| 17430 | Exhaust tailpipe assembly | 17430-0H160 · 17430-0H161 · 17430-0H170 · 17430-0H171 · 17430-0P060 · 17430-0P061 · 17430-0P062 |
| 17440 | Left exhaust tailpipe | 17440-0P020 · 17440-0P021 |
| 17451 | Exhaust pipe gasket | 90080-43033 · 90917-06076 |
| 17506B | Exhaust pipe bracket sub-assembly | 17506-0P010 |
| 17508A | No. 3 exhaust pipe bracket sub-assembly | 17508-0P010 · 17508-0P011 |
| 17509A | No. 4 exhaust pipe bracket sub-assembly | 17509-0P020 · 17509-0P021 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0P050 · 17565-0P051 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P030 · 17565-0P031 · 17565-0P040 · 17565-0P041 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P030 · 17565-0P031 · 17565-0P050 · 17565-0P051 |
| 17571 | No. 1 exhaust pipe bracket | 17571-0H010 · 17571-0P020 · 17571-0V010 |
| 17572 | No. 1 exhaust pipe bracket | 17572-0H020 |
| 17573A | No. 3 exhaust pipe bracket | 17573-31020 |
| 17574 | No. 4 exhaust pipe bracket | 17574-0P010 · 17574-0P011 |
| 17575 | No. 5 exhaust pipe bracket | 17575-0P010 |
| 17576A | No. 6 exhaust pipe bracket | 17576-31070 |
| 17581A | Exhaust pipe damper | 17581-70080 |
| 17584B | No. 1 exhaust pipe bracket | 17584-0P020 · 17584-28020 |
