Toyota CAMRY Manifold — Figure 1701

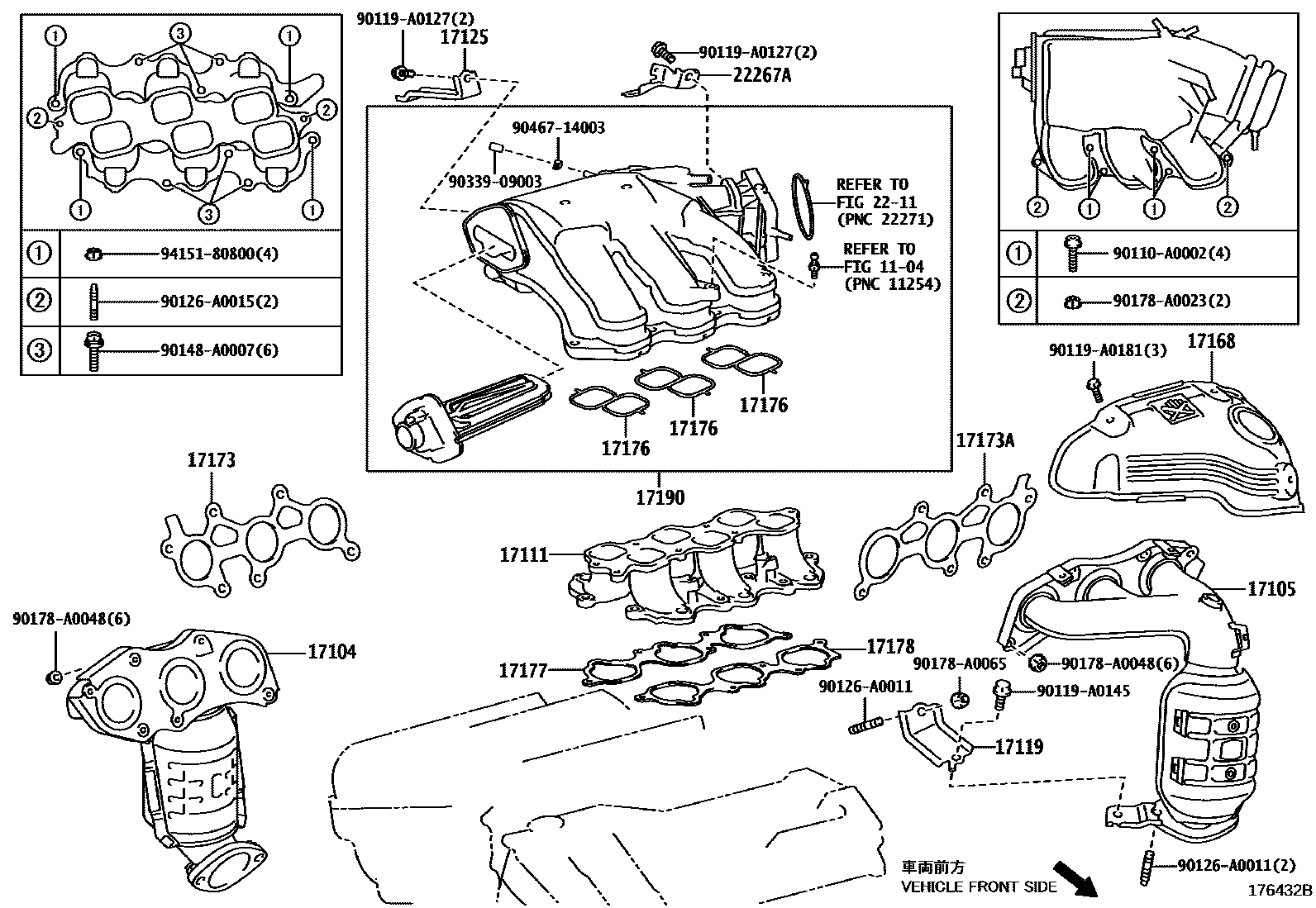

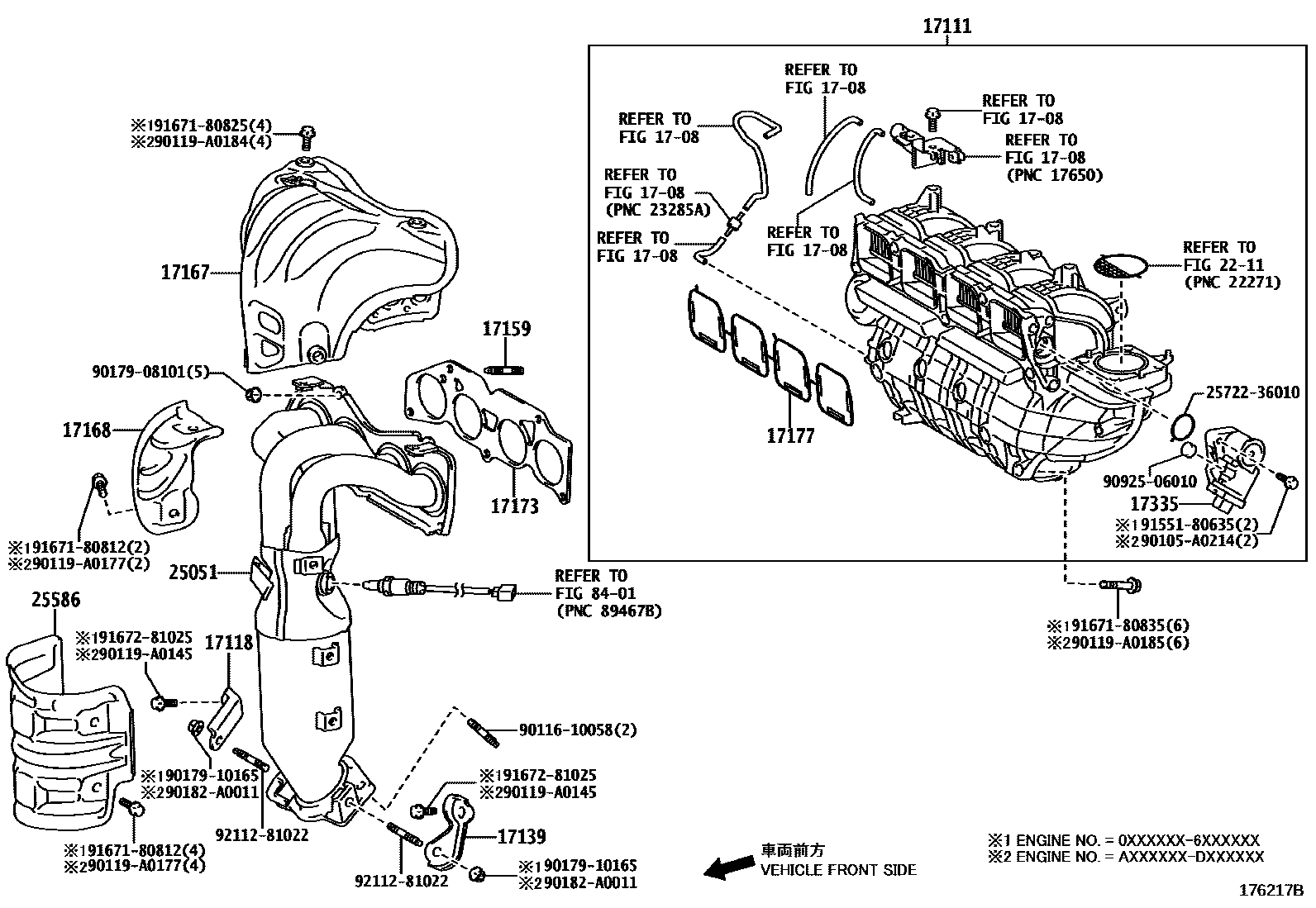

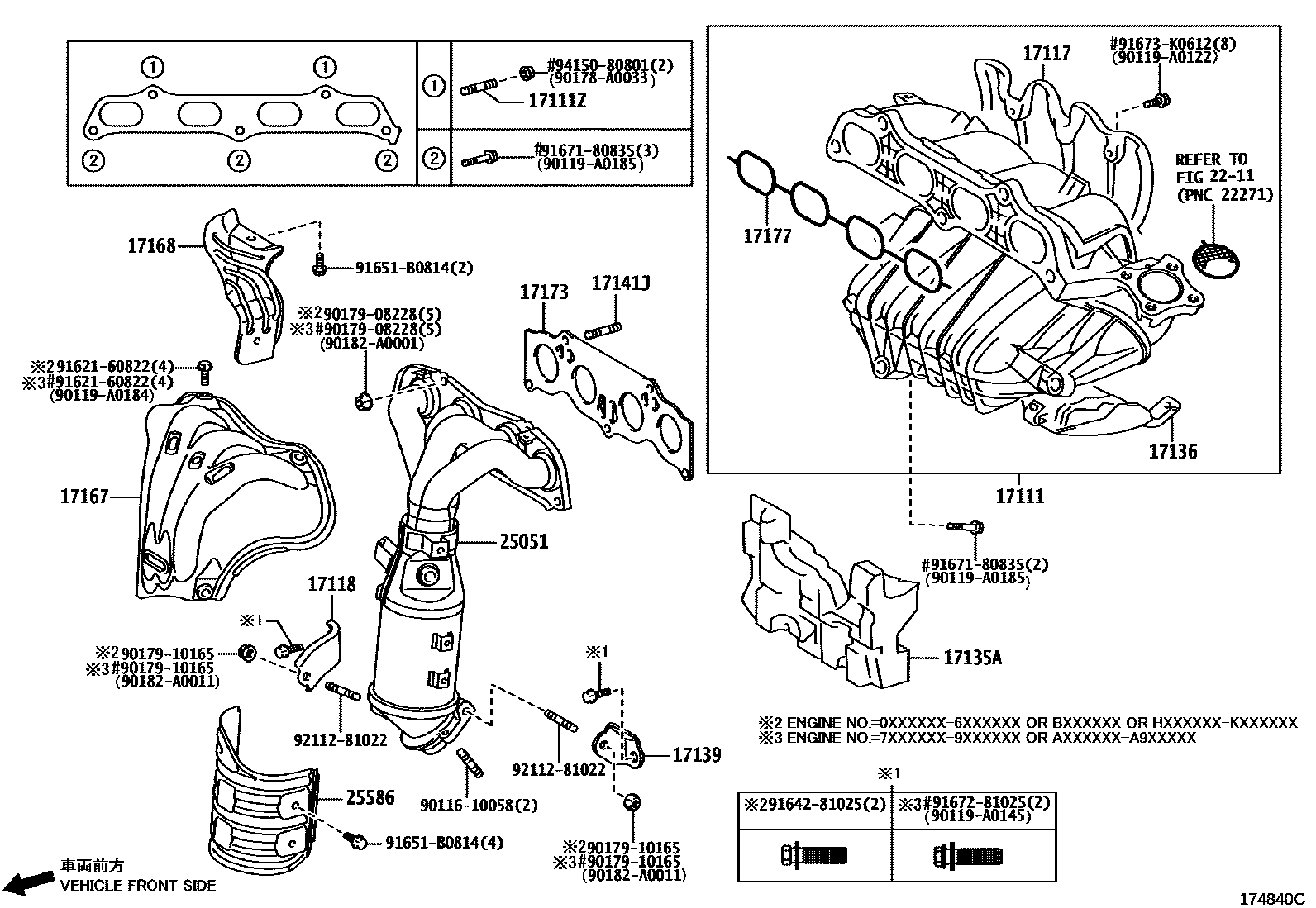

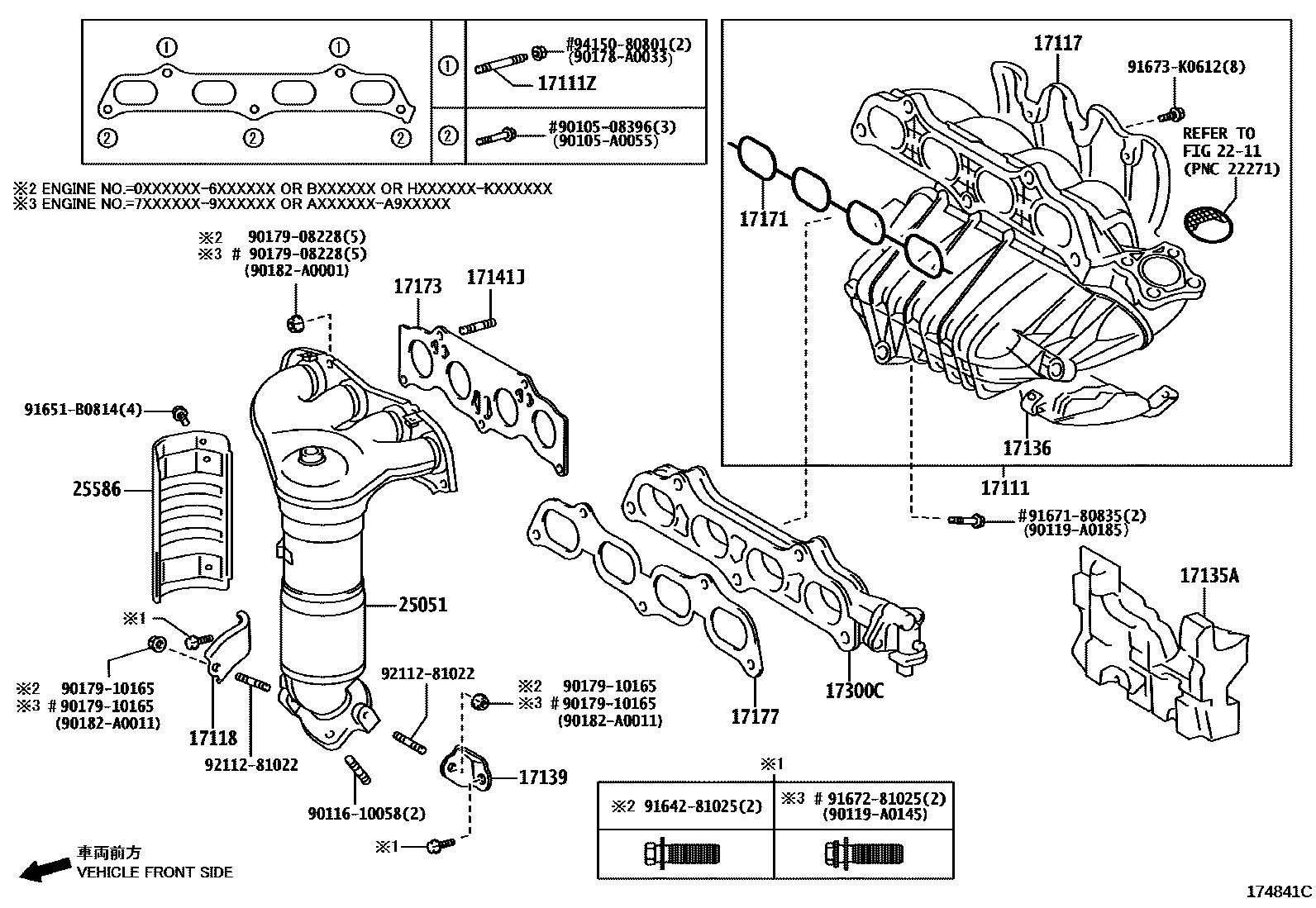

Toyota CAMRY EPC diagram 1701, Manifold, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17104 | Right exhaust manifold sub-assembly | 17140-0P040 · 17140-0P041 · 17140-31161 |
| 17105 | Left exhaust manifold sub-assembly | 17150-0P040 |
| 17111 | Intake Manifold | 17111-0P030 · 17111-31141 · 17120-0H050 · 17120-0V010 · 17120-0V020 · 17120-28140 · 17120-28160 · 17120-36010 · 17120-36040 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08021 · 90126-08026 · 90126-A0005 · 90126-A0006 |
| 17117 | Intake pipe insulation pad | 17117-0H030 · 17117-28040 · 17117-28050 |
| 17118 | Manifold stays | 17118-0V010 · 17118-28070 · 17118-28080 · 17118-36010 |
| 17119 | No. 2 manifold stay | 17119-0P030 |
| 17125 | No. 1 pressure tank stay | 17125-0P020 |
| 17135A | Intake manifold No. 1 heat shield | 17135-0H011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-28020 |
| 17139 | No. 2 manifold stay | 17139-28050 · 17139-36020 |
| 17141J | Studs (for right exhaust manifold) | 90126-08037 · 90126-A0007 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08037 · 90126-A0007 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0H040 · 17167-0V010 · 17167-28060 · 17167-36010 · 17167-36011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0P010 · 17168-0P011 · 17168-0V010 · 17168-28030 · 17168-36010 |
| 17171 | Gasket (intake manifold to exhaust manifold) | 17171-28020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0H020 · 17173-0P020 · 17173-0V010 · 17173-28010 · 17173-36020 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-0P020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-0P020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0V010 · 17171-36010 · 17177-0H010 · 17177-0P020 · 17177-28010 · 17177-28040 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-0P020 |
| 17190 | Intake pressure regulator tank assembly | 17190-0P031 |
| 17300C | Intake manifold leaf valve assembly | 17300-28050 |
| 17335 | Intake control valve actuator | 17335-0V010 · 17335-36010 |
| 22267A | Throttle body bracket | 22267-0P020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0H050 · 25051-0V010 · 25051-0V020 · 25051-28300 · 25051-28330 · 25051-36020 · 25051-36040 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0V010 · 25586-28090 · 25586-28100 · 25586-36010 |
