Toyota CAMRY V-Belt — Figure 1605

Toyota CAMRY EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.

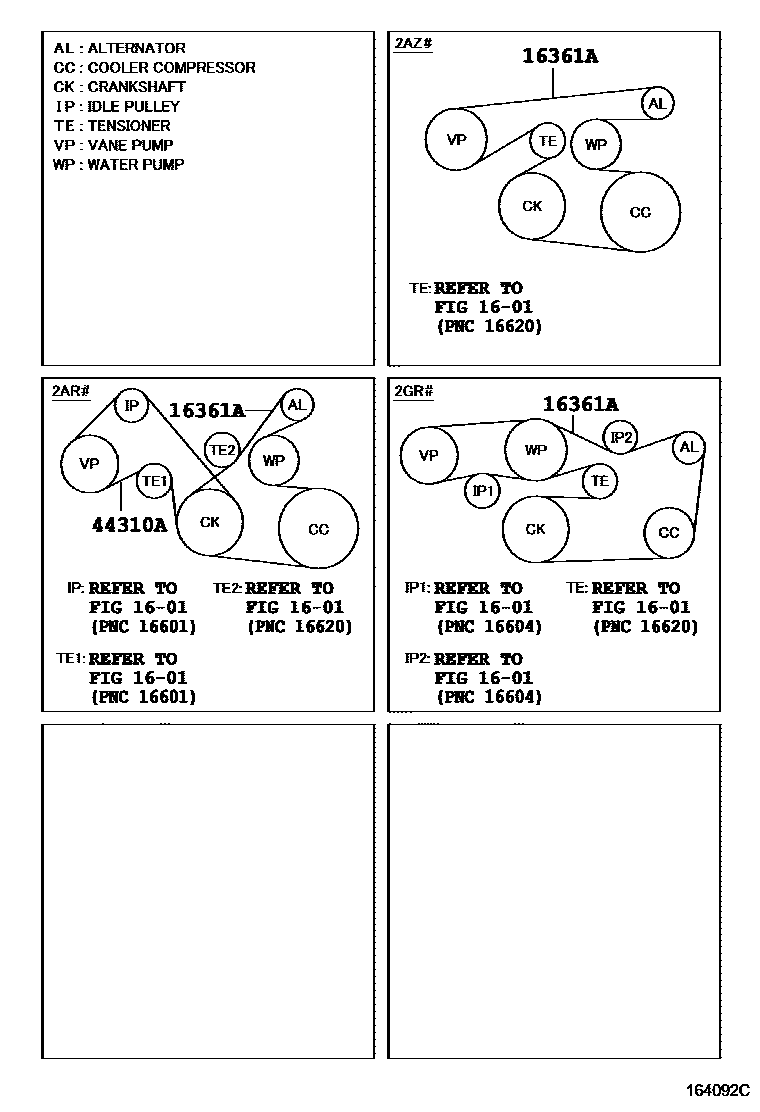

Toyota CAMRY V-Belt EPC diagram — 164092C
V-Belt — 164092C (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02653 · 90916-02671 · 90916-A2010 · 90916-A2011
44310AV-belt (for vane pump)90916-A2022
