Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603

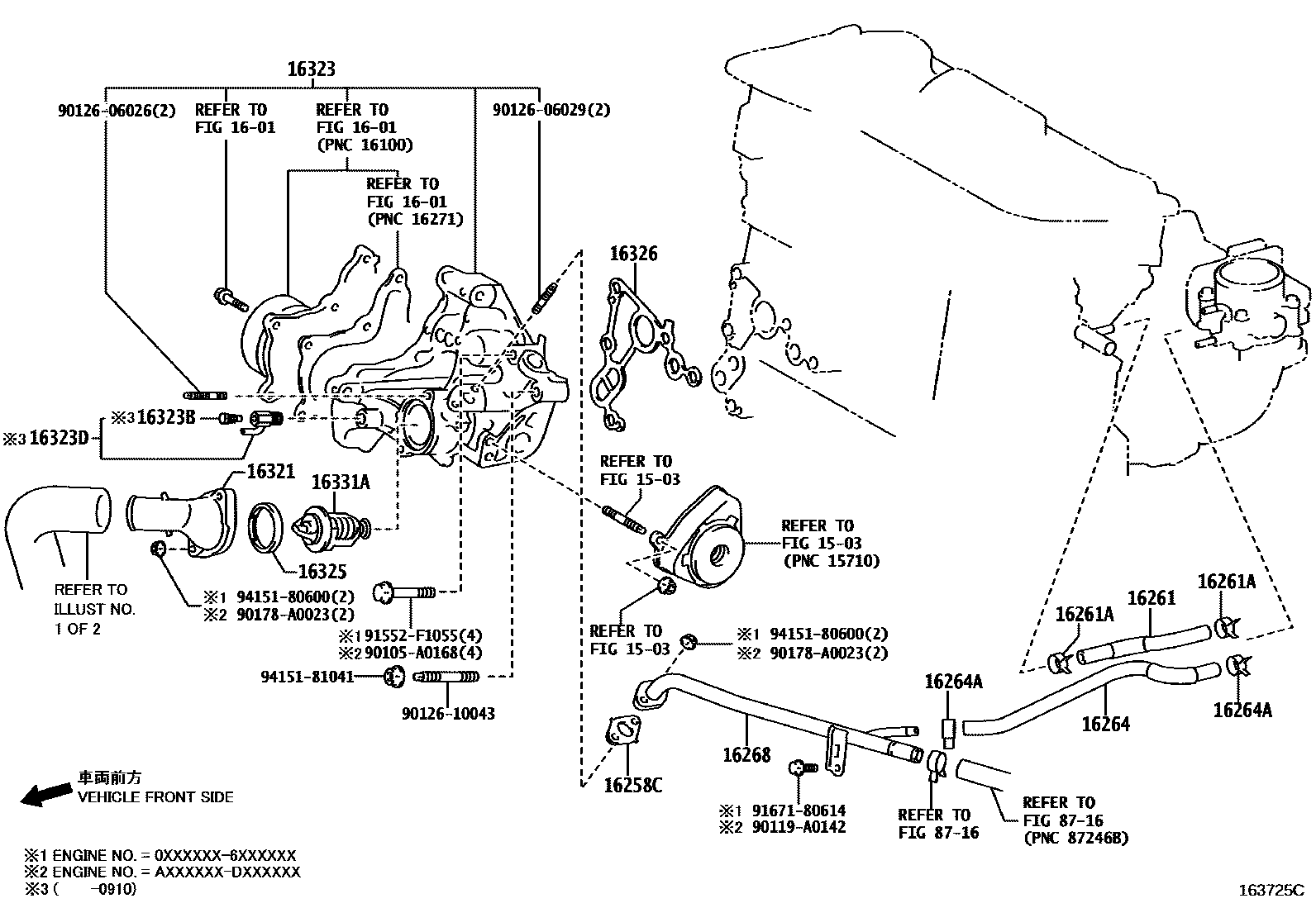

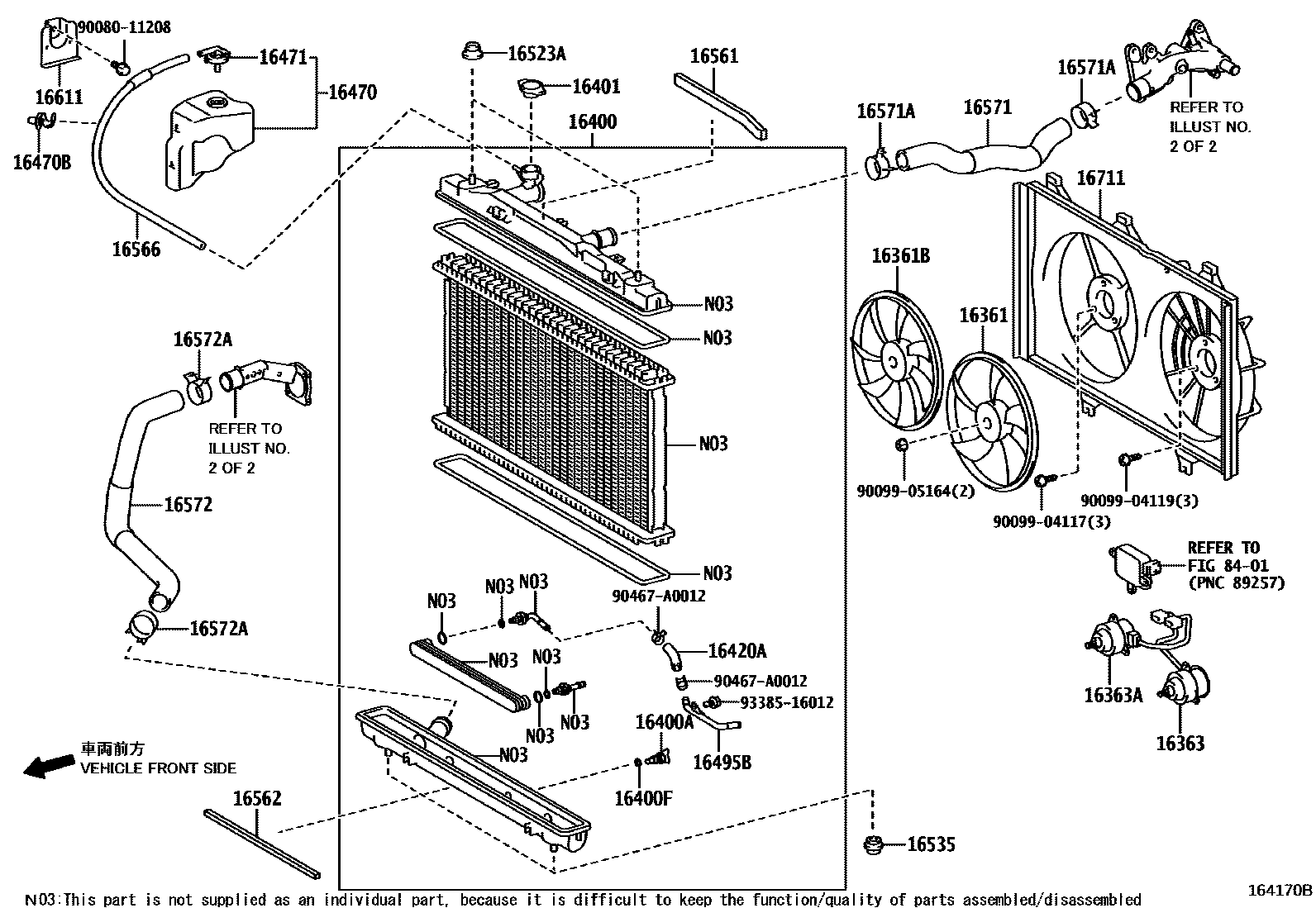

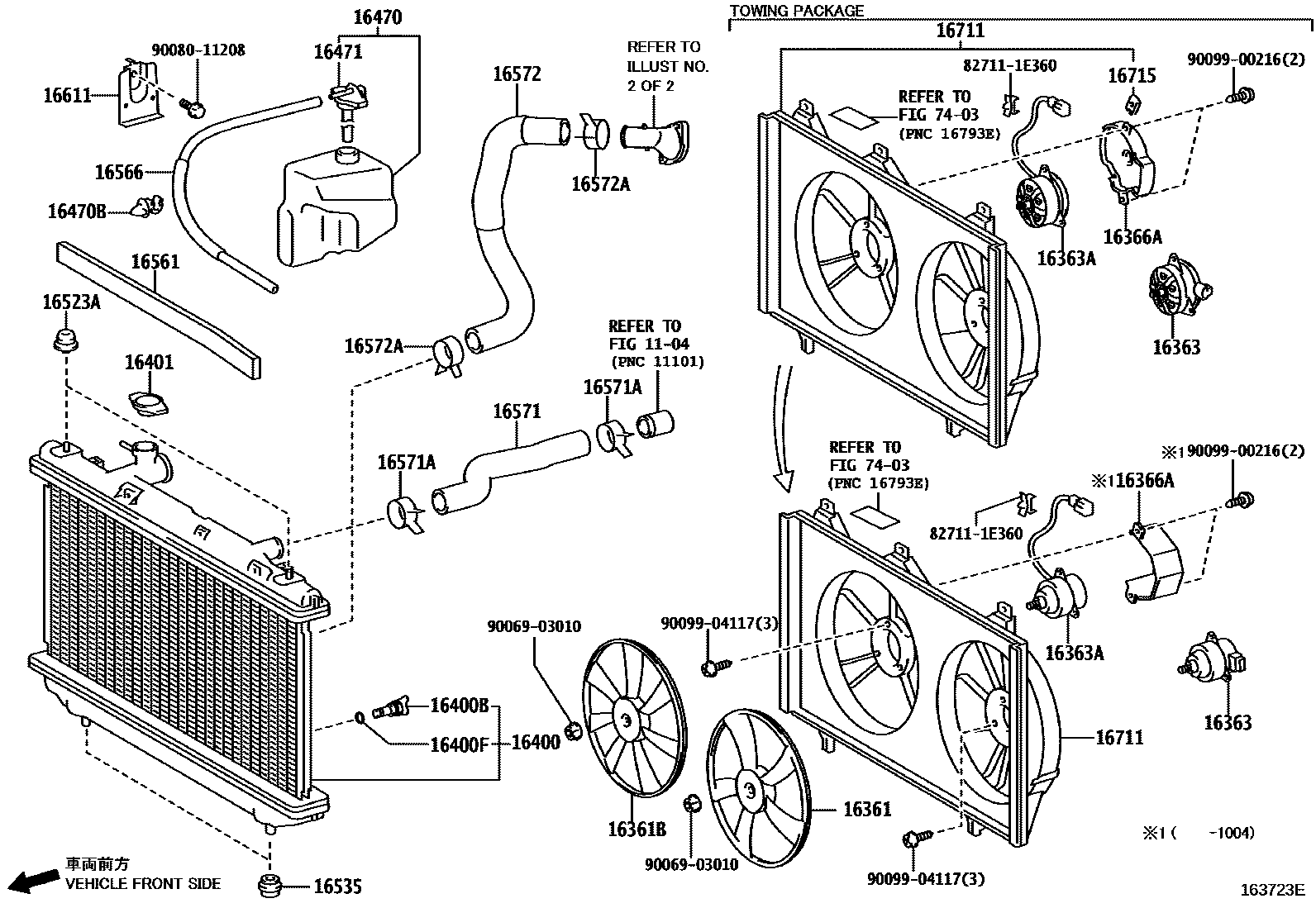

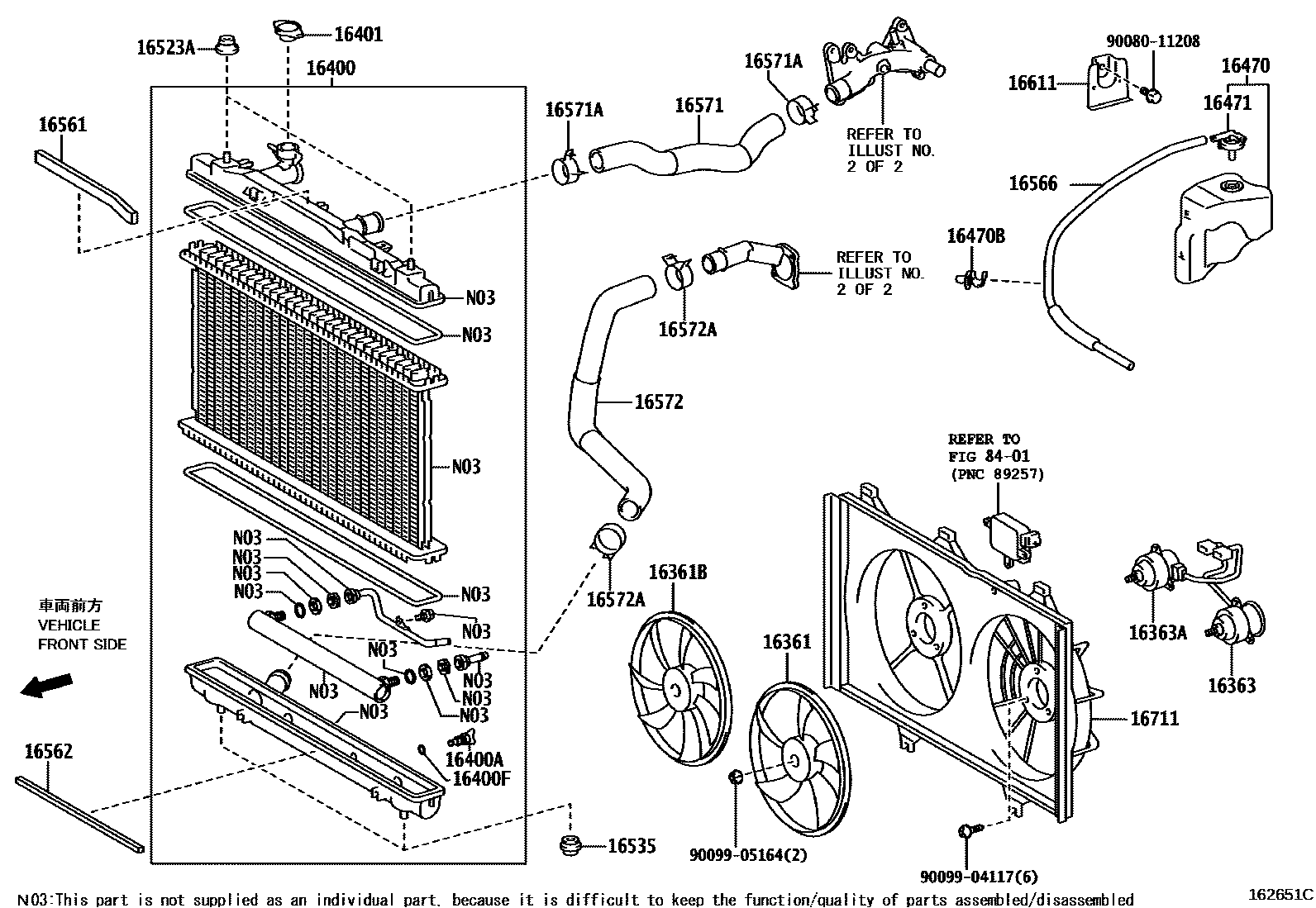

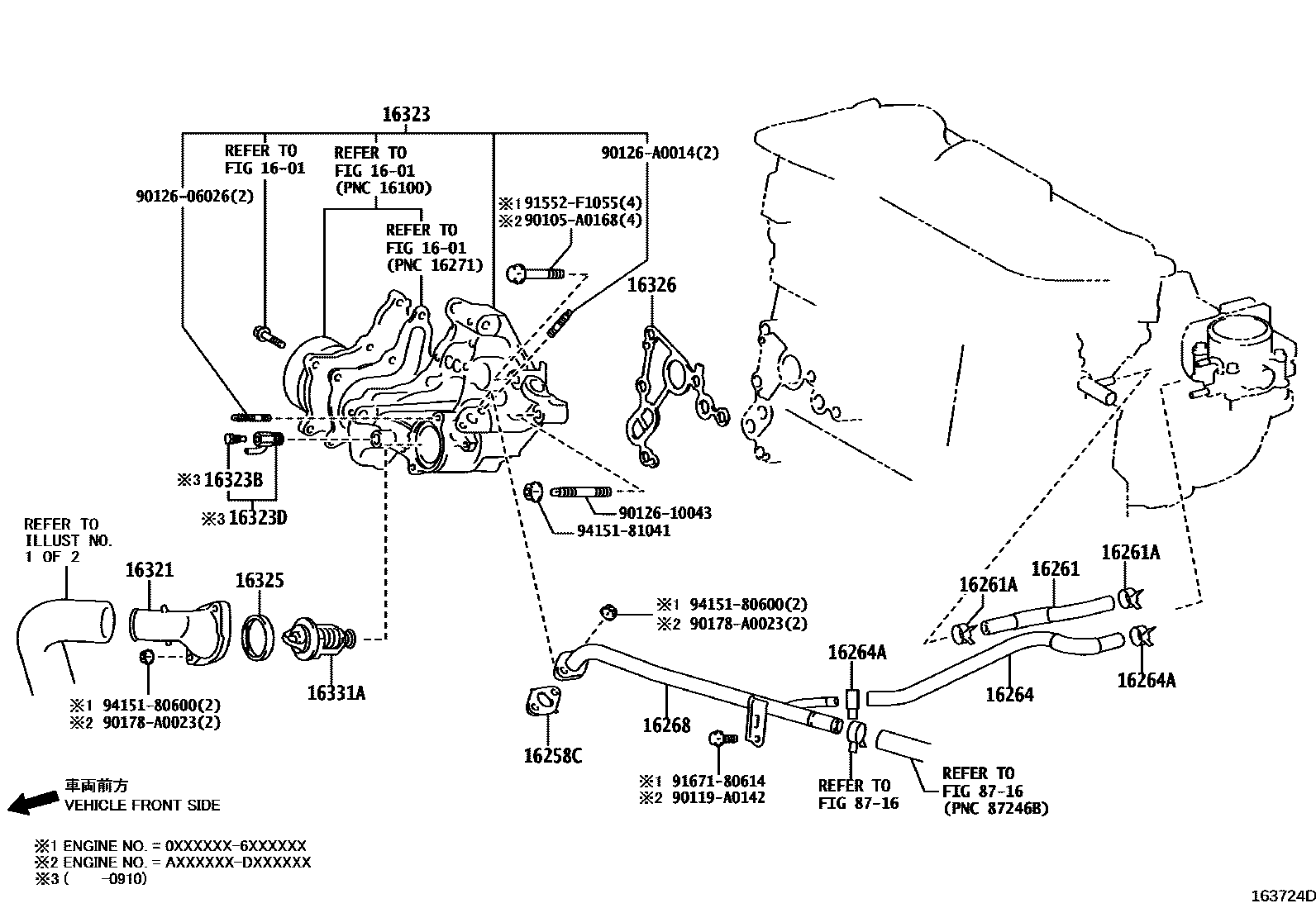

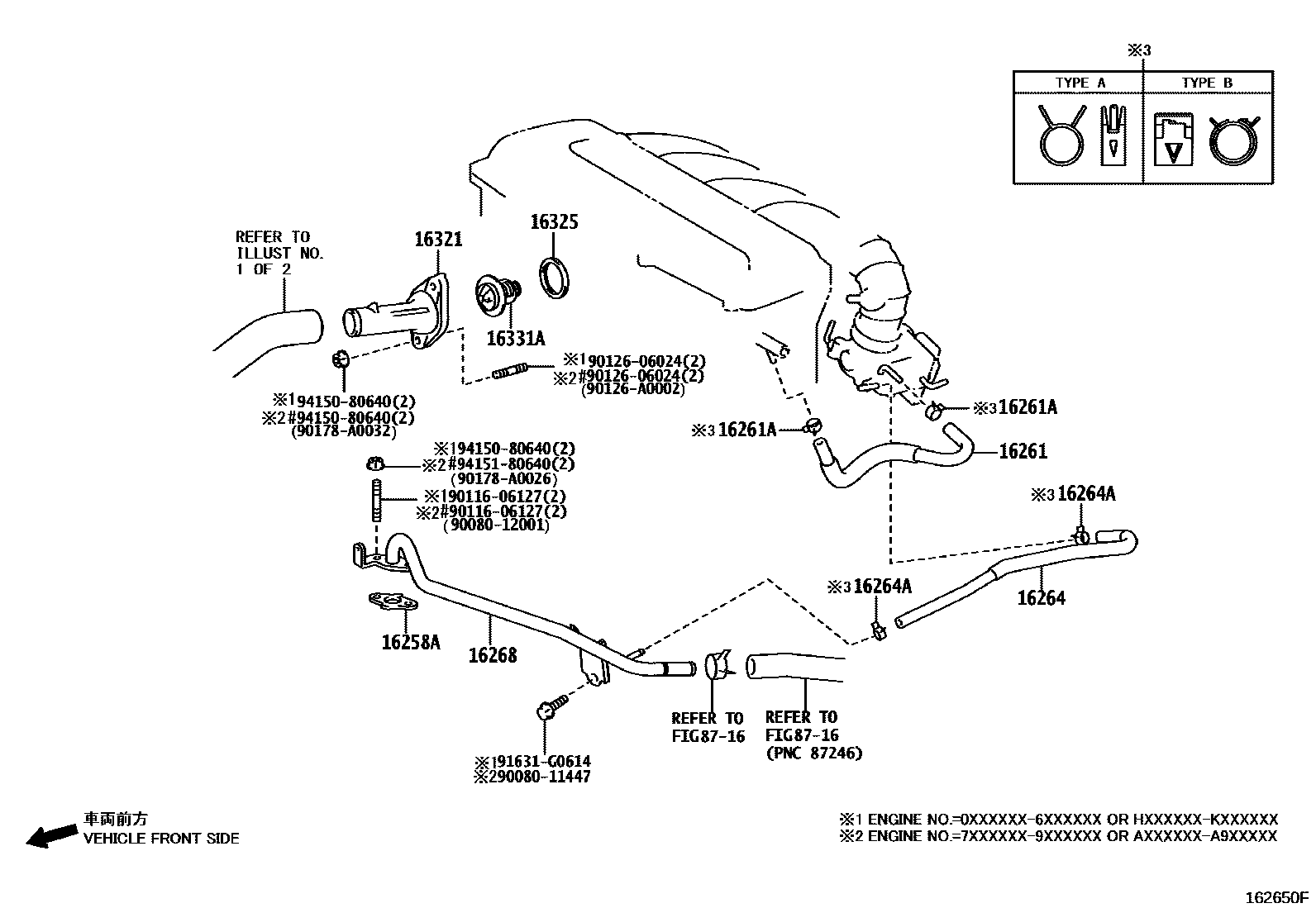

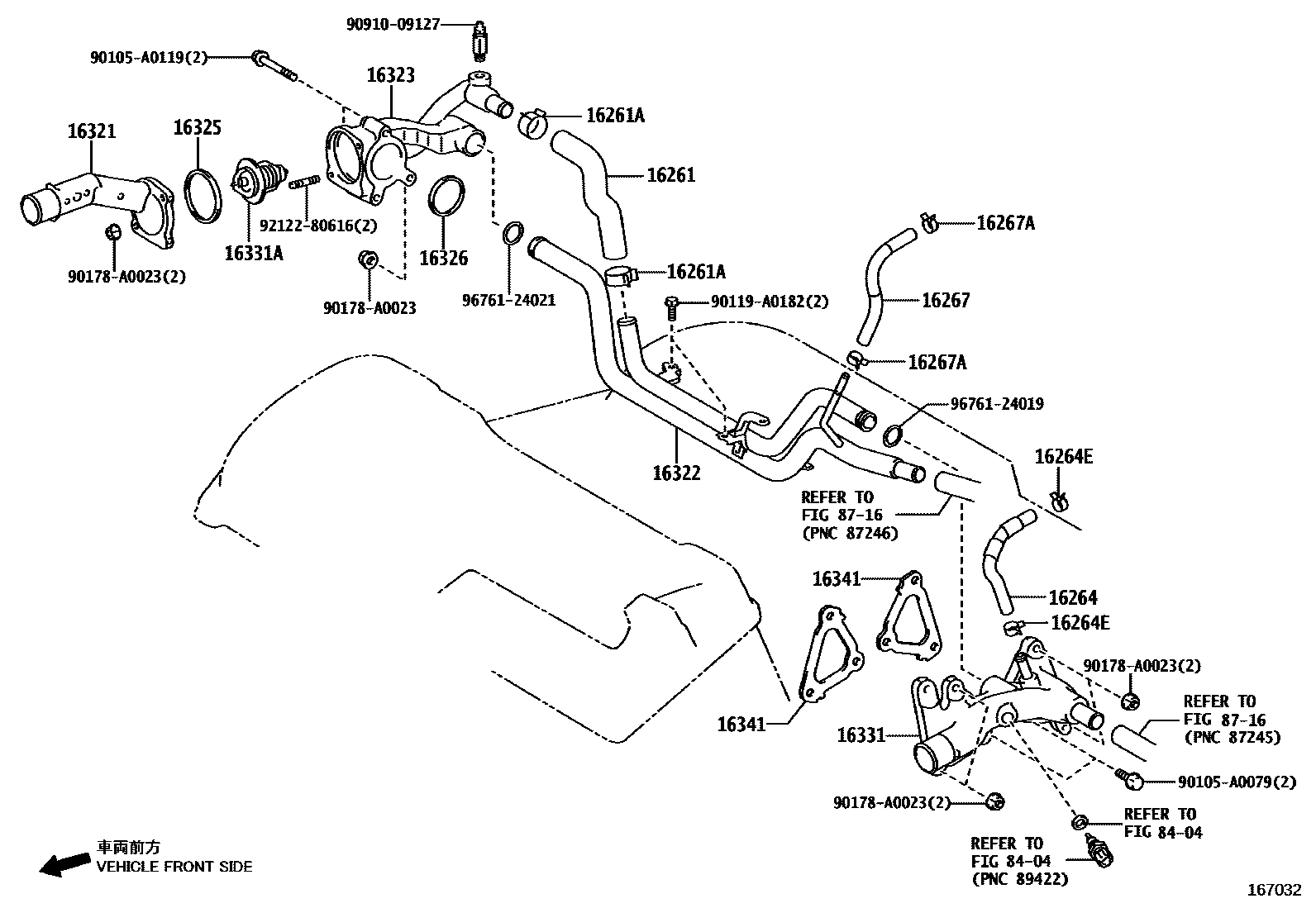

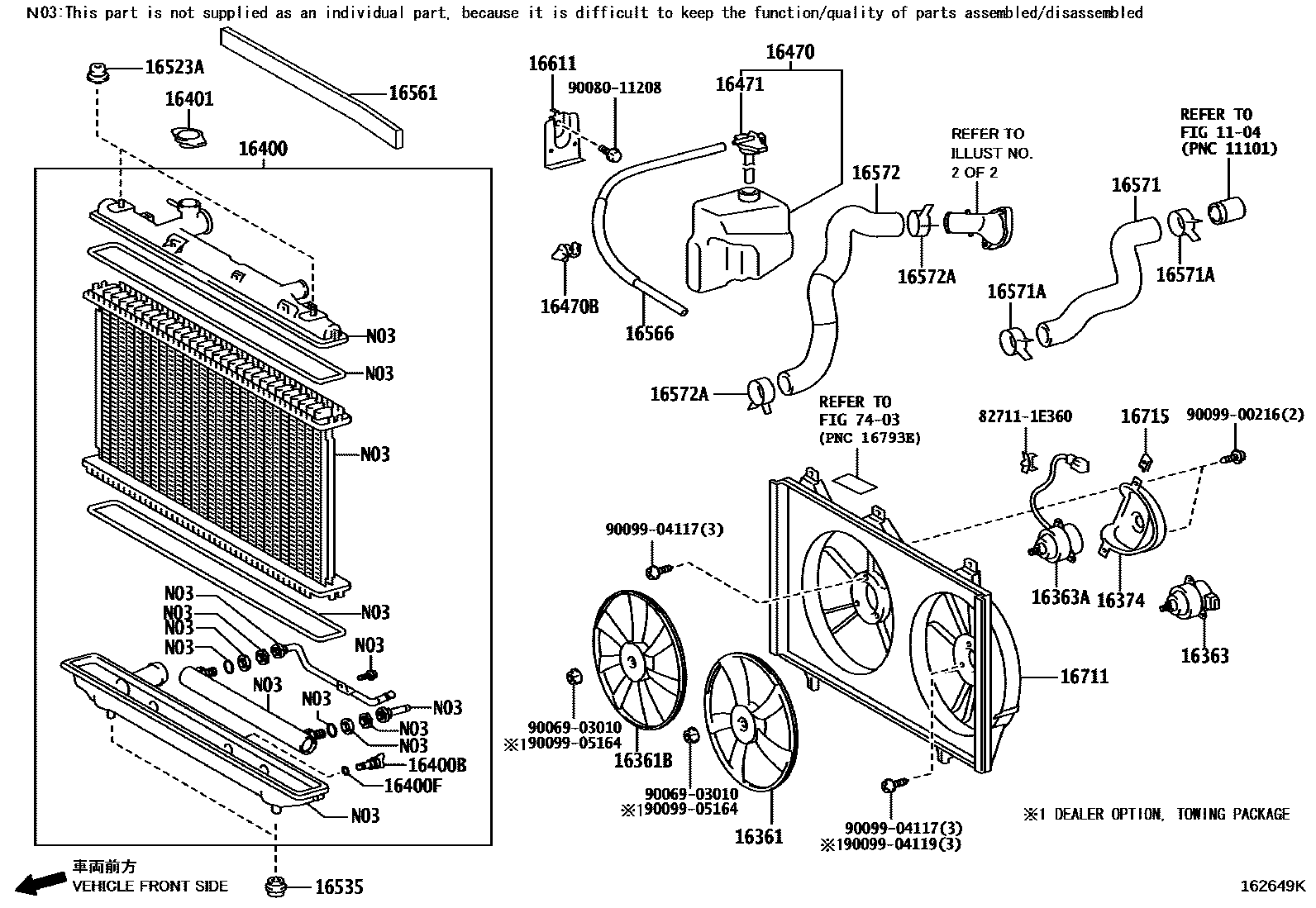

Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 8 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H010 · 16258-28030 |
| 16258C | Gasket (for water bypass pipe) | 16258-0H010 · 16258-36010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0H010 · 16261-0P030 · 16261-0V020 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0015 · 90466-A0017 · 96135-51300 · 96136-42701 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0H010 · 16264-0P031 · 16264-0V020 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96135-51300 · 96137-41501 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0P020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0017 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0H070 · 16268-28010 · 16268-36020 |
| 16321 | water inlet | 16321-0H011 · 16321-0P010 · 16321-0V010 · 16321-28020 · 16321-36010 |
| 16322 | PIPE, WATER INLET | 16322-0P010 · 16322-31010 · 16322-31020 |
| 16323 | HOUSING, WATER INLET | 16032-0V010 · 16032-0V011 · 16032-36010 · 16032-36011 · 16032-36020 · 16032-36021 · 16323-0P030 · 16323-31040 |
| 16323B | Screw plug (for water inlet housing) | 90910-09087 |
| 16323D | Water discharge switch assembly (for water inlet shell) | 90910-09129 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-0P020 · 16326-36010 |
| 16331 | Water outlet | 16331-0P010 · 16331-31140 |
| 16331A | thermostat | 90916-03129 · 90916-03133 · 90916-03136 · 90916-03140 · 90916-A3001 · 90916-A3002 · 90916-A3003 |
| 16341 | GASKET, WATER OUTLET | 16341-AD010 |
| 16361 | Fan | 16361-0H090 · 16361-0H270 · 16361-0H280 · 16361-AD010 · 16361-AD020 |
| 16361B | Fan No. 2 | 16361-0H100 · 16361-0H240 · 16361-AD020 · 16361-AD030 |
| 16363 | cooling fan motor | 16363-0A120 · 16363-0A150 · 16363-0H010 · 16363-0H110 · 16363-0V010 |
| 16363A | Cooling fan motor No. 2 | 16363-0H070 · 16363-0H090 · 16363-0P030 · 16363-0V020 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-0H200 · 16366-0V010 · 16366-36020 |
| 16374 | Cooling fan motor vibration isolation pad | 16366-28130 |
| 16400 | Radiator assembly | 16400-0H210 · 16400-0H240 · 16400-0H310 · 16400-0V070 · 16400-0V080 · 16400-AD010 · 16400-AD020 |
| 16400A | Radiator drain switch sub-assembly | 16417-21280 |
| 16400B | Radiator drain switch screw plug | 16417-21280 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-31480 · 16401-62100 |
| 16420A | Sub-radiator water inlet hose | 16492-AD020 |
| 16470 | Radiator reservoir assembly | 16470-0P020 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90469-12014 |
| 16471 | Liquid storage tank cover sub-assembly | 16471-AA010 |
| 16495B | Tube (for automatic transmission oil cooler) | 16495-0H240 |
| 16523A | Radiator bracket cushion | 16523-AD010 |
| 16535 | Radiator lower support | 16535-0A050 · 16535-0H030 · 16535-0V010 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0H010 · 16561-0P020 |
| 16562 | Seal No. 2 (radiator to bracket) | 16562-0P020 |
| 16566 | Liquid storage tank outlet hose | 16566-0H010 |
| 16571 | Radiator water inlet hose | 16571-0H100 · 16571-0P070 · 16571-0V060 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90080-46344 · 90466-A0020 |
| 16572 | Radiator outlet hose | 16572-0H090 · 16572-0P070 · 16572-0V010 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90080-46344 · 90466-A0020 |
| 16611 | Radiator reservoir bracket | 16611-0A010 |
| 16711 | fan cover | 16711-0H090 · 16711-0H140 · 16711-0V010 · 16711-0V020 · 16711-AD010 · 16711-AD020 |
| 16715 | fan cover bracket | 88688-03020 · 88688-18030 |
