Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

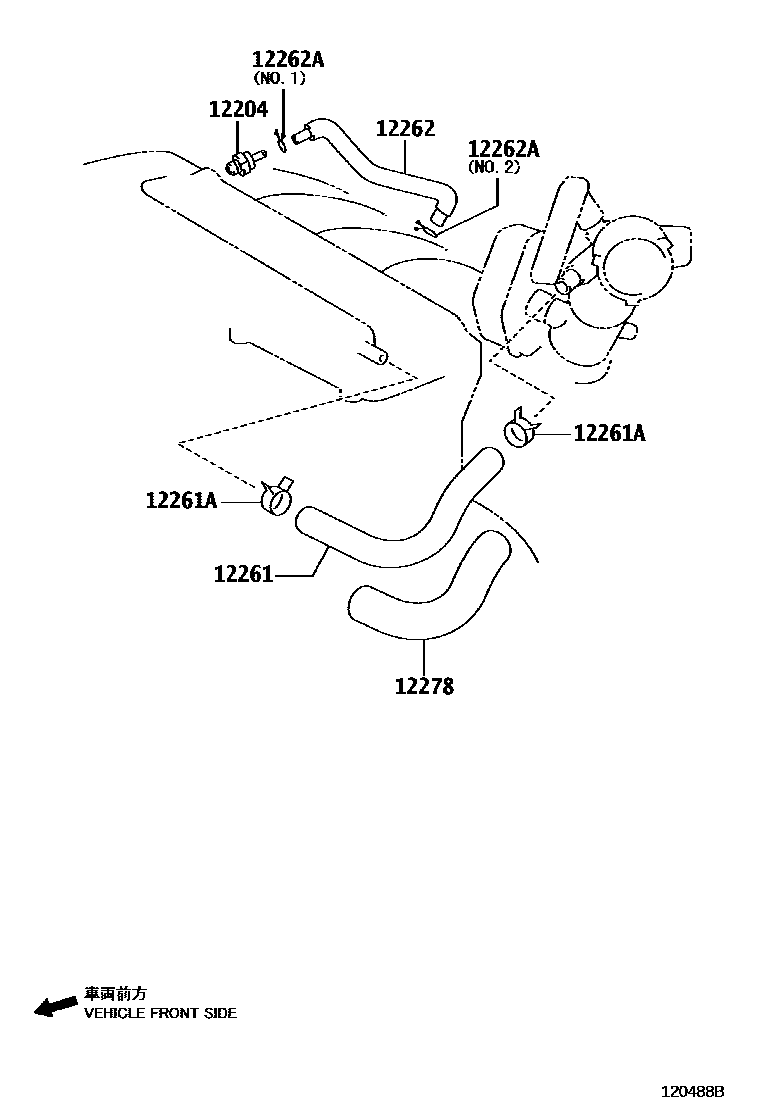

Toyota CAMRY Ventilation Hose EPC diagram — 120488B
Ventilation Hose — 120488B (200602 – 200903)

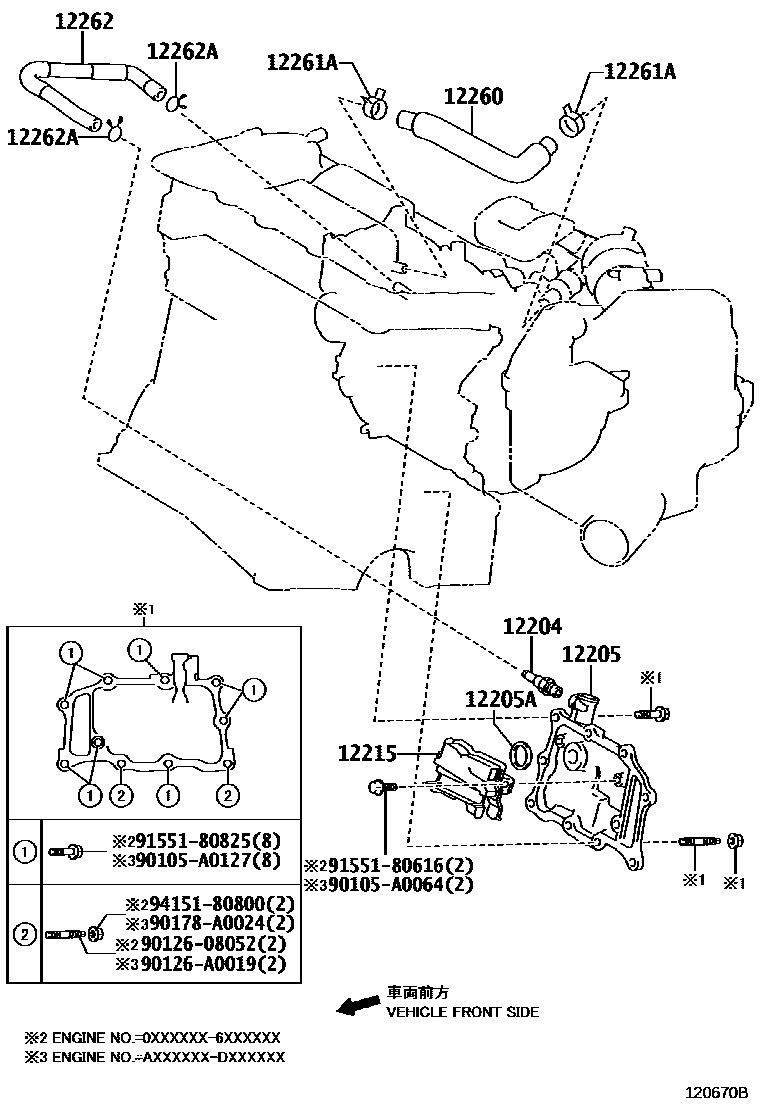

Toyota CAMRY Ventilation Hose EPC diagram — 120670B
Ventilation Hose — 120670B (200903 – 999999)

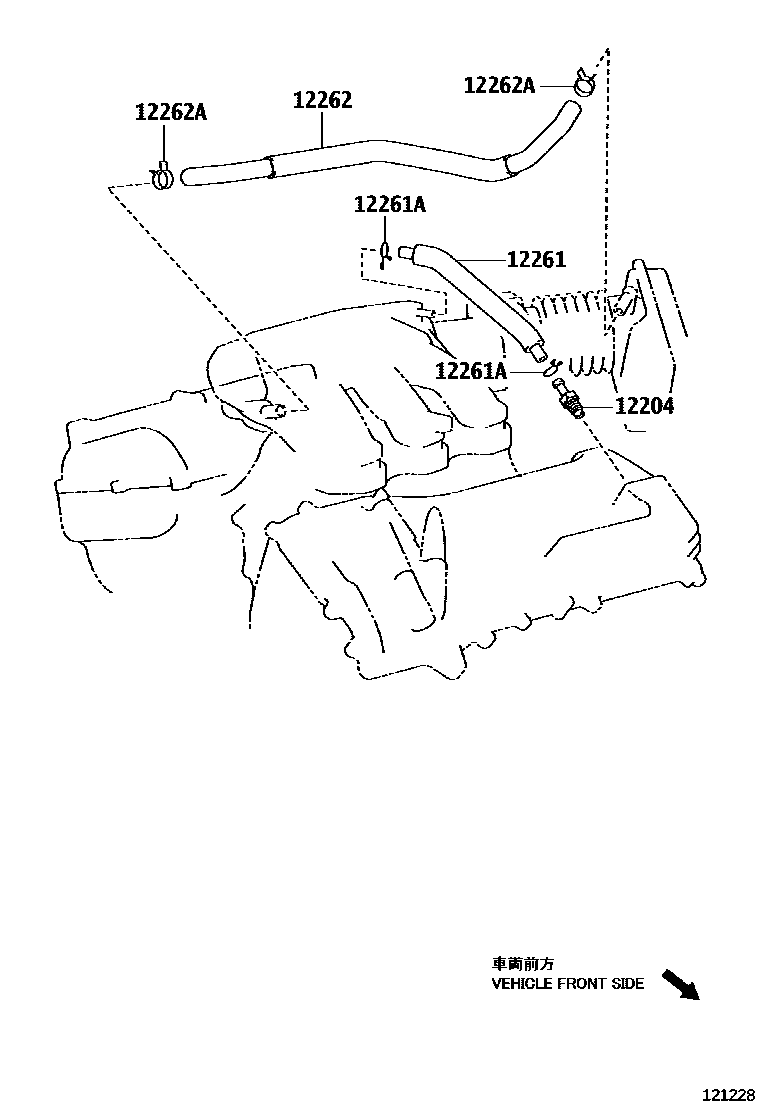

Toyota CAMRY Ventilation Hose EPC diagram — 121228
Ventilation Hose — 121228 (200602 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-28030 · 12204-31040 · 12204-31120 · 12204-36020
12205Ventilation box sub-assembly12205-0V010 · 12205-36010
12205AO-ring (for ventilation box)12273-36010
12215Ventilation box isolation device12215-0V010 · 12215-36010
12260Ventilation hose assembly12260-0V010
12261Ventilation Hose12261-0H080 · 12261-0P020 · 12261-0P030
12261AClip or clip (for vent hose)90080-46349 · 90466-A0008 · 90467-14017 · 90467-21004
12262Ventilation hose No. 212262-0H010 · 12262-0P020 · 12262-36020 · 12262-36040
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16035 · 90467-17013 · 90467-21004
12278Ventilation hose insulation pad12278-0H030
