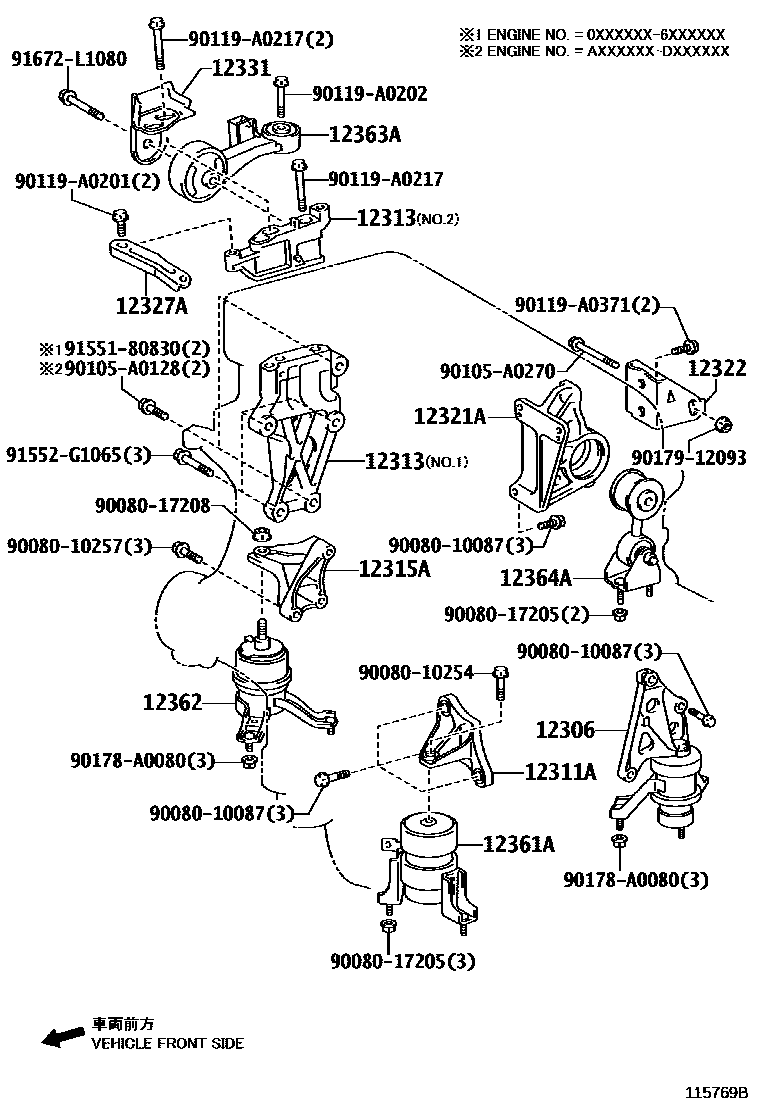

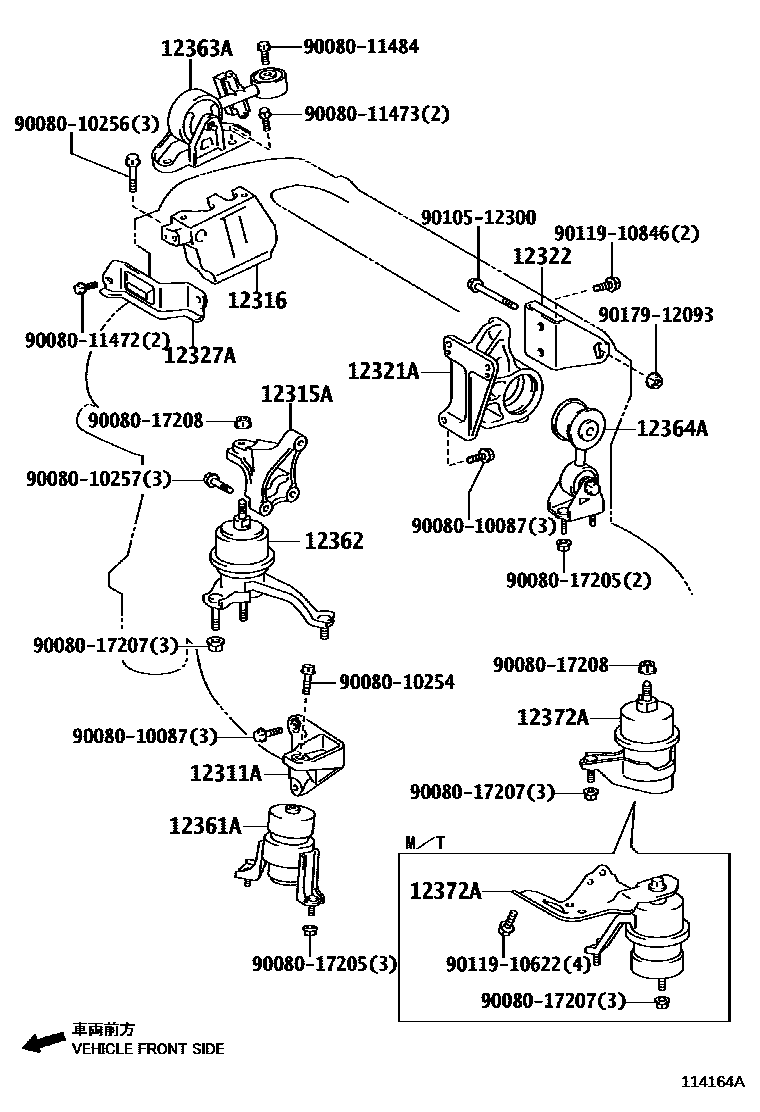

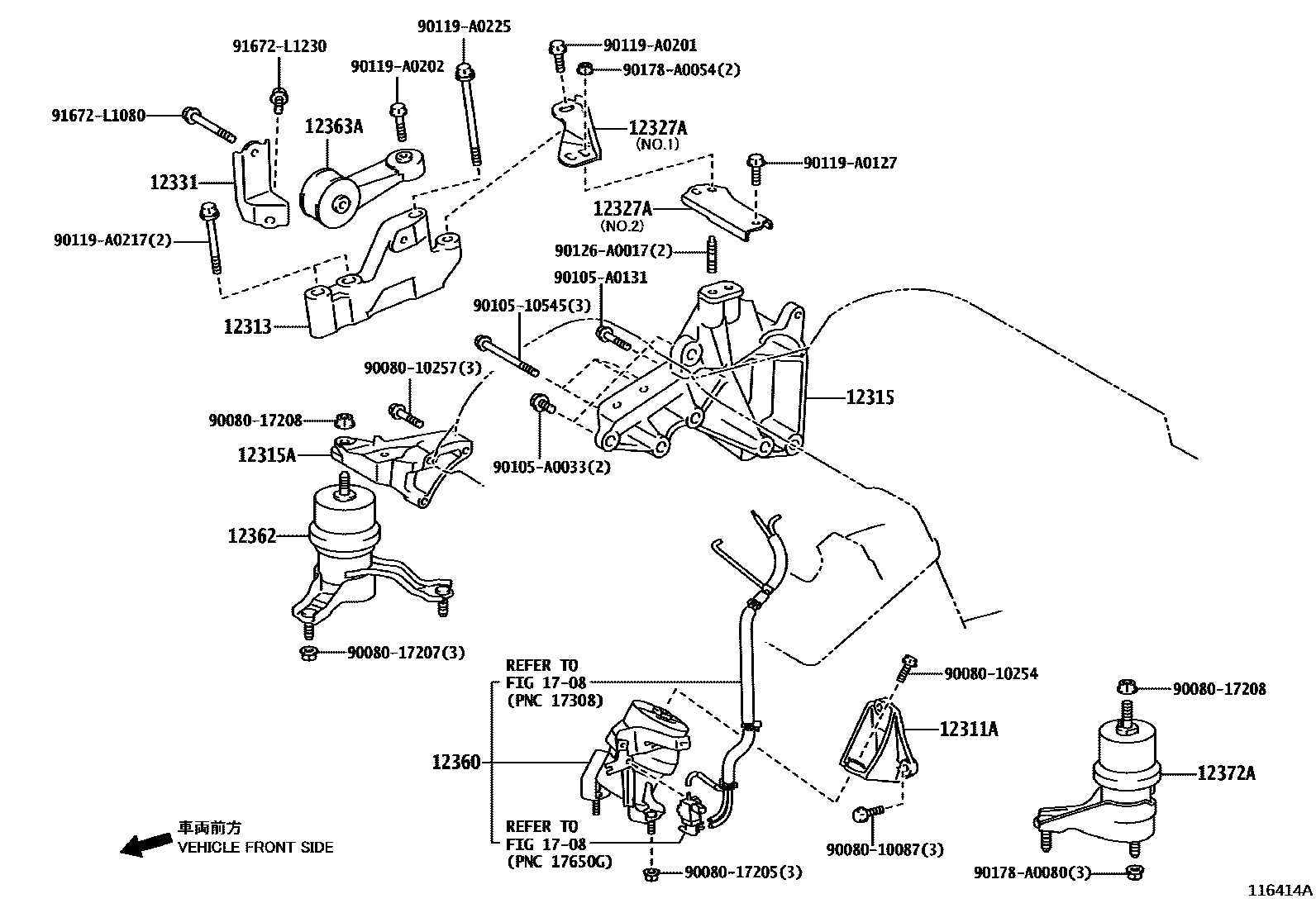

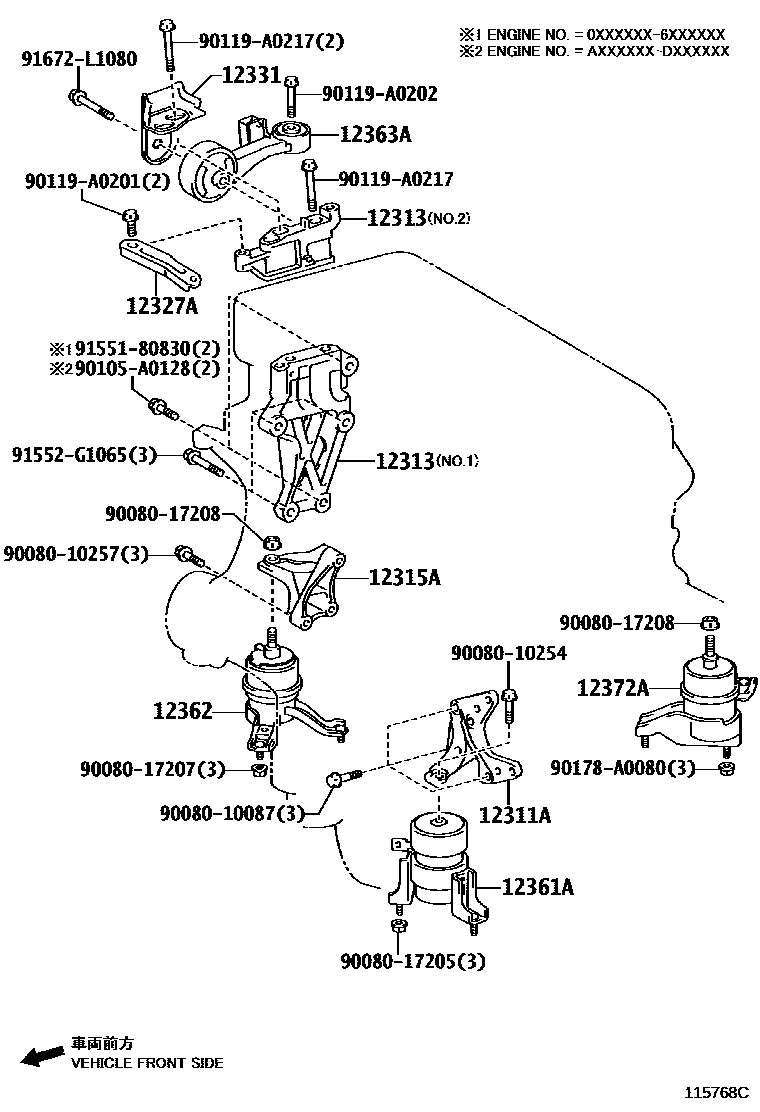

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-36010 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0H100 · 12311-0P020 · 12311-36030 · 12311-36040 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0P060 · 12313-0V030 · 12313-0V040 · 12313-31010 · 12313-36010 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0P031 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0H080 · 12315-0P020 · 12315-31100 · 12319-0V020 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-0H010 · 12316-0H050 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-28020 · 12321-36020 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-28050 · 12322-36010 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0H010 · 12327-0P020 · 12327-0P030 · 12327-0V010 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-0P020 · 12331-0V030 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-0P030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0H100 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-0H030 · 12362-0P050 · 12362-0V010 |
| 12363A | Engine movement control lever | 12309-0H060 · 12363-0P010 · 12363-0P011 · 12363-0V030 · 12363-0V031 |
| 12364A | Engine lateral control lever | 12308-0H030 · 12308-0V010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-0H010 · 12372-0H090 · 12372-0P010 |
