Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

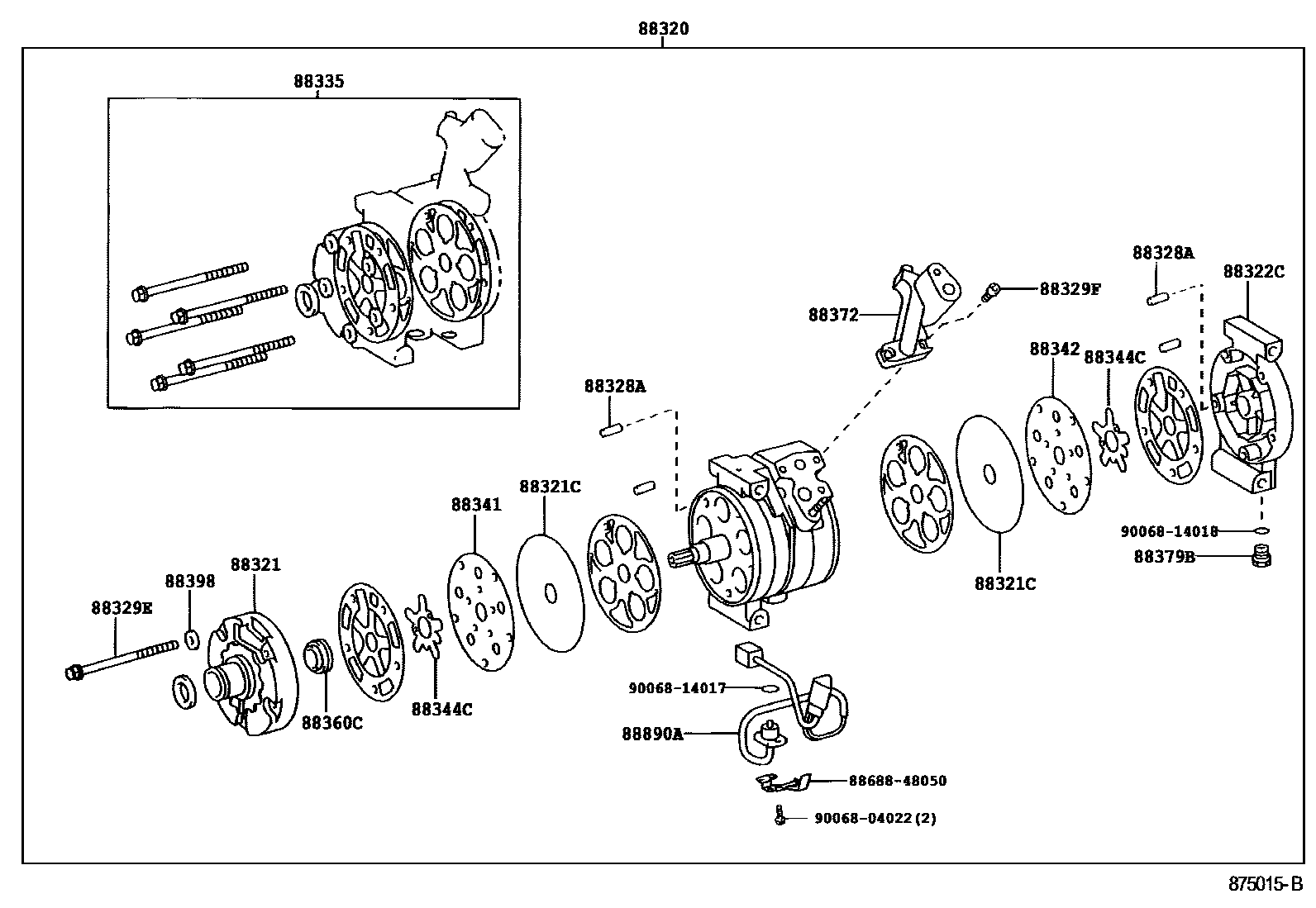

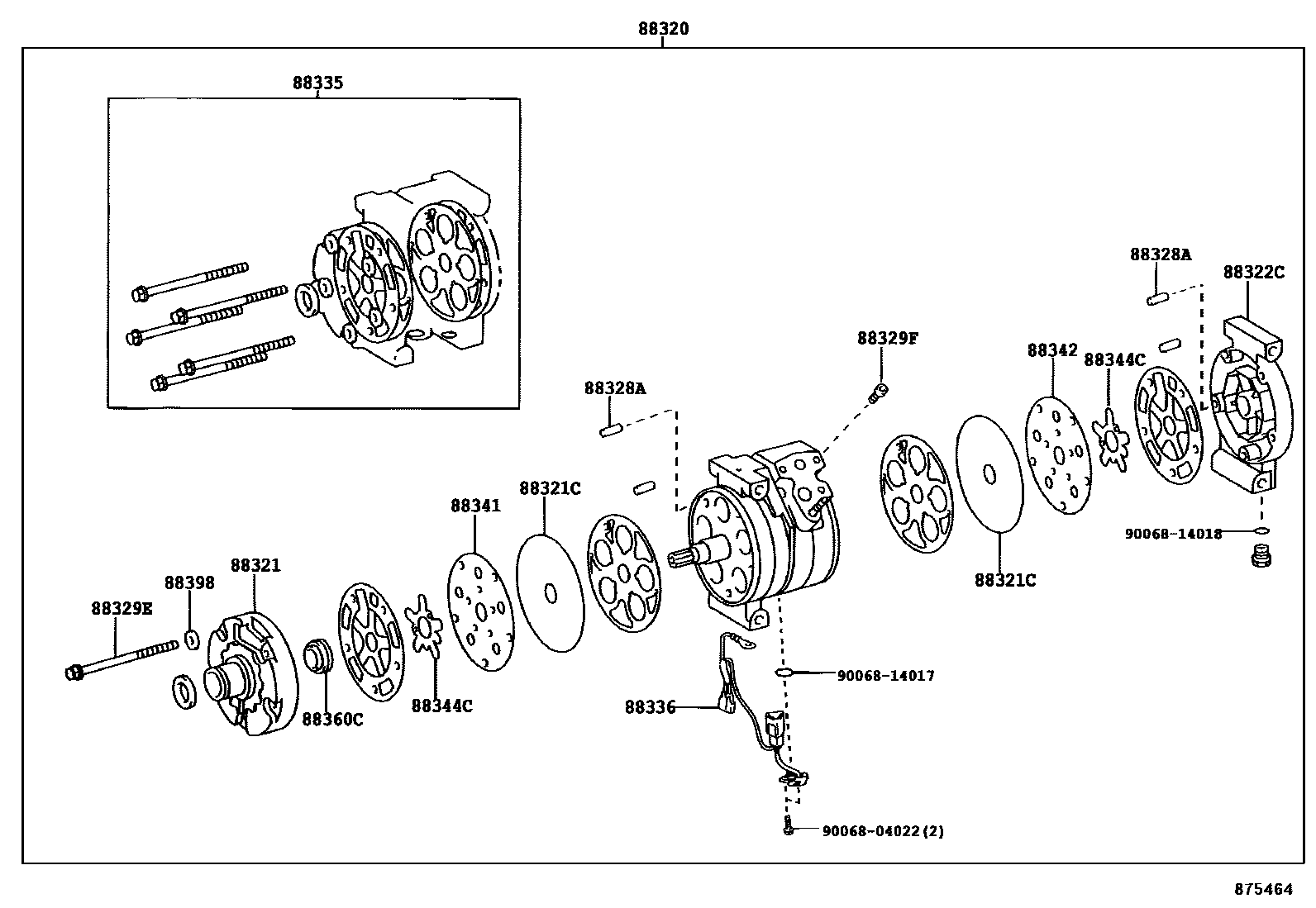

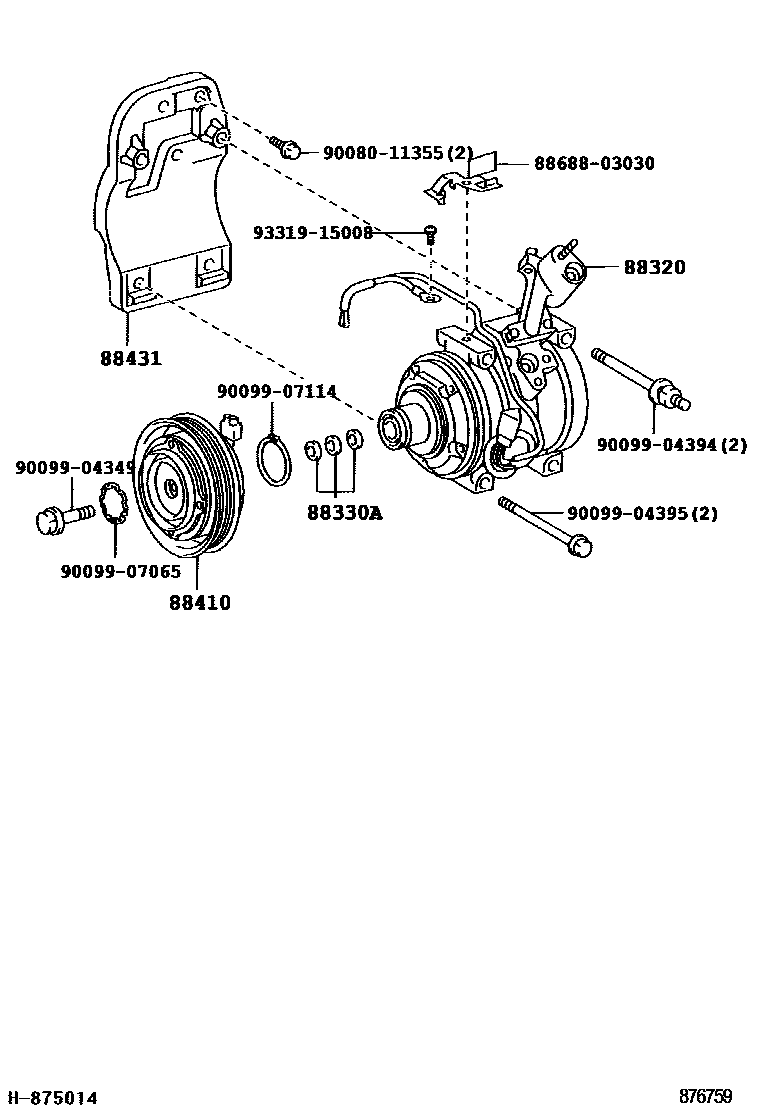

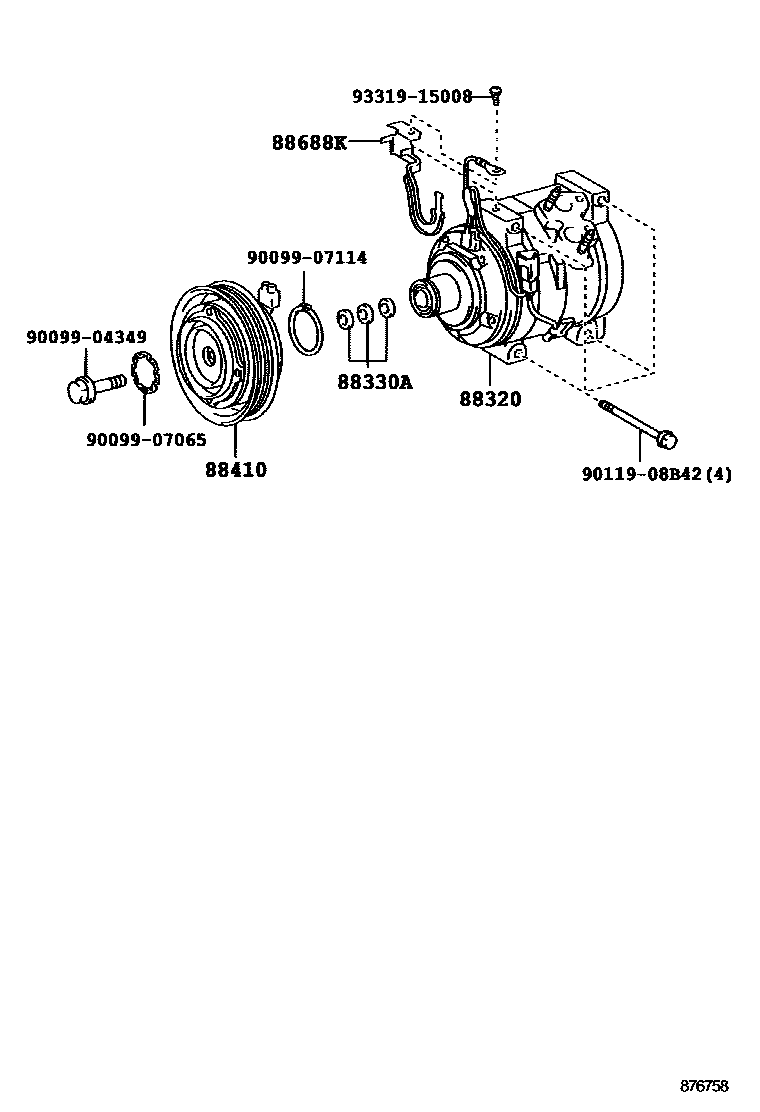

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-06080 · 88320-07090 |
| 88321 | Cooler compressor cylinder head | 88321-06070 |
| 88321C | suction valve reed | 88343-0C040 |
| 88322C | Rear cylinder head | 88322-06070 · 88322-06080 |
| 88328A | compressor pin | 90068-08002 |
| 88329E | No. 1 compressor bolt | 88329-0C010 |
| 88329F | No. 2 compressor bolt | 88329-16030 · 88329-32010 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-48070 |
| 88336 | compressor sensor | 88336-06040 |
| 88341 | front valve | 88341-0C010 |
| 88342 | Rear compressor valve plate | 88342-0C010 |
| 88344C | Discharge valve reed | 88344-0C030 · 88344-32010 |
| 88360C | Shaft seal assembly | 88360-32010 |
| 88372 | Drain valve | 88372-48010 |
| 88379B | Pressure reducing valve | 88379-32010 |
| 88398 | Compressor seals | 88398-0C010 · 88398-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-06080 · 88410-06090 · 88410-06100 · 88410-33120 |
| 88431 | Compressor No. 1 mounting bracket | 88431-07021 |
| 88688K | Cooler compressor bracket | 88688-48070 |
| 88890A | sensor assembly | 88336-07060 |
